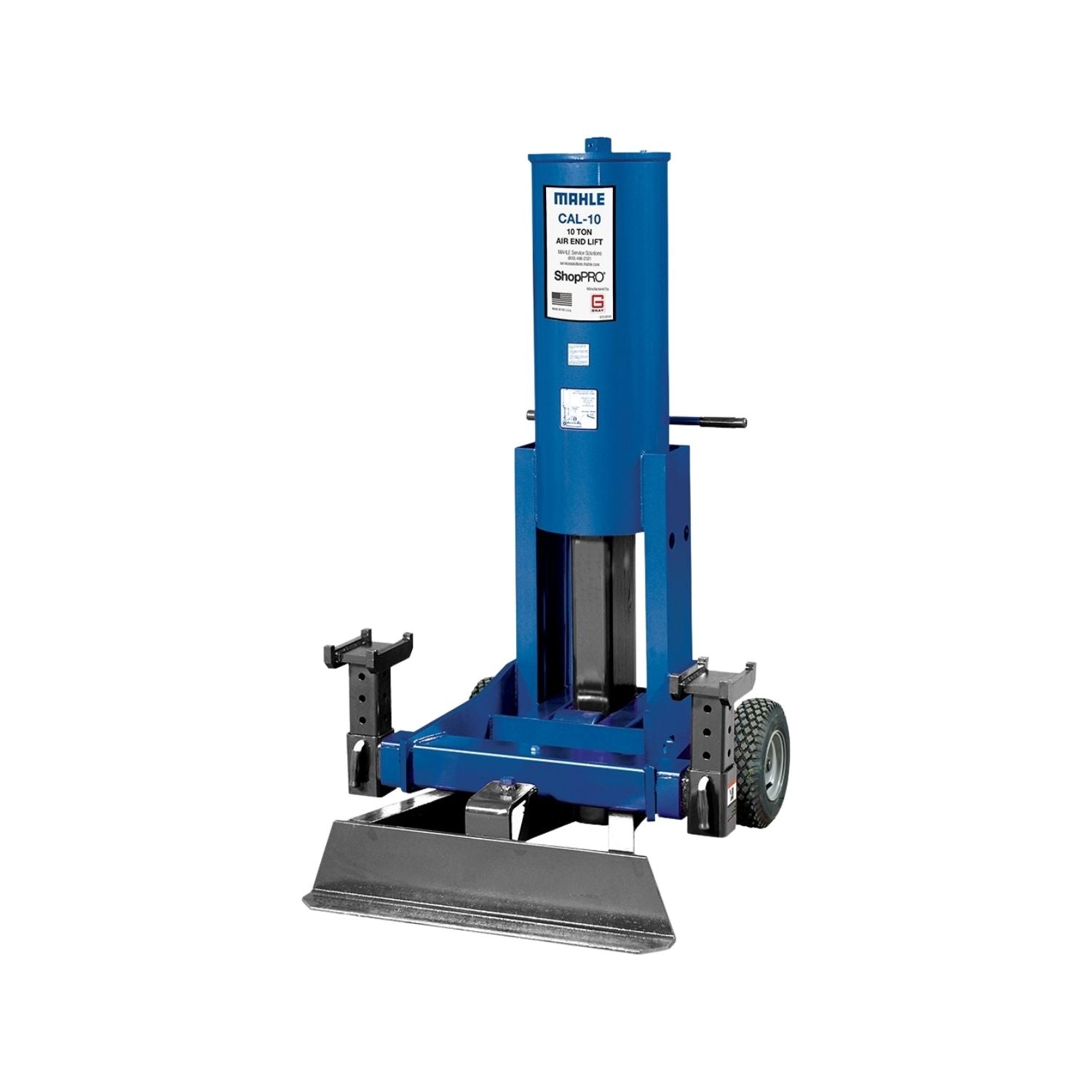

Mahle ShopPRO CAL-10 Commercial Vehicle Air Lift 10 Ton #485-80120-00
| Model / Part Number | 485-80120-00 |
| Product Type | 10 Ton Commercial Vehicle Air Lift |
| Capacity | 20,000 lbs (10 tons) |
Mahle CAL-10 — 10 Ton Commercial Vehicle Air Lift
One end of a commercial vehicle, trailer, or piece of heavy equipment needs to come up fast and stay controlled the whole way - a jack that's too small for the job, or one that needs electrical or hydraulic setup before it can even start lifting, slows down every service bay it touches.
The CAL-10 solves that with a 100% air-operated system rated to 20,000 lbs (10 tons), a low 14" starting height that gets under low-clearance suspensions, and a full 30" powered stroke that reaches 50" without a second lift stage. The adjustable saddle system and wide base keep the load stable across a range of axle widths and vehicle types, and the two-stage air valve gives techs smooth, controlled raising and lowering instead of an abrupt on/off lift.
Who the CAL-10 Is Built For
- ✅ Shops raising commercial vehicles, trailers, and heavy equipment where speed and a low starting height matter
- ✅ Fleet service bays that want a fully air-operated lift with no hydraulic pump or electrical hookup to maintain
- ✅ Techs working a mix of axle widths who need the adjustable saddle spread instead of a fixed-width lift point
- ✅ Operations that need large pneumatic wheels for easy repositioning between bays
What the CAL-10 Is NOT Built For
- ❌ Loads exceeding the 20,000 lb (10 ton) capacity rating
- ❌ Shops without a reliable shop air supply to run a 100% air-operated lift
What Makes the CAL-10 Different
100% Air-Operated Lifting
The CAL-10 runs entirely off shop air — no hydraulic pump or electrical hookup to install or maintain, so it's ready to lift as soon as it's connected.
30" Powered Stroke
A full 30-inch powered stroke takes the CAL-10 from a 14-inch starting height up to 50 inches, covering low-clearance vehicles and taller lifts without a second lift stage.
Adjustable Saddle System
The saddle spread adjusts from 32" to 43" to accommodate different axle widths, so one lift handles a broader range of commercial vehicles.
- Shops raising commercial vehicles, trailers, and heavy equipment where speed and a low starting height matter
- Fleet service bays that want a fully air-operated lift with no hydraulic pump or electrical hookup to maintain
- Techs working a mix of axle widths who need the adjustable saddle spread instead of a fixed-width lift point
- Loads exceeding the 20,000 lb (10 ton) capacity rating
- Shops without a reliable shop air supply to run a 100% air-operated lift
Is the CAL-10 the Right Air Lift for Your Shop?
| Capacity | 20,000 lbs (10 tons) |
| Power System | 100% Air Operated |
| Minimum Start Height | 14" |
| Powered Stroke | 30" (up to 50" max height) |
Choose the CAL-10 for commercial vehicle, trailer, and heavy equipment end-lifting up to 10 tons where a fully air-operated system and low starting height matter most.
Have questions about whether the CAL-10 fits your specific job? Call (844) 480-6059.
Full Specifications — CAL-10
| Part Number | 485-80120-00 |
| Product Type | Commercial vehicle air lift |
| Capacity | 20,000 lbs (10 tons) |
| Minimum Start Height | 14" |
| Maximum Lift Height | 50" |
| Powered Stroke | 30" |
| Saddle Spread | 32"–43" |
| Forward Reach (CL to CL) | 17" |
| Dimensions | 43" L x 37" W x 66" H |
| Power Type | 100% Air Operated |
| Shipping Weight | 755 lbs |
⚠️ Setup Requirements
- Weight: confirm your dock/receiving area and shop floor can handle this unit’s shipping weight before delivery.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CAL-10
Warranty coverage for the CAL-10 has not been independently verified from an official Mahle source at this time. Call Alamo at (844) 480-6059 to confirm the current warranty terms before you order.
Frequently Asked Questions — Mahle CAL-10
Why Buy the CAL-10 from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (844) 480-6059 for a quote.
- We service it. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 20,000 lb (10 ton) capacity with a 14" starting height and 30" powered stroke - call and we'll confirm it matches your typical vehicle mix before you order.
