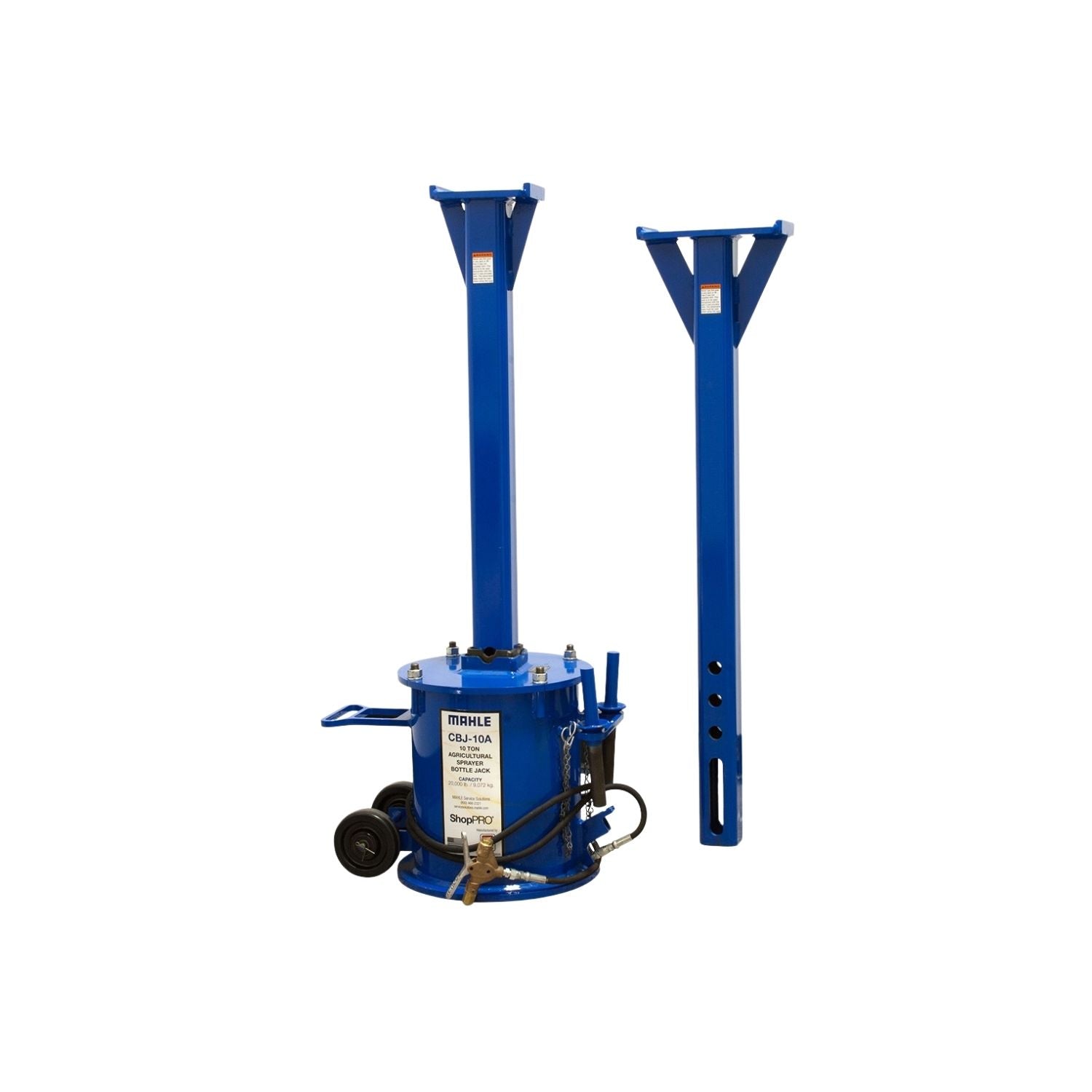

Mahle ShopPRO CBJ-10A Bottle Jack Air Assist #485-80019-00
| Model / Part Number | 485-80019-00 |
| Product Type | Bottle Jack with Air Assist |
| Capacity | 20,000 lbs (10 tons) |
Mahle CBJ-10A — Bottle Jack with Air Assist
Agricultural sprayers and heavy commercial equipment often need spring, tire, and brake service in the field, where a bare bottle jack with no support stand leaves a load sitting on hydraulics alone — not something most techs want to work under.
The CBJ-10A combines lift and support in one 100% air-operated tool rated to 20,000 lbs (10 tons), eliminating the need for a separate stand entirely. Multiple saddle width options accommodate different lifting points and equipment sizes, and a removable handle with wheels makes it easy to reposition around the shop or job site — it can even run in pairs with an optional air tee connector for synchronized lifting.
Who the CBJ-10A Is Built For
- ✅ Agricultural equipment dealers and shops servicing sprayers and heavy ag equipment in the field
- ✅ Techs who need integrated lift-and-support in one tool instead of a jack plus a separate stand
- ✅ Operations running multiple saddle widths across different equipment types
- ✅ Shops that want pair operation via the optional air tee connector for synchronized lifting on wide equipment
What the CBJ-10A Is NOT Built For
- ❌ Loads exceeding the 20,000 lb (10 ton) capacity rating
- ❌ Shops without a reliable shop air supply to run a 100% air-operated jack
What Makes the CBJ-10A Different
Integrated Lift and Support Design
One tool lifts and holds the load, eliminating the need to position a separate support stand before starting service.
Multiple Saddle Width Options
Standard and wide saddle configurations accommodate different lifting points across sprayer and heavy equipment models.
Pair Operation Capability
An optional air valve T-connector lets two CBJ-10A units run in sync for wide-load lifting jobs.
- Agricultural equipment dealers and shops servicing sprayers and heavy ag equipment in the field
- Techs who need integrated lift-and-support in one tool instead of a jack plus a separate stand
- Operations running multiple saddle widths across different equipment types
- Loads exceeding the 20,000 lb (10 ton) capacity rating
- Shops without a reliable shop air supply to run a 100% air-operated jack
Is the CBJ-10A the Right Jack for Your Shop?
| Capacity | 20,000 lbs (10 tons) |
| Design | Integrated lift + support stand |
| Power System | 100% Air Operated |
| Saddle Options | Standard 6.25" / Wide 9.875" |
Choose the CBJ-10A for agricultural sprayer and heavy equipment spring, tire, and brake work where an integrated lift-and-support tool saves a step over a separate jack and stand.
Have questions about whether the CBJ-10A fits your specific job? Call (844) 480-6059.
Full Specifications — CBJ-10A
| Part Number | 485-80019-00 |
| Product Type | Bottle jack with air assist |
| Capacity | 20,000 lbs (10 tons) |
| Minimum Start Height | 50" (Standard) / 50" (Wide Saddle) |
| Maximum Lift Height | 68" (Standard) / 67" (Wide Saddle) |
| Stroke | 9.625" |
| Saddle Width | 6.25" (Standard) / 9.875" (Wide Saddle) |
| Adjustment Increments | 2.5" |
| Overall Length | 27.5" |
| Overall Width | 26" |
| Construction | Heavy-duty steel |
| Shipping Weight | 290 lbs |
| Warranty | 1 year (parts and labor) |
⚠️ Setup Requirements
- Weight: confirm your dock/receiving area and shop floor can handle this unit’s shipping weight before delivery.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CBJ-10A
The CBJ-10A carries a 1 year (parts and labor) warranty from Mahle.
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Mahle warranty terms, conditions, and requirements.
Frequently Asked Questions — Mahle CBJ-10A
Why Buy the CBJ-10A from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (844) 480-6059 for a quote.
- We service it. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 20,000 lb (10 ton) capacity with multiple saddle width options for ag sprayers and heavy equipment — call and we'll help confirm the right saddle configuration for your jobs.
- Free shipping. Ships free to the 48 contiguous states.
