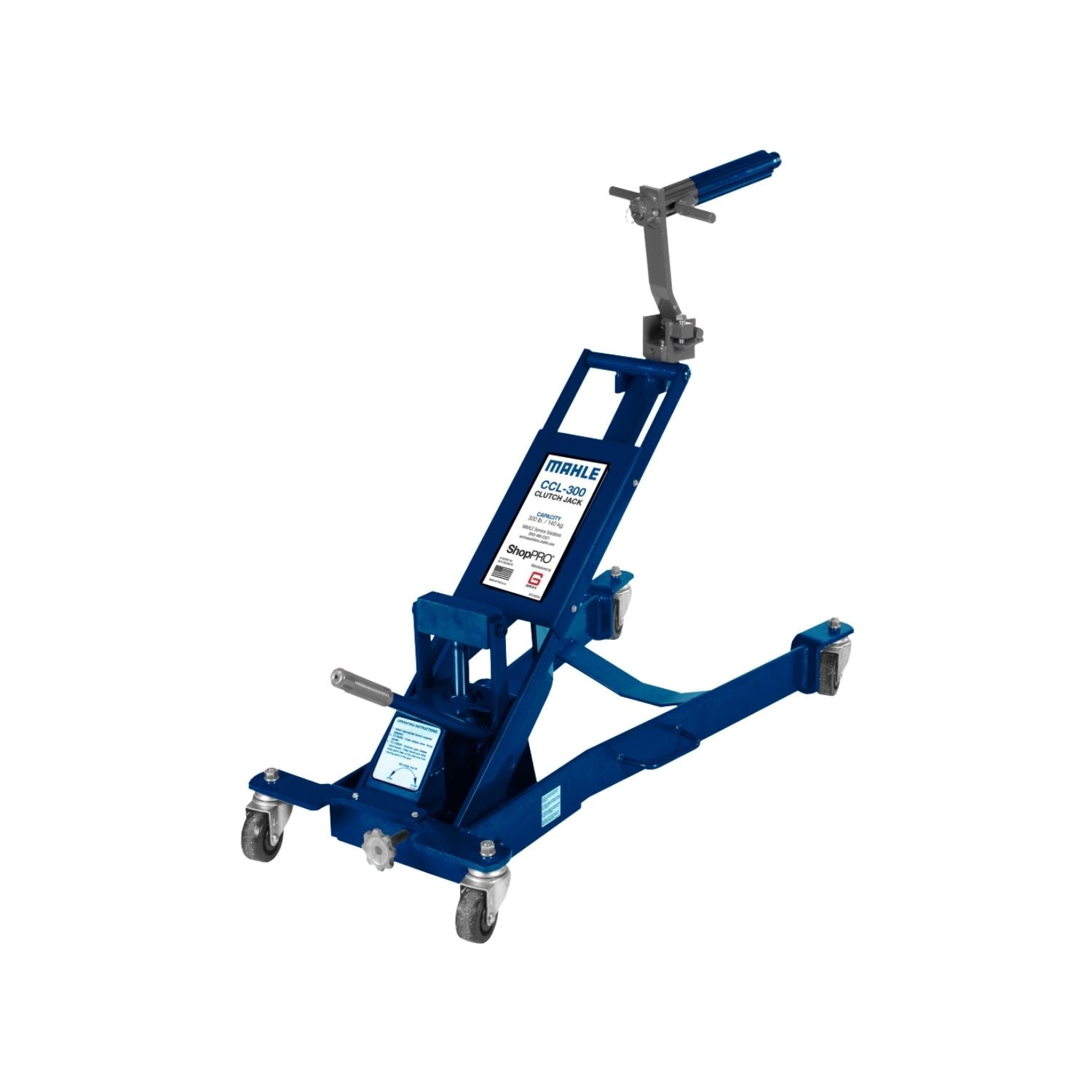

Mahle ShopPRO CCL-300 Clutch Jack Series #485-80044-00, 485-80048-00
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
Mahle shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model / Part Number | Standard — 485-80044-00 High Rise — 485-80048-00 |
| Product Type | Clutch Jack |
| Capacity | 300 lbs |
Mahle CCL-300 Series — Clutch Jack
Removing and installing a clutch or flywheel by hand risks dropping a heavy component or misaligning it against the transmission during reinstall, and elevated service bays add another layer of difficulty when a standard-height jack simply can't reach the work.
The CCL-300 Series handles clutch and flywheel assemblies up to 300 lbs with a patented 360° rotating head for precise alignment during installation and removal. It's available in two configurations — Standard for hydraulic operation at typical service heights, and High Rise with air/hydraulic assist that extends lift range for elevated vehicles or service bays — so a shop matches the jack to its actual bay height instead of forcing one configuration to reach everywhere.
Who the CCL-300 Series Is Built For
- ✅ Shops removing and installing clutch and flywheel assemblies up to 300 lbs on commercial and heavy-duty vehicles
- ✅ Bays with elevated service platforms that need the High Rise configuration's extended 40"–80.5" lift range
- ✅ Standard-height shops where the base Standard configuration's 15"–39" range covers the job
- ✅ Techs who need 360° head rotation for precise alignment during clutch installation
What the CCL-300 Series Is NOT Built For
- ❌ Components exceeding the 300 lb capacity rating
- ❌ Standard-height shops that don't need the High Rise configuration's extended reach (added cost with no benefit)
What Makes the CCL-300 Series Different
360° Rotating Head
Provides flexibility and precise alignment during clutch and flywheel installation and removal, reducing the guesswork of manual positioning.
Two Lift-Range Configurations
Standard covers 15"–39" with hydraulic operation; High Rise extends to 40"–80.5" with air/hydraulic assist for elevated service bays — each its own SKU.
Fold-Back Design
Allows the jack to be easily removed from under the vehicle once the clutch or flywheel is secured, speeding up the next step of the job.
- Shops removing and installing clutch and flywheel assemblies up to 300 lbs on commercial and heavy-duty vehicles
- Bays with elevated service platforms that need the High Rise configuration's extended 40"–80.5" lift range
- Standard-height shops where the base Standard configuration's 15"–39" range covers the job
- Components exceeding the 300 lb capacity rating
- Standard-height shops that don't need the High Rise configuration's extended reach (added cost with no benefit)
Is the CCL-300 Series the Right Clutch Jack for Your Shop?
| Capacity | 300 lbs |
| Configurations | Standard (15"–39") / High Rise (40"–80.5") — each its own SKU |
| Head Rotation | 360° |
| Power Type | Hydraulic / Air + Hydraulic (High Rise) |
Choose the CCL-300 Series for clutch and flywheel service up to 300 lbs, and pick Standard or High Rise based on your actual service bay height.
Have questions about whether the CCL-300 Series fits your specific job? Call (817) 865-3707.
Full Specifications — CCL-300 Series
| Available Configurations & Part Numbers | Standard — 485-80044-00 High Rise — 485-80048-00 |
| Product Type | Clutch jack |
| Capacity | 300 lbs |
| Minimum Start Height | 15" (Standard) / 40" (High Rise) |
| Maximum Lift Height | 39" (Standard) / 80.5" (High Rise) |
| Head Rotation | 360° |
| Spline Shaft | 2" |
| Power Type | Hydraulic (Standard) / Air + Hydraulic (High Rise) |
| Required Air Pressure | N/A (Standard) / 100–160 psi (High Rise) |
| Dimensions (W x L) | 41" x 22" (Standard) / 41" x 41" (High Rise) |
| Shipping Weight | 134 lbs (Standard) / 105 lbs (High Rise) |
⚠️ Setup Requirements
- Weight: confirm your dock/receiving area and shop floor can handle this unit’s shipping weight before delivery.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (817) 865-3707 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CCL-300 Series
Warranty coverage for the CCL-300 Series has not been independently verified from an official Mahle source at this time. Call Alamo at (817) 865-3707 to confirm the current warranty terms before you order.
Frequently Asked Questions — Mahle CCL-300 Series
Why Buy the CCL-300 Series from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (817) 865-3707 for a quote.
- We service it. Call (817) 865-3707 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 300 lb capacity across Standard (15"–39") and High Rise (40"–80.5") configurations — we'll help confirm which lift range matches your service bay before you order.
- Ships by freight. The available method and price are shown at checkout.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
