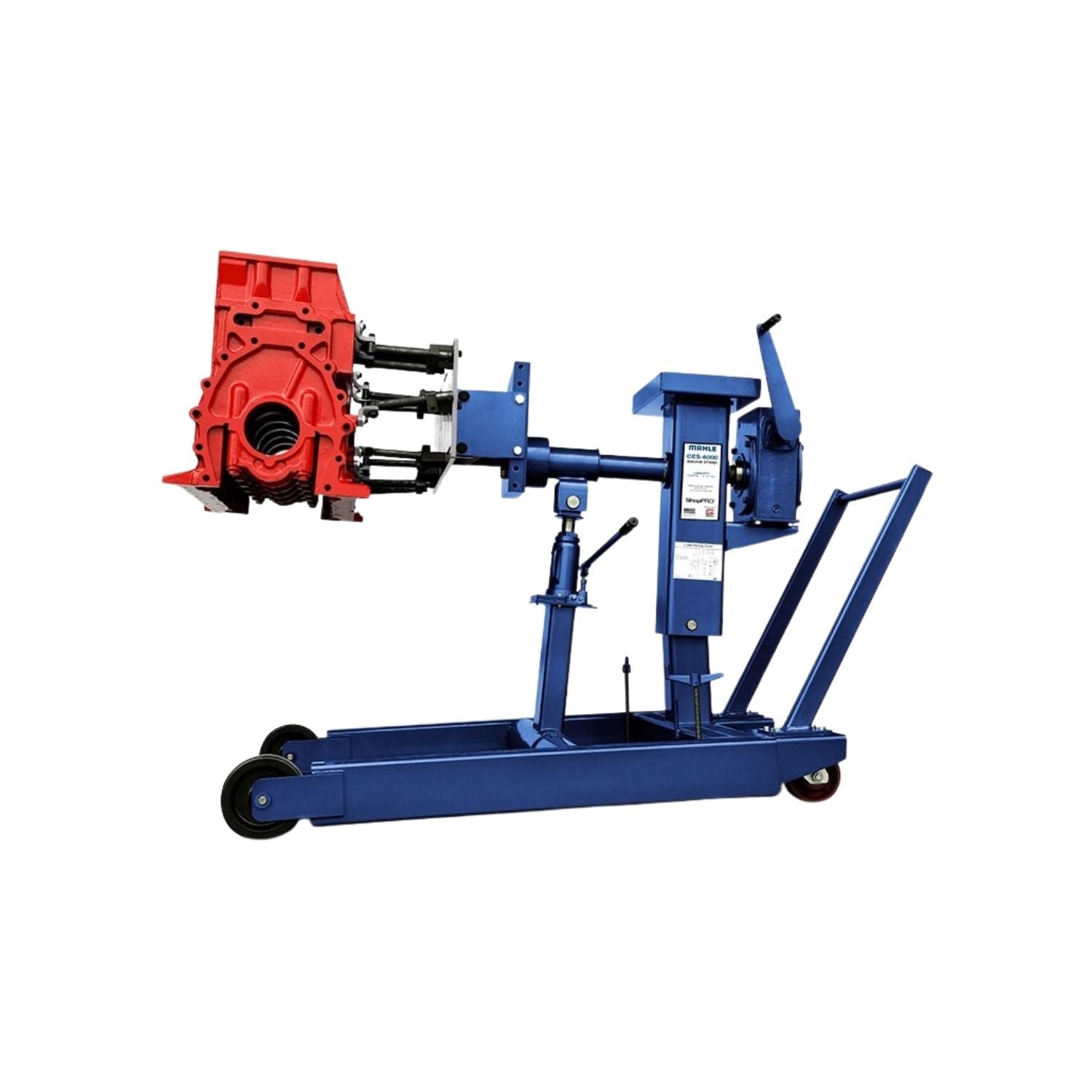

Mahle ShopPRO CES-6000 Engine Roll-Over Stand 6,000 lb #485-80125-00
| Model / Part Number | 485-80125-00 |
| Product Type | Engine Roll-Over Stand |
| Capacity | 6,000 lbs (2,721 kg) |
Mahle CES-6000 — Engine Roll-Over Stand
Rebuilding a large diesel or heavy-duty engine means accessing every angle of the block for teardown and reassembly — and doing that safely with a 4,000+ lb engine hanging in a fixed-position stand forces techs to work around the engine instead of the engine rotating to meet them.
The CES-6000 handles engines up to 6,000 lbs with full 360° rotation capability, letting techs spin the block to the exact angle needed for any step of a rebuild. A fully adjustable mounting system accommodates a wide range of engine sizes and configurations, and the lateral adjustment design plus heavy-duty locking wheel system keep the stand both flexible and secure during service — built for demanding fleet, diesel, and heavy equipment rebuild work.
Who the CES-6000 Is Built For
- ✅ Diesel and heavy equipment shops rebuilding engines up to 6,000 lbs
- ✅ Techs who need 360° rotation to access every angle of the block during teardown and reassembly
- ✅ Fleet service operations handling a range of engine sizes that need the fully adjustable mounting system
- ✅ Shops that want locking wheels for stability once the engine is positioned
What the CES-6000 Is NOT Built For
- ❌ Engines exceeding the 6,000 lb capacity rating
- ❌ Light-duty automotive engine work where a smaller-capacity stand is a better cost match
What Makes the CES-6000 Different
360° Engine Rotation
Spin the engine to the exact angle needed for any step of a rebuild, instead of working around a fixed-position stand.
Fully Adjustable Mounting System
Accommodates a wide range of engine sizes and configurations on the same stand.
Heavy-Duty Locking Wheel System
Combines shop mobility with secure, locked positioning once the engine is in place for service.
- Diesel and heavy equipment shops rebuilding engines up to 6,000 lbs
- Techs who need 360° rotation to access every angle of the block during teardown and reassembly
- Fleet service operations handling a range of engine sizes that need the fully adjustable mounting system
- Engines exceeding the 6,000 lb capacity rating
- Light-duty automotive engine work where a smaller-capacity stand is a better cost match
Is the CES-6000 the Right Engine Stand for Your Shop?
| Capacity | 6,000 lbs (2,721 kg) |
| Rotation | 360° |
| Maximum Engine Swing Radius | 42" |
| Mobility | 8" fixed front / 6" swivel rear wheels |
Choose the CES-6000 for diesel, fleet, and heavy equipment engine rebuilds up to 6,000 lbs where full 360° rotation speeds up teardown and reassembly.
Have questions about whether the CES-6000 fits your specific job? Call (844) 480-6059.
Full Specifications — CES-6000
| Part Number | 485-80125-00 |
| Product Type | Engine roll-over stand |
| Capacity | 6,000 lbs (2,721 kg) |
| Height to Center Line | 39" |
| Maximum Overall Height | 50" |
| Maximum Overall Length | 66" |
| Overall Width | 49" |
| Front Wheels | 8" fixed |
| Rear Wheels | 6" swivel |
| Handle Length | 12" |
| Maximum Engine Swing Radius | 42" |
| Rotation | 360° |
⚠️ Setup Requirements
- Weight: confirm your dock/receiving area and shop floor can handle this unit’s shipping weight before delivery.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CES-6000
Warranty coverage for the CES-6000 has not been independently verified from an official Mahle source at this time. Call Alamo at (844) 480-6059 to confirm the current warranty terms before you order.
Frequently Asked Questions — Mahle CES-6000
Why Buy the CES-6000 from Alamo Equipment & Service?
- Installation available. Buying online gets you the equipment — setup/install is an extra-charge, quoted service. Call (844) 480-6059 for a quote.
- We service it. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 6,000 lb capacity with 360° rotation and a 42" maximum engine swing radius — call and we'll confirm it fits your typical engine size before you order.
