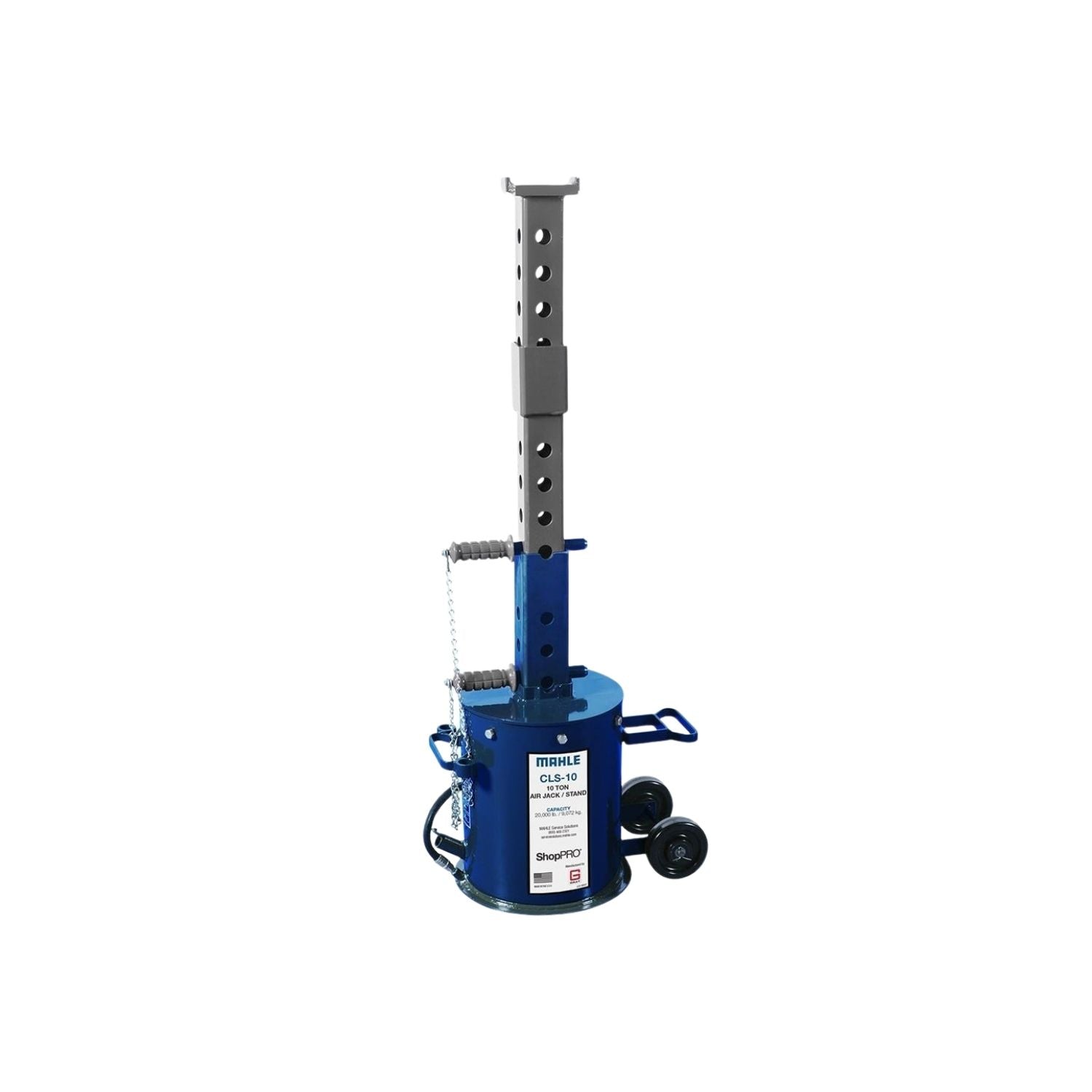

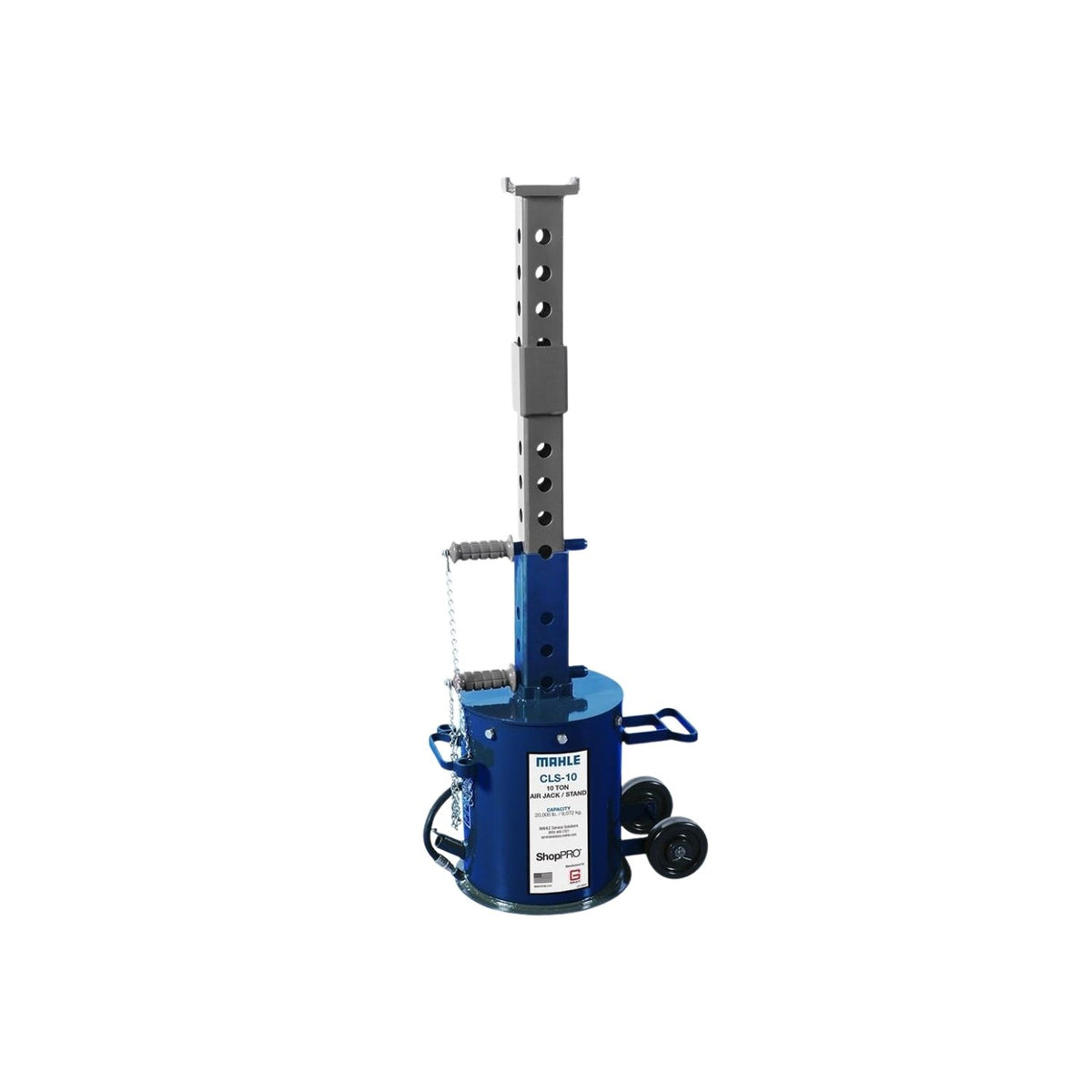

Mahle ShopPRO CLS-10 Air Lift & Support Stand #485-80017-00
| Model / Part Number | 485-80017-00 |
| Product Type | Air Lift and Support Stand |
| Capacity | 20,000 lbs (10 tons) |
Mahle CLS-10 — Air Lift and Support Stand
Spring, brake, and tire service on heavy-duty trucks usually calls for both a jack to lift the vehicle AND a separate stand to hold it — two tools to position, and two chances for something to shift if either one is set up wrong.
The CLS-10 combines both jobs into one 100% air-operated unit rated to 20,000 lbs (10 tons), eliminating the need for separate support stands entirely. An air rocker valve gives precise control over raising and lowering, multiple saddle options accommodate different vehicle lifting points, and a removable handle with wheels keeps it portable around the shop — it can even run in pairs with an optional air tee connector for synchronized lifting.
Who the CLS-10 Is Built For
- ✅ Shops doing spring, brake, and tire service on heavy-duty trucks and commercial vehicles
- ✅ Techs who want integrated lift-and-support in one tool instead of a jack plus separate stand
- ✅ Operations that need portability — removable handle and wheels for easy repositioning
- ✅ Bays that want pair operation via the optional air tee connector for synchronized lifting
What the CLS-10 Is NOT Built For
- ❌ Loads exceeding the 20,000 lb (10 ton) capacity rating — step up to the CLS-15 for heavier work
- ❌ Shops without a reliable 200 psi shop air supply
What Makes the CLS-10 Different
Integrated Lift and Support Design
The CLS-10 lifts and holds the load in a single unit, cutting out the extra step of positioning a separate support stand.
Air Rocker Valve Control
Ensures precise, smooth raising and lowering instead of an abrupt on/off lift.
Portable Design with Wheels
A removable handle and wheels make it easy to reposition around the shop between jobs.
- Shops doing spring, brake, and tire service on heavy-duty trucks and commercial vehicles
- Techs who want integrated lift-and-support in one tool instead of a jack plus separate stand
- Operations that need portability — removable handle and wheels for easy repositioning
- Loads exceeding the 20,000 lb (10 ton) capacity rating — step up to the CLS-15 for heavier work
- Shops without a reliable 200 psi shop air supply
Is the CLS-10 the Right Lift & Support Stand for Your Shop?
| Capacity | 20,000 lbs (10 tons) |
| Design | Integrated lift + support stand |
| Power System | 100% Air Operated |
| Maximum Lift Height | 37.5" (52.5" with extension) |
Choose the CLS-10 for heavy-duty truck spring, brake, and tire service up to 10 tons where combining lift and support into one tool saves a setup step.
Have questions about whether the CLS-10 fits your specific job? Call (844) 480-6059.
Full Specifications — CLS-10
| Part Number | 485-80017-00 |
| Product Type | Air lift and support stand |
| Capacity | 20,000 lbs (10 tons) |
| Minimum Start Height | 17.5" |
| Maximum Lift Height | 37.5" (Without Extension) / 52.5" (With Extension) |
| Stroke | 10" |
| Cylinder Bore | 12" |
| Required Air Pressure | 200 psi |
| Overall Length | 19" (Without Handle) / 48" (With Handle) |
| Wheel Diameter | 5" |
| Saddle Width | 4.5" (Inside) / 5.3" (Overall) |
| Handle Length | 29" |
| Shipping Weight | 138 lbs |
| Warranty | 1 year (parts and labor) |
⚠️ Setup Requirements
- Weight: confirm your dock/receiving area and shop floor can handle this unit’s shipping weight before delivery.
- Setup: Installation/setup is available as a quoted service — it’s not included in the purchase price. Call (844) 480-6059 for a quote if you’d like Alamo’s crew to set it up.
Mahle Warranty — CLS-10
The CLS-10 carries a 1 year (parts and labor) warranty from Mahle.
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Mahle warranty terms, conditions, and requirements.
