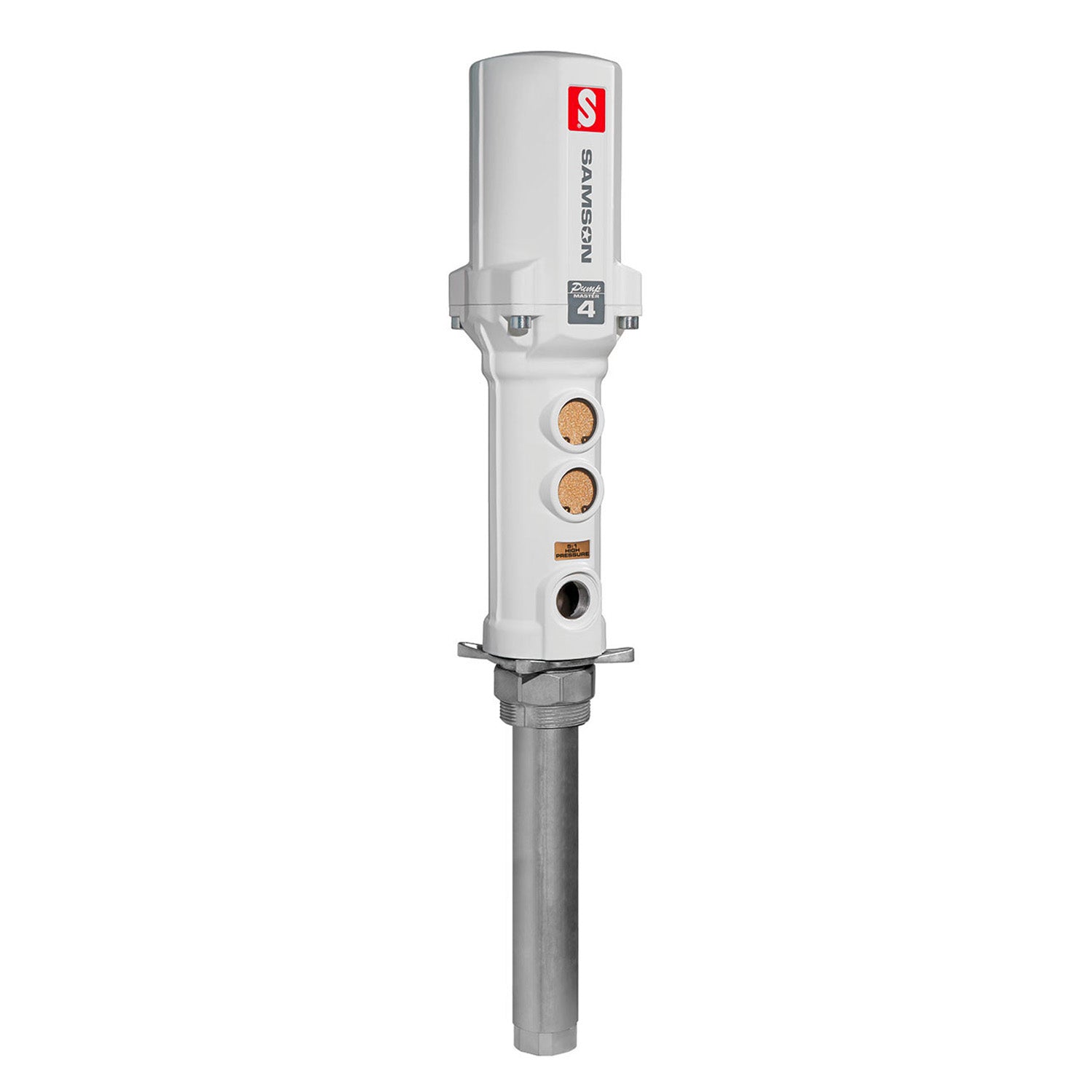

Samson Pumpmaster 4, 5:1 Ratio Universal Stub Pump #347120

SKU: ALMSAM347120
(0)
$630.38
-45% $1,142.00 $630.38
In stock
Shipping timing varies by item

Got questions?

Feel free to

Email: info@alamoequipment.com

Phone: (817) 865-3707

  • DESCRIPTION

    The PumpMaster 4 5:1 pump from Samson is a double-acting air-operated medium-pressure utility pump for dispensing lubricants in medium to large-size installations that include multiple outlets with simultaneous operations. Built for durability, the PumpMaster 4 is a time-proven and reliable air motor that withstands the most adverse working conditions. A height-adjustable 2 in. NPTM bung adaptor for drum and tank bung mounting is included. The Pumpmaster 4 also features a built-in pressure relief port for an optional pressure relief valve (not included).

    • SKU: 347120
    • Manufacturer: Samson
    • Size: 2 in.
    • Flow-Rate: 6.6 GPM
    • Pump Ratio: 5:1
    • Weight: 16.00 LBS

  • FEATURES

    • Time-proven and reliable air motor withstands the most adverse working conditions
    • Efficient air exhaust prevents icing, which can stall pump operation
    • Double acting pump provides even and smooth fluid flow
    • Dual packing seals provide trouble-free operation
    • Built-in port for connecting a pressure relief valve

  • SPECS + APPS

    SPECIFICATIONS

    • Pressure ratio: 5:1
    • Continuous Duty Flow Rate: 2.7 gpm (10 l/min)
    • Maximum Free Flow Rate: 6.6 gpm (25 l/min)
    • Air Pressure Operating Range: 20-140 psi (1.5-10 bar)
    • Maximum Outlet Pressure: 700 psi (50 bar)
    • Air Motor Effective Diameter: 2 1/2 in. (60 mm)
    • Air Motor Stroke: 4 in. (100 mm)
    • Air Consumption: 14 scfm (400 NL/min)
    • Air Inlet: 3/8 in. NPTF
    • Fluid Inlet: 1 in. NPTF
    • Fluid Outlet: 3/4 in. NPTF
    • Wetted Materials: Aluminum, Steel, NBR, PTFE, Polyurethane
    • Noise Level: 80 dB
    • Application: Stub pump, 16 gal drum pump, 55 gal drum, 257/500 tank, 60 in. tank
    • Simultaneous Dispense Points: 1-2
    • Max. Line Length: 500 ft. (150 m)
    • Pump Description: Standard Duty Medium Pressure

    APPLICATIONS

    • Synthetic and mineral-based oil
    • Hydraulic oil
    • Gear lube
    • Transmission fluid
