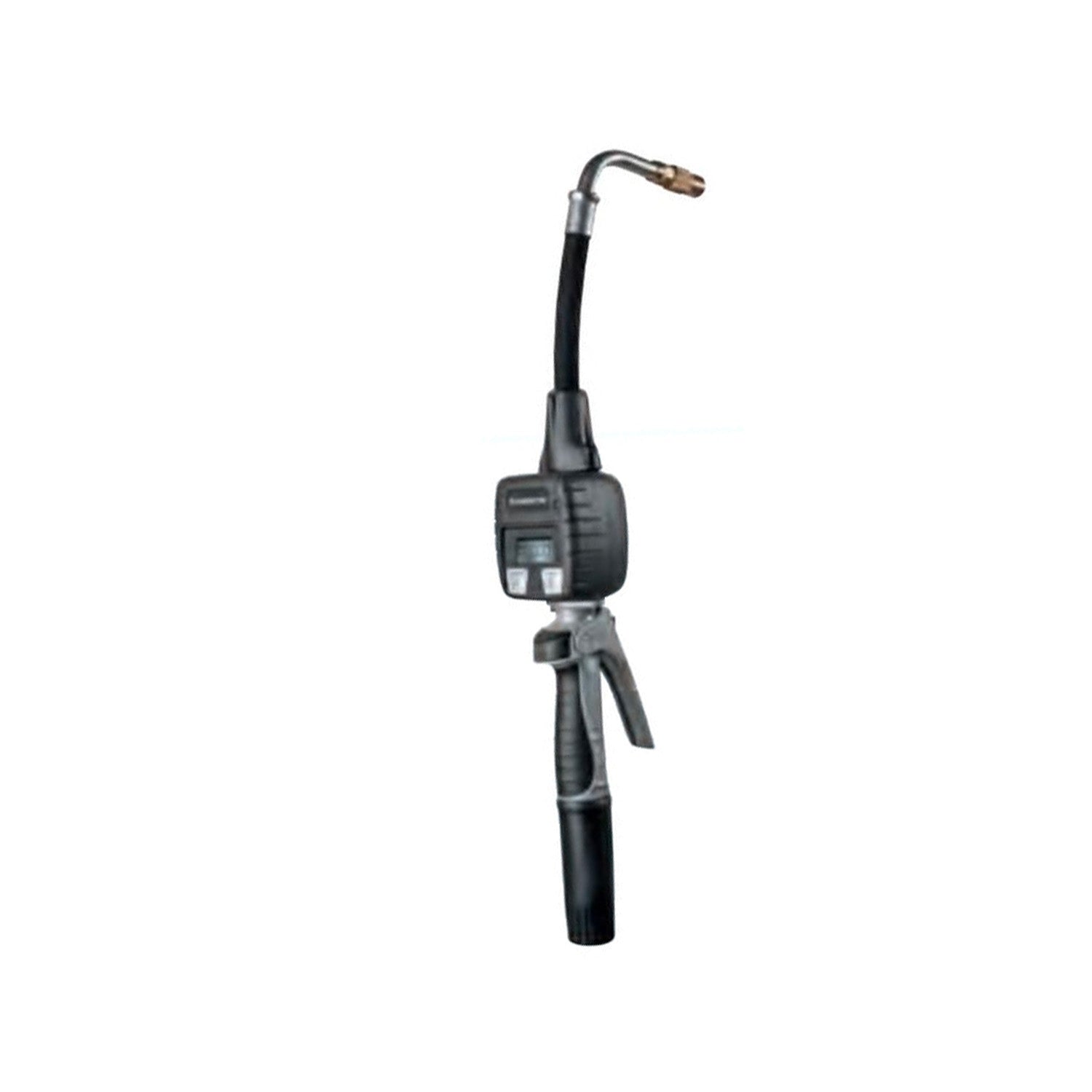

Samson Oil Control Handle with Digital Meter with 90° Angled Tube & Tip #365534

SKU 365534

Lead time:

by Samson
Original price $290.23 - Original price $290.23
Original price
$290.23
$290.23 - $290.23
Current price $290.23
  • DESCRIPTION

    Lube Trucks, Mining equipment maintenance, Car and Truck Dealerships, Fast Lube and Maintenance Shops, Fleet service

    Flexible outlet with 90º angled tube & quarter turn non-drip tip

    Samson's control handles are built for accuracy, durability, and higher flow performance and have been extensively and rigorously field-tested.

    These control handles feature high-precision machined measuring chambers with tight tolerances. Quality gears and stainless steel shafts eliminate the need for calibration to adjust for fluid viscosity. The sealed battery compartment and isolated electronic register help extend the life of the control handles. Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions. Rough TPE boot surrounds the entire meter for even greater durability. Replaceable AAA batteries. Units of measure can be selected quarts, gallons, pints, and liters.

  • APPLICATIONS

    Fluids Handled

    • Gear Oil
    • Hydraulic Oil and Fluids
    • AFT
    • Antifreeze Solutions
    • Synthetic and Mineral Based Oil
  • SPECIFICATIONS

     Model # Samson 365534
    Maximum Free Flow Rate 8 gal/min (30 l/min)
    Maximum Working Pressure
    1,450 psi (100 bar)
    Fluid Inlet
    1/2" NPT(F)
    Fluid Outlet
    1/2" NPT(F)
    Accuracy
    +/- 0.5%
    Power Source
    2x "AAA" 1.5 Batteries
    Wetted Materials
    Acetal / Aluminum/ Stainless steel / NBR / Zinc plated steel / TPU / Polyamide

    *Image is a representation of this item. Actual item may vary.*

  • DOWNLOADS

    Samson 365534 Oil Control Handle with Digital Meter with 90° Angled tube & quarter turn non-drip tip

    Spec Sheet

    Manual
