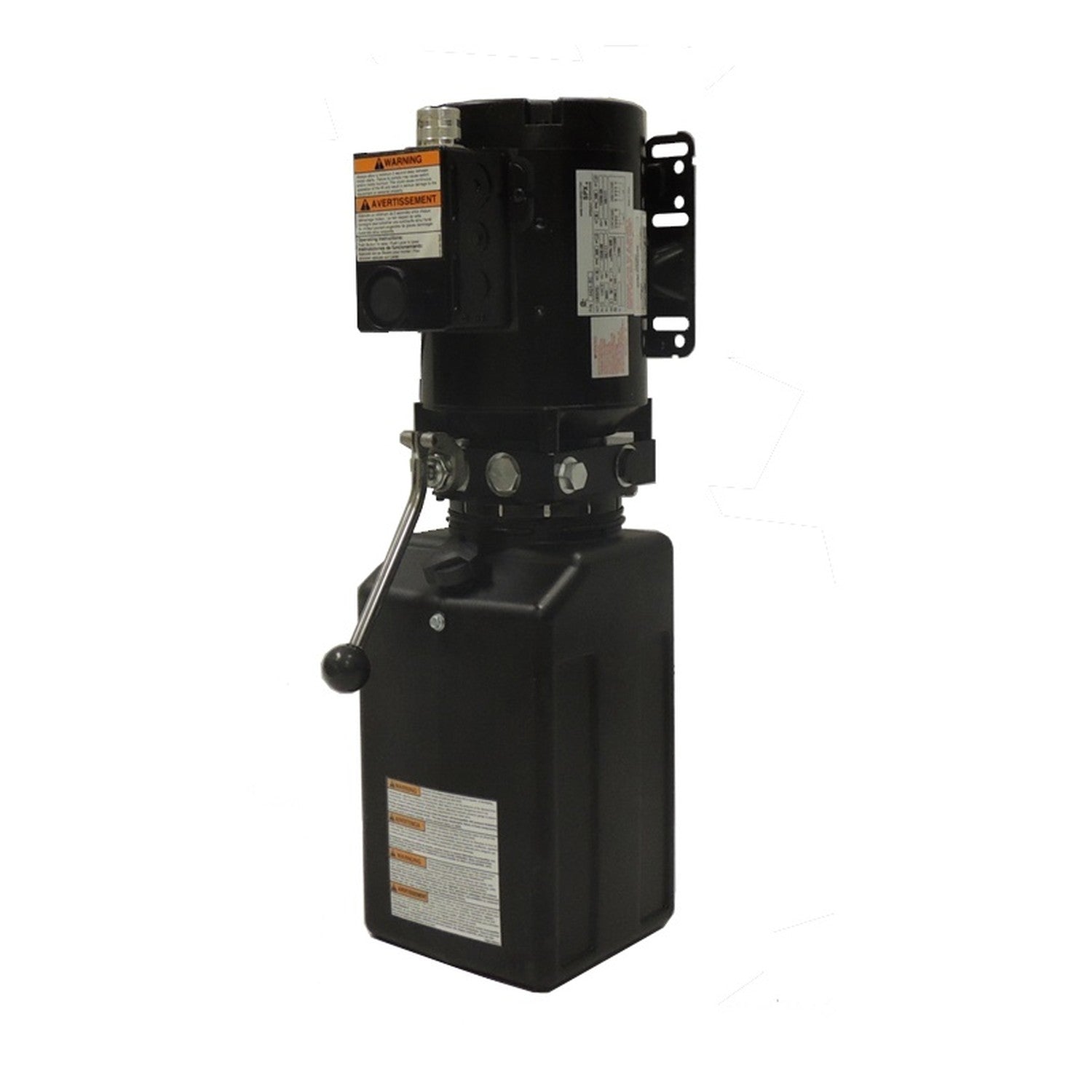

SPX 110 Volt Short Tank #PU-110V-S-S
| Part Number | PU-110V-S-S |
| Brand / Type | SPX hydraulic power unit, Short Tank |
| Power Supply | 115VAC / 60Hz / 1PH |
| Motor | 1 HP |
| Amps | 15A |
| RPM / Max Pressure | 3450 RPM / 2610 PSI |
| Tank Capacity | 1.5 gallon |
| Certifications | ETL, UL, CSA |
| Shipping Weight | 40 lb |
SPX 110 Volt Short Tank Power Unit #PU-110V-S-S
The SPX PU-110V-S-S is a 115-volt single-phase hydraulic power unit built as Tuxedo's "short tank" SPX-brand replacement power pack. It shares the same 1 HP motor, 15A draw, 3450 RPM, and 2610 PSI rating as the SPX Long Tank power unit (PU-110V-L-S) — the short tank housing is a smaller-footprint variant of the same power unit family, not a different motor or pressure spec. It carries ETL, UL, and CSA certification, plus a manual release valve for gravity descent and a 9/16-18 O-ring power port.
Like Tuxedo's other lift power units, the SPX design is meant as a direct power-pack replacement for lifts that already use a standard 110-volt SPX-style unit. Confirm your existing power unit's voltage, mounting pattern, and hydraulic fitting size before ordering a replacement.
Questions before ordering? Call (817) 865-3707 and our team will help confirm fit for your lift.
Compatibility & Fitment
A 115-volt/1-phase replacement power unit sized for lifts that use a standard 110V SPX-style power pack with the shorter housing footprint. The SPX design is a different motor/hydraulic family than the DURO power units (different HP, RPM, and PSI rating) — confirm which power unit family your lift originally used before ordering.
Warranty
Tuxedo Distributors backs this part with a limited one-year warranty to the original purchaser against defects in materials or workmanship under normal use; the purchaser is responsible for return shipping. Normal-wear items are excluded. Contact Alamo for full warranty terms.
