Stratus 4-Post 8k lbs 4 Post Mobile Compact Storage Parking Car Lift SAE-P48P
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

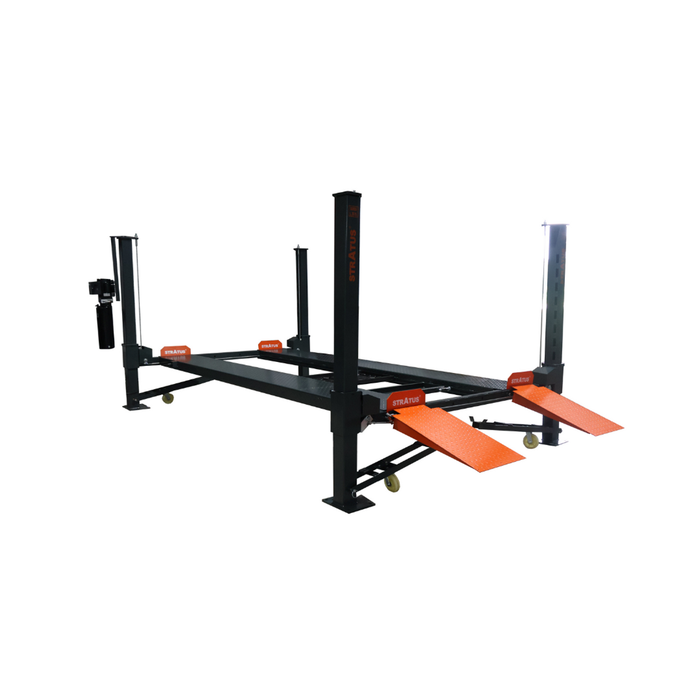

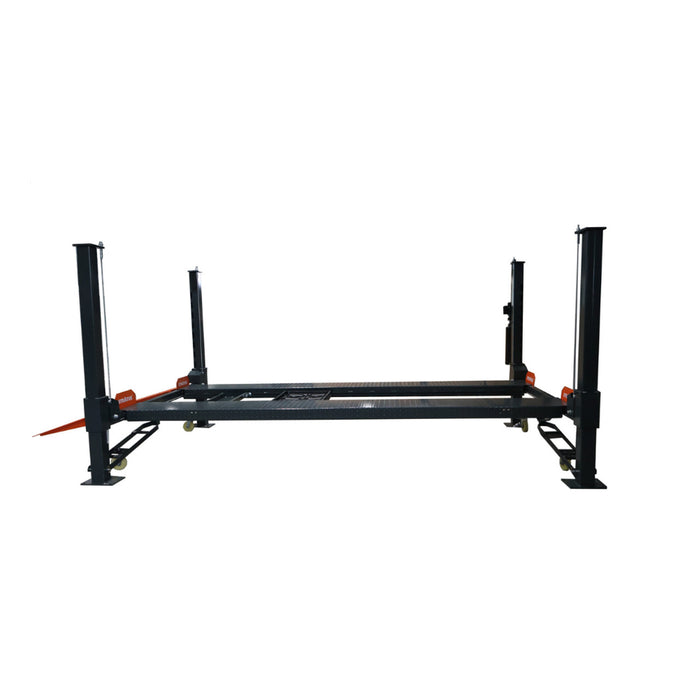

Stratus SAE-P48P Boxed Steel Construction & Sleeve Containment 8,000 Lbs Capacity Manual Release 4 Post Mobile Compact Storage Parking Car Lift
Upgrade your garage with the space-saving and versatile Stratus Boxed Steel Construction & Sleeve Containment 8,000-pound Capacity Manual Release 4-Post Mobile Compact Storage Parking Car Lift! Feast your eyes on this compact 4-post parking lift - a perfect home garage parking car lift. This mobile compact 4-post lift boasts an impressive 8,000-pound lifting capacity, accommodating a variety of vehicles, from compact cars to SUVs and trucks, making it perfect for your garage or workshop. But that's not all! What truly sets it apart are the innovative features. It is thoughtfully designed to be space-saving and compact. Features include a hassle-free lock mechanism, a relocatable power unit, cable failure protection, and built-in rails on the runway.
-
FEATURES + BENEFITS
- Boxed Steel Construction & Sleeve Containment
- Hands-free lock release latch system
- Relocatable Power Unit
- Cable Failure Protection - the second safety device will be automatically locked while the primary safety locks are out of operation.
- Multi-level locking positions (13 locking positions)
- Heavy-Duty Aircraft Cable (Wire Rope)
- Manual Safety Lock Release
- Skid-proof diamond platform
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein Orange (RAL 2004)
Standard Accessories Include
- Castor Kit (Set of 4)
- Rolling Jack Tray
- Drip Trays (3 pcs)
- Wheel Chocks (2 pcs)
- Ramps (2 pcs)
- Wheel Stops (4 pcs)
Optional Accessories
- Aluminum Ramps
- Rolling Bridge Jack
- Aluminum Center Deck
-
SPECIFICATIONS
Model P48P Capacity 8,000 lbs Overall Height 95 1/2"(2426mm)
Overall Width 109" (2769mm)
Overall Length with Ramps
222 7/16" (5650mm)
Overall Length without Ramps
192 5/16" (4885mm)
Max Lifting Height
80 11/16" (2050mm)
Min Lifting Height
5 5/16" (135mm)
Clearance Height
76 3/8" (1940mm)
Lifting Time
~ 50 sec
Width Outside Columns
106 5/8" (2709mm)
Width Inside Columns
97 3/16" (2469mm) Runway Width 18 11/16" (475mm) Runway Length 181 1/8" (4600mm)
Width Between Runways 37 13/16" (960mm) Motor 3 HP, 1100V, 60 HZ, 1PH Oil AW32 or AW46 / ~ 2.5 gal Breaker 30A Weight 1923 lbs Dimensions 182"L x 22"W x 29"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
