Stratus G3 4-Post 8k lbs Manual Release Car/Storage Lift SAE-P48C
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

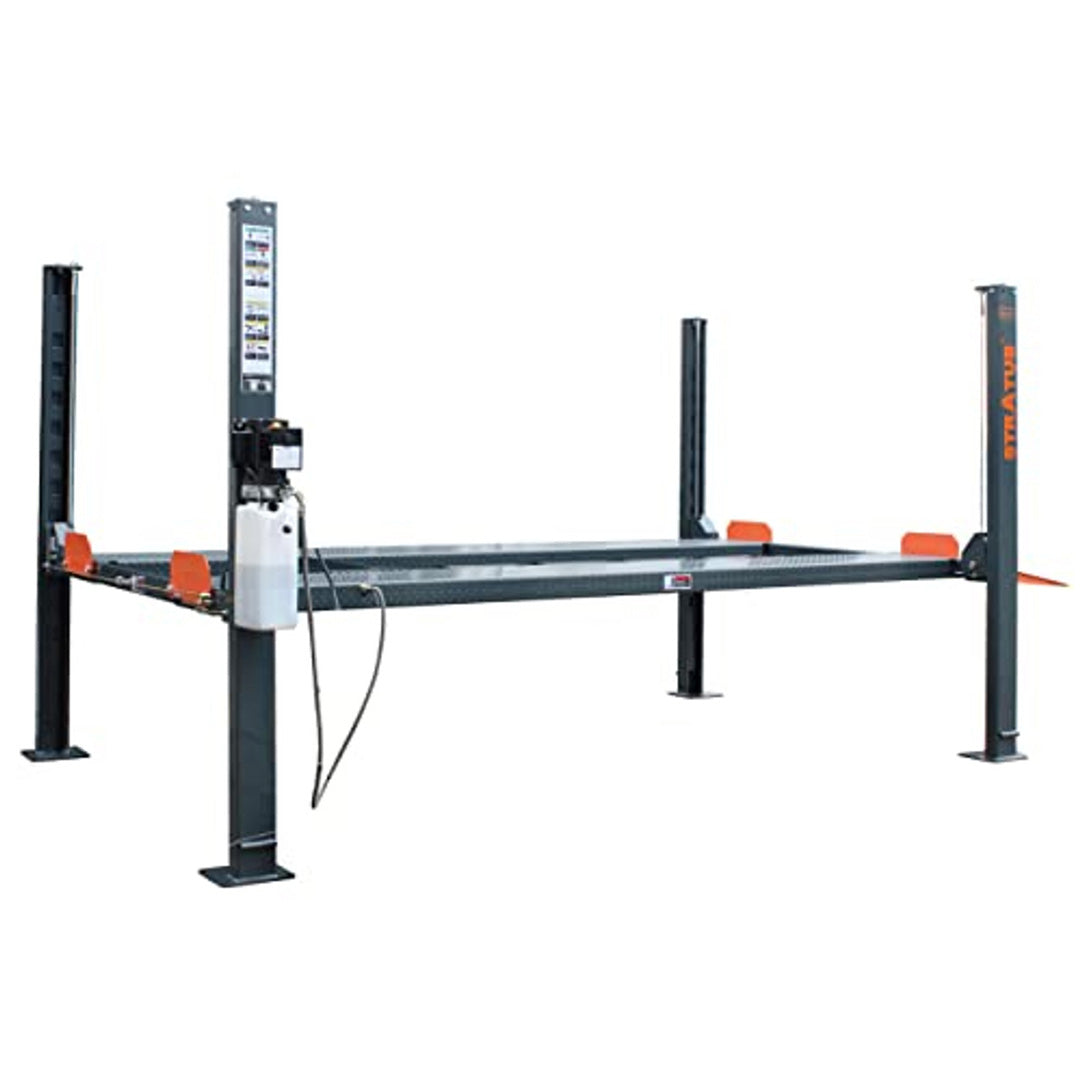

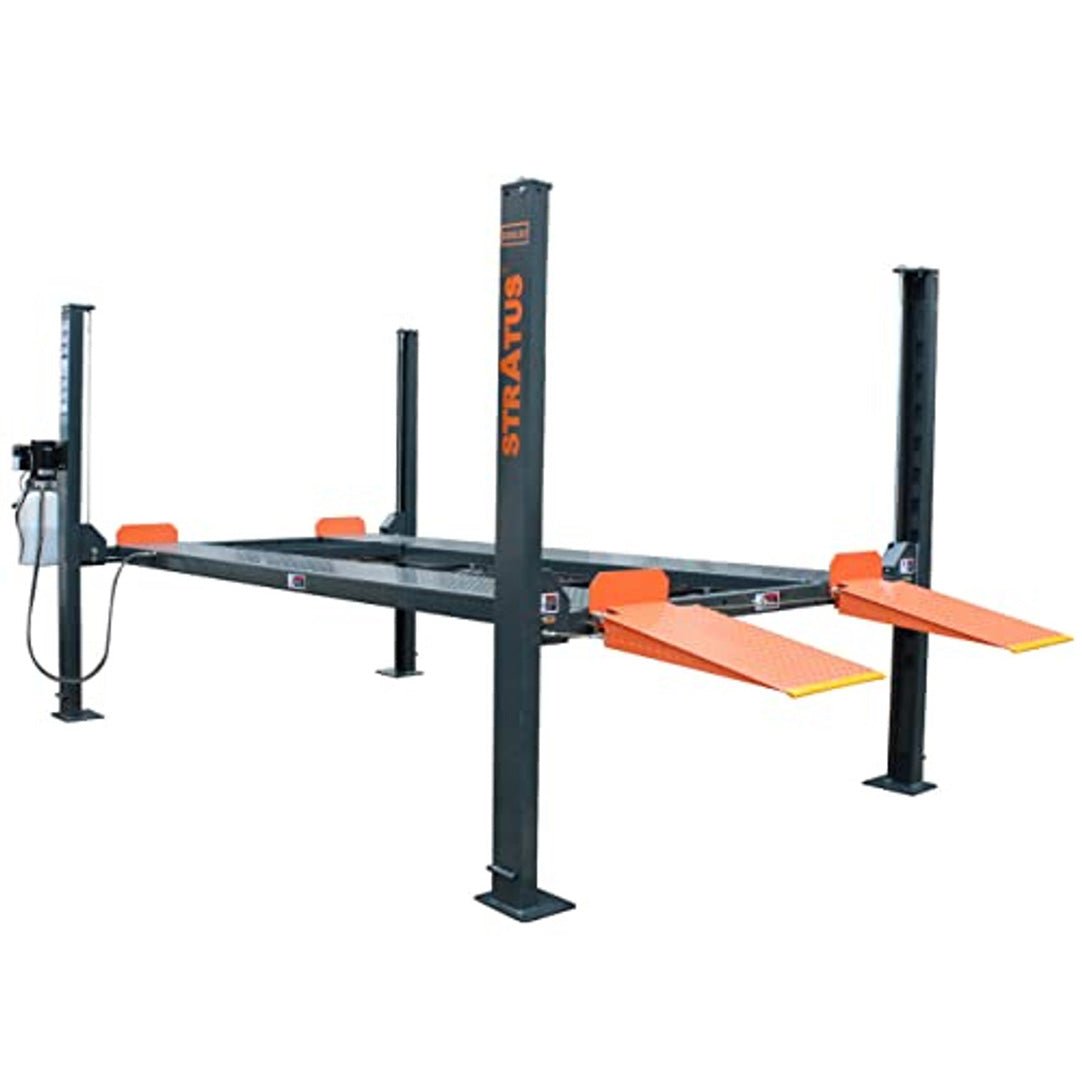

Stratus SAE-P48C G3 4 Post 8,000 LBS Capacity Manual Release Compact Storage Parking Car Lift With Casters
Unleash your garage's capabilities with the 3rd Generation of the Stratus 4 Post Compact 8,000 lbs capacity parking car lift. Thoughtfully designed to be compact, this impressive four-post parking lift delivers robust power in a sleek and space-saving design. Its manual safety release mechanism ensures utmost safety while handling your hefty items. The Stratus SAE-P48C-G3 model also comes with sturdy castors, offering ease of mobility. All these combined give you a remarkable, versatile, compact storage solution, ready to facelift your garage!
-
FEATURES + BENEFITS
- Space-saving compact design
- Hands-free lock release latch system
- Relocatable Power Unit

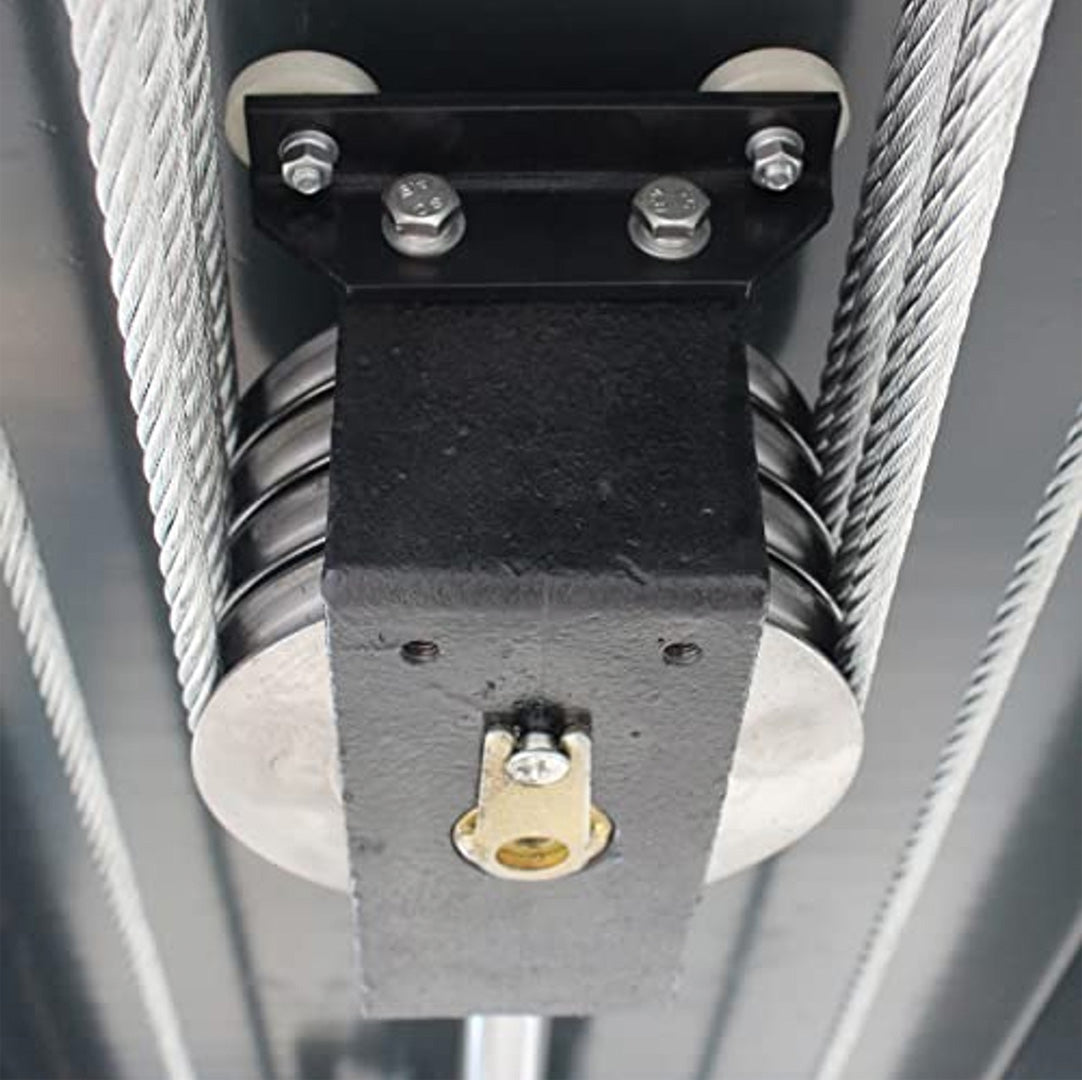

- Cable Failure Protection -Second safety device will be automatically locked while primary safety locks are out of operation.
- Multi-level locking positions (9 locking positions)
- Manual Safety Lock Release
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein Orange (RAL 2004)
Includes
- Rolling Jack Tray
- Castor Kit (Set of 4)
- Drip Trays (3 pcs)
-

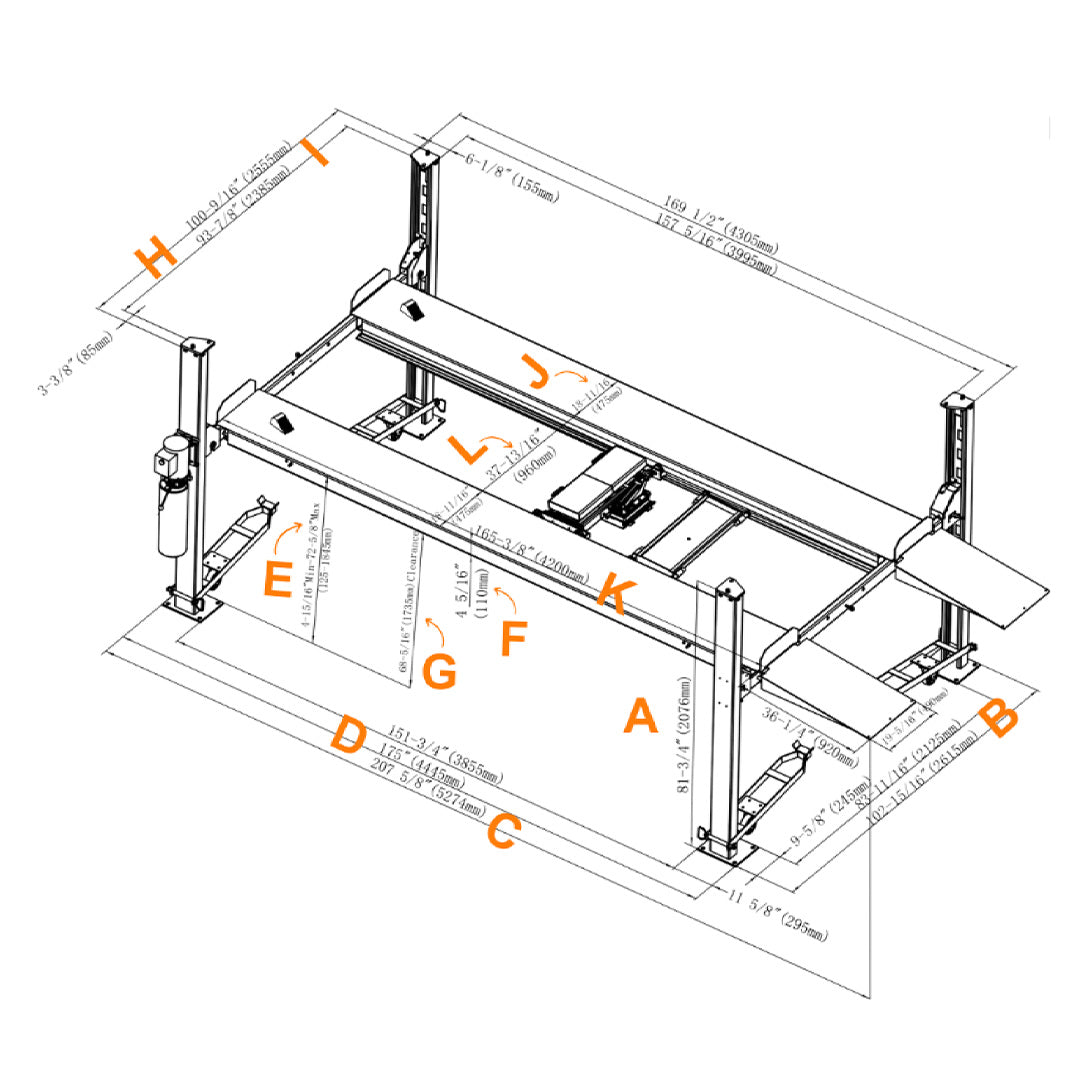

SPECIFICATIONS
Model P48C Capacity 8,000 lbs Overall Height 81 3/4"(2076mm)
Overall Width 102 15/16" (2615mm)
Overall Length with Ramps
207 5/8" (5274mm)
Overall Length without Ramps
175" (4445mm)
Max Lifting Height
72 5/8" (1845mm)
Min Lifting Height
4 15/16" (125mm)
Clearance Height
68 5/16" (1735mm)
Lifting Time
~ 50 sec
Width Outside Columns
100 9/16" (2555mm)
Width Inside Columns
93 7/8" (2385mm) Runway Width 18 11/16" (475mm) Runway Length 165 3/8" (4200mm)
Width Between Runways 37 13/16" (960mm) Motor 3 HP, 1100V, 60 HZ, 1PH Oil AW32 or AW46 / ~ 2.5 gal Breaker 30A Weight 1728 lbs Dimensions 168"L x 23"W x 30"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
