Tuxedo 18 Gallon #18G-Drain
| Model / Part Number | 18G-Drain |
| Type | Upright portable oil drain, manual pump |
| Fluid Capacity | 18 gallons |
| Funnel Diameter | 17 in |
| Adjustable Height | 48 in – 71 in |
| Evacuation Method | Manual hand pump |
| Evacuation Hose | 4 ft, with nozzle |
- Level shop floor — no anchoring required, this is a rolling portable drain
- Indoor use
- No electrical or air connection required — fully manual hand-pump evacuation
- Confirm bay clearance under the vehicle for the 48 in – 71 in adjustable funnel height
- Allow room to roll the drain on its 4x 3.5 in swivel casters to a floor drain or waste tank for evacuation
- Ships by LTL freight or parcel depending on order size
Tuxedo 18G-Drain — 18 Gallon Oil Drain, Manual Pump

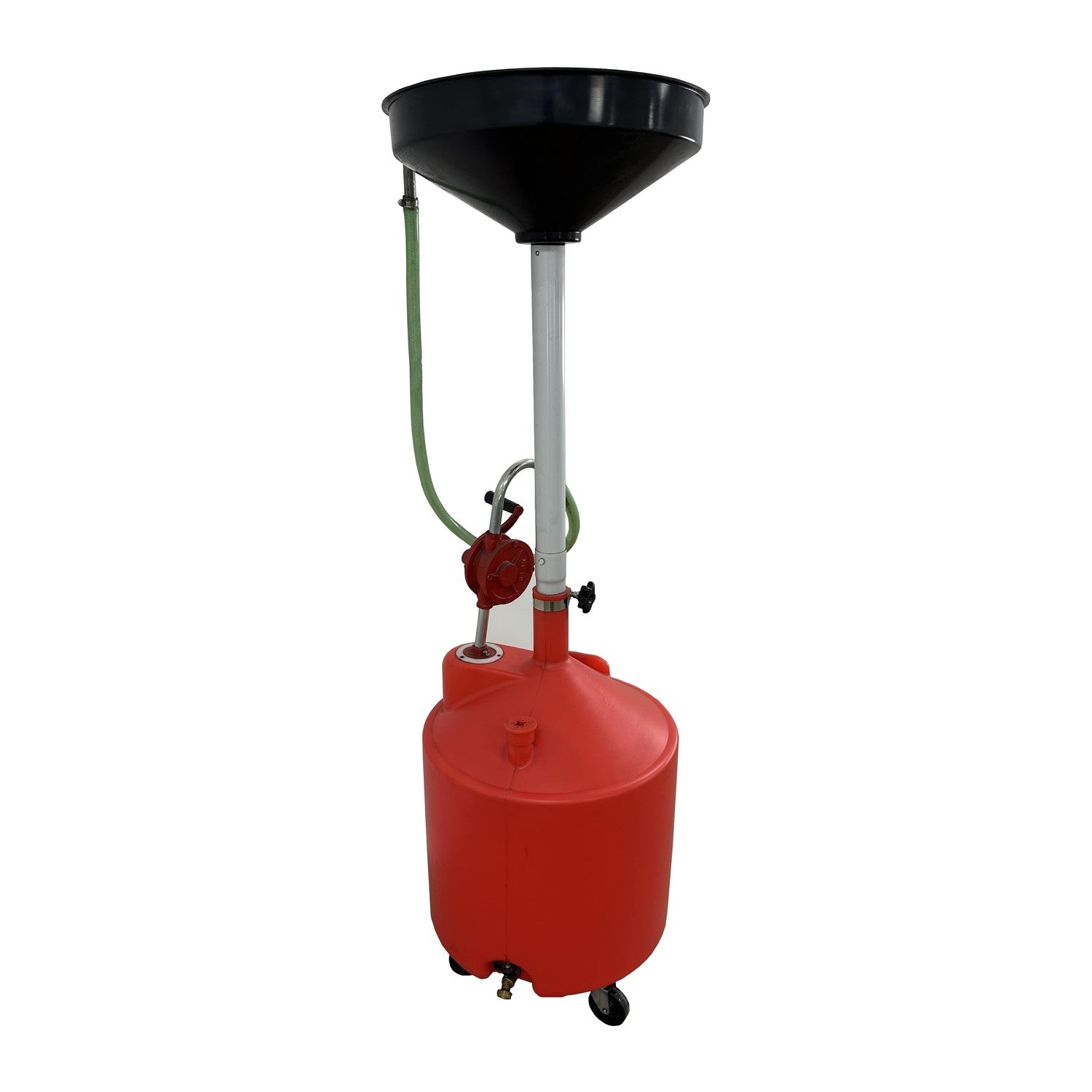

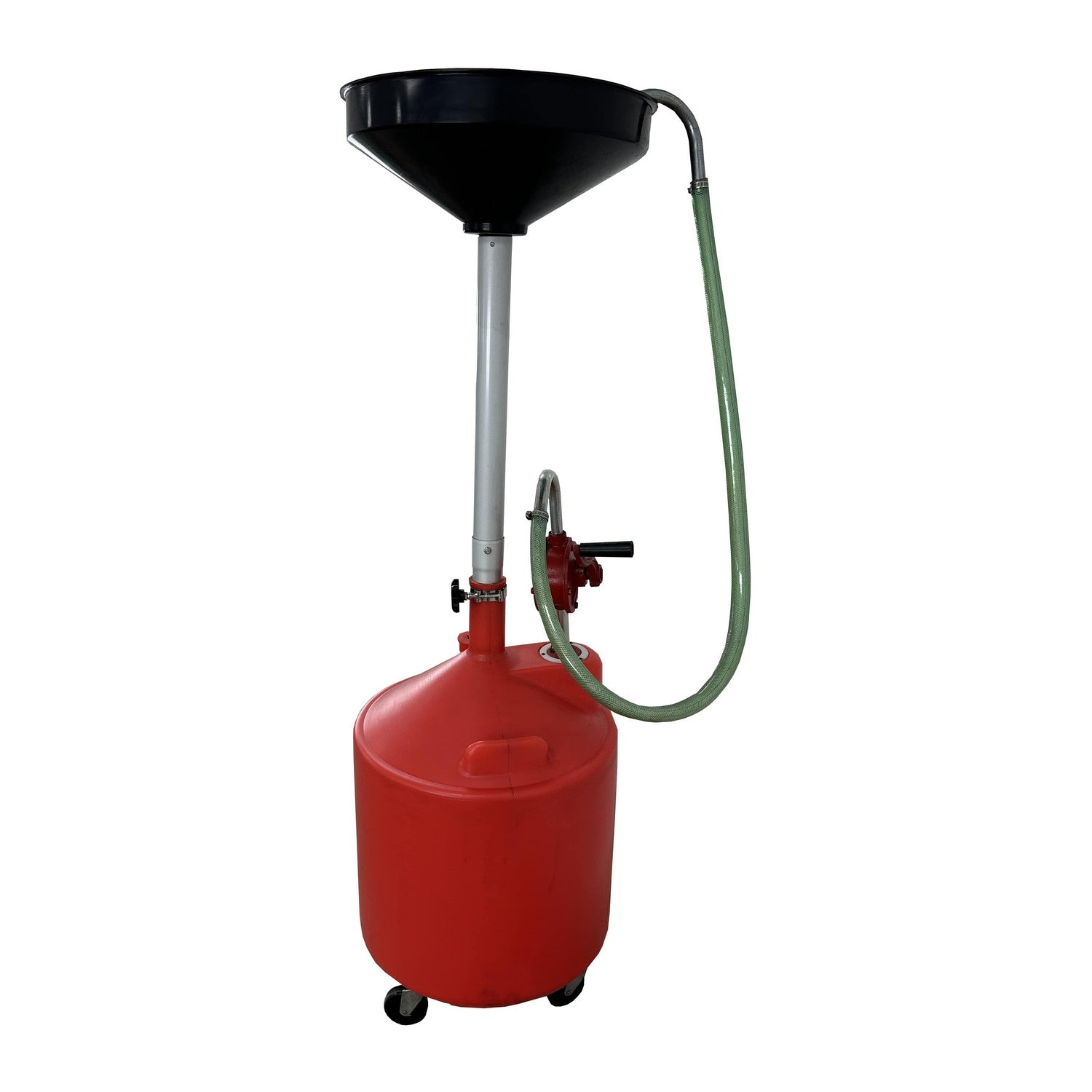

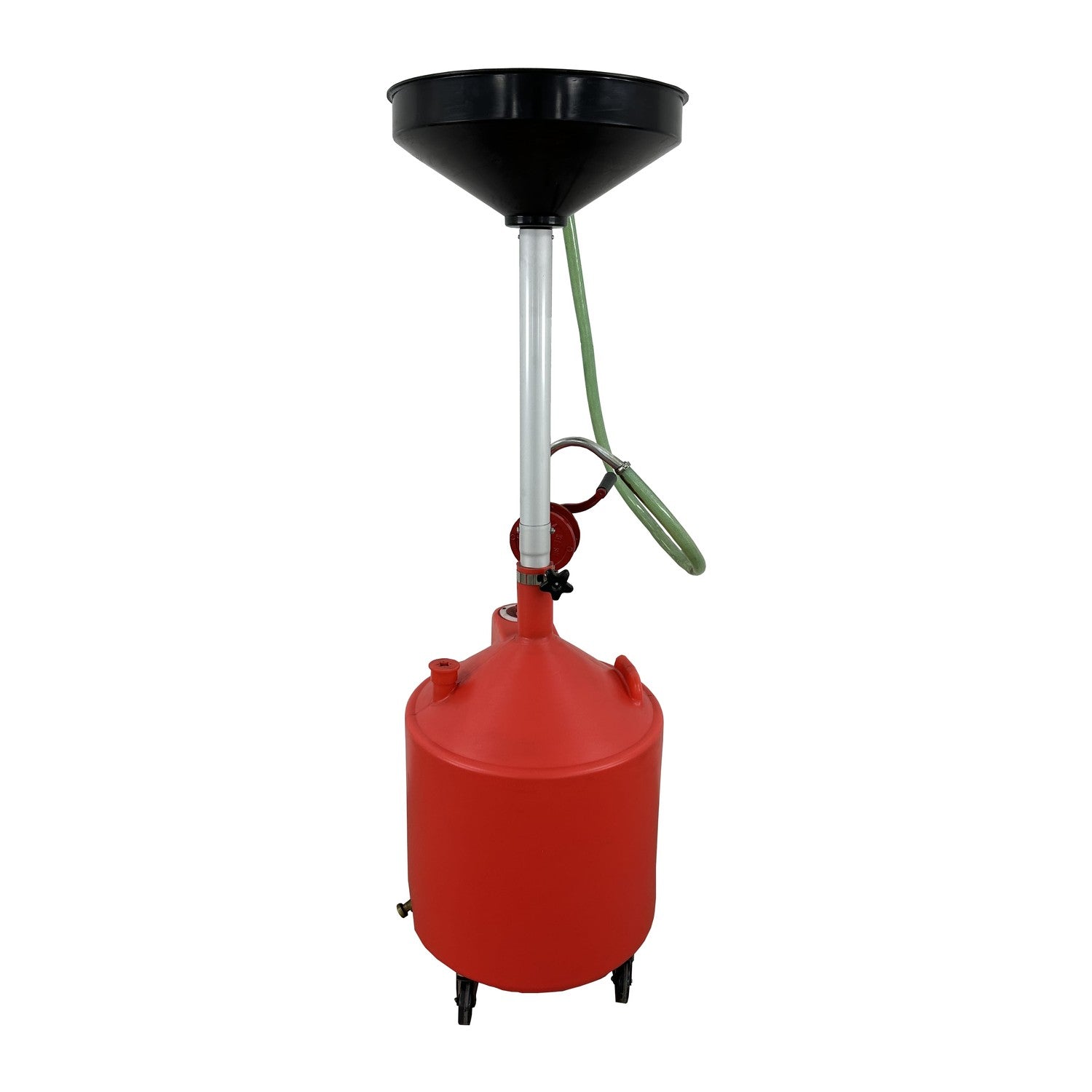

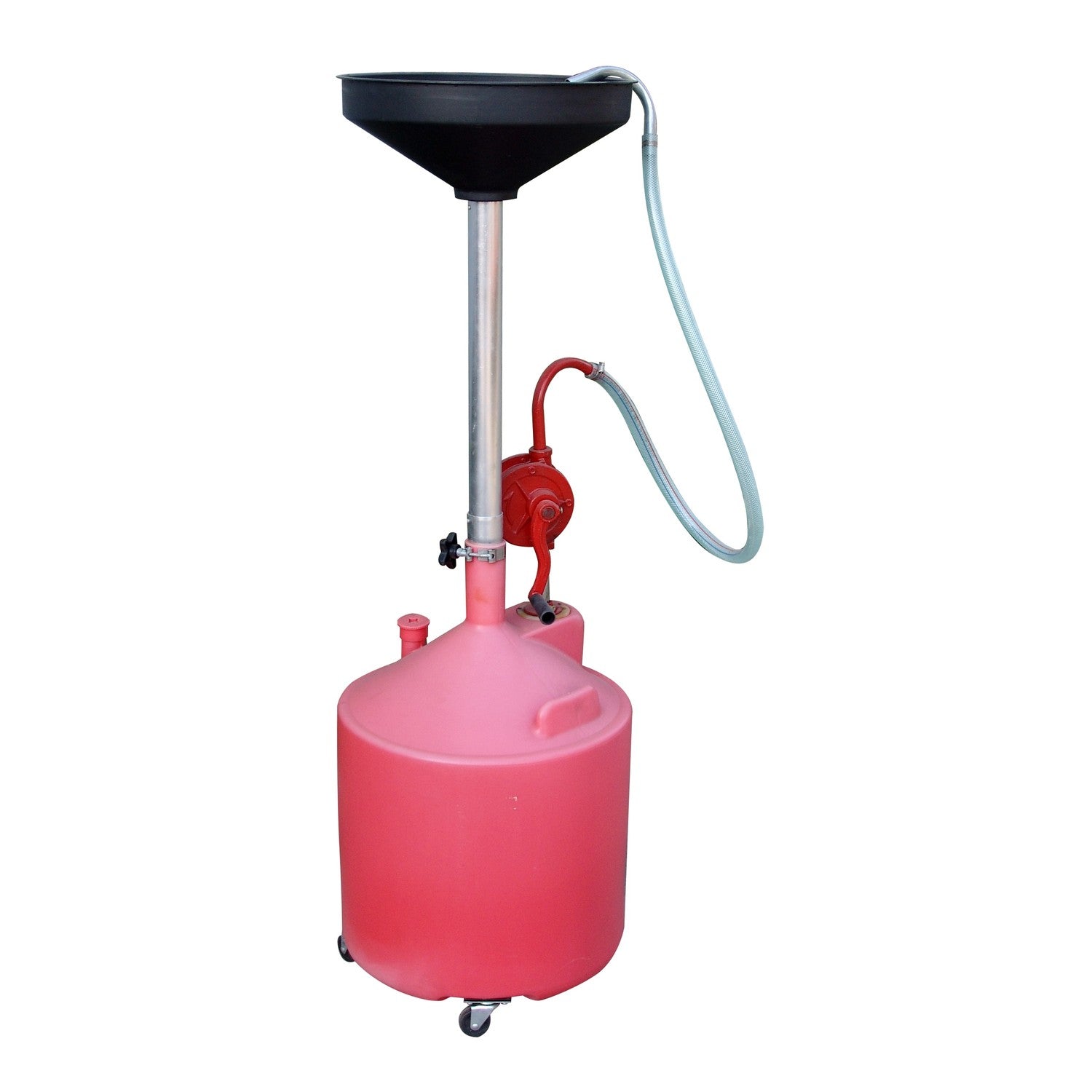

The Tuxedo 18G-Drain is an 18-gallon upright portable oil drain built for routine oil changes and fluid collection in a general service bay. A 17 in diameter plastic funnel with a built-in contamination screen catches fluid as it drains, and the funnel height adjusts from 48 in to 71 in to fit under different vehicle heights.
The translucent polyethylene reservoir lets you see fluid level at a glance without opening the tank, and evacuation is manual. A hand pump moves fluid out through a 4 ft evacuation hose with nozzle into a waste container or collection system. Integrated hand grips on the reservoir make emptying easier, and it rolls on four 3.5 in swivel casters.
Who It's Built For
- General service bays doing routine oil changes without a fixed waste-oil evacuation system
- Shops that want a lower-cost drain without pneumatic self-evacuation
- Techs comfortable with a manual hand pump for evacuation
What It's NOT Built For
- High-volume shops wanting hands-free pneumatic evacuation? See the 24-gallon 24G-SE-Drain instead
- Jobs needing more than 18 gallons of capacity between empties
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the 18G-Drain Different
Translucent Reservoir, See Fluid Level Without Opening the Tank
The polyethylene reservoir lets you check how full the drain is at a glance, so you know when it's time to evacuate before a job.
Adjustable Funnel Height
Fits under a range of vehicle heights on a standard service bay without needing to raise the vehicle further.
Built-In Contamination Screen
Keeps debris and larger particles out of the reservoir as fluid drains through the 17 in funnel.
Portable on Four Swivel Casters
3.5 in swivel casters roll the loaded drain to a waste tank or collection point for manual pump evacuation.
Best For
- Shops doing routine oil changes without needing pneumatic evacuation
- Lower-cost general service bay setups
Not Ideal For
- High-volume shops wanting faster, hands-free evacuation, the 24G-SE-Drain's pneumatic self-evacuation is faster
18G-Drain vs. 24G-SE-Drain Manual or Pneumatic Evacuation?
These are genuinely different designs, not just a capacity difference.
| Decision Point | 18G-Drain (this product) | 24G-SE-Drain |
|---|---|---|
| Fluid capacity | 18 gallons | 24 gallons |
| Evacuation method | Manual hand pump | Pneumatic self-evacuation (air gauge/regulator) |
| Reservoir material | Translucent polyethylene | Steel, with fill sight tube |
| Evacuation hose | 4 ft | 7 ft |
Choose the 18G-Drain if a manual hand pump works for your volume. Choose the 24G-SE-Drain if you want faster, air-powered evacuation and more capacity. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — 18G-Drain
| Model / Part Number | 18G-Drain |
| Fluid Capacity | 18 gallons |
| Funnel Diameter | 17 in, plastic, with contamination screen |
| Adjustable Height | 48 in – 71 in |
| Reservoir Material | Translucent polyethylene |
| Evacuation Method | Manual hand pump |
| Evacuation Hose | 4 ft, with nozzle |
| Mobility | 4x 3.5 in swivel casters |
| Features | Reservoir pour spout & cap, integrated hand grips |
⚠️ Installation Requirements
- Floor: Level shop floor, no anchoring required, this is a rolling portable unit.
- Bay footprint: Confirm clearance under the vehicle for the 48 in 71 in adjustable funnel height.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: No installation required \u2014 arrives ready to use. Call Alamo at (817) 865-3707 with any questions.
Warranty — 18G-Drain
Tuxedo Distributors, LLC publishes a Limited Warranty (5-year structural / 1-year parts) for its Lifts and Wheel Service equipment.
Have a warranty question before you order? Call Alamo at (817) 865-3707 and we'll help you confirm current coverage directly with Tuxedo.
❓ Frequently Asked Questions — 18G-Drain
Does the 18G-Drain price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the 18G-Drain and 24G-SE-Drain?
The 18G-Drain uses a manual hand pump for evacuation and holds 18 gallons in a translucent poly reservoir. The 24G-SE-Drain uses pneumatic (air-powered) self-evacuation, holds 24 gallons in a steel reservoir, and has a longer 7 ft evacuation hose.
How does the 18G-Drain evacuate collected fluid?
By manual hand pump through a 4 ft evacuation hose with nozzle — no shop air connection is required.
Is there a published warranty for the 18G-Drain?
Tuxedo's published Limited Warranty document covers Lifts and Wheel Service equipment specifically; Alamo did not find a separate warranty document naming oil drains, so no warranty term is claimed here. Call (817) 865-3707 with warranty questions before you order.
