Tuxedo Car Rotator - 3,000 lb Capacity #CR-3000
| Model / Part Number | CR-3000 |
| Type | Car rotator, freestanding |
| Capacity | 3,000 lb |
| Width Overall | 58-7/8 in |
| Length Overall (Extended) | Up to 258 in (21' 6") |
| Lifting Height | 17-3/4 in – 45-1/4 in |
| Ship Weight | 410 lb |
- Level shop floor rated for a loaded 3,000 lb rotator — no anchoring required, rolls on 6 phenolic resin swivel casters
- Indoor use
- No electrical or air connection required — fully mechanical
- Confirm bay space for up to 21' 6" extended length plus room for full 360° rotation
- Securely locks at any rotation angle
- Ships by LTL freight
Tuxedo CR-3000 — Car Rotator, 3,000 lb Capacity

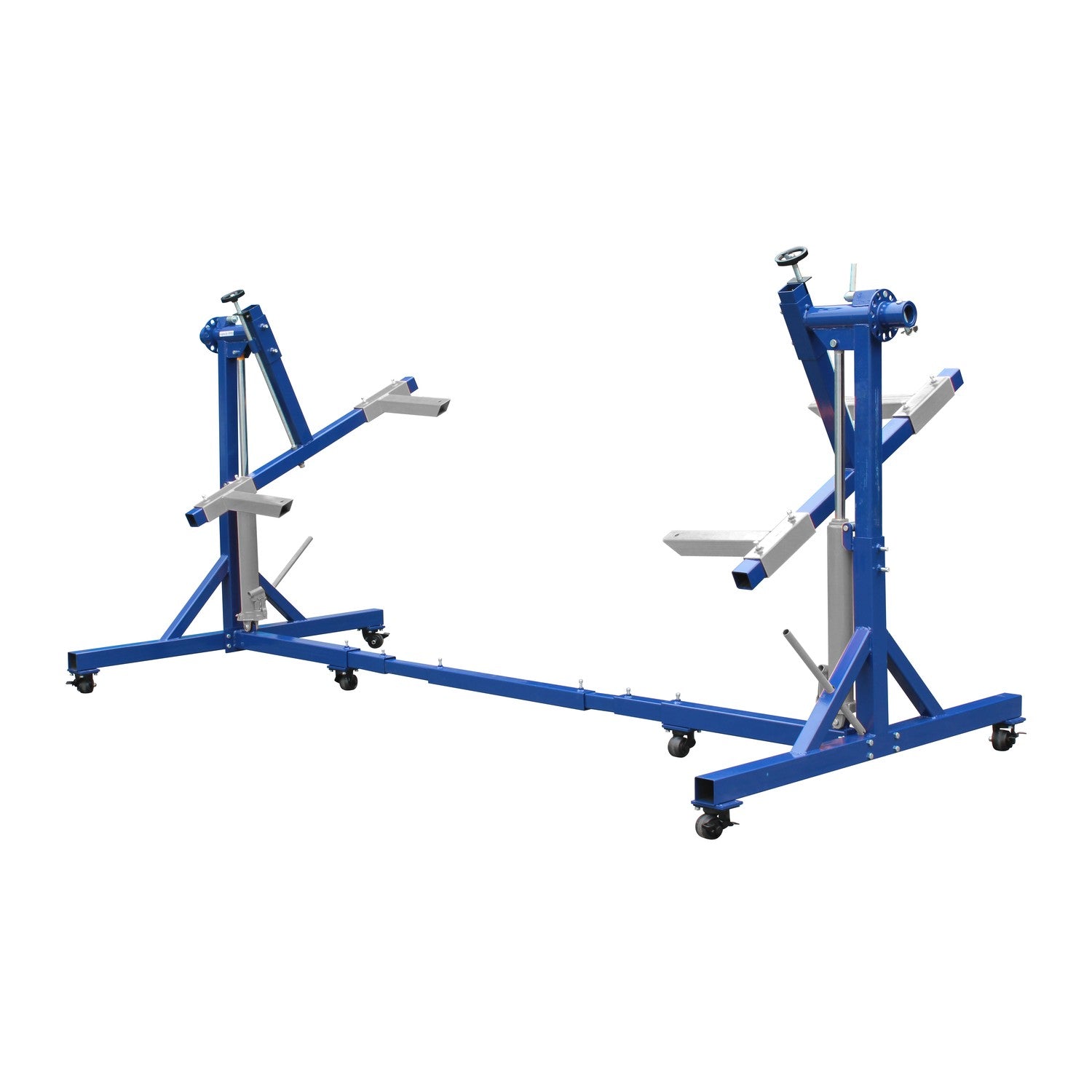

The Tuxedo CR-3000 is a freestanding car rotator that lets a technician rotate a vehicle body a full 360° and lock it at any angle — turning an otherwise awkward overhead or underside job into a comfortable, accessible one. Two 6,000 lb capacity jacks adjust the working height from 17-3/4 in to 45-1/4 in, and a three-piece telescoping center bar extends to fit vehicles up to 21 feet 6 inches long.
Four 16 in mounting arms attach to the vehicle body (via separately available mounting bracket accessories matched to body style), and six phenolic resin swivel casters let the whole rig roll into position before it's locked down for work. The heavy-duty balancing system and powder-coat finish are built for repeated use in a working body shop.
Who It's Built For
- ✅ Restoration and collision shops that need full 360° vehicle access for undercarriage, frame, or paint work
- ✅ Shops working on a range of vehicle lengths up to 21' 6" with the telescoping center bar
- ✅ Techs who want adjustable working height (17-3/4–45-1/4 in) instead of a fixed rotation height
What It's NOT Built For
- ❌ Vehicle bodies over 3,000 lb
- ❌ Shops that don't already have (or plan to add) the correct mounting bracket accessory for their vehicle's body style — brackets are sold separately
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the CR-3000 Different
Full 360° Rotation, Locks at Any Angle
The rotator turns a full 360 degrees and securely locks at any position — not just fixed stops — giving techs the exact working angle they need.

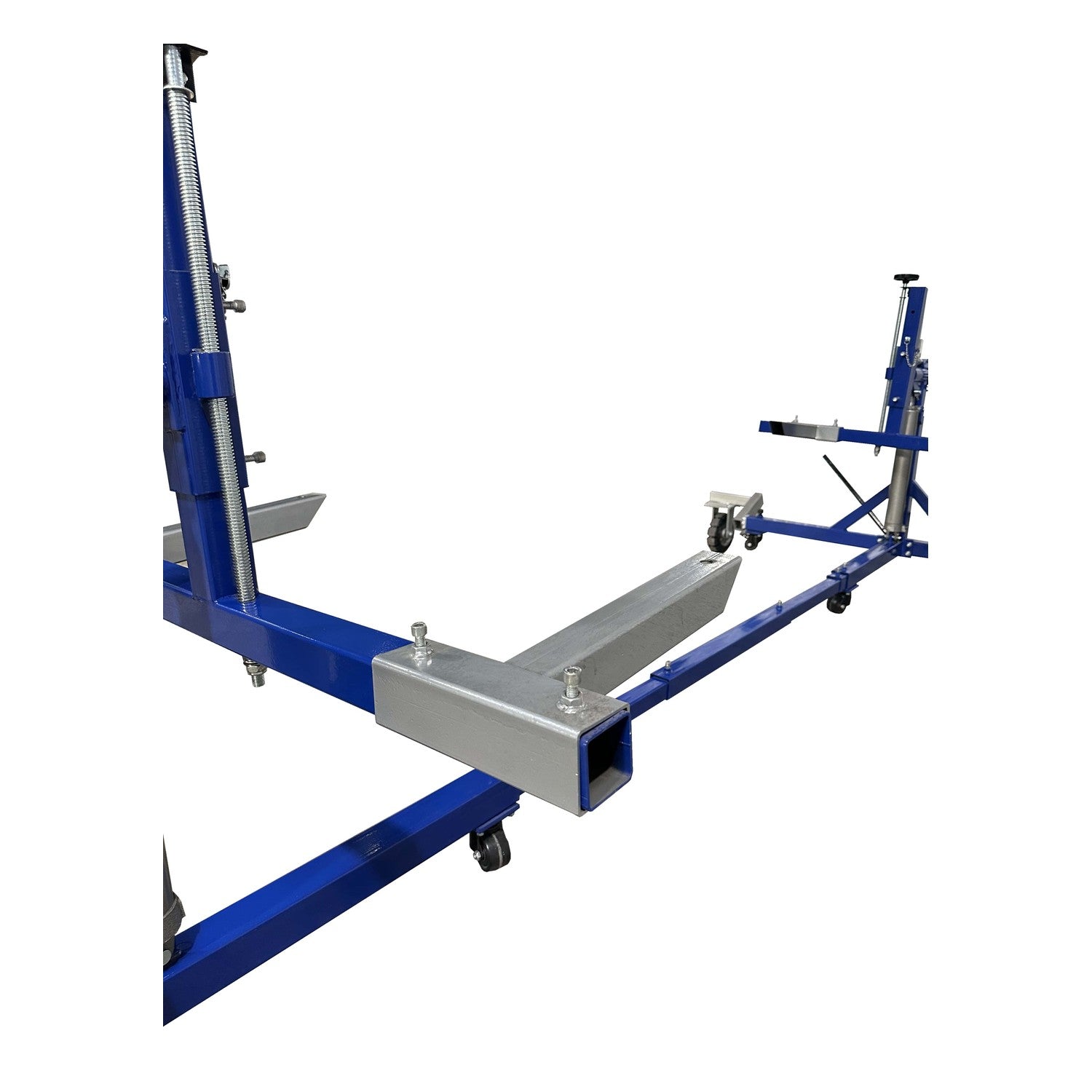

Three-Piece Telescoping Center Bar
Extends to 21 feet 6 inches, accommodating a wide range of vehicle lengths on one rotator rather than requiring different-sized units for different body styles.

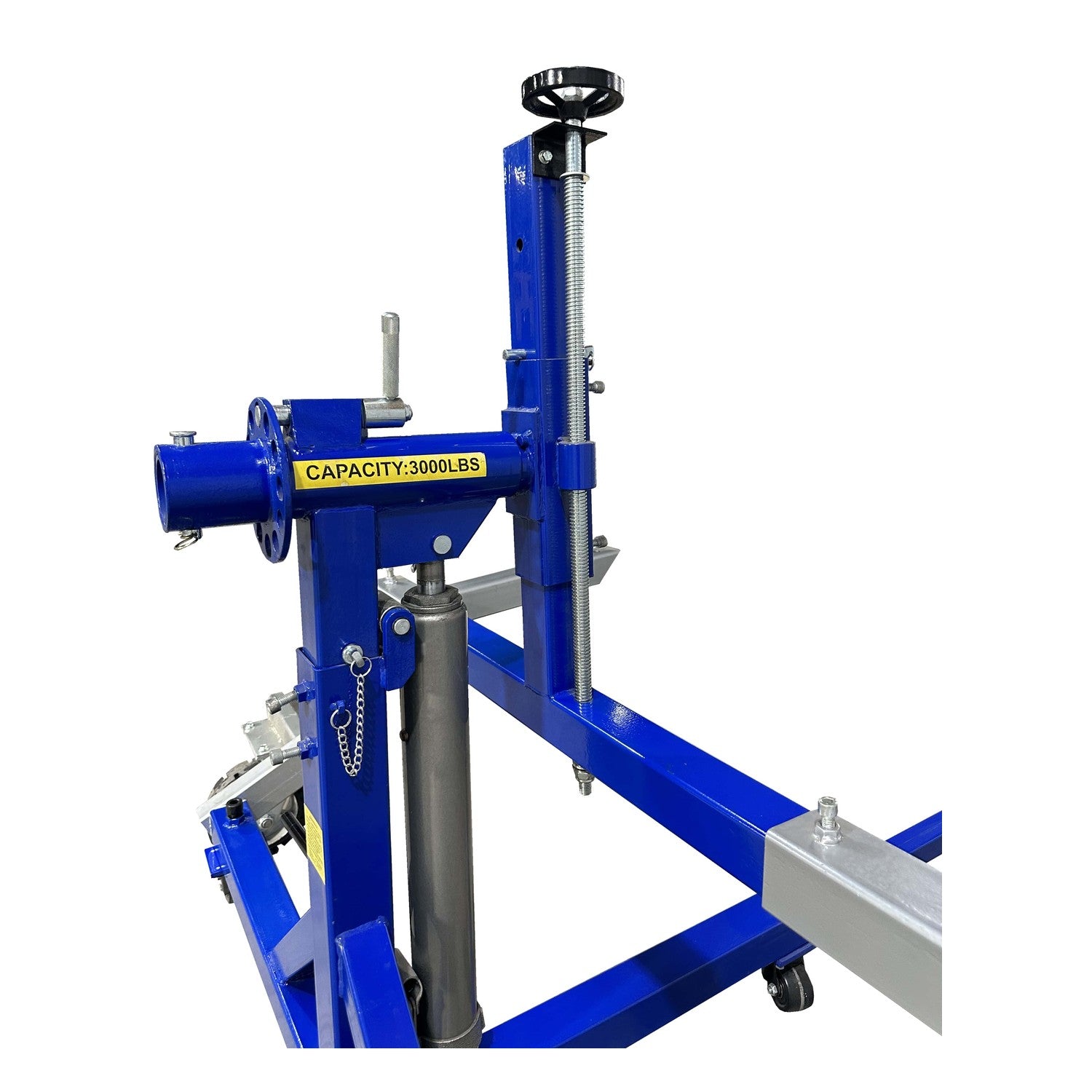

Two 6,000 lb Adjustable Jacks
Independent jacks adjust the working height from 17-3/4 in to 45-1/4 in, letting techs set the rotator to a comfortable height for the task at hand.

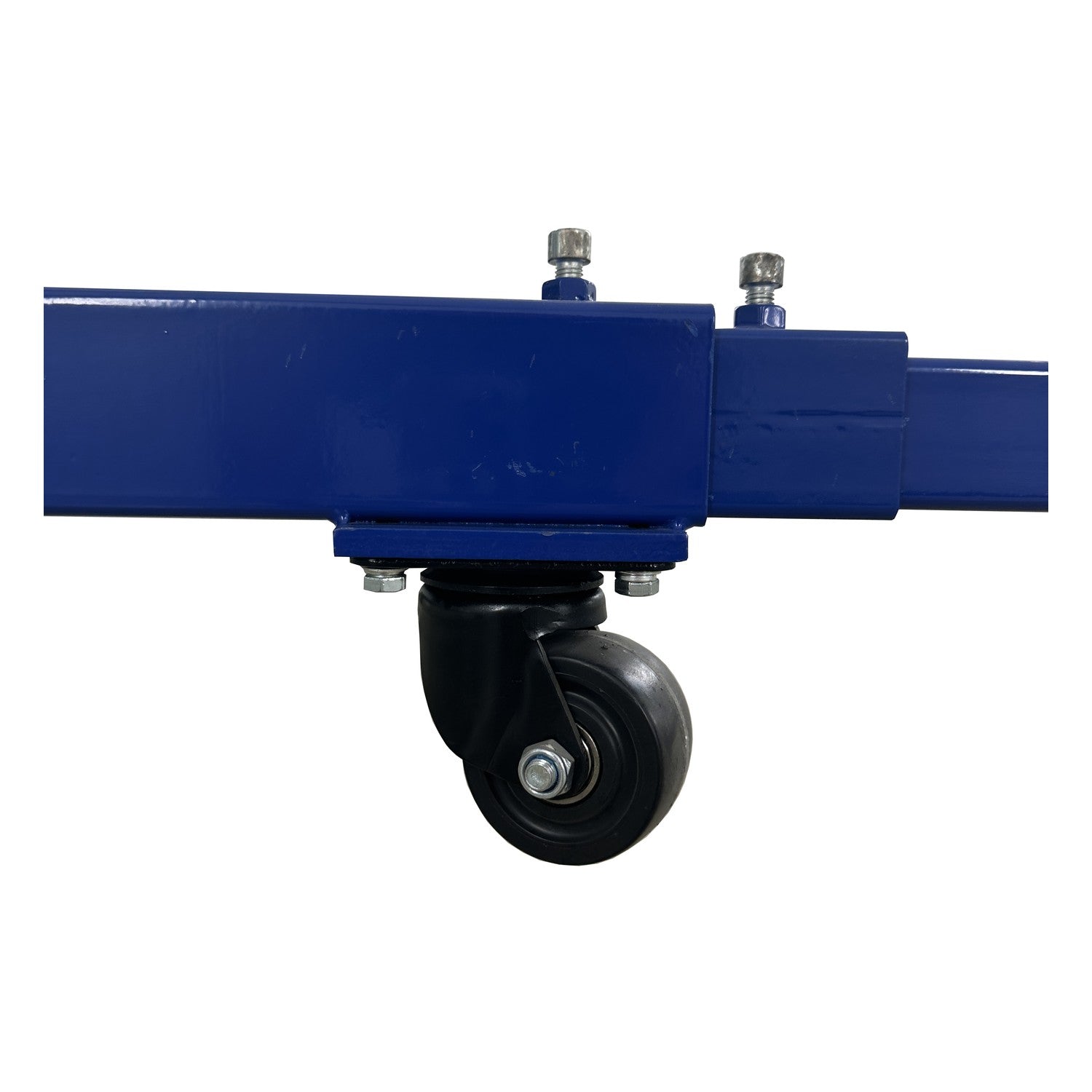

Six Phenolic Resin Swivel Casters
The whole rig rolls on six casters, making it easier to reposition a loaded rotator around the shop floor than a fixed-position stand.
✅ Best For
- ✅ Restoration/collision shops needing full-access rotation on a range of vehicle lengths
- ✅ Shops that want adjustable working height instead of a fixed rotation stand
❌ Not Ideal For
- ❌ Vehicle bodies over 3,000 lb
Full Specifications — CR-3000
| Model / Part Number | CR-3000 |
| Type | Car rotator, freestanding |
| Capacity | 3,000 lb |
| Width Overall | 58-7/8 in |
| Height Overall | 77-1/8 in |
| Length Overall (Extended) | 258-1/4 in (21' 6") |
| Lifting Height | 17-3/4 in – 45-1/4 in |
| Ship Weight | 410 lb |
| Included | Two 6,000 lb capacity height-adjustment jacks, four 16 in mounting arms, three-piece telescoping center bar, six phenolic resin swivel casters |
| Finish | Powder coat |
| Optional Accessories | Mounting bracket kits matched to vehicle body style (ATWK, LSB, MBELSB, MFB, UDB, UNIBKT, VALBKT) — sold separately |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a loaded 3,000 lb rotator — no anchoring required, this is a portable rolling rig.
- Bay footprint: Confirm room for up to 21' 6" extended length plus clearance for full 360° rotation.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup or mounting-bracket questions.
Warranty — CR-3000
The CR-3000 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — CR-3000
Does the CR-3000 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
How far does the CR-3000 rotate?
A full 360°, and it securely locks at any angle.
What's the maximum vehicle length for the CR-3000?
Up to 21 feet 6 inches with the three-piece telescoping center bar fully extended.
Do I need to buy mounting brackets separately?
Yes. The CR-3000 ships with four 16 in mounting arms; body-style-specific mounting bracket kits are sold as separate accessories.
What is the CR-3000's warranty?
Tuxedo backs the CR-3000 with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
