Tuxedo 6,000 lb Low-Rise Scissor Lift #LR-26-PAD
| Model / Part Number | LR-26-PAD |
| Type | Low-rise pad/scissor lift |
| Capacity | 6,000 lb |
| Lifting Height | 26 in |
| Lifting Height w/ Adapters | 30 in |
| Min. Drive-Over Height | 3 in |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 955 lb |
- Level shop floor rated for a loaded 6,000 lb unit — portable, dolly-mounted power unit, no anchoring required
- Indoor use
- Dedicated 115V, 15 Amp, single-phase circuit
- Confirm 86 in length x 73 in width footprint
- Allow clearance for the 35 in width between runways and 19 in runway width to align with vehicle wheelbase/track width
- Ships by LTL freight, crated

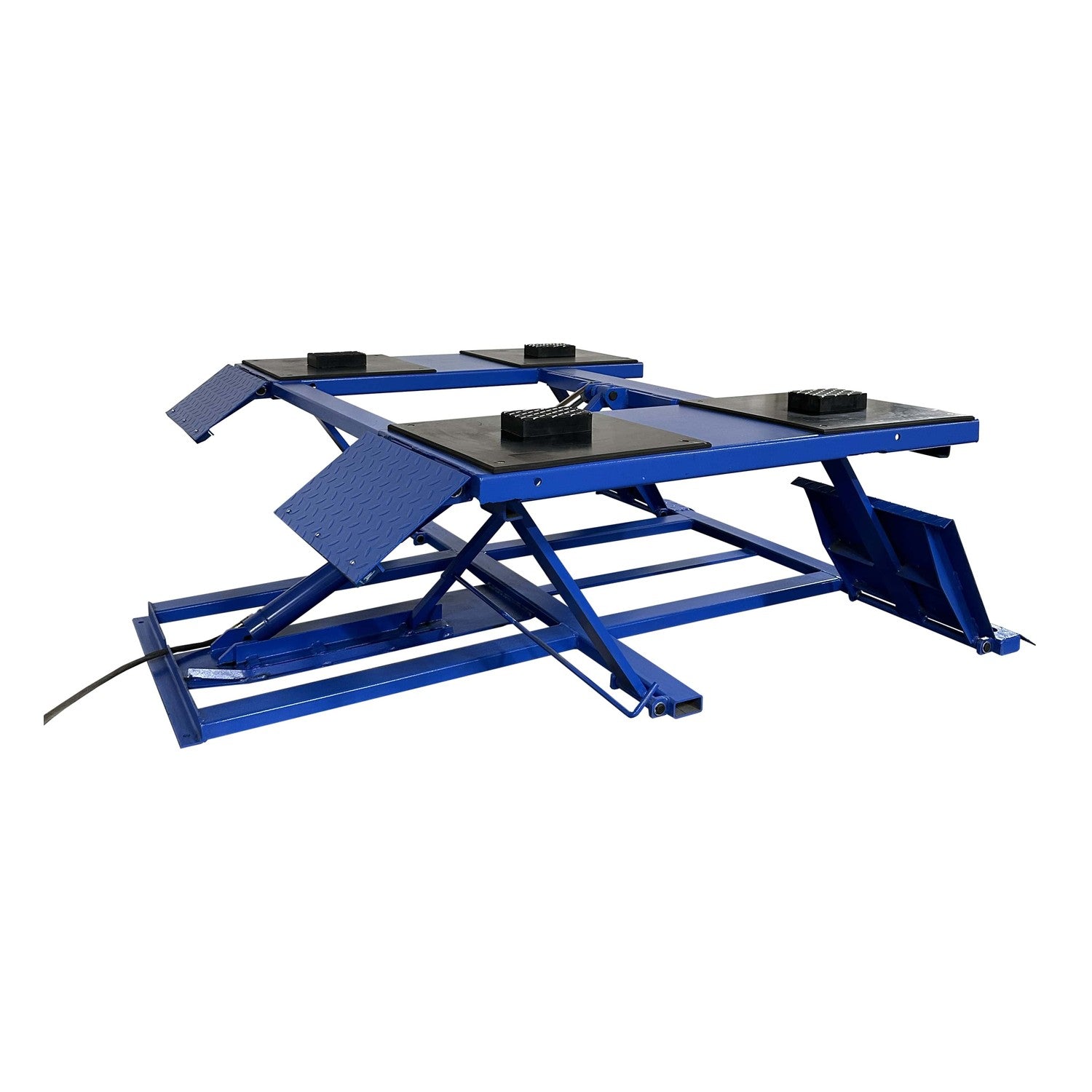

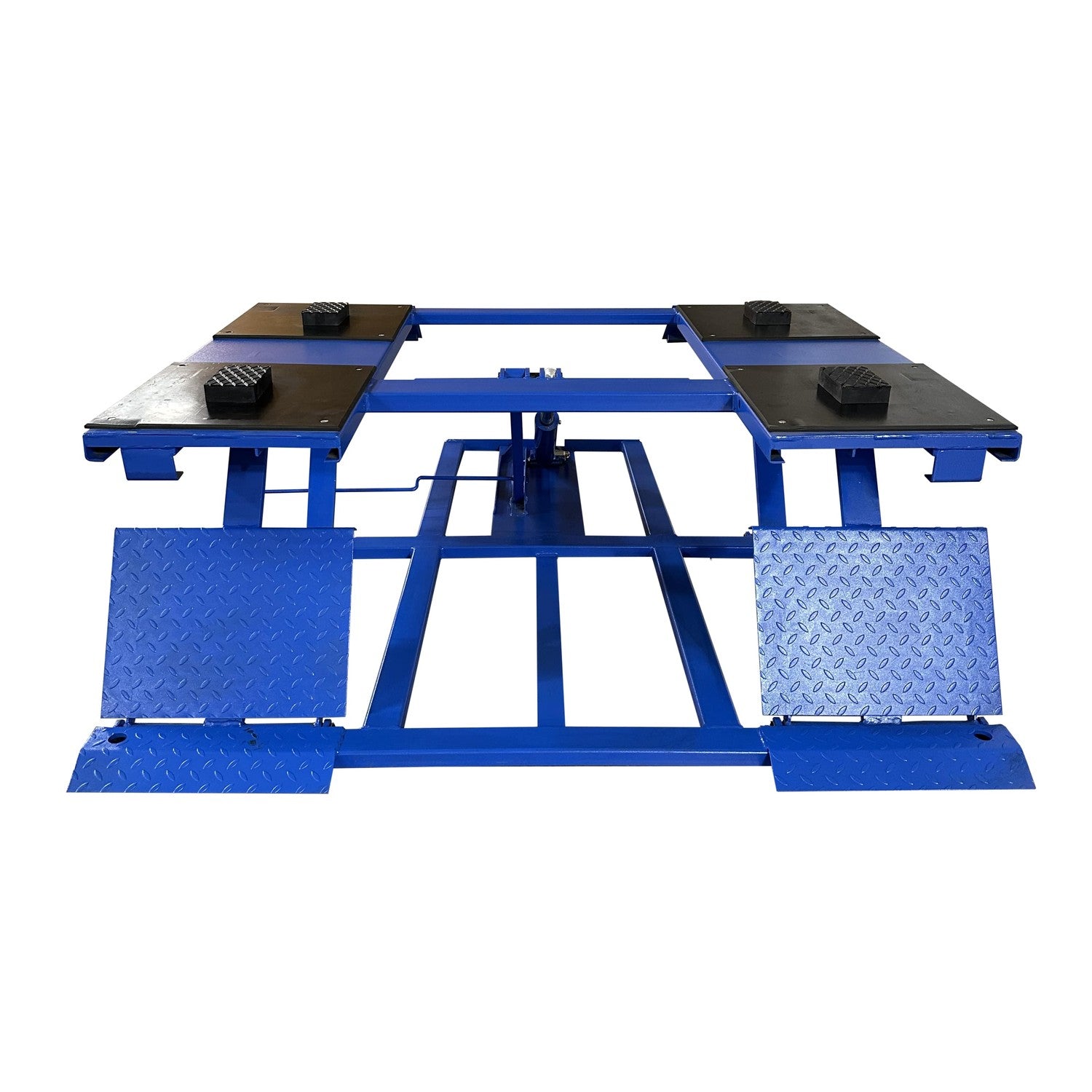

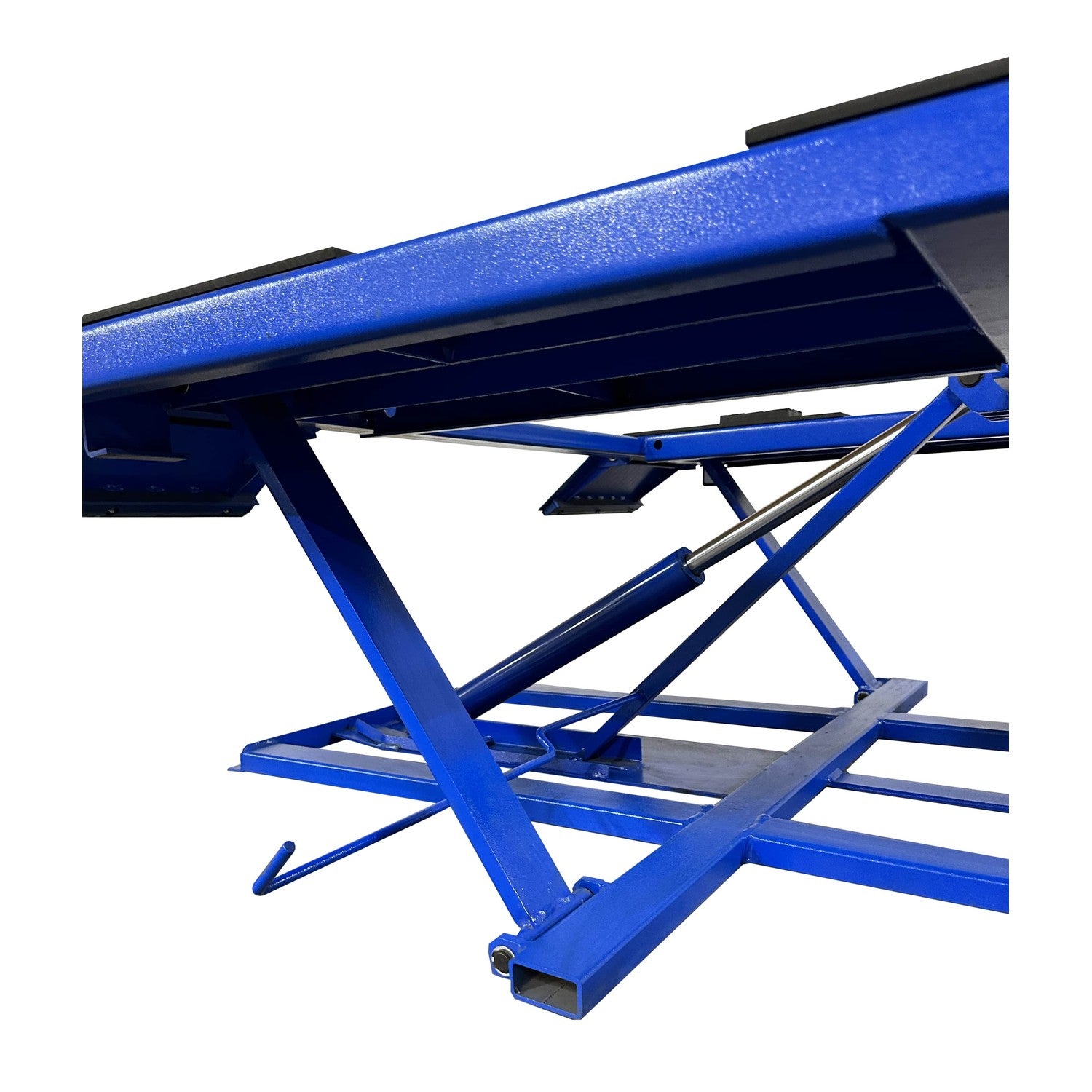

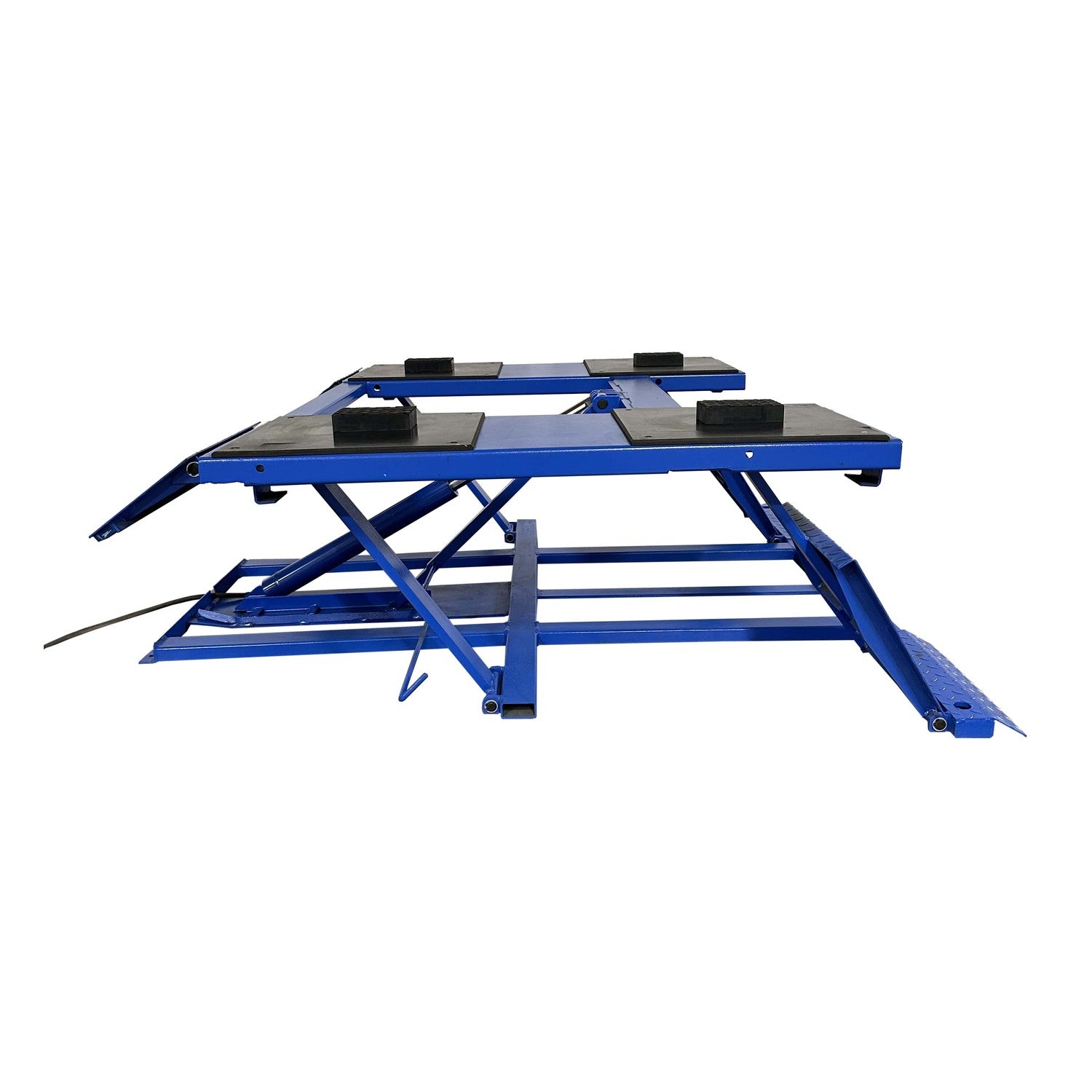

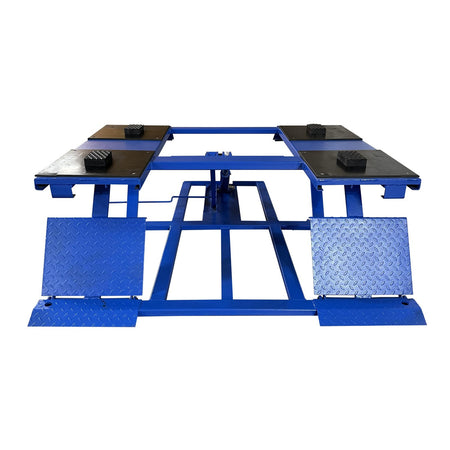

Tuxedo LR-26-PAD — 6,000 lb Low-Rise Scissor Lift
The Tuxedo LR-26-PAD is a 6,000 lb low-rise pad lift built for tire and wheel service work where a full-rise lift isn't needed. Its low 3 in drive-over height lets low-clearance vehicles \u2014 sports cars, lowered trucks \u2014 drive on without scraping, something a taller ramp-style lift can't offer.
The dolly-mounted power unit means the hydraulic power pack rolls with the lift rather than being a separate fixed installation, and an automatic safety lock engages as the lift rises. Rubber spacer blocks are included standard, and the lift raises to 26 in (30 in with the optional adapters) \u2014 enough for most tire, brake, and undercarriage work without a full four-post or two-post lift.
Who It's Built For
- Tire and wheel service shops needing a low drive-over height for low-clearance vehicles
- Shops wanting a portable, dolly-mounted power unit rather than a fixed hydraulic installation
- Facilities with a standard 115V circuit rather than 220V
What It's NOT Built For
- Full-body work requiring a higher lift height \u2014 a two-post or four-post lift raises much higher
- Loads over 6,000 lb
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the LR-26-PAD Different
3 In Drive-Over Height
Genuinely low profile lets sports cars, lowered vehicles, and low-clearance trucks drive on without hitting a ramp or lip \u2014 a real advantage over taller lift designs for shops servicing lowered vehicles.
Dolly-Mounted Power Unit
The hydraulic power pack is mounted on the dolly with the lift itself, rather than requiring a separate fixed power unit installation elsewhere in the bay.
Automatic Safety Lock
Engages automatically as the lift rises, holding the platform securely at height without relying on hydraulic pressure alone.
Optional Frame-Lifting Adapter
The MR6K-38-SUV accessory adapts the LR-26-PAD for frame lifting on SUVs and trucks, extending its use beyond standard tire/wheel service.
Best For
- Tire/wheel shops needing a low-clearance lift for lowered vehicles
- Standard 115V shops wanting to avoid a 220V hydraulic power unit installation
Not Ideal For
- Full-body undercarriage work needing more than 26-30 in of lift height
Full Specifications — LR-26-PAD
| Model / Part Number | LR-26-PAD |
| Capacity | 6,000 lb |
| Overall Length | 86 in |
| Overall Width | 73 in |
| Lifting Height | 26 in |
| Min. Pad Height | 3 in |
| Lifting Height w/ Adapters | 30 in |
| Width Between Runways | 35 in |
| Width of Runways | 19 in |
| Lifting Speed | 35 sec |
| Pad Length | 52 in |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 955 lb |
| Included | Rubber spacer blocks, automatic safety lock, dolly-mounted power unit |
| Optional Accessory | MR6K-38-SUV for frame lifting |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a loaded 6,000 lb unit \u2014 portable, dolly-mounted power unit, no anchoring required.
- Power: Dedicated 115V, 15 Amp, single-phase circuit.
- Bay footprint: Confirm 86 in length x 73 in width clearance.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — LR-26-PAD
The LR-26-PAD is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — LR-26-PAD
Does the LR-26-PAD price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What is the LR-26-PAD's drive-over height?
3 in minimum — low enough for most lowered vehicles and sports cars to drive on without scraping.
What lifting height does the LR-26-PAD reach?
26 in standard, or 30 in with the optional lifting adapters.
What is the LR-26-PAD's warranty?
Tuxedo backs the LR-26-PAD with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
