Tuxedo 6,000 lb Mid-Rise Scissor Lift #MR6K-48X
| Model / Part Number | MR6K-48X |
| Type | Mid-rise scissor lift (portable, dolly-mounted power unit) |
| Capacity | 6,000 lb |
| Lifting Height | 48-1/2 in (54 in with height adapters) |
| Overall Length | 96-1/2 in |
| Overall Width | 39-5/8 in – 62 in |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 945 lb |
- Level concrete shop floor rated for a 945 lb portable lift plus vehicle load
- No anchoring required — this is a portable, non-bolted lift
- Indoor use
- Dedicated 115V, 15 Amp, single-phase circuit for the dolly-mounted power unit
- Confirm outlet location relative to intended placement
- Confirm bay space for the 96-1/2 in length and 39-5/8–62 in adjustable width
- Extended adjustable lift arms need clearance to reach frame pick-up points
- Ships by LTL freight
Tuxedo MR6K-48X — 6,000 lb Mid-Rise Scissor Lift

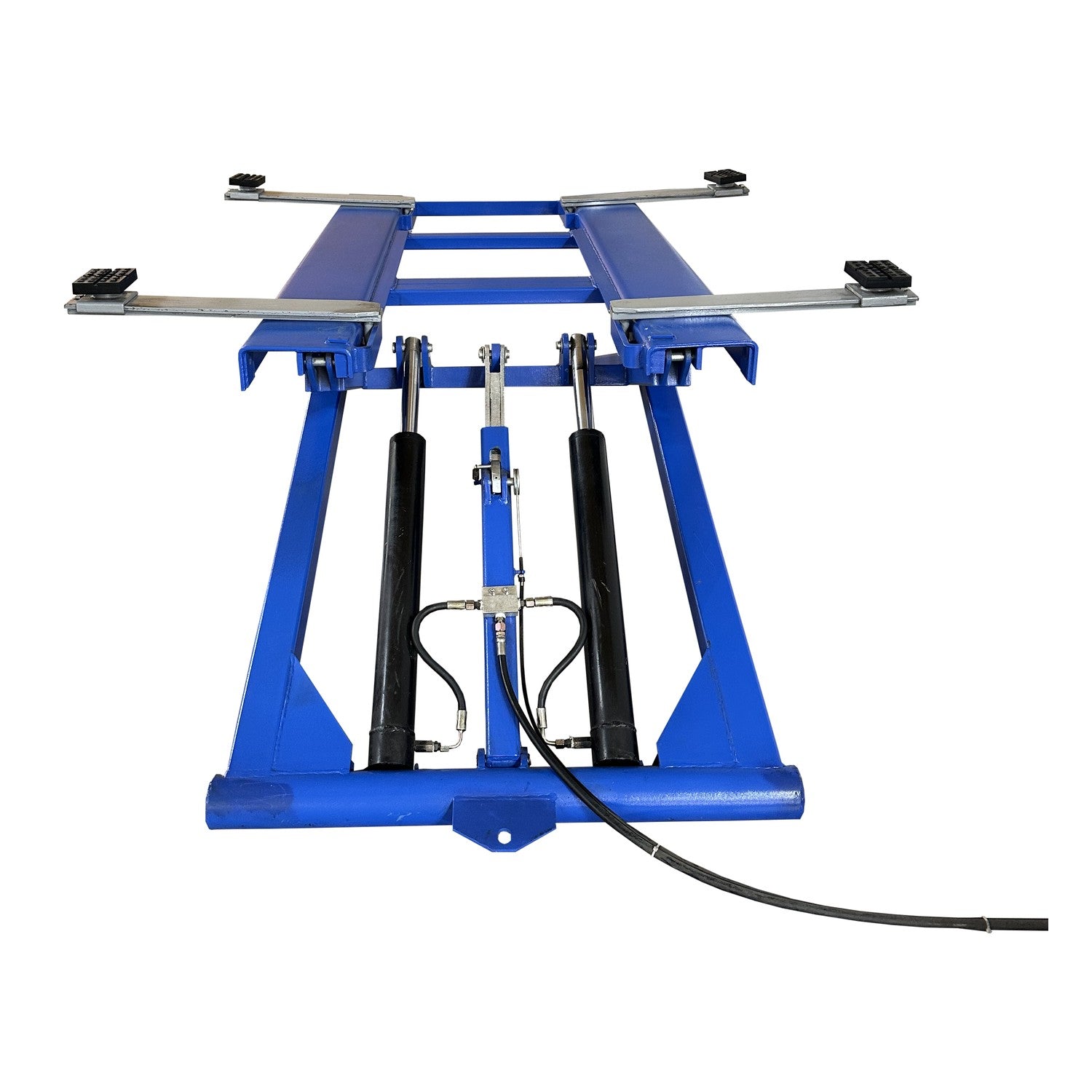

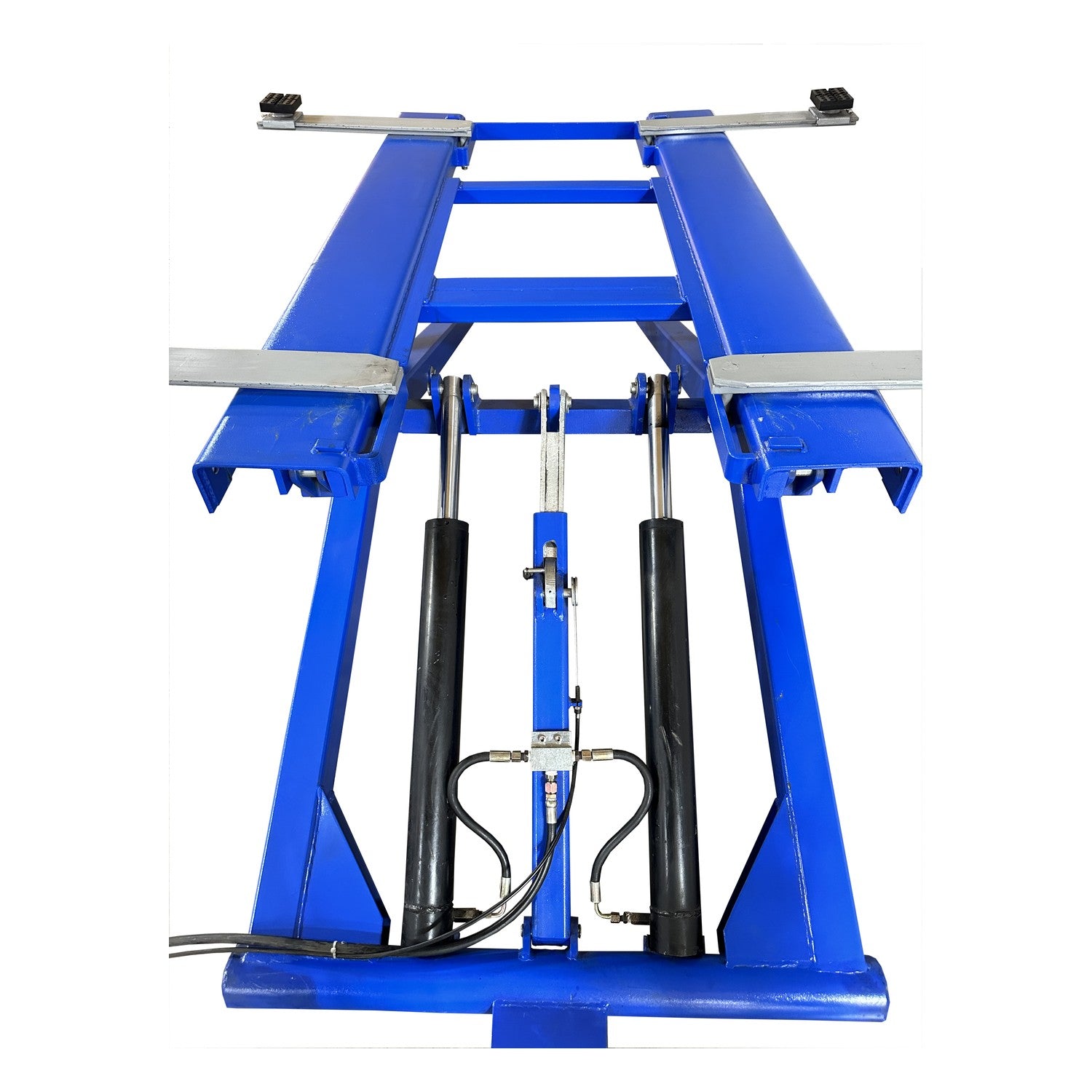

The Tuxedo MR6K-48X is a 6,000 lb portable mid-rise scissor lift built for shops that need real lifting height without a permanent, bolted-down installation. The scissor mechanism raises to 48-1/2 in — 54 in with the optional height adapter set — giving techs standing headroom for underbody work that a low-rise pad lift can't match.

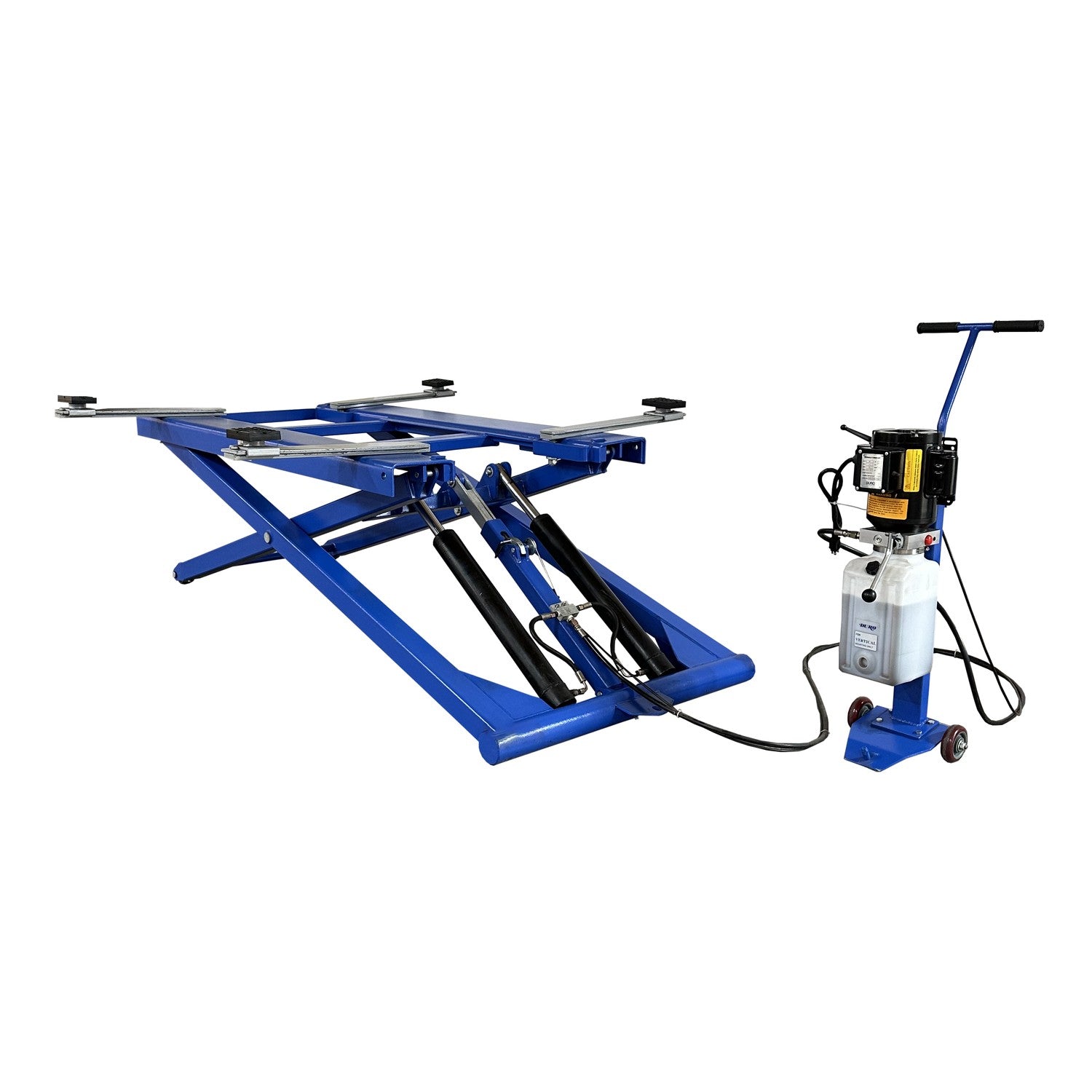

A dolly-mounted power unit rolls with the lift instead of requiring a separate wall-mounted station, and the extended adjustable lift arms reach a range of frame pick-up points. A single-point lock release engages the safety locks at set working heights, and durable rubberized lift pads protect the vehicle's contact points.
Who It's Built For
- ✅ Shops that need 48+ in of lifting height without a permanent two-post or four-post installation
- ✅ Facilities that want a portable lift they can reposition between bays
- ✅ Techs doing underbody service, brake work, and general maintenance at standing height
What It's NOT Built For
- ❌ Loads over 6,000 lb
- ❌ Shops needing full wheels-free lifting for tire/brake rotor removal on all four corners — confirm your pad configuration meets that need before ordering
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the MR6K-48X Different
48.5 In of Lift — 54 In with Adapters
The scissor mechanism raises to 48-1/2 in standard, and the optional height adapter set extends that to 54 in for techs who need more standing clearance underneath the vehicle.
Dolly-Mounted Power Unit
The power unit rides on its own dolly instead of a fixed wall mount, so the whole lift — platform and pump — can be repositioned as a unit.
Extended Adjustable Lift Arms
The lift arms adjust to reach a range of factory frame pick-up points rather than relying on a single fixed pad pattern.
Single-Point Lock Release
One release point disengages the safety locks, simplifying lowering compared to multi-point mechanical lock systems.
✅ Best For
- ✅ Shops that want portable mid-rise lifting without a permanent two-post install
- ✅ Facilities needing to move the lift between service bays
❌ Not Ideal For
- ❌ Vehicles over 6,000 lb
- ❌ Shops that specifically need the optional height adapters included standard — they're a separate accessory
Full Specifications — MR6K-48X
| Model / Part Number | MR6K-48X |
| Type | Mid-rise scissor lift, portable |
| Capacity | 6,000 lb |
| Overall Length | 96-1/2 in |
| Overall Width | 39-5/8 in – 62 in |
| Lifting Height | 48-1/2 in |
| Lifting Height with Adapters | 54 in |
| Min. Pad Height | 7 in |
| Pad Length | 24 in min / 83 in max |
| Lifting Speed | 40S |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 945 lb |
| Optional Accessory | Height Adapter Set |
⚠️ Installation Requirements
- Floor: Level concrete shop floor rated for the lift plus vehicle load — no anchoring required, this is a portable lift.
- Power: Dedicated 115V, 15 Amp, single-phase circuit for the dolly-mounted power unit.
- Bay footprint: Confirm room for the 96-1/2 in length and 39-5/8–62 in adjustable width.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup.
Warranty — MR6K-48X
The MR6K-48X is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — MR6K-48X
Does the MR6K-48X price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
How high does the MR6K-48X lift?
48-1/2 in standard, or 54 in with the optional height adapter set.
Is the MR6K-48X portable?
Yes. It uses a dolly-mounted power unit and is designed to be repositioned rather than permanently bolted down.
What is the MR6K-48X's warranty?
Tuxedo backs the MR6K-48X with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the MR6K-48X from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
