Tuxedo 6,000 lb Single Post Storage Lift #SP-6K-SS
| Model / Part Number | SP-6K-SS |
| Type | Single post storage / parking lift |
| Capacity | 6,000 lb |
| Overall Length w/ Ramp | 188 in |
| Overall Height | 110-1/4 in |
| Lifting Height | 81-3/16 in |
| Power | 115V – 20 Amp – 1PH |
| Ship Weight | 2,610 lb |
- Level, load-rated concrete shop floor — confirm slab thickness/anchoring against the manufacturer's installation manual before delivery
- Confirm ceiling clearance for the 110-1/4 in overall lift height
- Indoor use
- Dedicated 115V, 20 Amp, single-phase circuit for the DURO electric/hydraulic pump
- Confirm bay space for the 188 in overall length with ramp
- Lift can be installed to raise from the left or right side — plan bay layout accordingly
- Minimal footprint allows multiple installations in a row
- Ships by LTL freight
Tuxedo SP-6K-SS — 6,000 lb Single Post Storage Lift

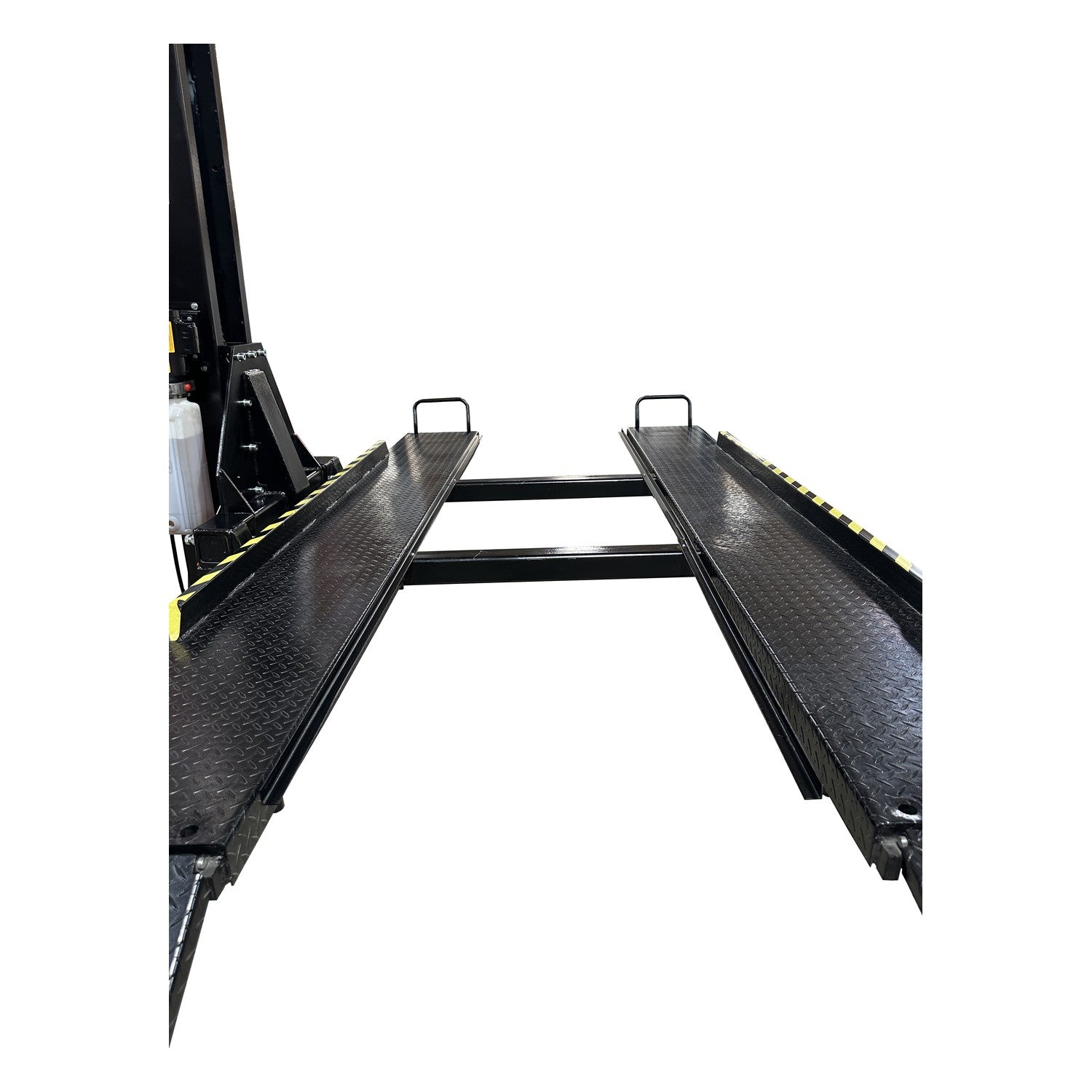

The Tuxedo SP-6K-SS is a 6,000 lb single-column parking and storage lift designed to double a bay's parking capacity by stacking one vehicle above another. Low-profile approach ramps make it easier to drive on with vehicles that have limited ground clearance, and the single post design keeps the footprint minimal so multiple units can be installed side by side.

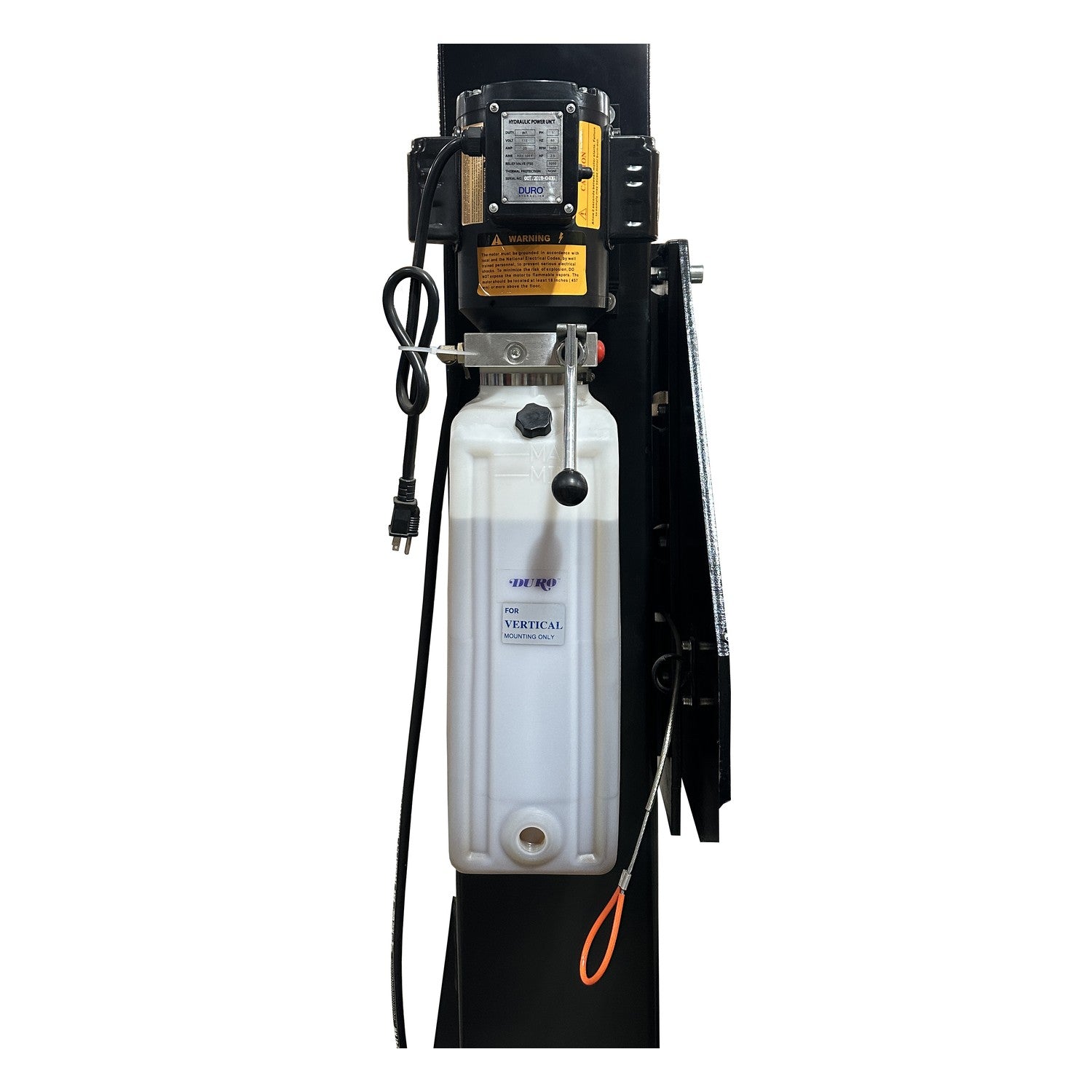

The lift can be configured to raise from either the left or right side, giving flexibility in how it's positioned relative to walls, columns, or adjacent lifts. A commercial-grade hydraulic cylinder and heavy-duty leaf chain handle the lifting load, powered by a reliable DURO electric/hydraulic pump.
Who It's Built For
- ✅ Shops, dealerships, and storage facilities that need to park two vehicles in the space of one
- ✅ Facilities installing multiple lifts in a row — the minimal footprint supports side-by-side installation
- ✅ Owners of lower-clearance vehicles, thanks to the low-profile approach ramps
What It's NOT Built For
- ❌ Bays with limited ceiling height — confirm the 110-1/4 in overall lift height clears your ceiling before ordering
- ❌ Loads over 6,000 lb
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the SP-6K-SS Different

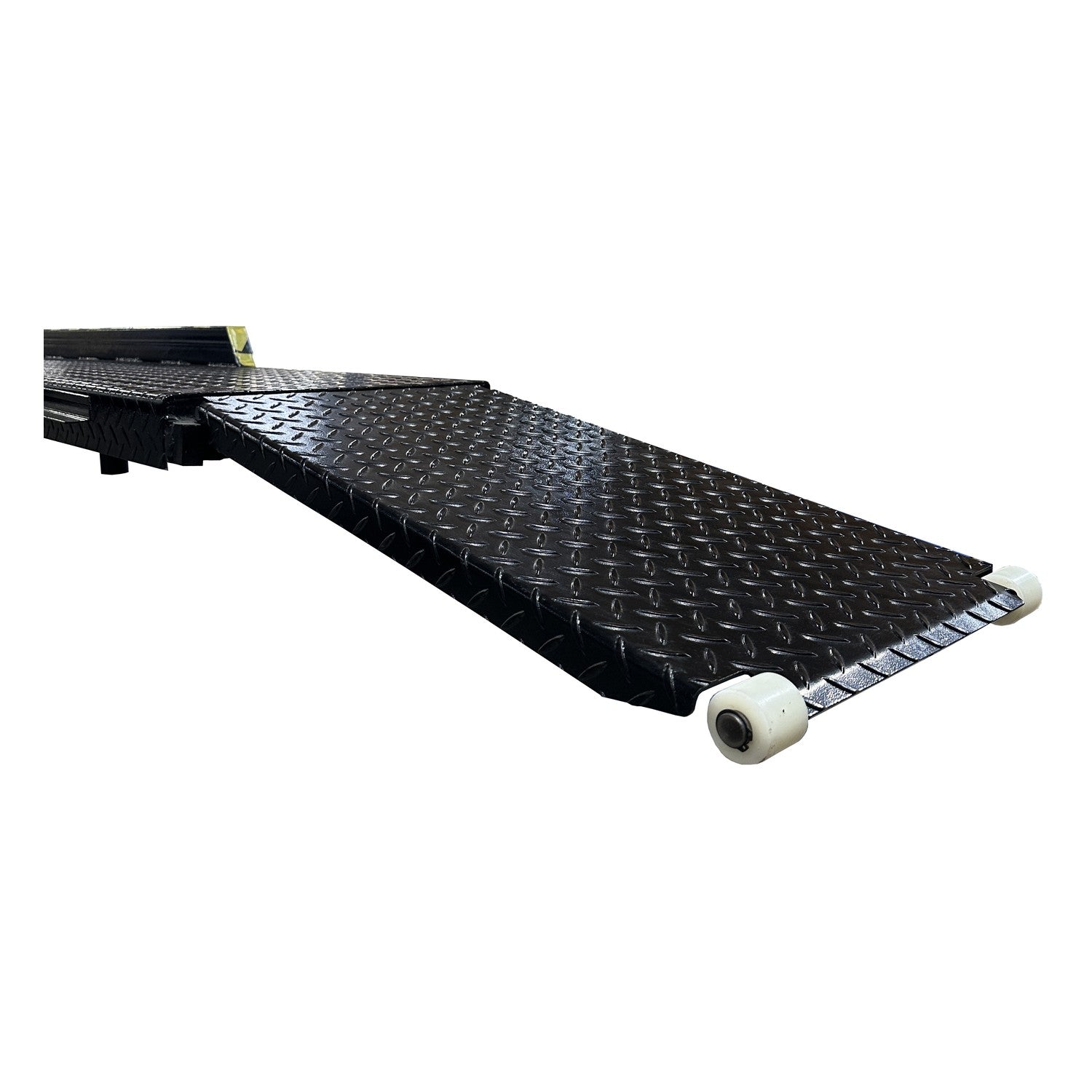

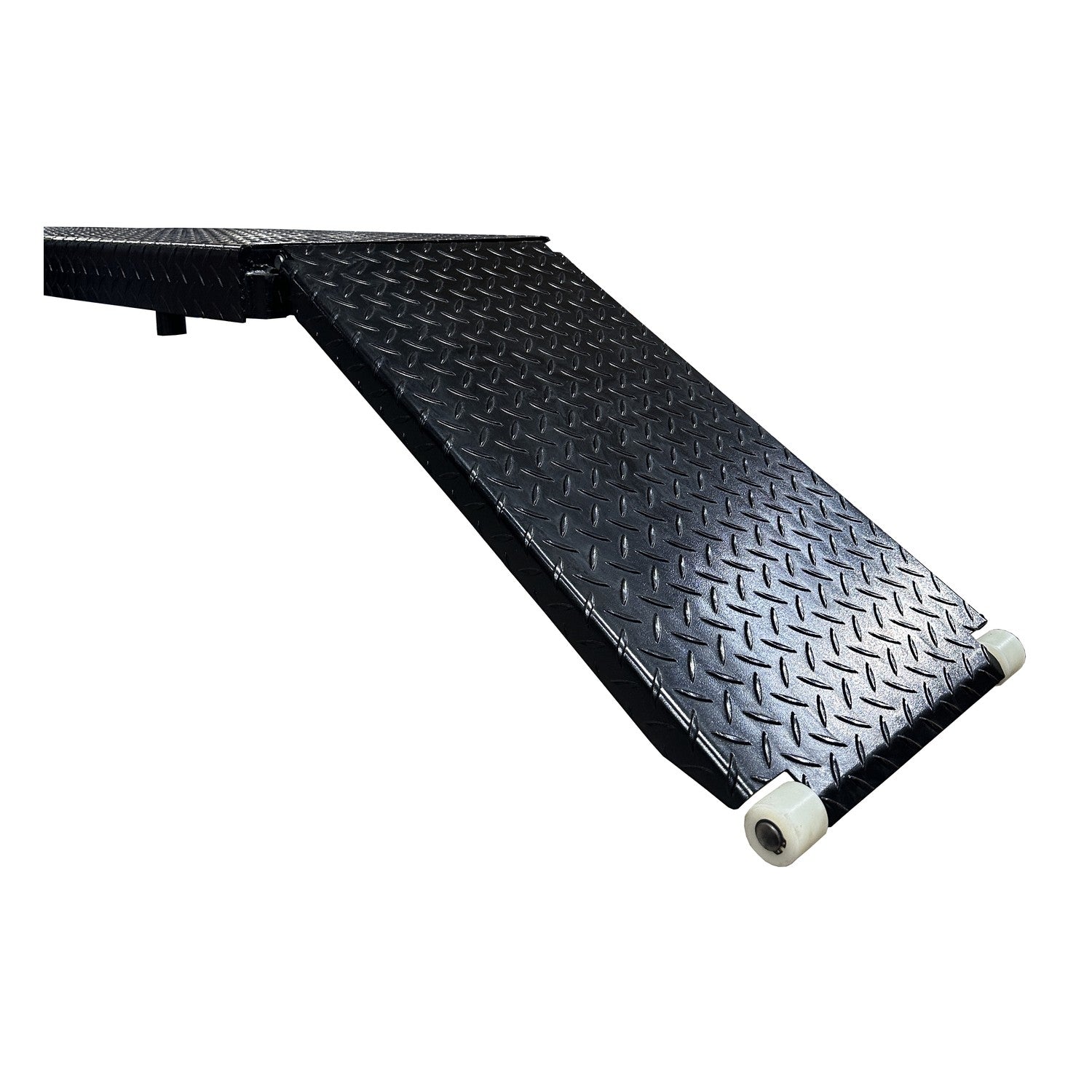

Low-Profile Approach Ramps
Vehicles with limited ground clearance can drive on without scraping, a common problem on some competing single-post storage lifts with steeper ramp angles.
Left or Right Side Installation
The lift can be configured to raise from either side, giving more flexibility in bay layout relative to walls, support columns, or neighboring lifts.
Minimal Footprint for Multiple Installations
The single-post design uses less floor space than dual-post storage lifts, supporting side-by-side installations for facilities maximizing parking density.

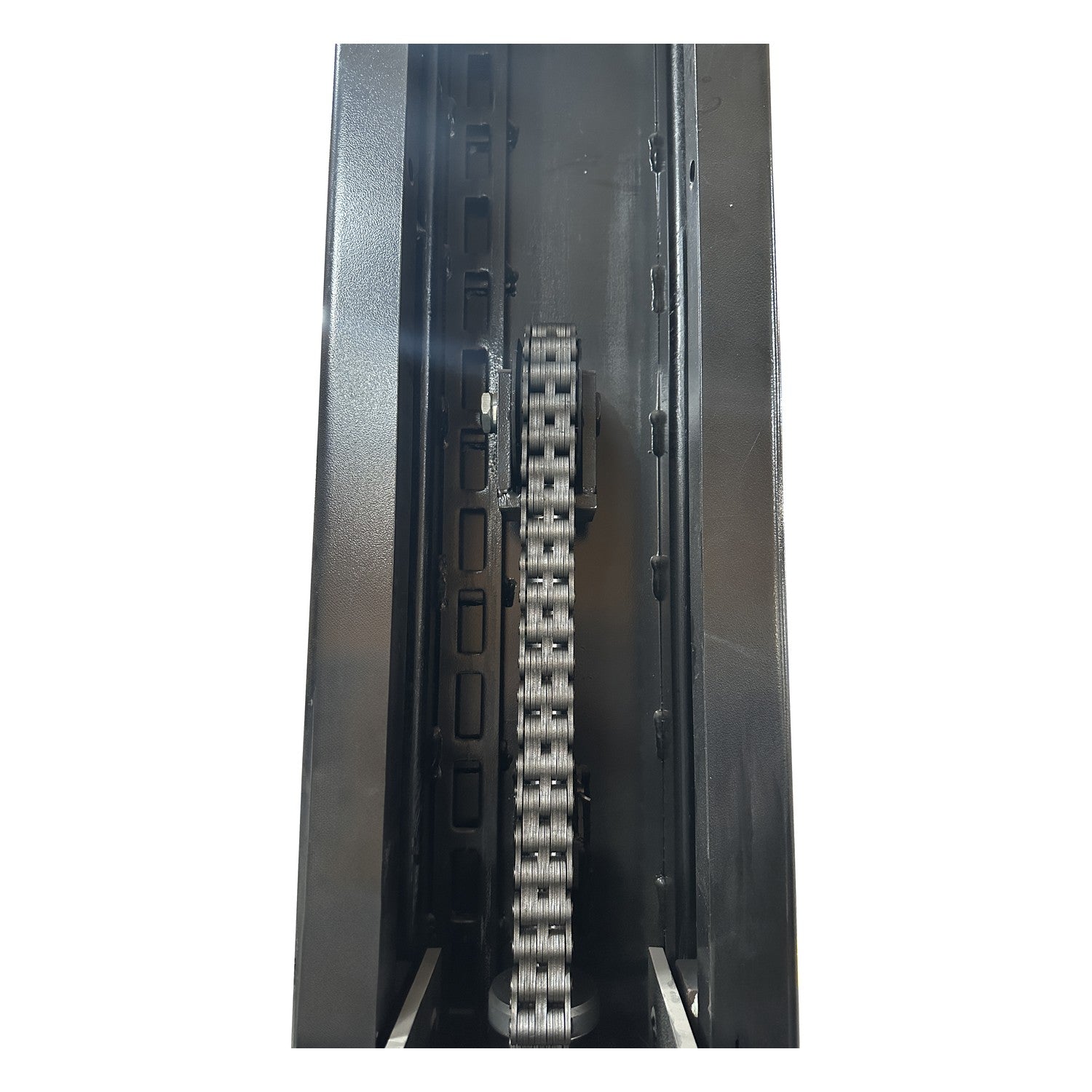

Commercial-Grade Cylinder and Leaf Chain
A commercial-grade hydraulic cylinder and heavy-duty leaf chain are built for the repeated raise/lower cycles typical of daily parking/storage use, powered by a DURO electric/hydraulic pump.
✅ Best For
- ✅ Facilities that need to double parking capacity in an existing bay
- ✅ Multi-lift installations where footprint matters
❌ Not Ideal For
- ❌ Bays with less than 110-1/4 in of ceiling clearance
- ❌ Vehicles over 6,000 lb
Full Specifications — SP-6K-SS
| Model / Part Number | SP-6K-SS |
| Type | Single column parking/storage lift |
| Capacity | 6,000 lb |
| Overall Length w/ Ramp | 188 in |
| Overall Width (Outside Base Plates) | 112-3/16 in |
| Overall Height | 110-1/4 in |
| Lifting Height | 81-3/16 in |
| Length of Runways | 152 in |
| Width of Runways | 18-7/8 in |
| Maximum Clearance under Track | 77-3/16 in |
| Cable Diameter | 3/8 in |
| Base Plate Size | 52 in x 39 in |
| Lock Positions | 19 |
| Lifting Speed | 90S |
| Power | 115V – 20 Amp – 1PH |
| Ship Weight | 2,610 lb |
⚠️ Installation Requirements
- Floor: Level, load-rated concrete shop floor. Confirm slab thickness/anchoring against the manufacturer's installation manual before delivery.
- Power: Dedicated 115V, 20 Amp, single-phase circuit for the DURO electric/hydraulic pump.
- Ceiling clearance: Confirm your bay clears the 110-1/4 in overall lift height.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup.
Warranty — SP-6K-SS
The SP-6K-SS is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — SP-6K-SS
Does the SP-6K-SS price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Can the SP-6K-SS raise from either side?
Yes. It can be installed to lift from the left or right side, depending on your bay layout.
How much ceiling clearance does the SP-6K-SS need?
110-1/4 in of overall lift height. Confirm your bay's ceiling clearance before ordering.
What is the SP-6K-SS's warranty?
Tuxedo backs the SP-6K-SS with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the SP-6K-SS from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
