Tuxedo Motorcycle / ATV Manual Tire Changer #TC-MCATVM
| Model / Part Number | TC-MCATVM |
| Type | Manual tire changer, motorcycle/ATV/go-kart/golf cart |
| Min Wheel Size | 4 in |
| Max Wheel Size | 21 in |
| Center Post Diameters | 1/2 in & 5/8 in |
| Adjustable Clamp Range | 3 in – 12.5 in |
| Ship Weight | 75 lb |
- Level shop floor — base size 12 in x 19 in, minimal footprint
- Indoor use
- No electrical or air connection required — fully manual operation
- Confirm bay/bench space for the compact 12 in x 19 in base
- Minimal assembly required on arrival
- Ships by standard parcel/small freight

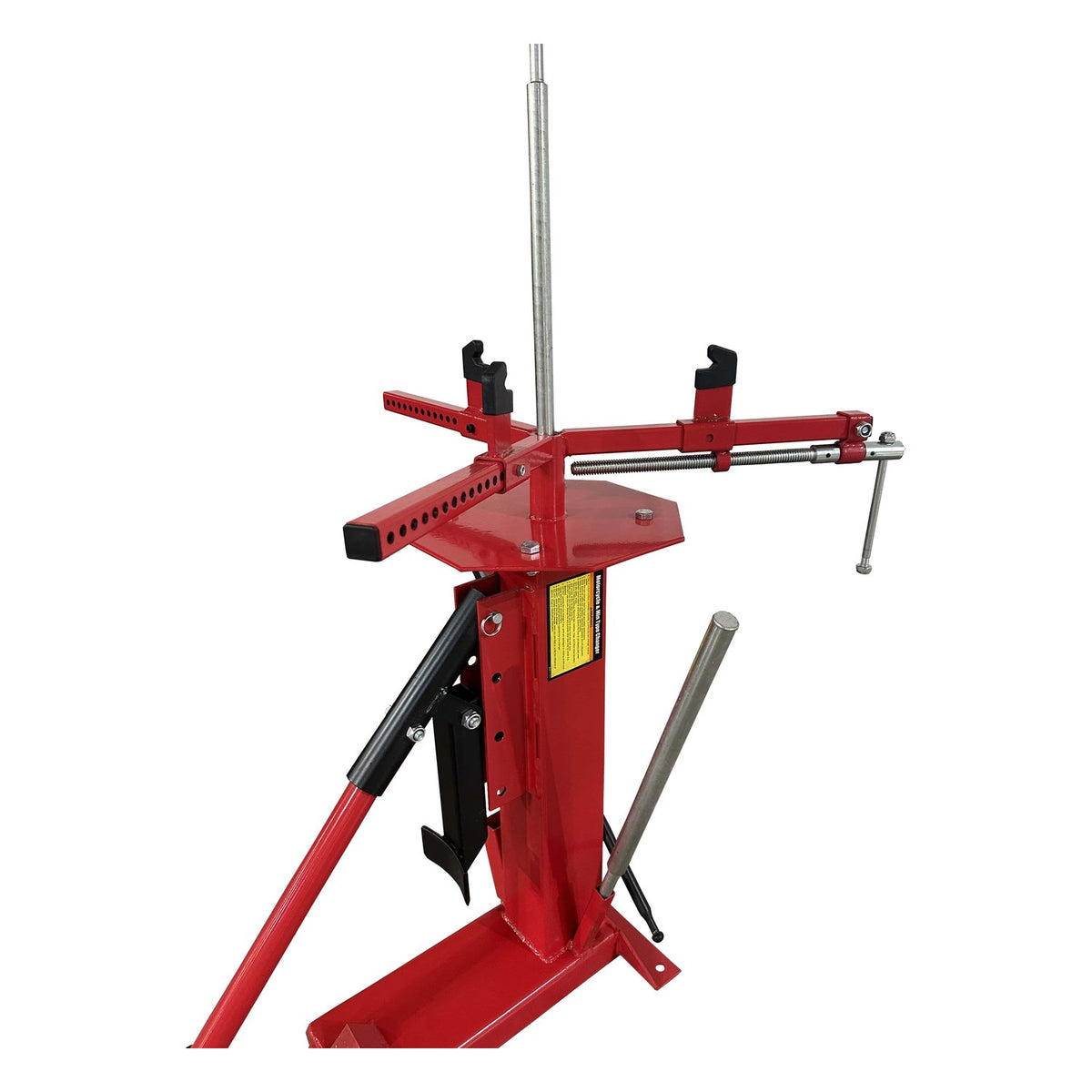

Tuxedo TC-MCATVM — Motorcycle / ATV Manual Tire Changer
The Tuxedo TC-MCATVM is a compact, fully manual tire changer built for motorcycle, ATV, go-kart, and golf cart wheels ranging from 4 in to 21 in. It's designed to work on bearing- or hub-centered wheels using two standard center post sizes (1/2 in and 5/8 in), with an integrated manual bead breaker combined into the same stand.
The adjustable clamp range of 3 in to 12.5 in accommodates a variety of small-wheel sizes, and the 29.5 in clamping tube height puts the work at a comfortable standing height. It accommodates both tubeless and tubed tires and requires minimal assembly out of the box.
Who It's Built For
- ✅ Powersports shops and hobbyists servicing motorcycle, ATV, go-kart, and golf cart wheels
- ✅ Shops that want a compact, fully manual changer without a dedicated power/air hookup
- ✅ Small to large service repair shops needing a dedicated small-wheel changer alongside a full-size tire changer
What It's NOT Built For
- ❌ Passenger car or light truck wheels — see Alamo's full-size tire changer lineup instead
- ❌ Shops wanting powered/pneumatic operation — this is a fully manual design
Questions about fit or compatibility? Call Alamo at (817) 865-3707.
What Makes the TC-MCATVM Different
Wide Small-Wheel Size Range
Handles wheels from 4 in to 21 in, covering motorcycle, ATV, go-kart, and golf cart applications with one compact stand.

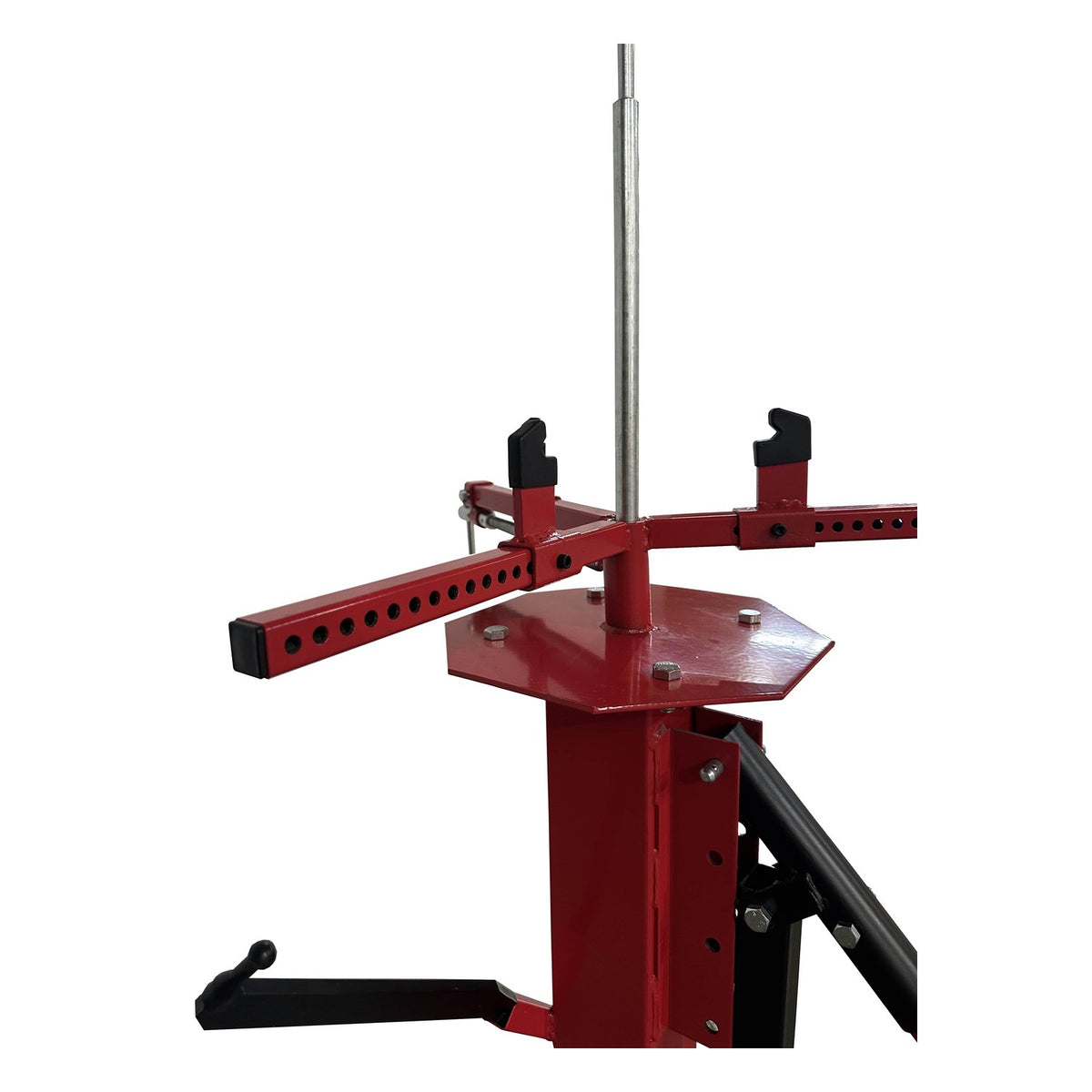

Two Center Post Sizes
1/2 in and 5/8 in center posts accommodate different bearing/hub-centered wheel designs without a separate adapter purchase.

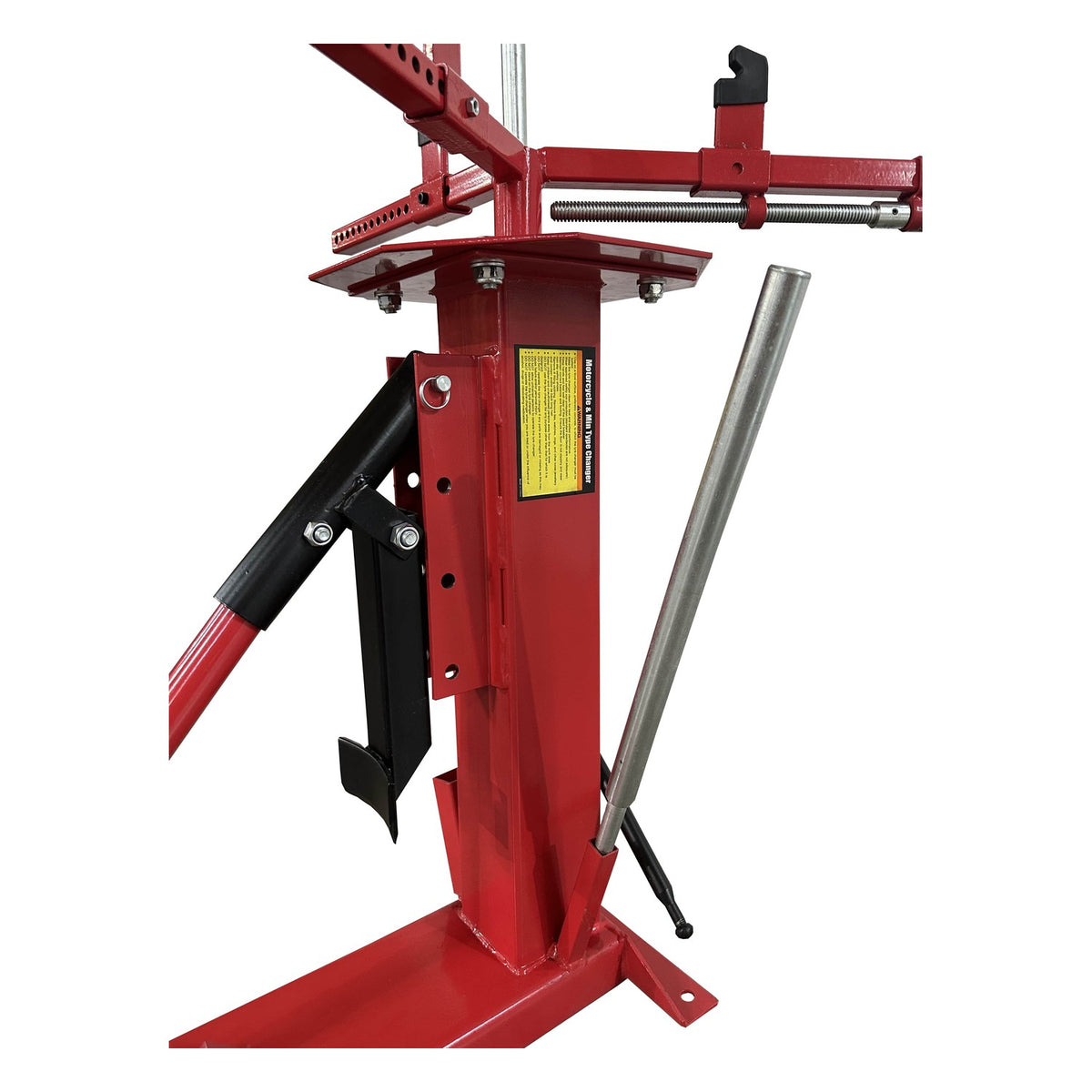

Integrated Manual Bead Breaker
The bead breaker is combined into the same stand rather than requiring a separate tool, simplifying the mount/demount workflow.
Fully Manual, No Utility Hookup
No electrical or air connection is needed, so the TC-MCATVM can be set up anywhere in the shop without running new power or air lines.
✅ Best For
- ✅ Powersports service work on small wheels
- ✅ Shops wanting a dedicated small-wheel changer without power/air requirements
❌ Not Ideal For
- ❌ Passenger car/light truck wheels
Full Specifications — TC-MCATVM
| Model / Part Number | TC-MCATVM |
| Type | Manual tire changer |
| Min Wheel Size | 4 in |
| Max Wheel Size | 21 in |
| Center Post Diameters | 1/2 in & 5/8 in |
| Adjustable Clamp Range | 3 in – 12.5 in |
| Clamping Tube Height | 29.5 in |
| Base Size | 12 in x 19 in |
| Ship Weight | 75 lb |
| Shipping Dimensions | 12 in x 13 in x 28 in |
| Compatible Tire Types | Tubeless and tubed |
⚠️ Installation Requirements
- Floor/bench: Compact 12 in x 19 in base — no special floor rating required beyond standard shop flooring.
- Assembly: Minimal assembly required on arrival.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: No power or air connection required. Call Alamo at (817) 865-3707 with any questions.
Warranty — TC-MCATVM
Tuxedo Distributors, LLC publishes a Limited Warranty (5-year structural / 1-year parts) for its Lifts and Wheel Service equipment.
Have a warranty question before you order? Call Alamo at (817) 865-3707 and we'll help you confirm current coverage directly with Tuxedo.
❓ Frequently Asked Questions — TC-MCATVM
Does the TC-MCATVM price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What wheel sizes does the TC-MCATVM handle?
4 in to 21 in, on bearing- or hub-centered wheels using 1/2 in or 5/8 in center posts.
Does the TC-MCATVM need shop air or power?
No. It's a fully manual tire changer with an integrated manual bead breaker — no electrical or air connection required.
Does the TC-MCATVM have a manufacturer warranty?
This product is not listed for sale on Tuxedo's own manufacturer website's Tire Changers category, and Alamo was not able to independently confirm a manufacturer warranty document naming it. One reseller lists a generic warranty field for this SKU that Alamo could not corroborate against a manufacturer source, so no warranty term is advertised here. Call Alamo and we'll help you confirm current coverage directly with Tuxedo.
Why Buy the TC-MCATVM from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
