Tuxedo 9,000 lb Two Post Clear Floor - Asymmetric #TP9KAC-TUX

Tuxedo TP9KAC-TUX — 9,000 lb Two Post Clear Floor Lift, Asymmetric

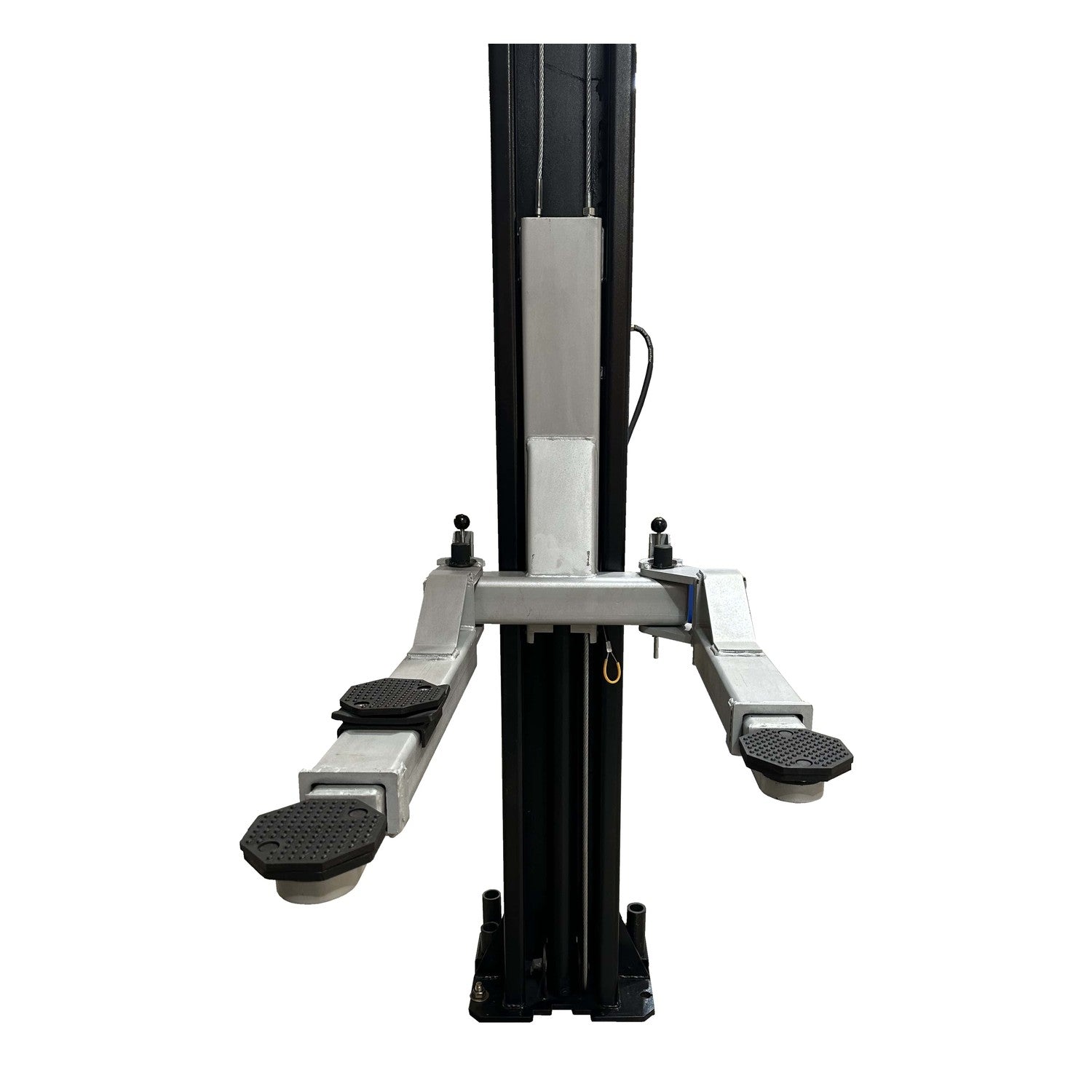

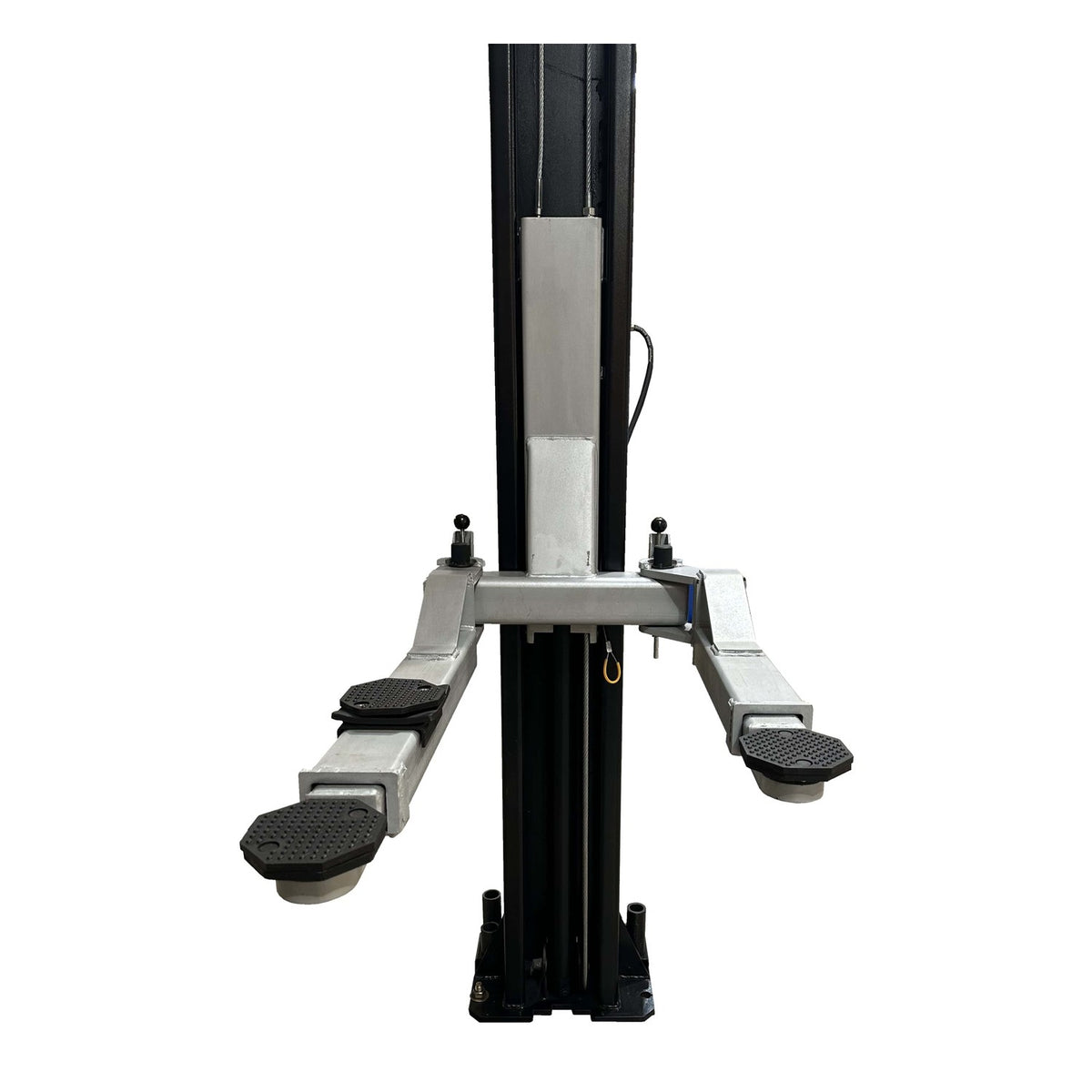

The Tuxedo TP9KAC-TUX is a 9,000 lb two-post lift with asymmetric swing arms and a clear-floor design — no floor plate connecting the columns, giving unobstructed floor access for tools, creepers, and equipment while a vehicle is raised. The asymmetric arm geometry (shorter front arms, longer rear arms) positions the vehicle for easier door opening and better weight distribution over the lift's pickup points.

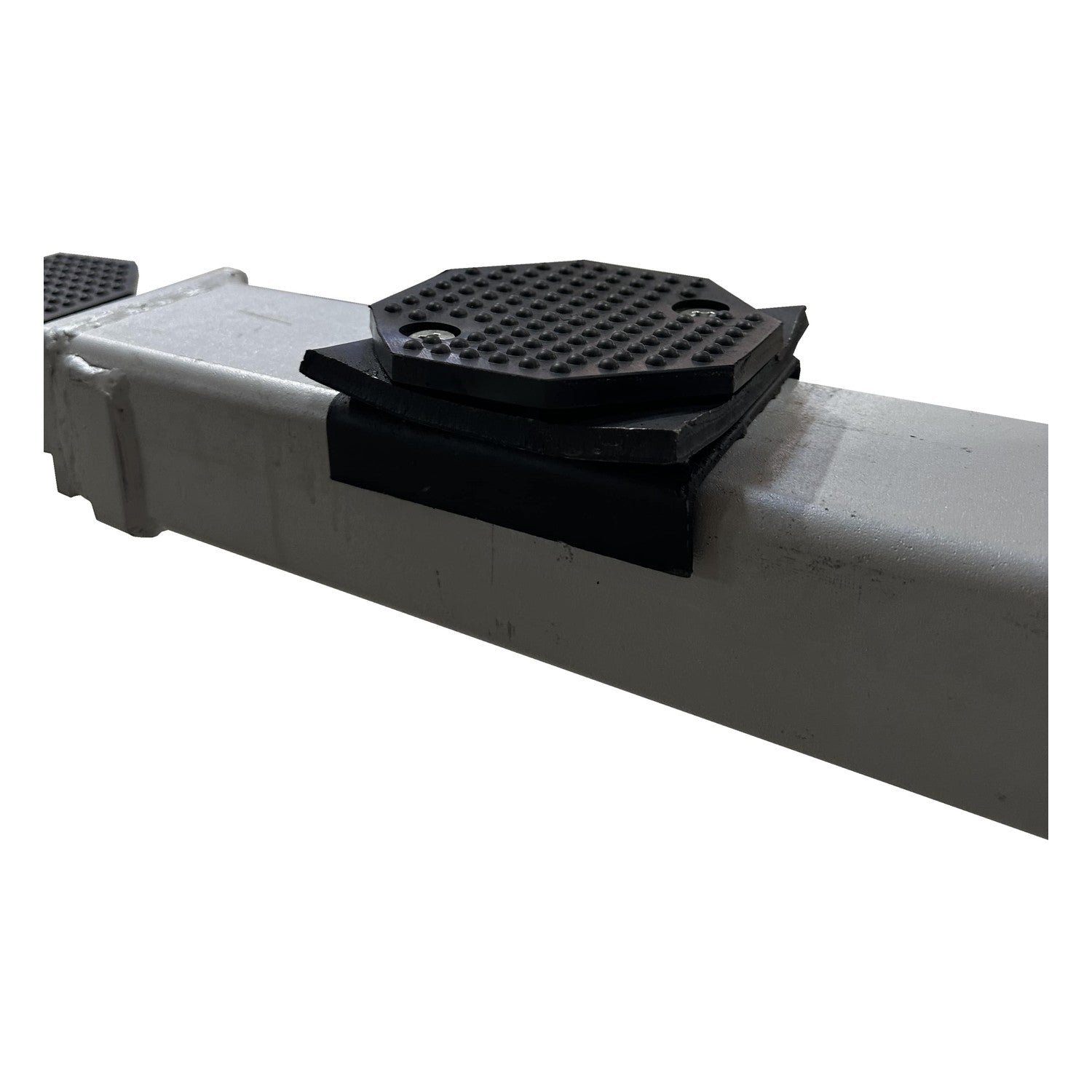

Chain-drive cylinders with a dual-point lock release raise both columns in sync, and an auto arm restraint system keeps the swing arms secured once positioned. Low-profile drop-in lift pads and a saddle pad adaptor pair (with stackable adapters included) accommodate a range of vehicle pickup point heights.

Who It's Built For

• ✅ General repair shops running mixed passenger cars, trucks, and SUVs up to 9,000 lb
• ✅ Shops that want clear-floor access for creepers, floor jacks, and tool carts under a raised vehicle
• ✅ Bays with 142-11/16 in or more of ceiling clearance

What It's NOT Built For

• ❌ Lower-ceiling bays — see the shorter TP9KF-TUX floor-plate version at 112 in overall height
• ❌ Loads over 9,000 lb, or over 2,250 lb on any single arm

Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.

What Makes the TP9KAC-TUX Different

Asymmetric Arm Geometry

Short arm reach of 29–41 in up front and long arm reach of 37–57 in in back position the vehicle off-center for easier door swing and better weight balance over the pickup points — a different setup than symmetric arms that reach the same distance on both ends.

Clear Floor Design

No floor plate spans between the two columns, leaving the drive-thru clearance (93-11/16 in) completely open for tools, creepers, and equipment to move under a raised vehicle without stepping over a plate.

Chain-Drive Cylinders with Dual-Point Lock Release

Chain-over hydraulic drive keeps both columns synchronized, and the dual-point lock release engages the safety locks at each column.

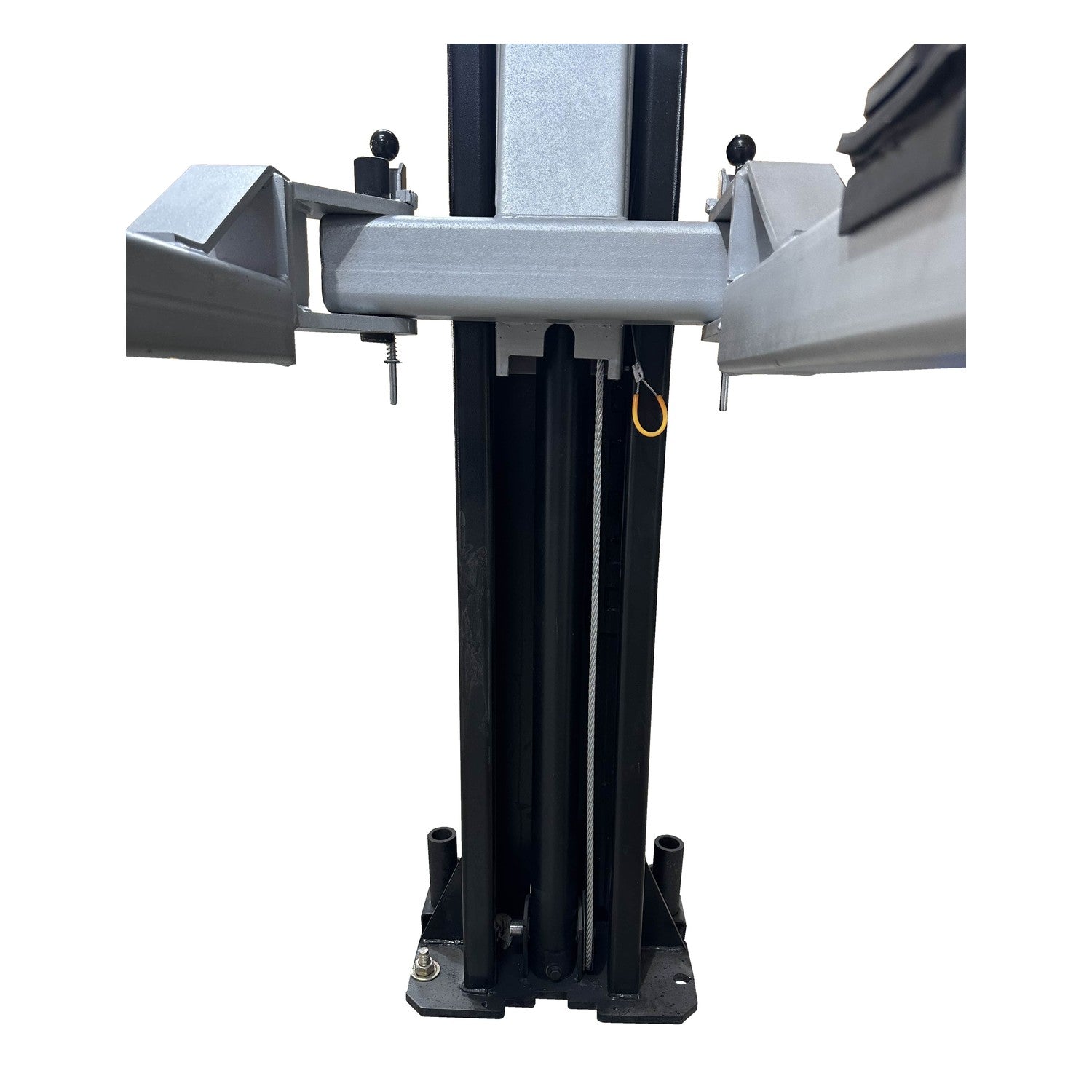

Auto Arm Restraint System

Keeps the swing arms secured in position once set, reducing arm swing/repositioning during loading.

TP9KAC-TUX vs. TP9KF-TUX — Clear Floor or Floor Plate?

Same 9,000 lb capacity and 72 in max lift height on both — the real difference is arm geometry, floor design, and overall height.

Choose the TP9KAC-TUX if you want asymmetric arms and a fully clear floor. Choose the TP9KF-TUX if your bay has less overhead clearance or you prefer symmetric arm reach. Call (817) 865-3707 if you're not sure which fits your shop.

✅ Best For

• ✅ Shops wanting asymmetric arms for easier door clearance
• ✅ Bays with adequate ceiling height for the taller clear-floor design

❌ Not Ideal For

• ❌ Lower-ceiling bays — the TP9KF-TUX is over 30 in shorter

Full Specifications — TP9KAC-TUX

Warranty — TP9KAC-TUX

The TP9KAC-TUX is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.

Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.

Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
