Tuxedo 9,000 lb Two Post Floor Plate - Symmetric #TP9KF-TUX

Tuxedo TP9KF-TUX — 9,000 lb Two Post Floor Plate Lift, Symmetric

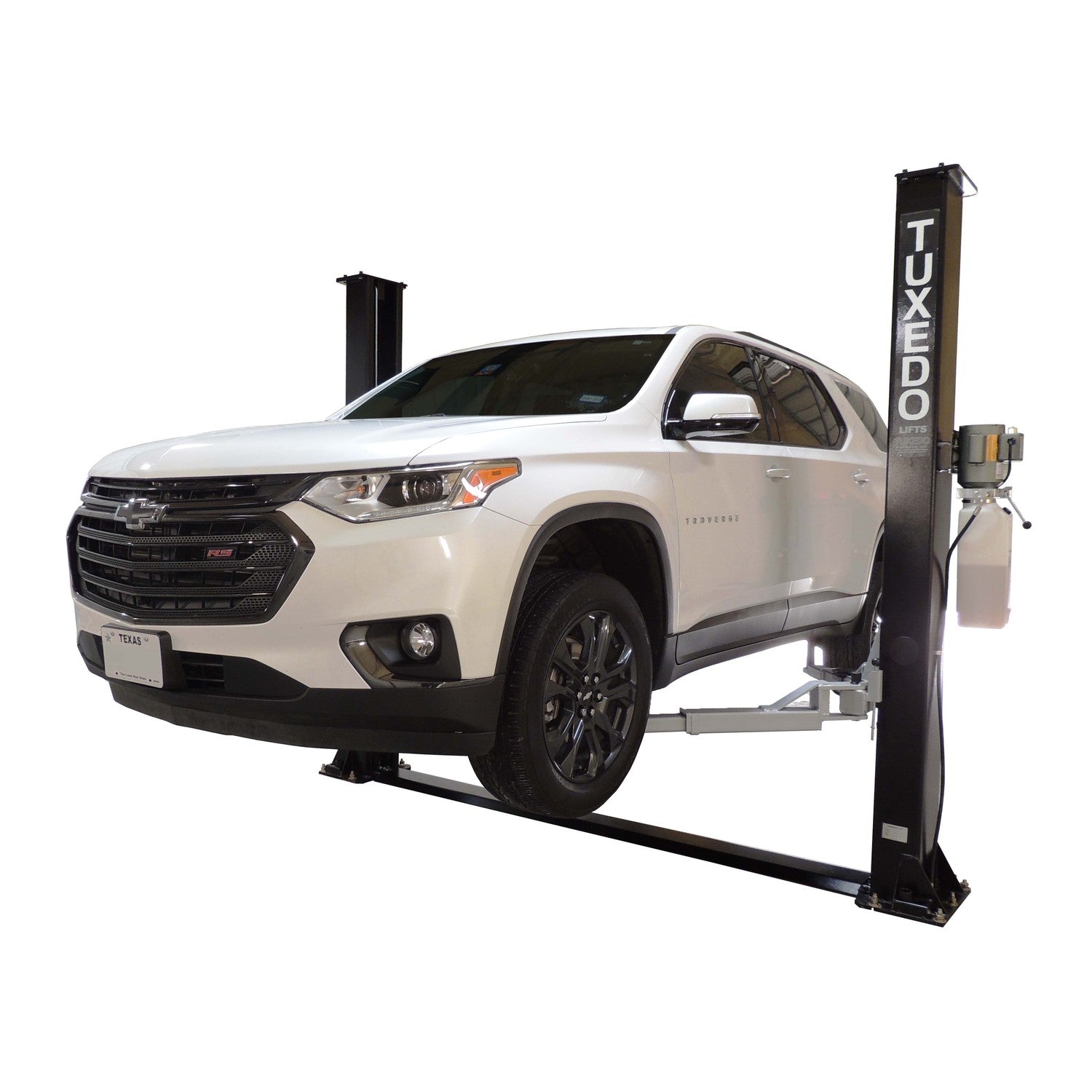

The Tuxedo TP9KF-TUX is a 9,000 lb two-post lift with symmetric swing arms and a floor-plate design connecting the two columns — a lower-profile alternative to a clear-floor lift, useful for bays with tighter ceiling clearance. At 112 in overall height, it's over 30 in shorter than the clear-floor TP9KAC-TUX.

Symmetric arms reach the same distance on both front and rear pickup points, giving a straightforward, consistent setup across different vehicle types. Chain-drive cylinders with a dual-point lock release raise both columns in sync, and an auto arm restraint system keeps the swing arms secured once positioned.

Who It's Built For

• ✅ Shops with lower-ceiling bays that can't accommodate a taller clear-floor lift
• ✅ General repair shops running mixed passenger cars, trucks, and SUVs up to 9,000 lb
• ✅ Buyers who prefer symmetric arm reach front-to-back

What It's NOT Built For

• ❌ Shops that want a fully clear floor with no plate between columns — see the TP9KAC-TUX
• ❌ Loads over 9,000 lb, or over 2,250 lb on any single arm

Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.

What Makes the TP9KF-TUX Different

Symmetric Arm Geometry

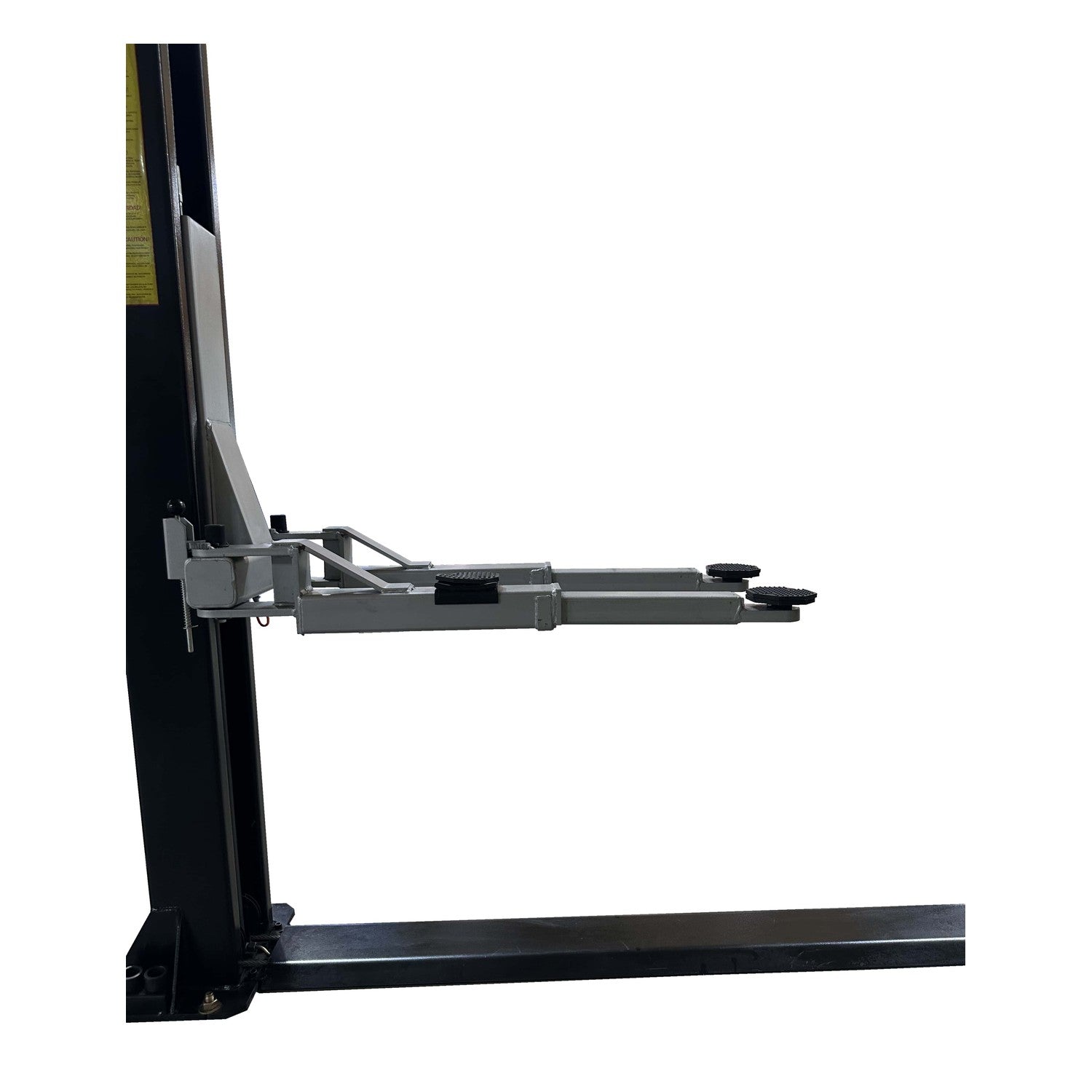

Both arms reach 31–45 in on either side — the same distance front-to-back, giving a consistent setup that doesn't require distinguishing short vs. long arm placement.

Lower-Profile Floor-Plate Design

The floor plate connecting the two columns adds structure at a lower overall height (112 in) compared to the taller clear-floor TP9KAC-TUX (142-11/16 in) — a real advantage for bays with tighter ceiling clearance.

Chain-Drive Cylinders with Dual-Point Lock Release

Chain-over hydraulic drive keeps both columns synchronized, and the dual-point lock release engages the safety locks at each column.

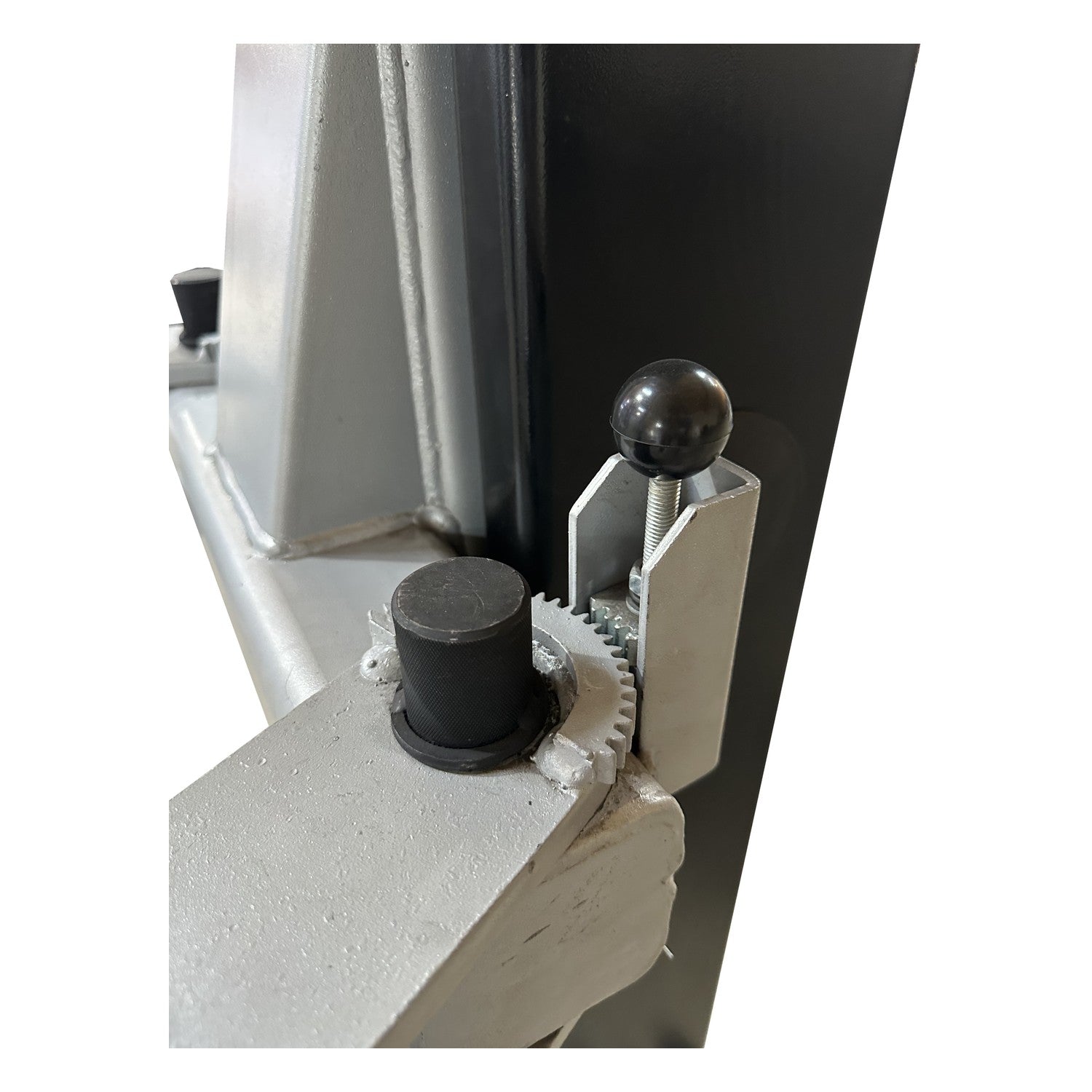

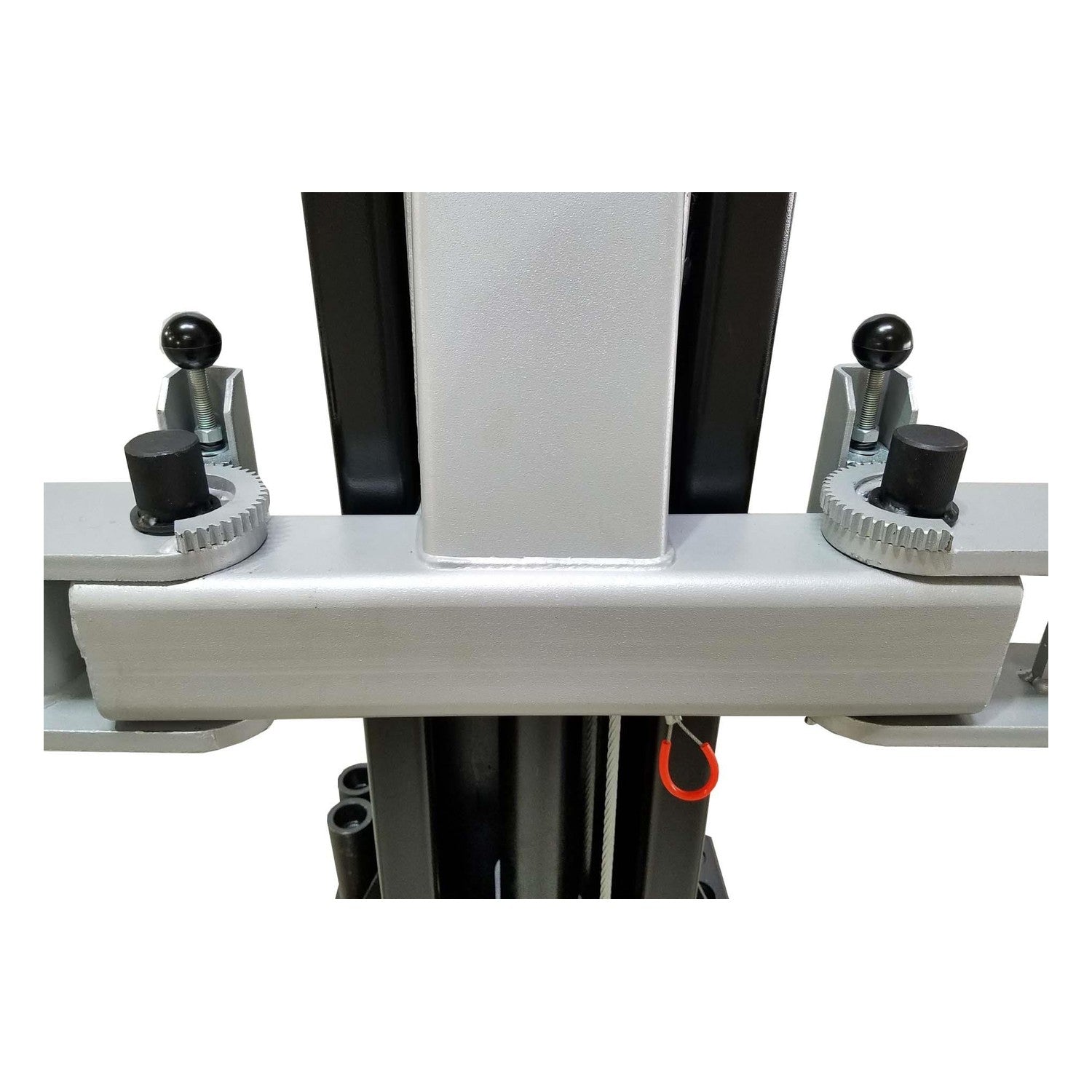

Auto Arm Restraint System

Keeps the swing arms secured in position once set, reducing arm swing/repositioning during loading.

TP9KF-TUX vs. TP9KAC-TUX — Floor Plate or Clear Floor?

Same 9,000 lb capacity and 72 in max lift height on both — the real difference is arm geometry, floor design, and overall height.

Choose the TP9KF-TUX if your bay has less overhead clearance or you prefer symmetric arm reach. Choose the TP9KAC-TUX if you want asymmetric arms and a fully clear floor. Call (817) 865-3707 if you're not sure which fits your shop.

✅ Best For

• ✅ Lower-ceiling bays that need the shorter overall height
• ✅ Shops that prefer symmetric, front-to-back-identical arm reach

❌ Not Ideal For

• ❌ Shops that specifically want a fully clear floor with no plate between columns

Full Specifications — TP9KF-TUX

Warranty — TP9KF-TUX

The TP9KF-TUX is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.

Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.

Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
