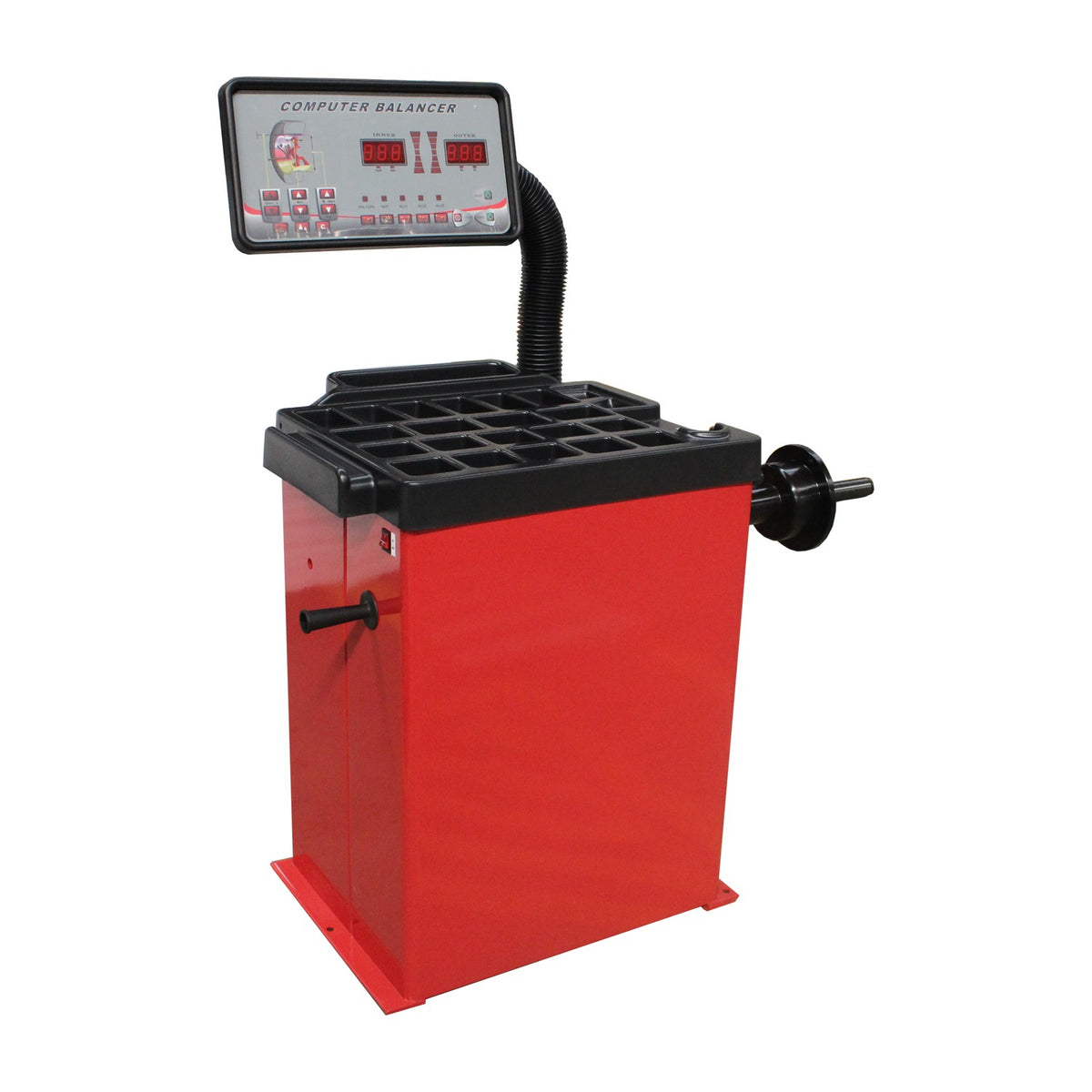

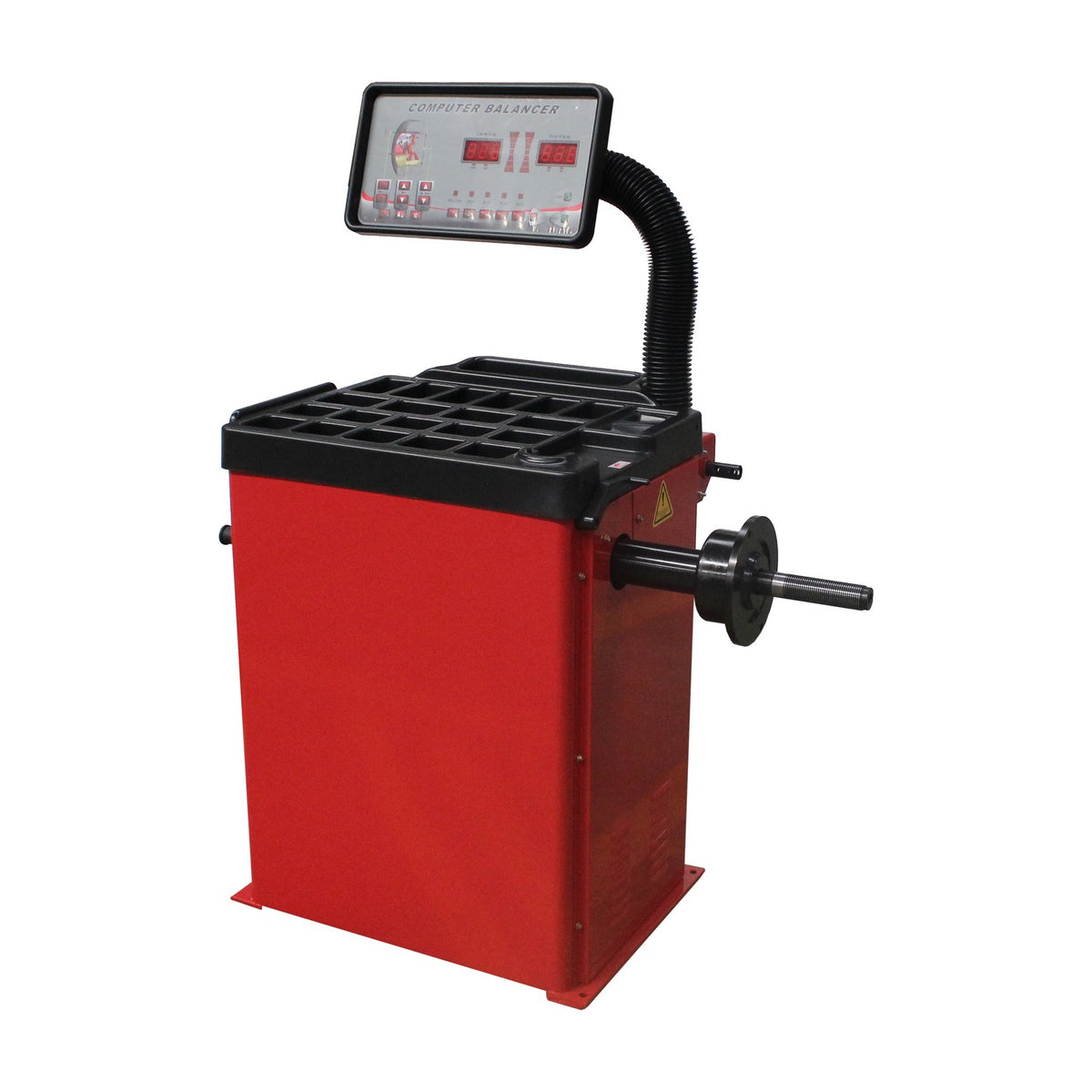

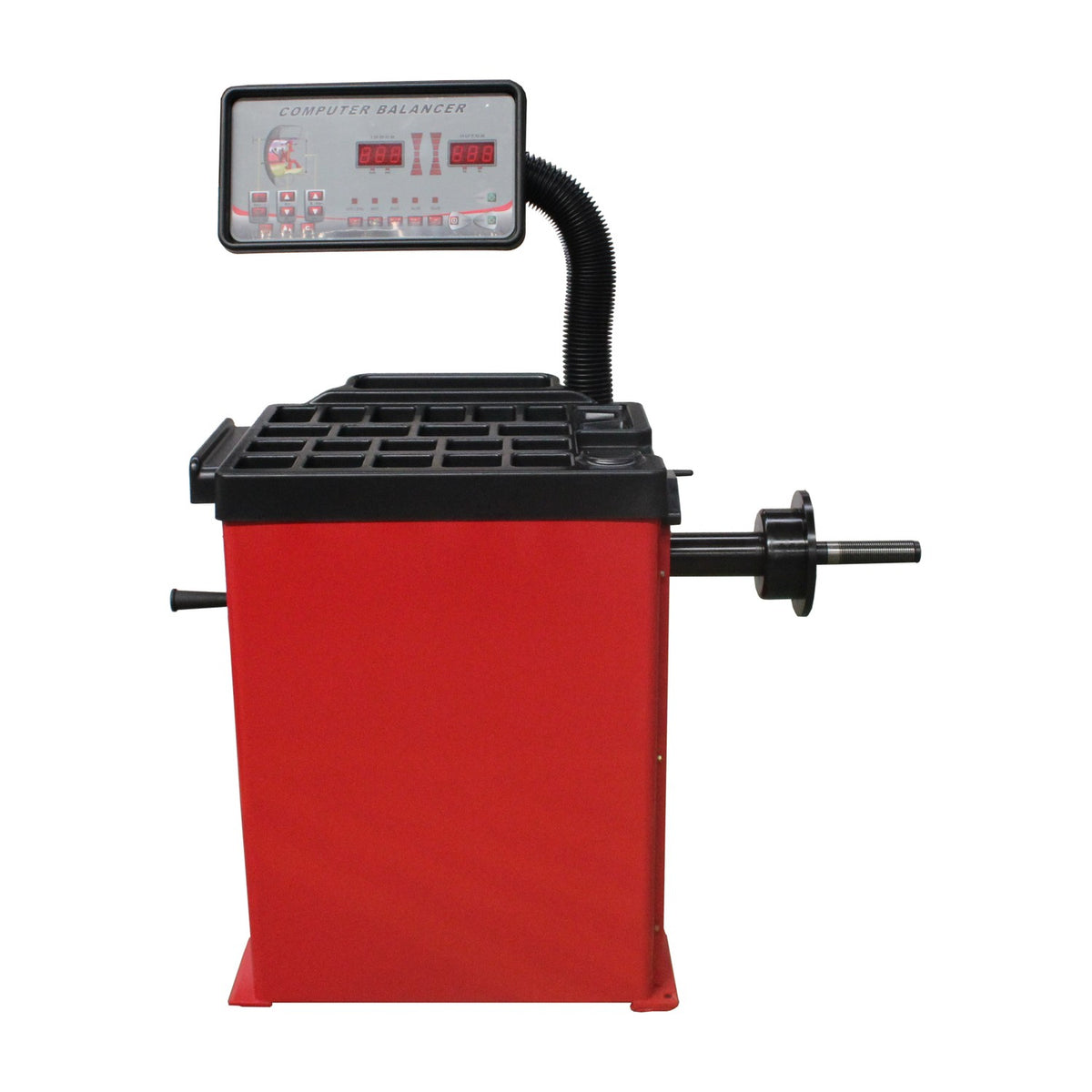

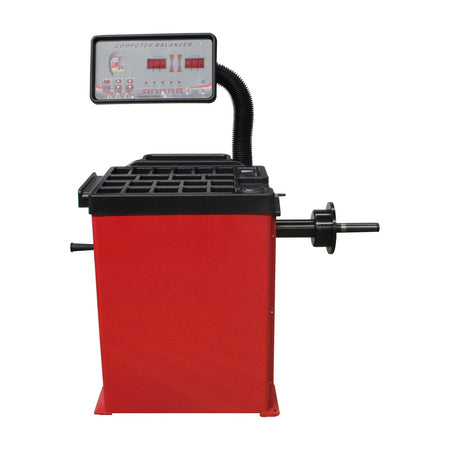

Tuxedo WB-953 Wheel Balancer - No Hood #WB-953-B
| Model / Part Number | WB-953-B |
| Type | Wheel balancer, no hood (economy configuration) |
| Max Wheel Diameter | 39 in |
| Rim Diameter / Width | 10 in – 24 in / 1.5 in – 20 in |
| Wheel Weight Capacity | 150 lb |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 305 lb |
- Level shop floor rated for a 305 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Confirm bay space for standard balancer clearance
- Confirm aisle/bay space for delivery
- Ships by LTL freight
Tuxedo WB-953-B — Wheel Balancer, No Hood
The Tuxedo WB-953-B is the same keypad-entry balancing mechanism as Alamo's WB-953, sold as Tuxedo's “Basic” economy configuration without the 38 in wheel hood/shroud. Rim capacity, wheel weight capacity, accuracy, and balancing modes all match the hooded WB-953 exactly — the only difference is the hood, which physically blocks debris flung off the wheel during the spin cycle.
Skipping the hood shaves 30 lb off ship weight and lowers the price point for shops that don't need that added debris shielding.
Who It's Built For
- ✅ Shops that don't need the hood's debris containment and want the lower-cost configuration
- ✅ Techs balancing car and light-truck wheels up to 150 lb
- ✅ Facilities wanting a slightly lighter machine (305 lb vs. 335 lb)
What It's NOT Built For
- ❌ Shops that want debris shielding during the spin cycle — see the hooded WB-953
- ❌ Heavy truck wheels over 150 lb — see Alamo's WB-448 instead
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the WB-953-B Different
No-Hood “Basic” Configuration
Skips the 38 in wheel hood/shroud that ships standard on the WB-953, trading debris containment for a lighter, lower-cost machine.
Identical Balancing Mechanism
Rim capacity, wheel weight capacity, accuracy, and balancing modes (Static, Dynamic, 3 ALU, standard Car/Motorcycle) match the WB-953 exactly — this is the same core machine, not a lower-spec version.
✅ Best For
- ✅ Shops that want the lower-cost, no-hood economy configuration
- ✅ Standard car/light-truck wheel balancing up to 150 lb
❌ Not Ideal For
- ❌ Shops that want debris shielding during the spin cycle
WB-953-B vs. WB-953 — Do You Need the Hood?
Mechanically and electrically identical; the hood is a real functional trade-off, not a cosmetic difference.
| Decision Point | WB-953-B (this product) | WB-953 |
|---|---|---|
| Wheel hood | Not included | 38 in hood included |
| Debris containment during spin | No | Yes |
| Ship weight | 305 lb | 335 lb |
Choose the WB-953-B if you don't need the hood's debris containment and want the lighter, lower-cost configuration. Choose the WB-953 if you want that added shielding. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — WB-953-B
| Model / Part Number | WB-953-B |
| Type | Wheel balancer, no hood (economy configuration) |

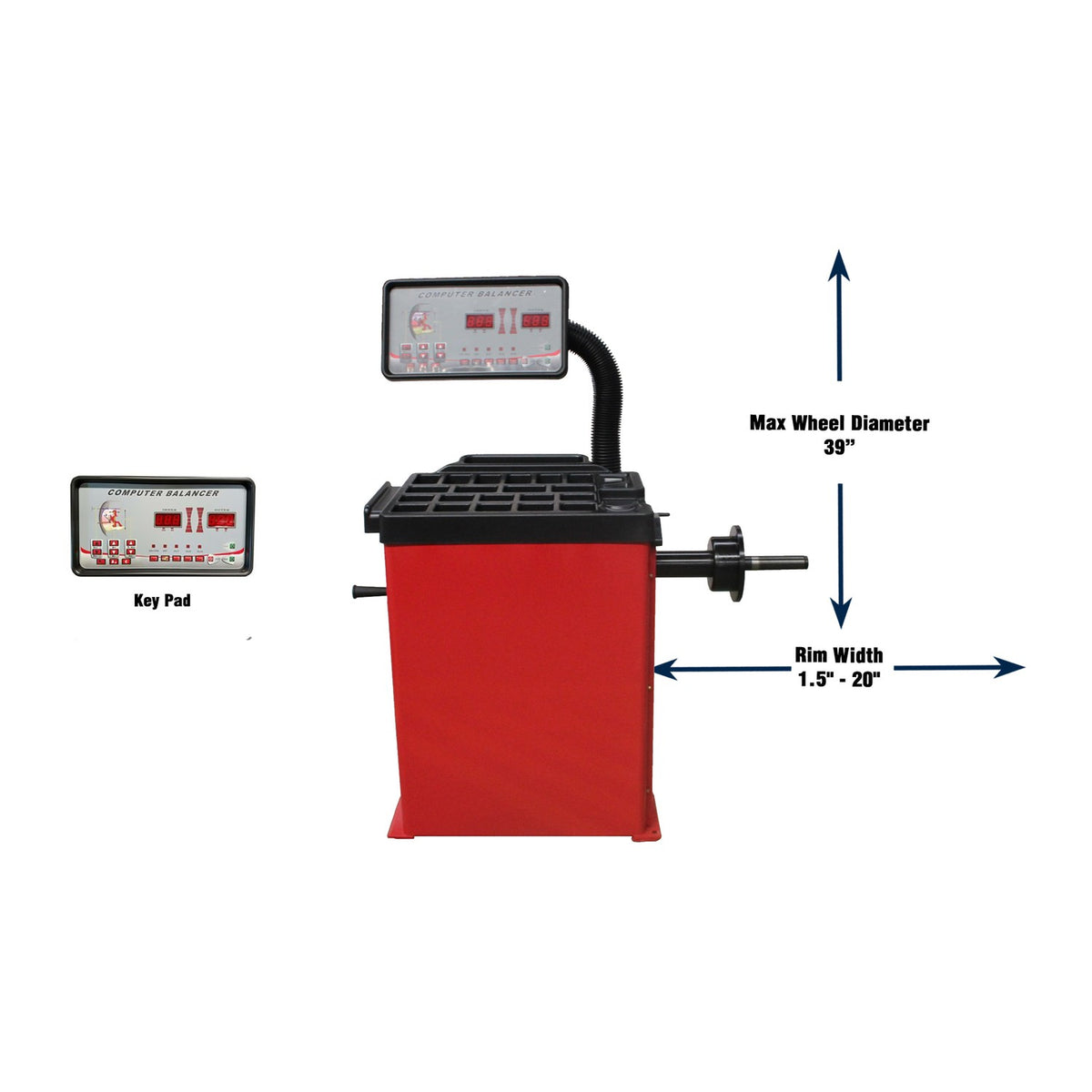

| Max Wheel Diameter | 39 in |
| Rim Width | 1.5 in – 20 in |
| Rim Diameter | 10 in – 24 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Data Entry | Keypad |
| Wheel Hood | Not included -- 'Basic' economy configuration |
| Balancing Modes | Static, Dynamic, 3 ALU modes; standard Car and Motorcycle modes |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 305 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 305 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Bay footprint: Confirm standard balancer clearance.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — WB-953-B
The WB-953-B is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are corroborated on the standard Tuxedo Lifts/Wheel Service warranty documentation cross-referenced in the ledger.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — WB-953-B
Does the WB-953-B price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the WB-953-B and WB-953?
They're mechanically and electrically identical. The WB-953-B is sold without the 38 in debris hood, at a lighter 305 lb ship weight and lower price point.
What's the wheel weight capacity of the WB-953-B?
150 lb, at 1-gram accuracy.
What is the WB-953-B's warranty?
Tuxedo's published Limited Warranty for Lifts and Wheel Service equipment (5-year structural / 1-year parts to the original purchaser) applies to this Wheel Service product.
