Tuxedo Truck Wheel Balancer #WB-448
| Model / Part Number | WB-448 |
| Type | Heavy-duty truck wheel balancer |
| Max Wheel Diameter | 47 in |
| Wheel Weight Capacity | 298 lb |
| Accuracy | 1 gram |
| Power | 220V – 20 Amp – 1PH |
| Ship Weight | 650 lb |
- Level concrete shop floor rated for a 650 lb machine plus heavy truck wheels
- Confirm floor load capacity for repeated heavy-wheel handling
- Indoor use
- Dedicated 220V, 20 Amp, single-phase circuit
- Confirm outlet location relative to intended placement
- Confirm bay space for the pneumatic wheel lift and hood assembly
- Confirm aisle/bay space for heavy truck wheels moving in and out
- Ships by LTL freight

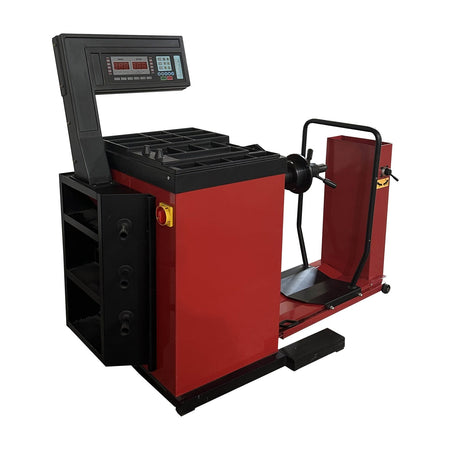

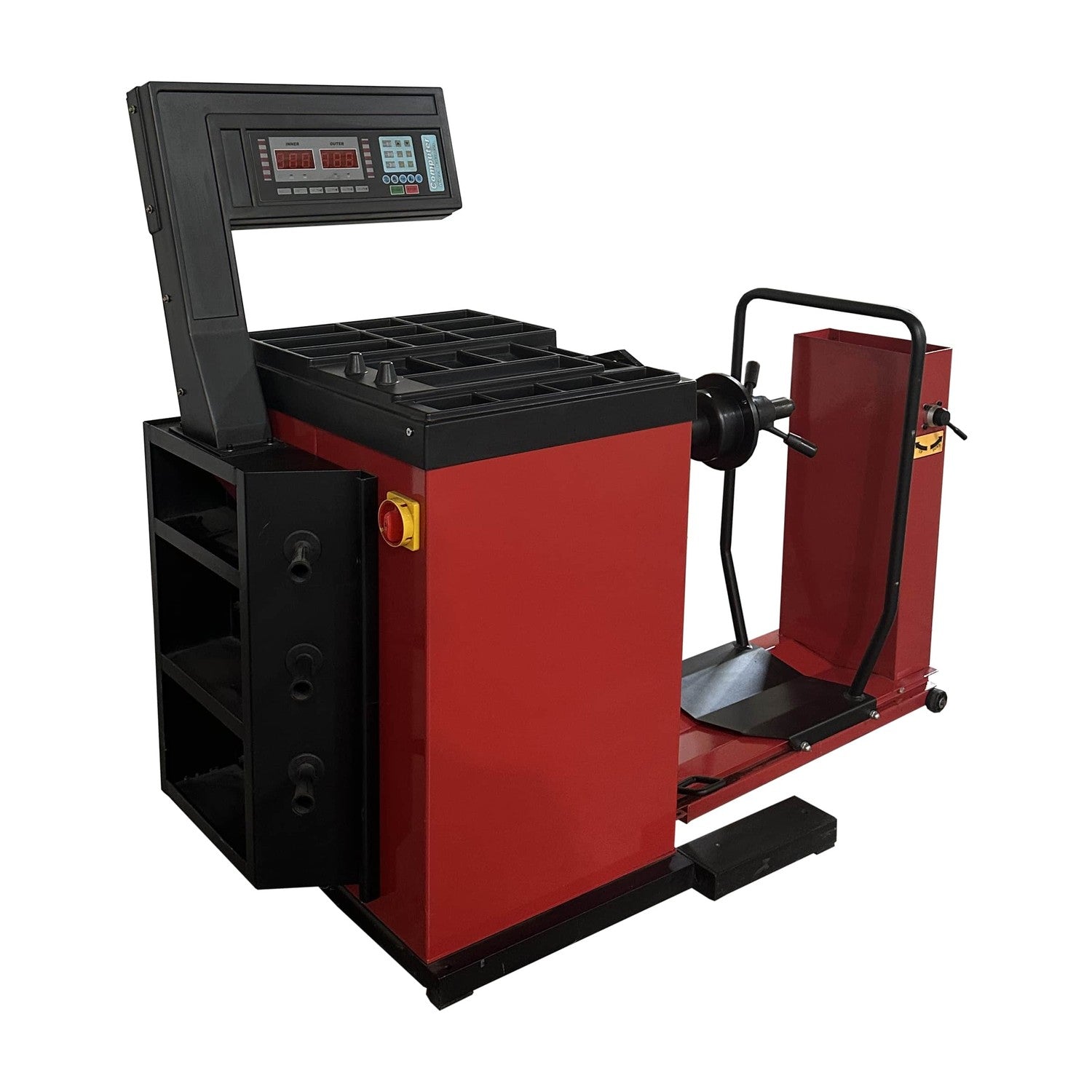

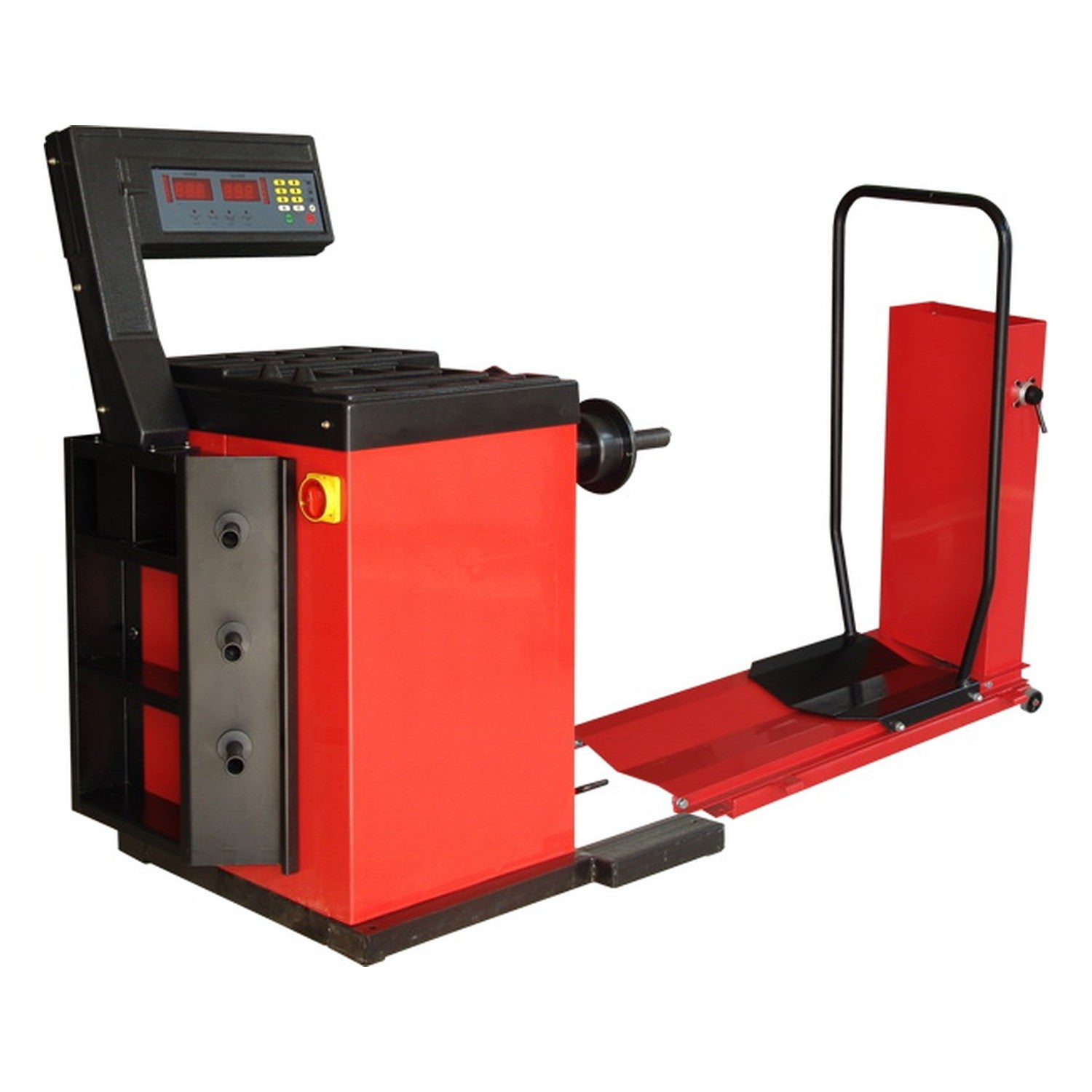

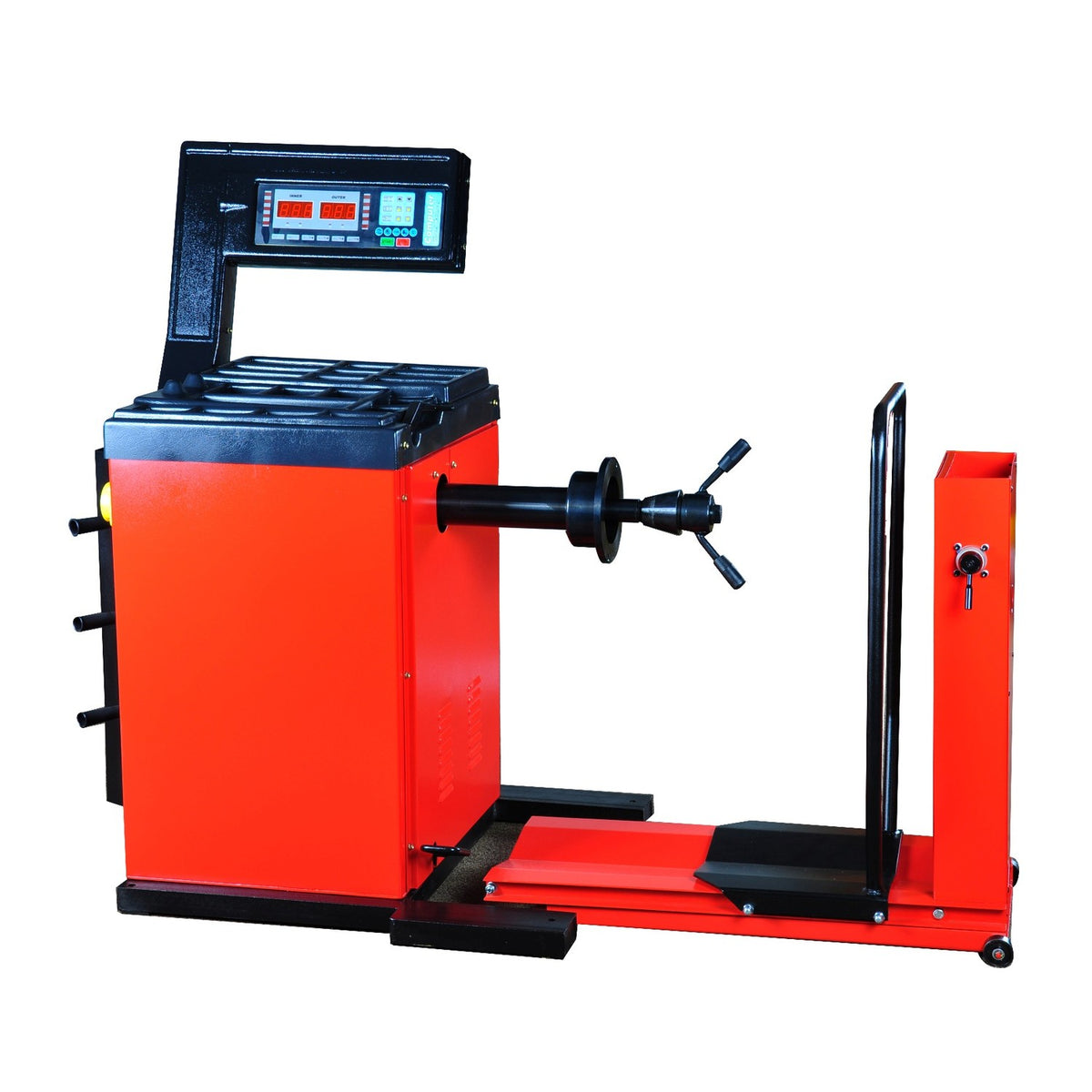

Tuxedo WB-448 — Truck Wheel Balancer
The Tuxedo WB-448 is a heavy-duty wheel balancer built for truck wheels, not a scaled-up version of Alamo's WB-953 car/light-truck balancer family. Its 298 lb wheel weight capacity is nearly double the WB-953/WB-953-B's 150 lb rating, and it runs on 220V power instead of 110V — both reflect the genuinely heavier wheels this machine is built to handle.
A back-saving pneumatic wheel lift standard helps position heavy wheels onto the shaft, and the machine is self-calibrating and self-diagnostic with ST/AL1/AL2/AL3/AL4 balancing methods, a foot brake, weight storage, and a standard toolbox.
Who It's Built For
- ✅ Shops balancing heavy truck wheels up to 298 lb
- ✅ Facilities with 220V power available for a heavy-duty balancer
- ✅ Techs who want a pneumatic wheel lift instead of manually hoisting heavy wheels onto the shaft
What It's NOT Built For
- ❌ Standard car/light-truck wheels — see Alamo's WB-953 or WB-953-B instead
- ❌ Shops without 220V, 20 Amp single-phase power available
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the WB-448 Different
298 Lb Wheel Weight Capacity
Nearly double the 150 lb rating on Alamo's WB-953 family — built specifically for heavy truck wheels, not a higher tier of the same car/light-truck machine.
Standard Pneumatic Wheel Lift
Helps position heavy wheels onto the balancing shaft without manual lifting, a feature the lighter-duty WB-953 family doesn't need or include.
220V Power
Runs on 220V instead of the WB-953 family's 110V, reflecting the heavier motor needed for truck-wheel balancing loads.
Self-Calibrating / Self-Diagnostic
Checks its own calibration rather than requiring manual calibration procedures.
✅ Best For
- ✅ Heavy truck wheel balancing up to 298 lb
- ✅ Shops with 220V power for a heavy-duty balancer
❌ Not Ideal For
- ❌ Standard car/light-truck wheel balancing — the WB-953/WB-953-B is the better fit and lower cost
Full Specifications — WB-448
| Model / Part Number | WB-448 |
| Type | Heavy-duty truck wheel balancer |
| Max Wheel Diameter | 47 in |
| Rim Width | 1.5 in – 20 in |
| Rim Diameter | 10 in – 24 in |
| Wheel Weight Capacity | 298 lb |
| Accuracy | 1 gram |
| Power | 220V – 20 Amp – 1PH |
| Ship Weight | 650 lb |
| Design | Back-saving pneumatic wheel lift standard, self-calibrating/self-diagnostic, ST/AL1/AL2/AL3/AL4 balancing methods, foot brake, weight storage, toolbox standard |
⚠️ Installation Requirements
- Floor: Level concrete shop floor rated for a 650 lb machine plus heavy truck wheels.
- Power: Dedicated 220V, 20 Amp, single-phase circuit.
- Bay footprint: Confirm space for the pneumatic wheel lift and hood assembly, plus clearance for heavy wheels in and out.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup.
Warranty — WB-448
Tuxedo Distributors, LLC publishes a Limited Warranty (5-year structural / 1-year parts) for its Lifts and Wheel Service equipment. Alamo downloaded the manufacturer's own 31-page operating manual for the WB-448 and searched its full text for warranty language; the manual covers safety, electrical wiring, and hood-assembly installation only, with no warranty section. No other manufacturer document naming this heavy-duty truck wheel balancer specifically was located, so no warranty term is advertised here rather than assuming coverage that isn't confirmed in writing.
Have a warranty question before you order? Call Alamo at (817) 865-3707 and we'll help you confirm current coverage directly with Tuxedo.
❓ Frequently Asked Questions — WB-448
Does the WB-448 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
How much heavier is the WB-448's capacity than the WB-953?
298 lb vs. 150 lb — nearly double, reflecting its heavy truck-wheel focus.
What power does the WB-448 need?
A dedicated 220V, 20 Amp, single-phase circuit.
What is the WB-448's warranty?
Alamo could not locate a manufacturer warranty document for the WB-448. Call (817) 865-3707 and we'll help confirm current coverage directly with Tuxedo before you order.
Why Buy the WB-448 from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
