Tuxedo CB66-VE Wheel Balancer #WB-CB66-VE
| Model / Part Number | WB-CB66-VE |
| Type | Wheel balancer, keypad entry, wheel hood included |
| Max Wheel Diameter | 44 in |
| Rim Diameter | 10 in – 28 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 352 lb |
- Level shop floor or bench rated for a 352 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Allow clearance for the balancing shaft, wheel shroud, and operator workspace
- Confirm aisle/bay space for delivery
- Ships by LTL freight

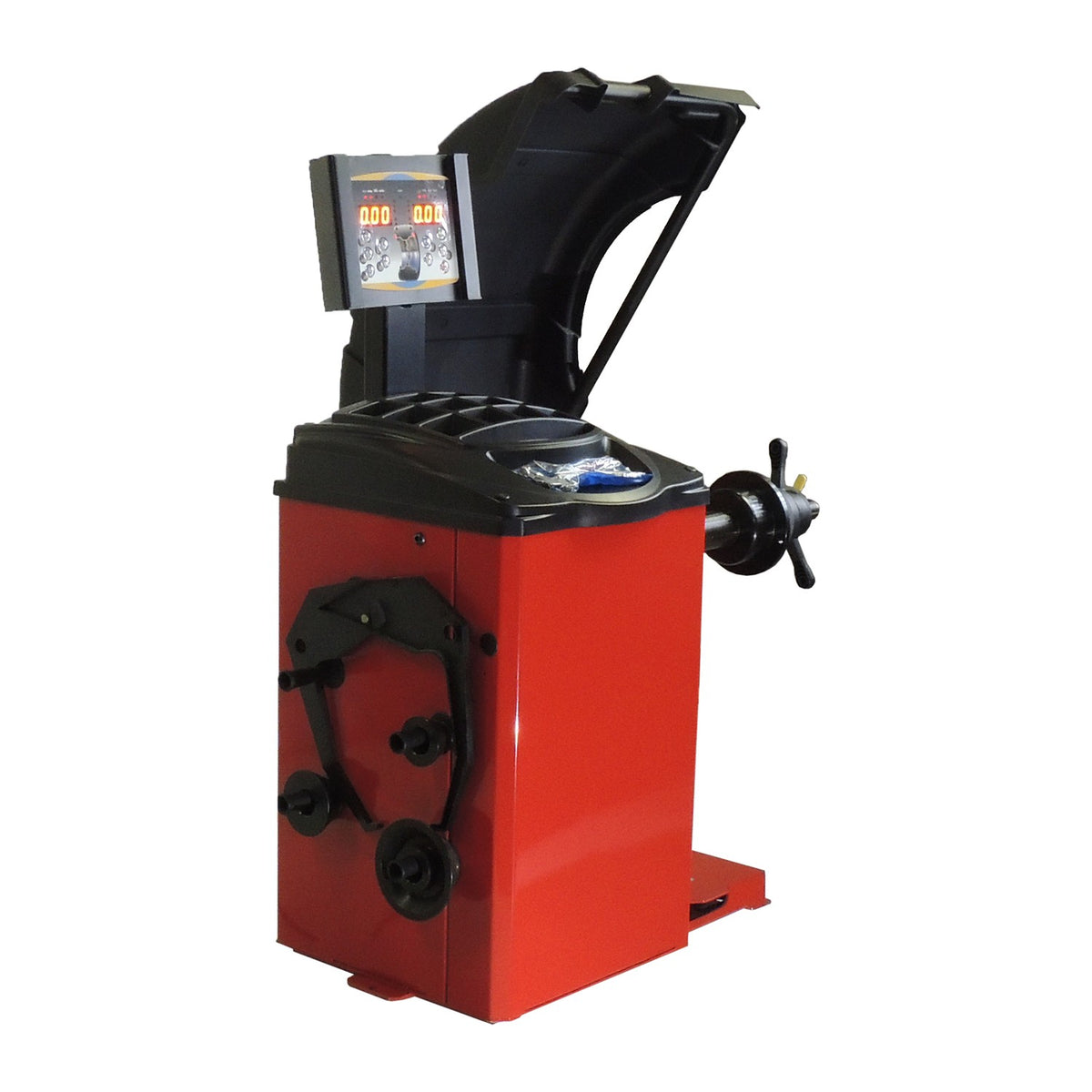

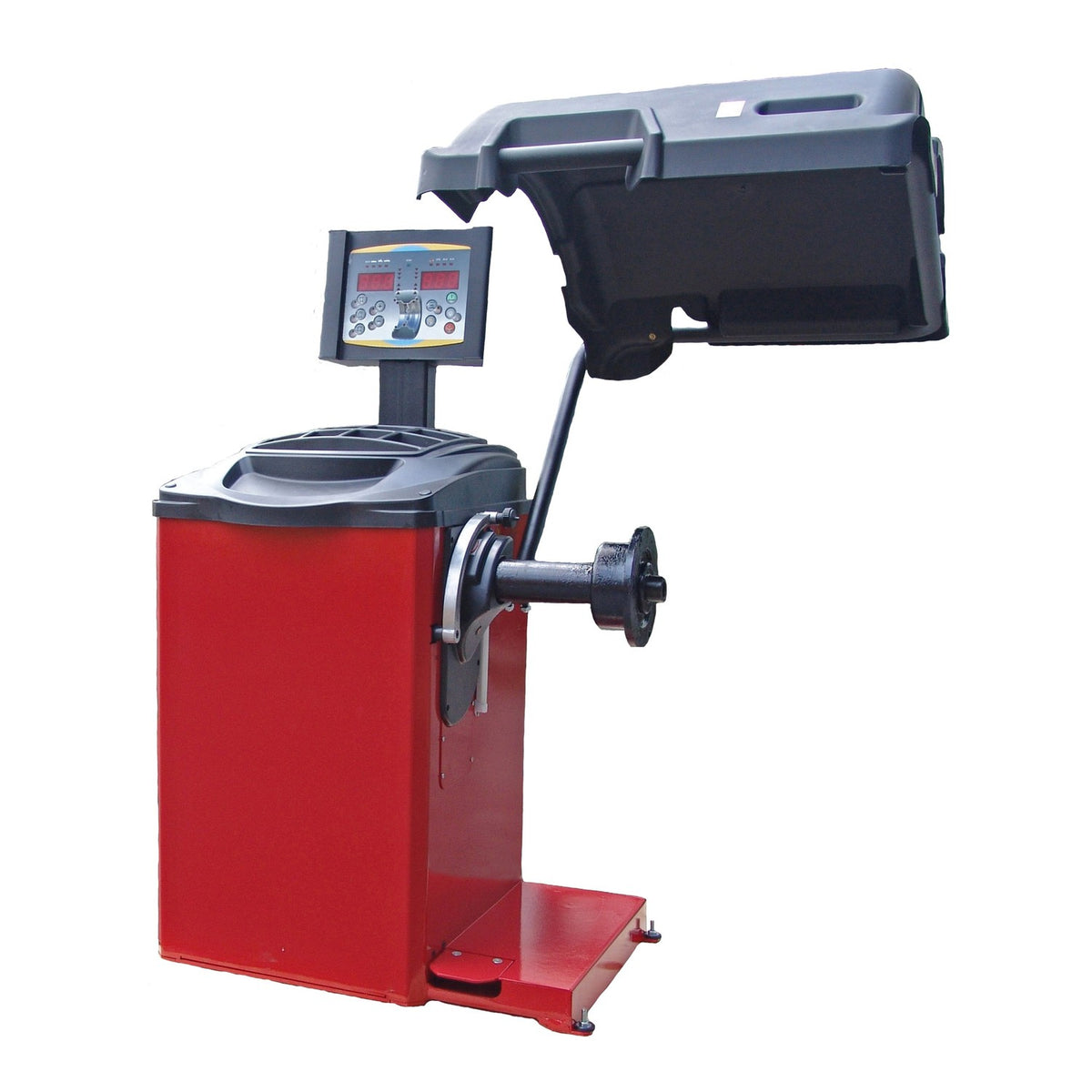

Tuxedo WB-CB66-VE — Wheel Balancer
The Tuxedo WB-CB66-VE is a keypad-entry wheel balancer built for cars, light trucks, SUVs, and motorcycles, balancing wheels up to 28 in rim diameter and 44 in overall wheel diameter with 1-gram accuracy. An LED touch-panel keypad with easy-to-read icons assists operators through Static/Dynamic balancing plus 5 ALU Standard and 2 ALU Smart modes.
A 12 in long, 40mm diameter heavy-duty balancing shaft accommodates a wide range of wheel sizes and shapes, including unique aftermarket wheels. The exclusive laser indicator lights automatically at the unbalance weight position, and an integrated measurement acquisition wand and foot pedal braking system speed up the balancing workflow. A large 38 in wheel shroud prevents debris from flying off the tire during operation.
Who It's Built For
- ✅ Tire and wheel service shops needing large-rim balancing capacity up to 28 in
- ✅ Shops that want the enclosed wheel shroud for debris containment
- ✅ Multi-vehicle shops balancing cars, SUVs, and motorcycles on one machine
What It's NOT Built For
- ❌ Wheels over 28 in rim diameter or 150 lb
- ❌ Shops that specifically want a lower-cost, no-hood balancer — that's a different Tuxedo/iDEAL model line
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the WB-CB66-VE Different
Large Rim Diameter Balancing
Balances up to 28 in rim diameter and 44 in overall wheel diameter — covering large truck and SUV wheels that some smaller balancers can't handle.
Exclusive Laser Indicator
Automatically lights up at the unbalance weight position under ALUS mode at the 6 o'clock wheel position, speeding up weight placement.
Low-RPM Operation
Balances at 140 RPM, extending the life of sensitive electronics and moving components while still delivering accurate results.
Large 38 In Wheel Shroud
The enclosed hood prevents debris from flying off the tire during balancing — a feature not every balancer in this class includes.
Multi Pocket Wheel Weight Shelf
14 articulated pockets over 1.5 in deep provide storage for weights and tooling within reach of the operator.
✅ Best For
- ✅ Shops wanting large-rim capacity with an enclosed wheel shroud
- ✅ Multi-vehicle-type shops (car/SUV/motorcycle)
❌ Not Ideal For
- ❌ Shops wanting the lower-cost, no-hood balancer design instead
Full Specifications — WB-CB66-VE
| Model / Part Number | WB-CB66-VE |
| Data Entry | Keypad (LED touch-panel) |
| Max Wheel Diameter | 44 in |
| Rim Width | 1.5 in – 20 in |
| Rim Diameter | 10 in – 28 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Power | 110V – 15 Amp – 1PH |
| Balancing Shaft | 12 in long, 40mm diameter, heavy-duty |
| Wheel Shroud | 38 in |
| Ship Weight | 352 lb |
⚠️ Installation Requirements
- Floor: Level shop floor or bench rated for a 352 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Bay footprint: Allow clearance for the balancing shaft, wheel shroud, and operator workspace.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — WB-CB66-VE
The WB-CB66-VE is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's operating manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — WB-CB66-VE
Does the WB-CB66-VE price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the maximum rim diameter for the WB-CB66-VE?
28 in, with a 44 in maximum overall wheel diameter.
Does the WB-CB66-VE have a wheel shroud?
Yes, a 38 in wheel shroud is included to prevent debris from flying off the tire during balancing.
What is the WB-CB66-VE's warranty?
Tuxedo backs the WB-CB66-VE with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the WB-CB66-VE from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
