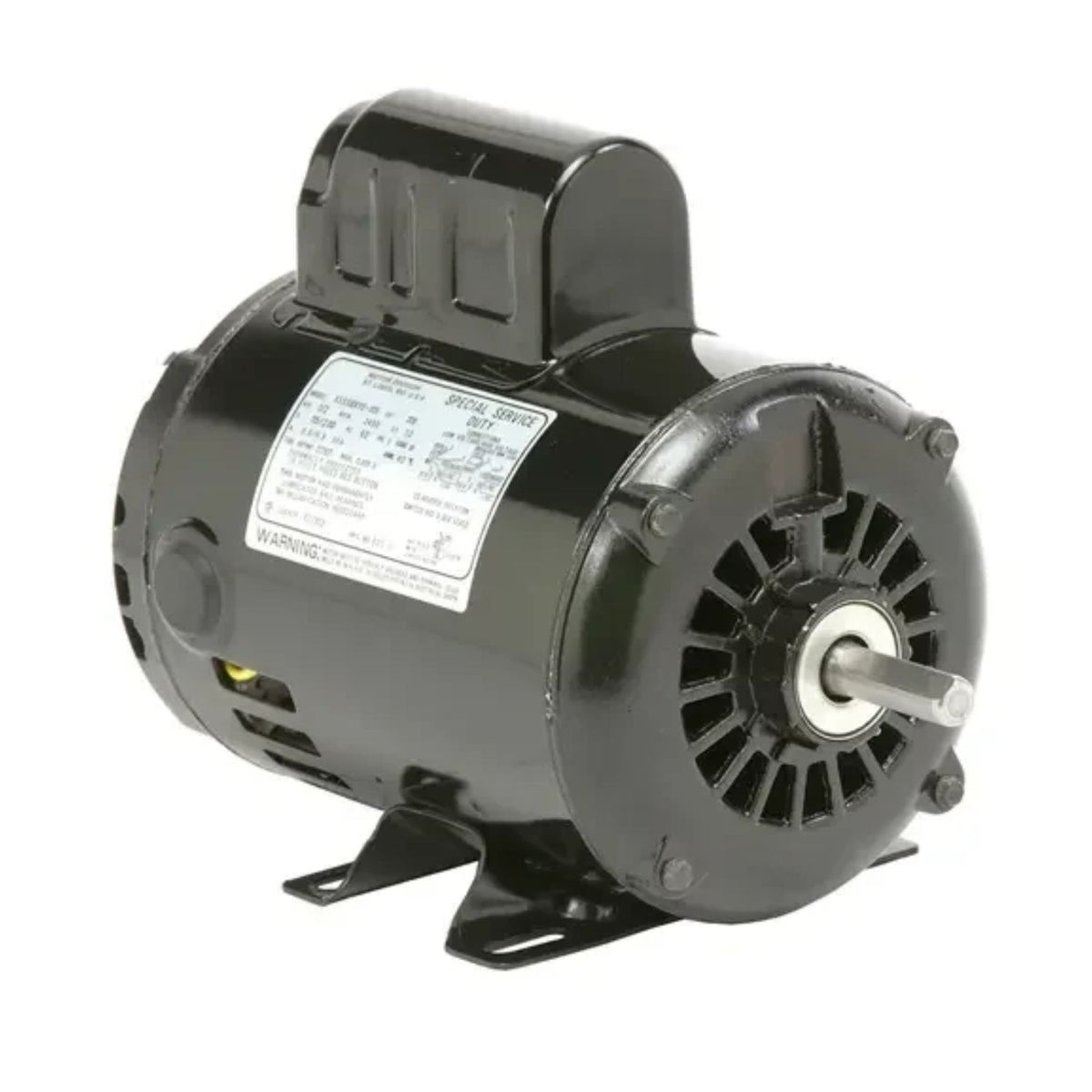

U.S. Motors 7.5 HP 215T ODP General Purpose Motor #D7C2K21
Frisbie Electric shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Part Number | D7C2K21 |
| Catalog Model | F079 |
| Horsepower | 7.5 HP |
| Voltage / Phase | 230V AC, single phase |
| Frequency | 60 Hz |
| Full-Load Speed | 1730 RPM |
| NEMA Frame | 215T |
| Enclosure | Open Drip Proof (ODP) |
| Full-Load Amps | 35.5 A |
| Service Factor | 1.15 |
| Motor Type | Capacitor start / capacitor run |
| Mounting | Rigid base / horizontal foot mount |
| Rotation | Reversible |
| Duty | Continuous |
U.S. Motors 7.5 HP 215T ODP General Purpose Motor #D7C2K21
U.S. Motors #D7C2K21 (catalog model F079) is a 7.5 HP single-phase general-purpose AC motor for 230V, 60 Hz operation — capacitor start / capacitor run, 1730 RPM full-load speed, and a NEMA 215T frame on a rigid base. It is the exact motor Nidec's U.S. Motors® eCatalog lists under this catalog and model number, for general-purpose duty: pumps, compressors, conveyors, blowers, and other equipment where the electrical and mechanical specifications match.
When a general-purpose motor fails, the clean fix is the like-for-like replacement: same horsepower, voltage, phase, frame, and mounting. This one carries a 1.15 service factor, a 35.5 A full-load rating, Class F insulation, and reversible rotation — match it against the nameplate coming off the machine and the swap is straightforward.
Questions before ordering? Call (817) 865-3707 with the existing motor's nameplate information — we confirm horsepower, voltage, frame, and shaft details before you order.
Compatibility & Fitment
Before replacing an existing motor, match the old nameplate: horsepower, voltage, phase, full-load amps, NEMA frame, shaft size, mounting, rotation, enclosure, and speed. A matching 215T frame standardizes the mounting footprint, but it does not by itself guarantee a drop-in fit — shaft dimensions, the pulley or coupling arrangement, and the driven equipment must also match.
The open drip-proof enclosure is intended for suitable indoor environments, protected from direct exposure to weather, washdown, and excessive contaminants. Use the enclosure type your equipment and installation environment call for.
