Stratus Pro Asymmetric & Symmetric 10k lbs 2-Post Lift SAE-C10P
SKU SAE-C10P
Lead time:
Original price
$4,572.00
-
Original price
$4,572.00
Original price
$4,572.00
$4,572.00
-
$4,572.00
Current price
$4,572.00
-
DESCRIPTION

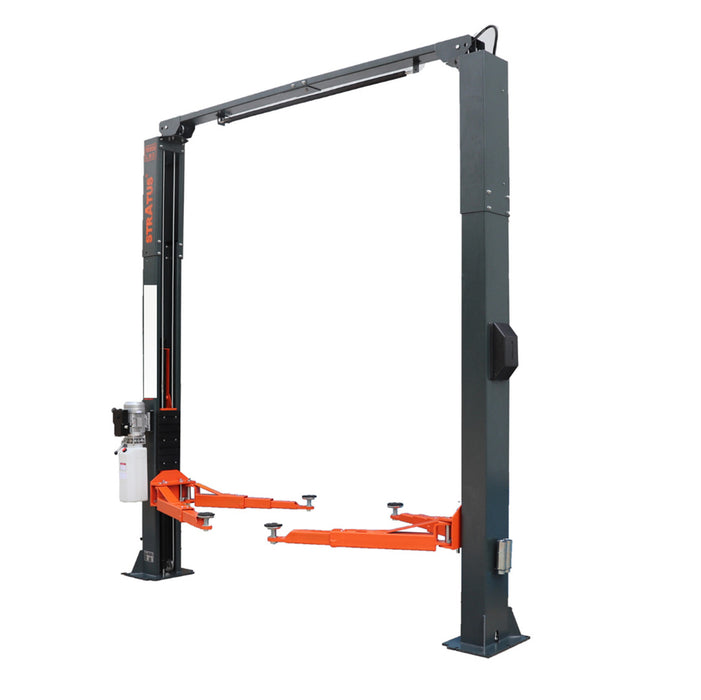

Stratus SAE-C10P Pro Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 LBS Capacity Single Point Manual Release Car Lift
Make your car repairs and maintenance easy breezy with the Stratus Pro Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 lbs capacity Car Lift. With its two-post design and a clear floor feature, it’s about to become your garage’s best friend. Its robust capacity of 10,000 lbs makes it versatile for a range of vehicles. The single-point manual release offers convenience and safety. Buy this 2-post clear floor car hoist and see the difference yourself!
-
FEATURES + BENEFITS
- Installation methods: Symmetric & Asymmetric
- Overhead / Clear floor design

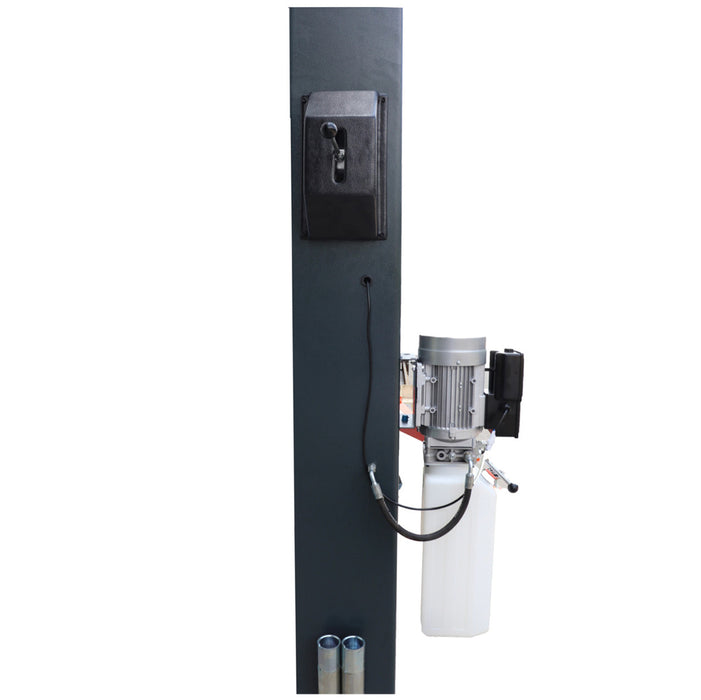

- Single-point manual release

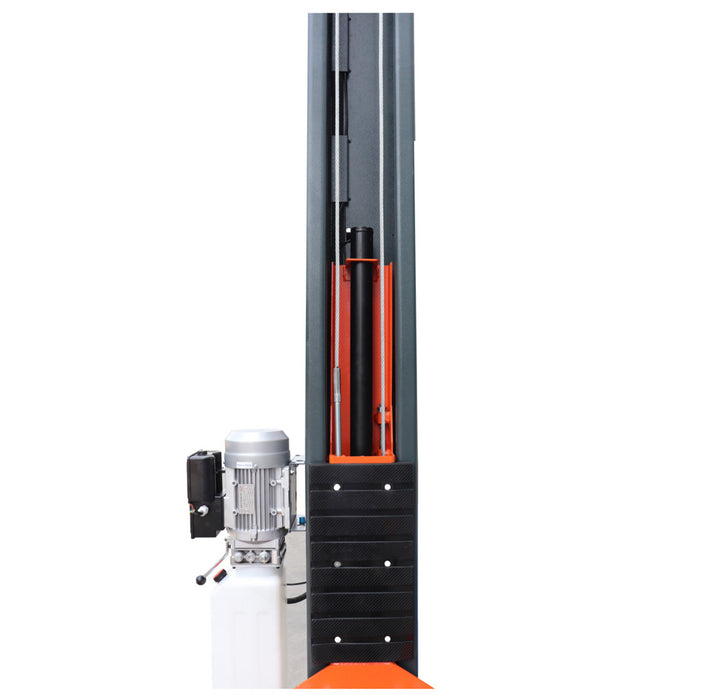

- Direct Drive
- 2 Top limiter switch
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- 4pcs Screw-up rubber pads - Peg 50mm (4")
- 8pcs Truck Adapators - 4pcs of each height 2 3/4" & 4"
-
SPECIFICATIONS
Model - SYMMETRICAL SAE-C10P Capacity 10,000 lbs Max Lifting Height with Adaptors 81 7/8"(2080mm)
Min Lifting Height with Adaptors
5' 1/8" (130mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 3/4" (95mm)
Rise Time
~50 sec
Min LIfting Height with Adaptors
76 3/4" (1950mm)
Max Lifting without Adaptors
129 15/16" (3300mm)
Min Lifting without Adaptors
3 3/4" (95mm) Rise Time 50 sec~ Front Arm Reach Max 53 1/8" (1350)
Front Arm Reach Min 33 7/16" (850) Rear Arm Reach Max 42 1/8" (1070) Rear Arm Reach Min 27 9/16" (700) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Overall Height 151" (3835mm) Overall Width 19 11/16" (500mm) Overall Length 140 3/16" (3560mm) Weight 1539 lbs Dimensions 116"L x 26"W x 36"H Inside Column 118 1/8" (3000mm) Drive Thru 107 1/4" (2724mm) Requirements 6" - 3000 psi Model - ASYMMETRICAL SAE-C10P Capacity 10,000 lbs Max Lifting Height with Adaptors 82 11/16"(2100mm)
Min Lifting Height with Adaptors
3' 5/16" (100mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 3/4" (95mm)
Rise Time
~50 sec
Front Arm Reach Max 53 1/8" (1350)
Front Arm Reach Min 33 7/16" (850) Rear Arm Reach Max 41 3/4" (1060) Rear Arm Reach Min 23 13/16" (605) Overall Height 151" (3835mm) Overall Width 19 11/16" (500mm) Overall Length 149 5/8" (3800mm) Weight 1539 lbs Dimensions 116"L x 26"W x 36"H Inside Column 115 3/8" (2930mm) Drive Thru 103 15/16" (2640mm) -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
