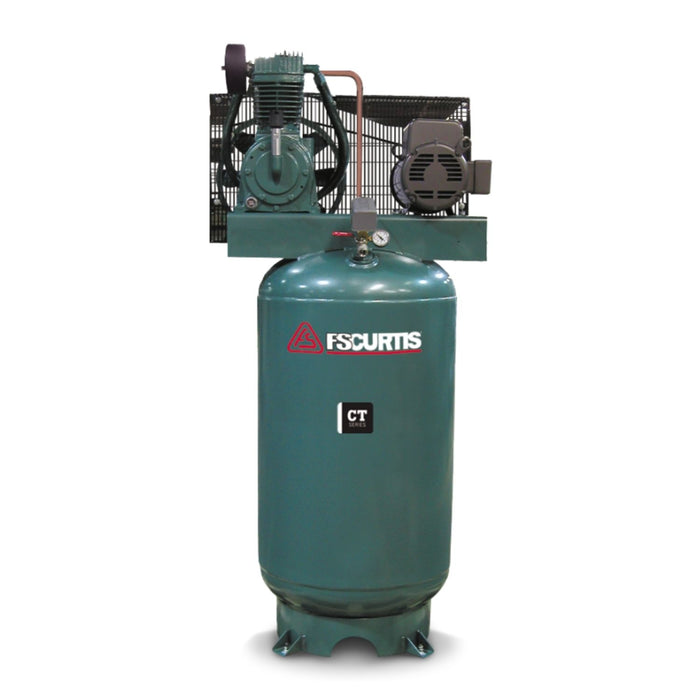

FS-Curtis CT5 80G Vertical 5HP Simplex Air Comp (No Starter) #CT5-NS80
-
DESCRIPTION
The FS-Curtis CT5 80G Vertical 5HP Two-Stage Simplex Air Compressor (No Starter) is a robust, professional-grade compressor designed to deliver dependable compressed air in automotive shops, light industrial facilities, and commercial environments. Powered by a reliable 5 HP motor and built with a two-stage cast-iron pump, it generates smoother and cooler airflow than single-stage models, making it ideal for running pneumatic tools and equipment. Mounted on a spacious 80-gallon vertical tank, this unit offers extended run times and stable pressure performance. This “No Starter” version is perfect for custom installations where a separate starter or control system will be integrated.
These reciprocating compressors combine our signature performance and reliability with a simple industrial design, making them the most rugged — and affordable — compressors in their category. The field-proven CT/CTS Series will last longer in the same conditions than other compressors that claim 100% cast-iron construction but still use aluminum for critical components. For light automotive, light industrial, and other applications, they’re the ideal choice.
-
FEATURES + BENEFITS
100% Cast-Iron Cylinders, Cylinder Heads, Connecting Rods, And High-Pressure Pistons.
- Two-stage cast-iron pump is significantly more durable than pumps with aluminum components
- Deep-finned cast-iron cylinders and heads for cool operation
- Industry-leading cast-iron cylinders high-pressure pistons for extreme durability
- Ductile iron crankshaft is stronger, more corrosion-resistant and less likely to break
Quality Components
- High-flow, heavy-duty stainless steel channel valve system delivers more cfm per horsepower
- Precision-fit, industrial-grade main roller bearings support all rotating parts for longer pump life
- Robust intercooler increases compressor efficiency
- Oil level sight glass is conveniently located for easy monitoring
- Metal intake filter/silencer is superior to plastic
Value-Minded Industrial Design
- Provides higher pressures and longer life than single-stage pumps
- Follows the same world-class quality design standards as other FS-Curtis products
- Slow turning pump increases pump life
- Robust design sets the CT Series apart from comparable entry-level models
Simplex Compressors – Standard Features
- Magnetic motor starter*
- Cast-iron 2-stage pump built to ISO 9001 standards
- Slow speed pump with V-belt drive
- Rugged NEMA motor with UL-approved electric design
- ASME air tank
- OSHA-approved totally enclosed metal belt guard
- UL-approved pressure switch
- start-stop control
- Metal intake filter/silencer
- Manual tank condensate drain valve
- Dial read-out pressure gauge
- Loadless starting
- ASME-approved safety valve
- ASME-approved discharge valve
- Factory oil filled
*CT5 units with 3550 rpm motor use thermal overloads, no magnetic starter required.
-
SPECIFICATIONS
Model Number CT05C55 (No Starter) 80 Gallon
HP
5 Phase / hz / Voltage Single Phase
1/60/230V - FCT05C55V8X-A2L1H1
Pump
CT55
CFM (@175psi)
15.9 Configuration
Vertical Tank
80 Gallon Dimensions
33" L x 27" W x 73" H Shipping Weight
515 lbs.
