Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs #ATEXH-9KBPX-FPD
SKU ATEXH-9KBPX-FPD
Lead time:
Save 12%
Original price
$2,849.00
Original price
$2,849.00
-
Original price
$2,849.00
Original price
$2,849.00
Current price
$2,499.00
$2,499.00
-
$2,499.00
Current price
$2,499.00
-
DESCRIPTION
Atlas® Automotive Equipment 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs

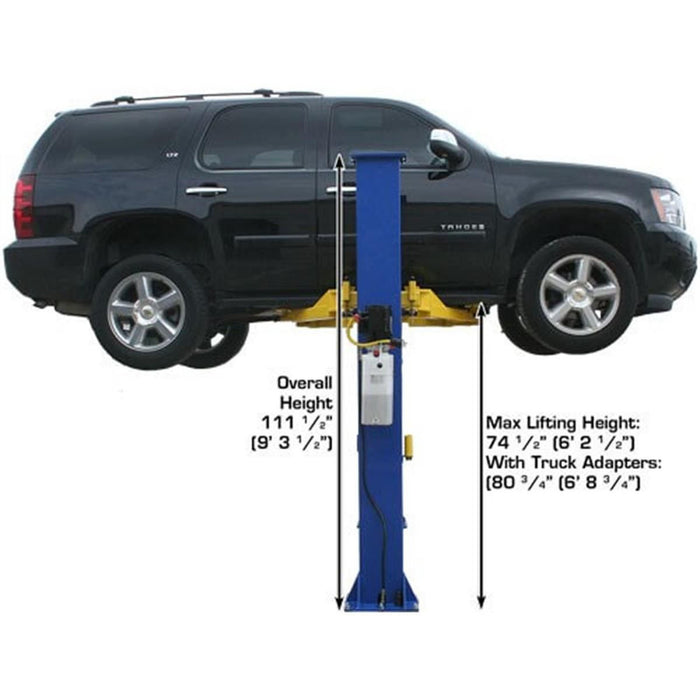

The Atlas® 9KBP is a base-plate two-post lift designed for low-ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

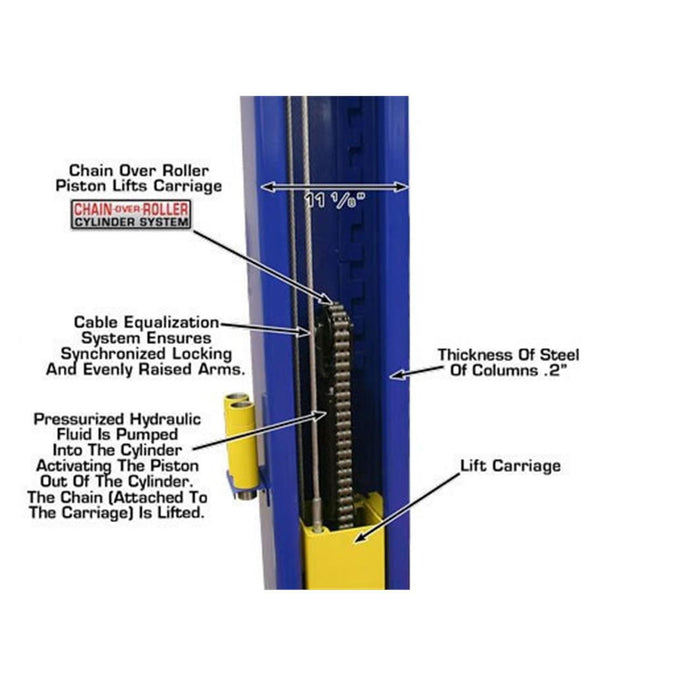

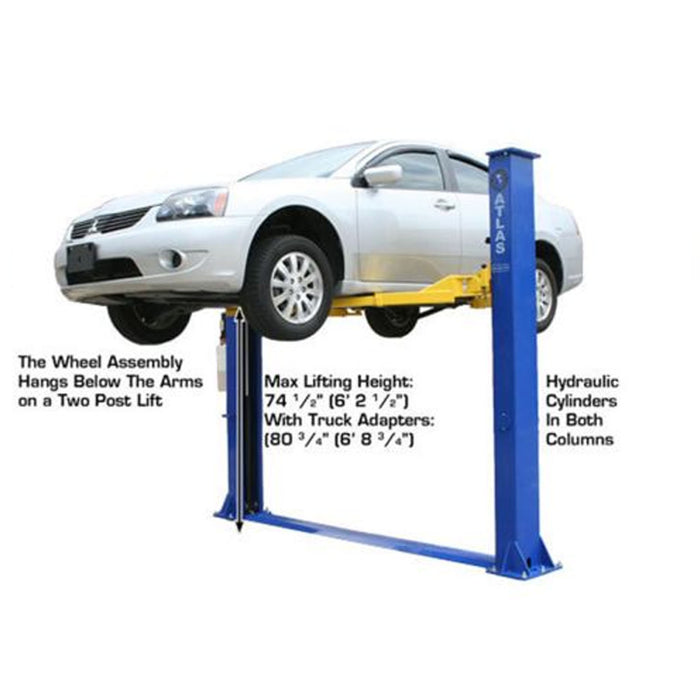

The Atlas® 9KBP features dual hydraulic chain-drive cylinders, symmetric arms, and automatic arm restraints. Atlas® 9KBP two post “chain over roller” lifts have a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.
-
FEATURES + BENEFITS
- 9,000 lb. Capacity

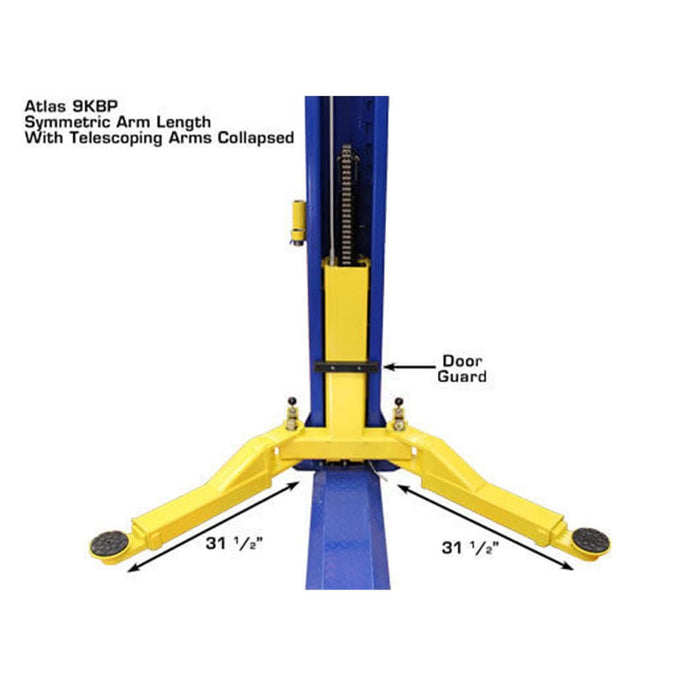

- Symmetric Arms
- Base Plate Design
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)
- Free Truck Adapter Set

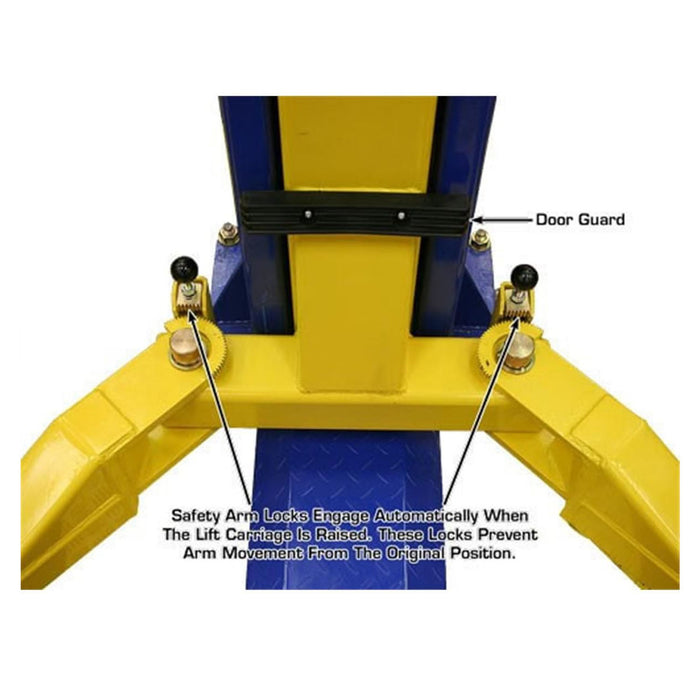

- Automatic Arm Restraints
- Dual Point Lock Release
- Designed For Low Ceiling Clearance – 9' 3 ½” Columns
- Mounting Hardware Included
Includes

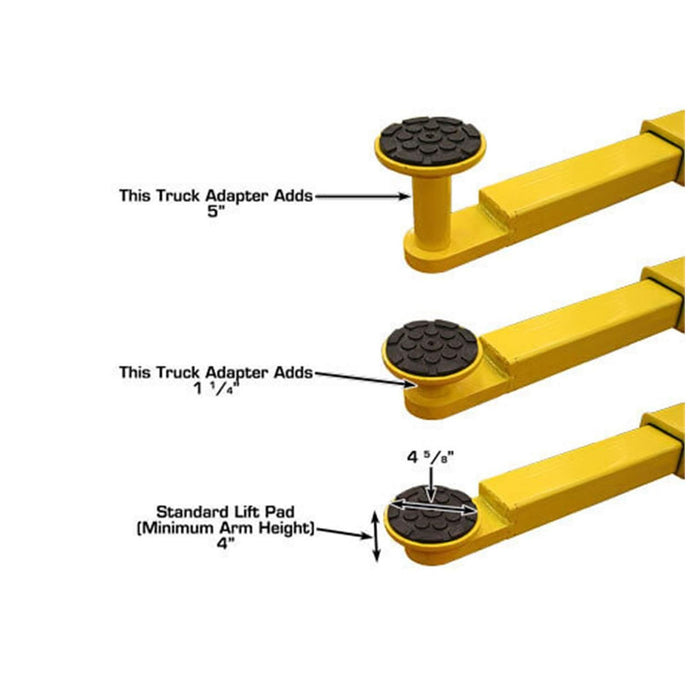

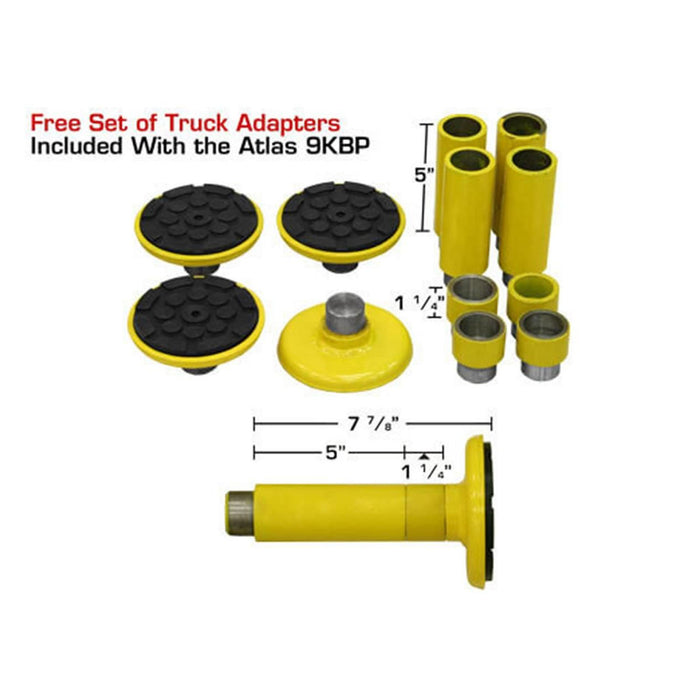

- 8 piece Truck Adapter Set
-
SPECIFICATIONS

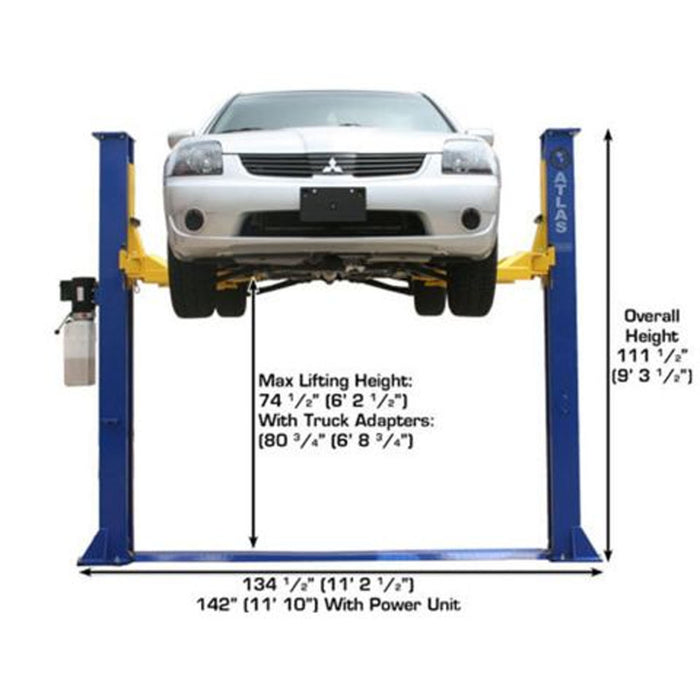

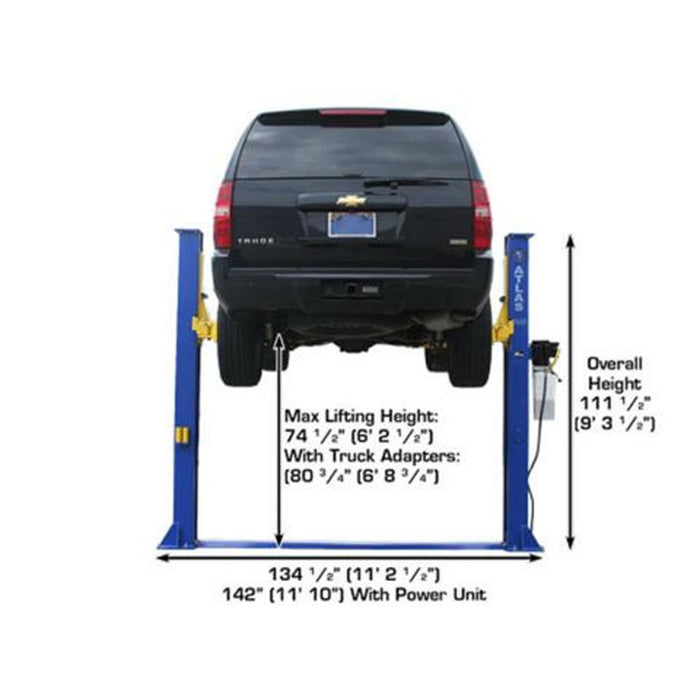

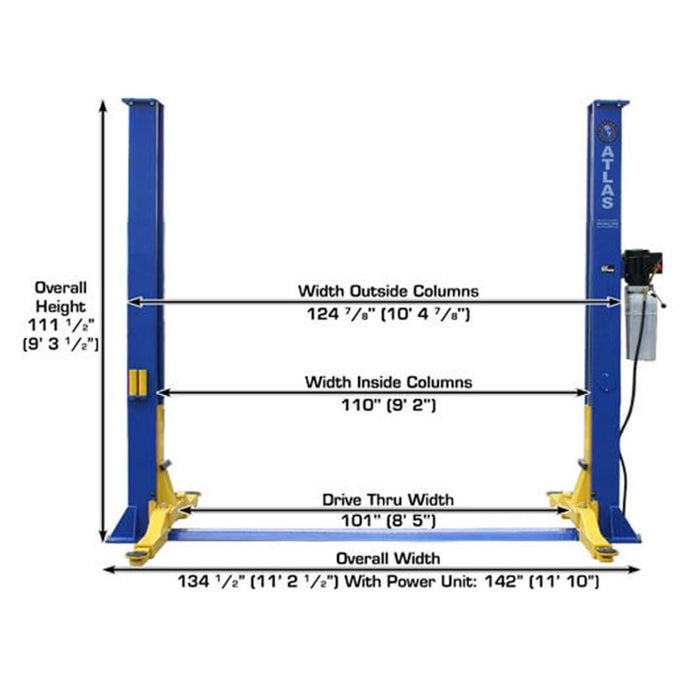

Lifting Capacity 9,000 lbs Overall Height 111 ½" (9' 3 ½") Overall Width with Power Unit 142" (11' 10") Overall Width without Power Unit 134 ½" (11' 2 ½") Outside Column To Outside Column 124 7/8" (10' 4 7/8") Maximum Lift Height 74 ½" (6' 2 ½") Minimum Arm Height
4"
Base Plate Width
10 ¾" Inside Column 110" (9' 2") Drive Thru 101" (8' 5") Column Size 7 ¼" x 11 1/8" Column Thickness of Steel 5mm Base of Lift 13 ½" x 18 ¼" Carriage Thickness of Steel 6mm Arm Thickness of Steel 6mm Cable Diameter .375" Motor/Electrical Requirement 3Hp 220V single (1) phase / 30 amp breaker is required. Oil Requirements 3-5 Gallons AW32/AW46 Shipping Weight 1,400 lbs. -
WARRANTY
Warranty Information
- 2-Year Structural Warranty
- 1-Year Hydraulic-Power Warranty
- 2-Year Structural Warranty
