Atlas® Automotive Equipment BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs

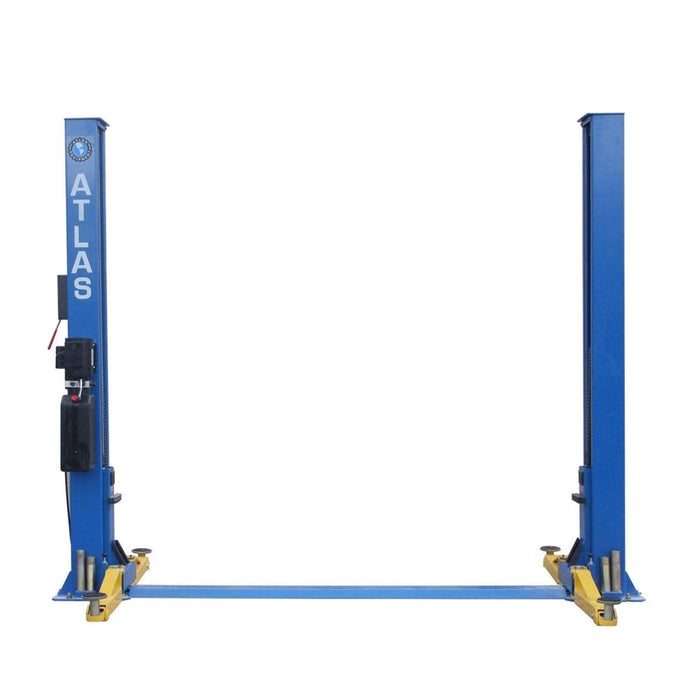

The Atlas BP8000 is a base-plate two-post lift designed for low-ceiling garages. The total column height of 108" (9 feet) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 3 inches.

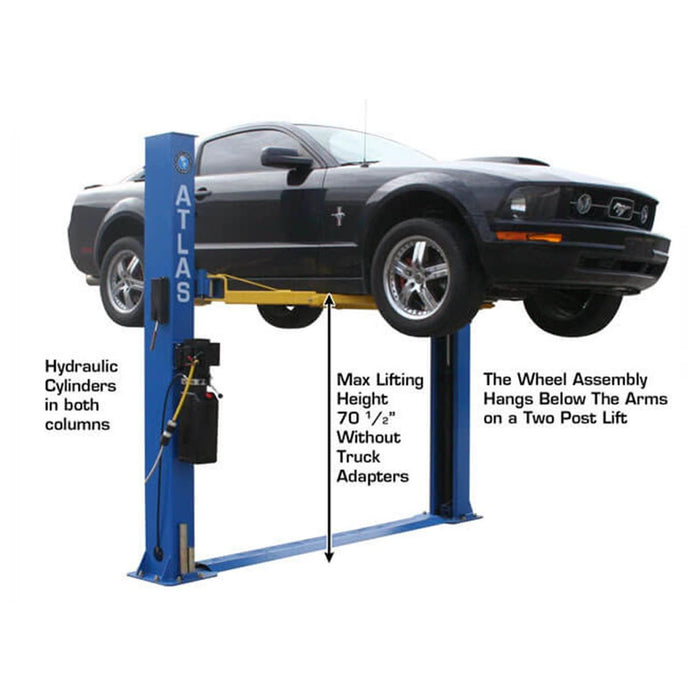

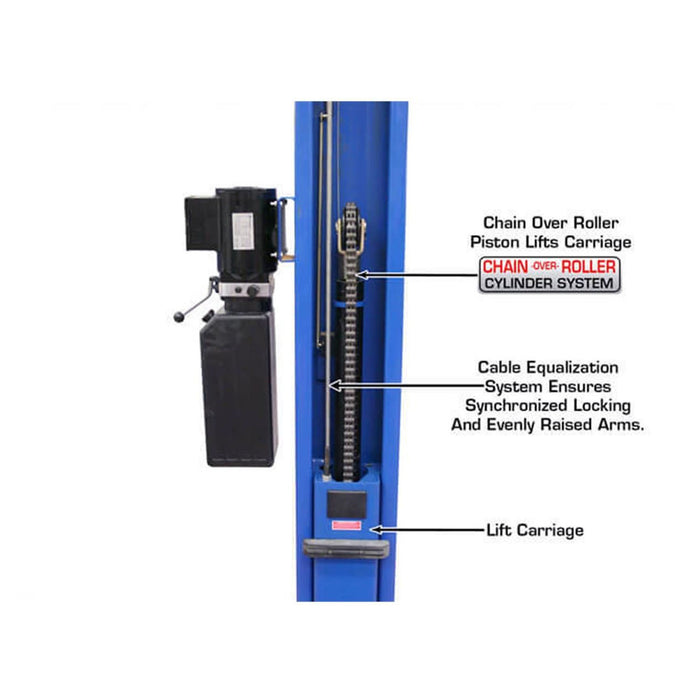

The Atlas BP8000 features a single-point lock release, automatic arm restraints, super symmetric arms, double safety lock system, powder coat finish, and heavy-duty dual hydraulic chain-drive cylinders (one cylinder in each column).
-
FEATURES + BENEFITS
- 8,000 lb. Capacity

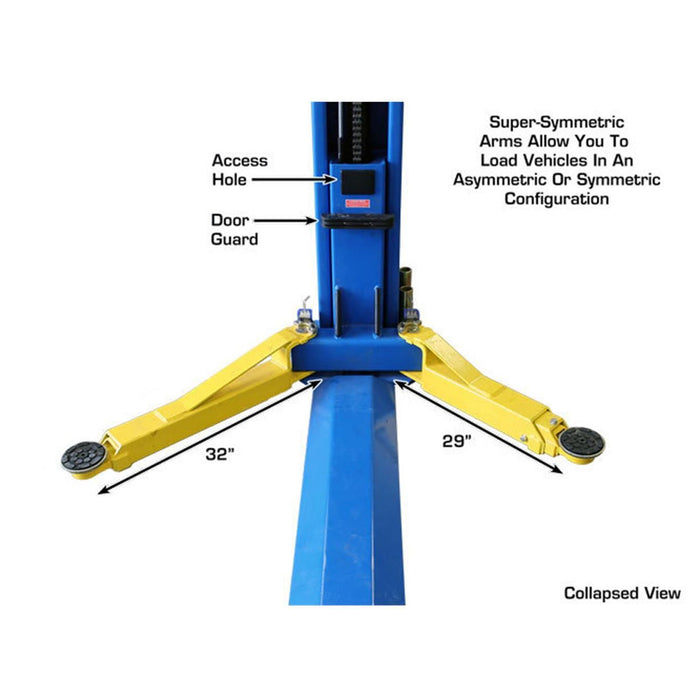

- Super Symmetric Arms
- Base Plate Design

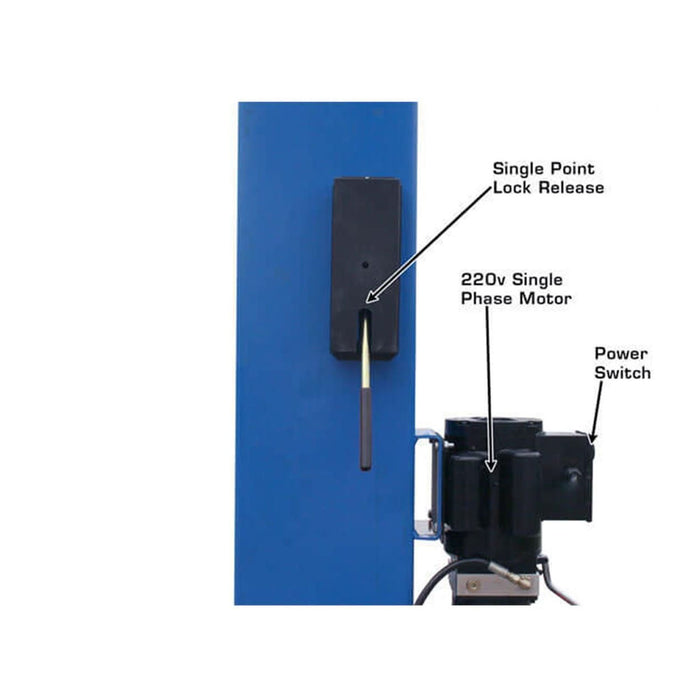

- Single-Point Release
- Double Lock System
- Dual Hydraulic Chain-Drive Cylinders

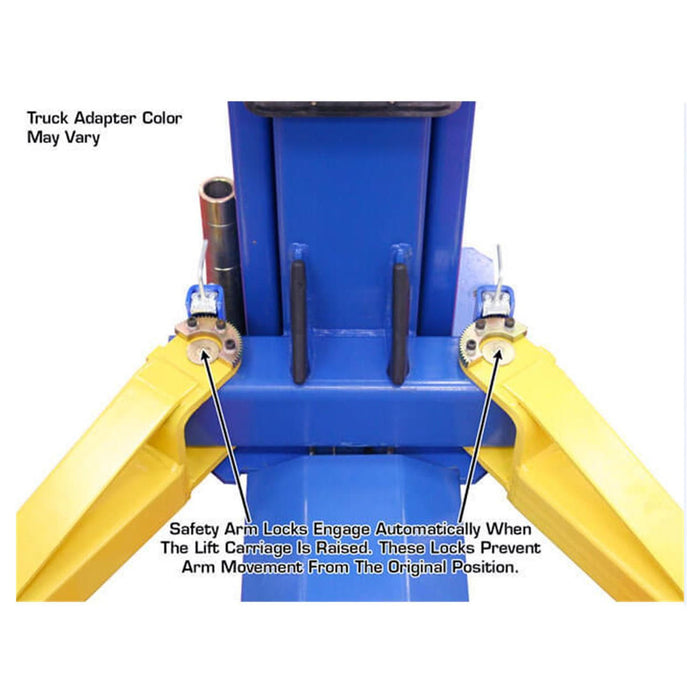

- Automatic Arm Restraints
- Self-Lubricating HMW Polyethylene Sliders and Bronze Bushings
- Powder Coat Finish
- Free Truck Adapters
Includes

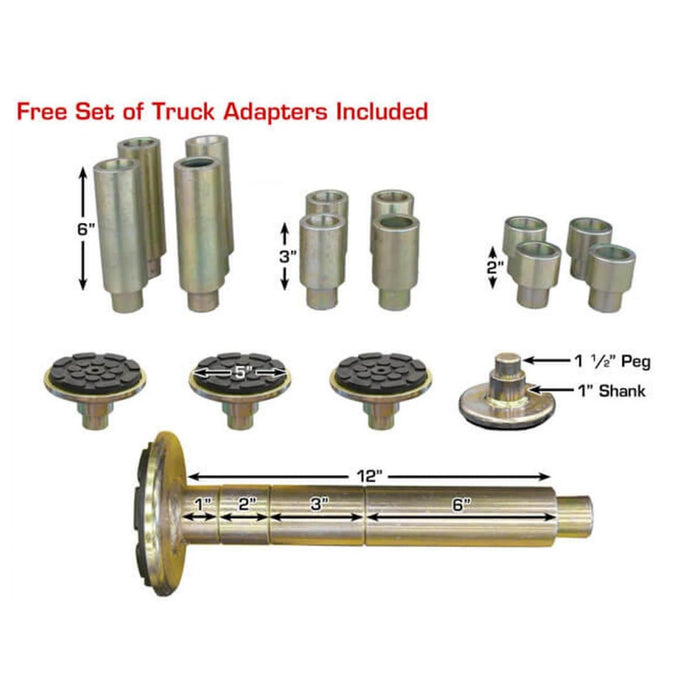

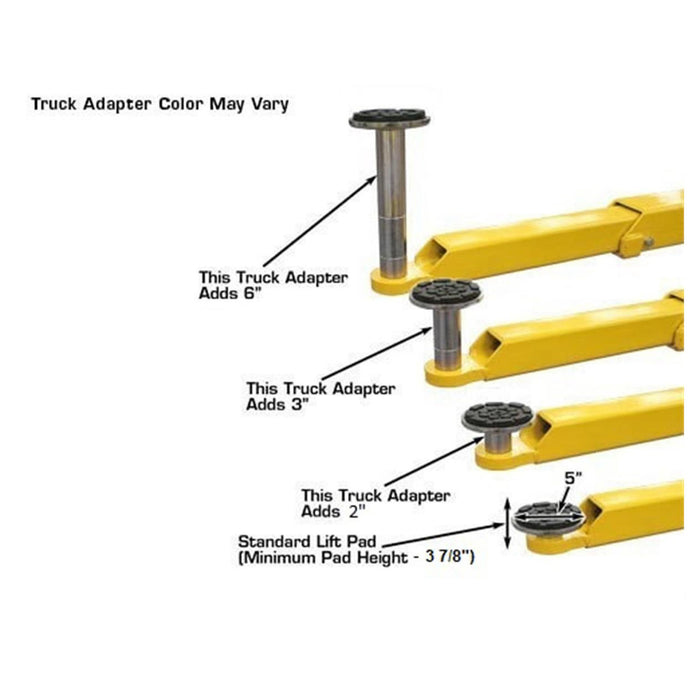

- 12 Piece Truck Adapter Set - 2", 3", & 6" Sizes
- Mounting Hardware
-
SPECIFICATIONS

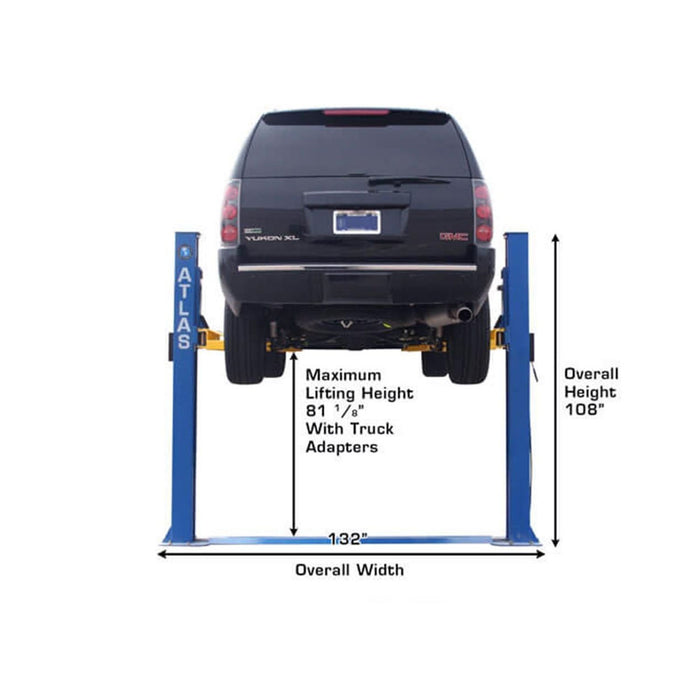

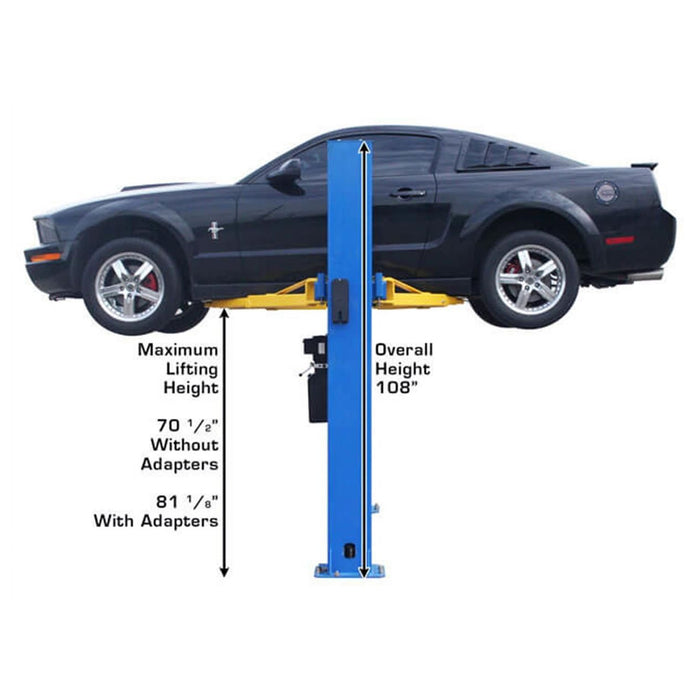

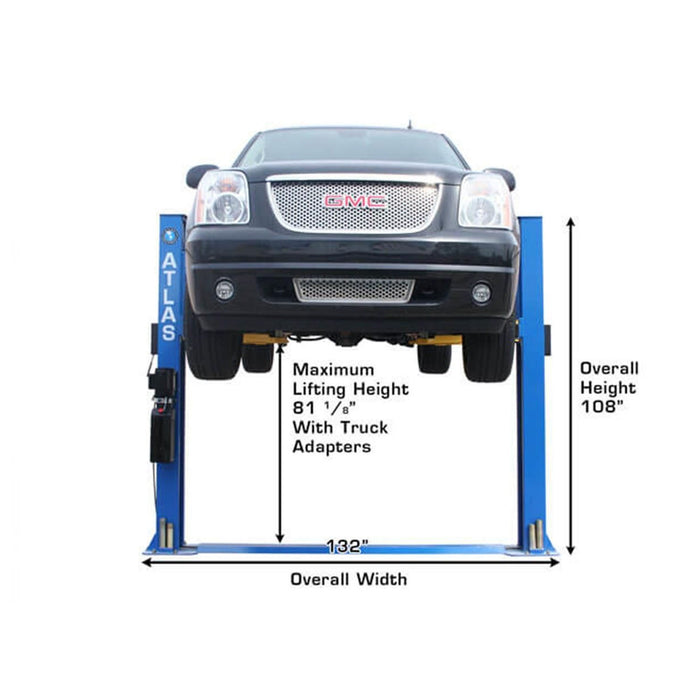

Lifting Capacity 8,000 lbs Overall Height 108" (9')
Overall Width 132" (11') Outside Column To Outside Column 124" (10' 4")
Maximum Lift Height w/Adapters 86.5"
Maximum Lift Height without Adapters
75.5"
Minimum Arm Height 4" Base Plate Width
11 ½" Inside Column 109 5/8" (9' 1 5/8")
Drive Thru 99" (8' 3")

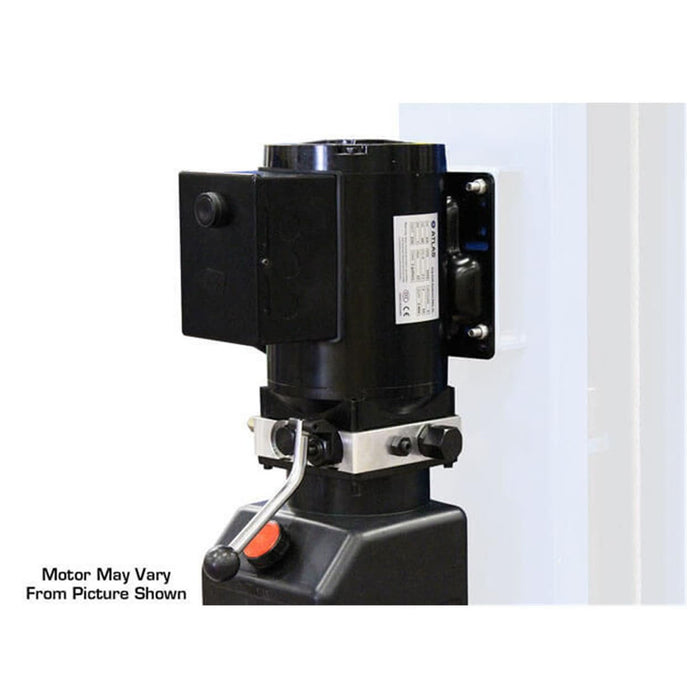

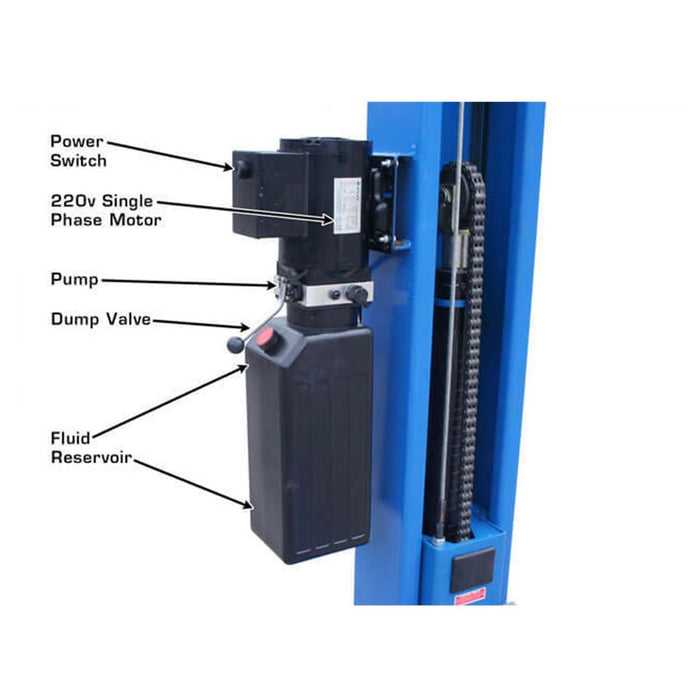

Column Size 7 ¼" x 11" Column Thickness of Steel 6mm Base of Lift 17 ½" x 17 3/4" Carriage Thickness of Steel 6mm Arm Thickness of Steel 6mm Cable Diameter .375" Motor/Electrical Requirement 220V single (1) phase / 30 amp breaker is required.
Oil Requirements 3-5 Gallons AW32/AW46 Shipping Weight 1,290 lbs. -
WARRANTY + INFO
Warranty Information
- 2-Year Structural Warranty
- 1-Year Hydraulic-Power Warranty
- 2-Year Structural Warranty
