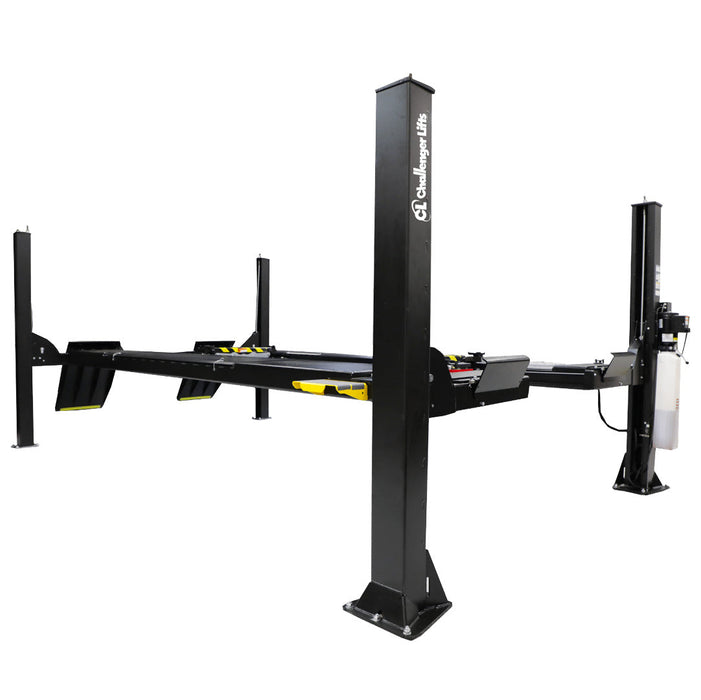

Challenger 5K 4-Post / Alignment #4115XFX
Lead time:
-
DESCRIPTION
Challenger's newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor, designed with productivity and safety in mind. You can find the lift to meet your needs with several configurations available.
Increase your customer base with this lift, as it can accommodate and service many vehicles. Anything from a small passenger car to a medium-duty truck and even medium-sized vans. All while boosting workplace safety with our open-front design, assisting technicians moving around a vehicle’s frame.
Also available is our Galvanized Coating Upgrade. This will upgrade the runways, jack rails, turn plate pockets & slip plate pockets to a galvanized coating to greatly extend the life of your 4115 Lift.
ALI® / ETL Certified
-
FEATURES + BENEFITS
- Also available is our Galvanized Coating Upgrade. This will upgrade the runways, jack rails, turn, and slip plate pockets to a galvanized coating to greatly extend the life of your 4115 Lift.
- All-new and wider 22” runways.
- Open and closed front design for better ergonomics allows easy access to adjustment points on standard or long-length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities, allowing you to service both long and short-wheelbase vehicles.
- Louvered approach ramps prevent wheel spin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new, improved all-enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry’s latest imaging alignment systems. 17 locking positions with improved lock design.
- Optional Alignment kit includes: rolling jacks, internal airline system, & stainless steel turn plates
-

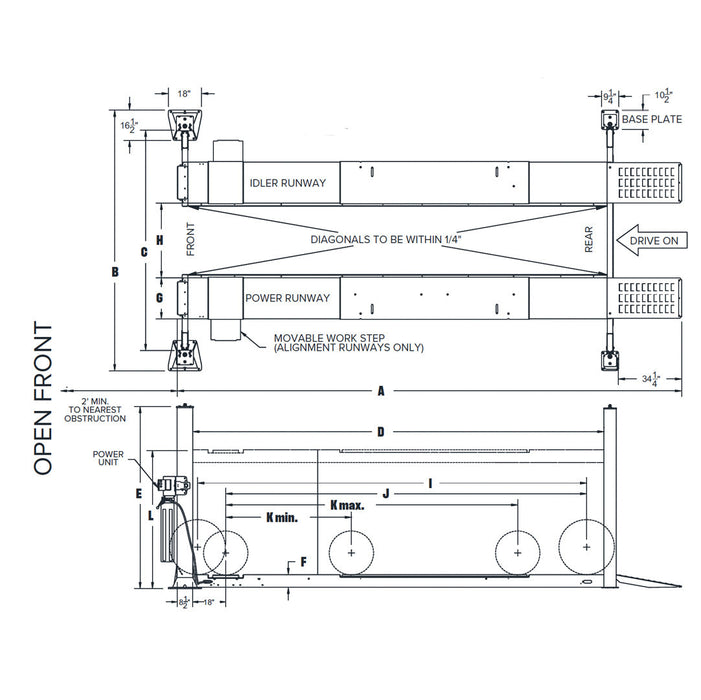

SPECIFICATIONS
Model Number 4115XFX
Description
Standard Open-Front Flat Deck
Lifting Capacity 15,000 lbs. Open or Closed Front
Closed
Max. Wheelbase (I)
210.5"
Max. 2-Wheel Alignment(J)
NA
Max. 4-Wheel Alignment (K)
NA
Rise Height (L)
78"
Overall Length (A)
275.5"
Overall Width (B)
Front: 142" Rear: 141.75"
Inside Columns (C)
125.5"
Between Columns (D)
223.375"
Height of Columns (E)
98"
Width of Runways (F)
22.375"
Height of Runways (F)
7"
Width Between Runways
40.625"
Air Supply Required
90-120 psi
Standard Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph Speed of Rise 85 s Required Bay Size W x L
14' x 26'
ALI/ETL Certified Yes Colors Available
Black -
MANUAL + SPECS
