Atlas® PV10PX Symmetric/Asymmetric Heavy-Duty 2 Post Lift 10,000 lbs #ATEXH-PV10PX-FPD
Lead time:
-
DESCRIPTION

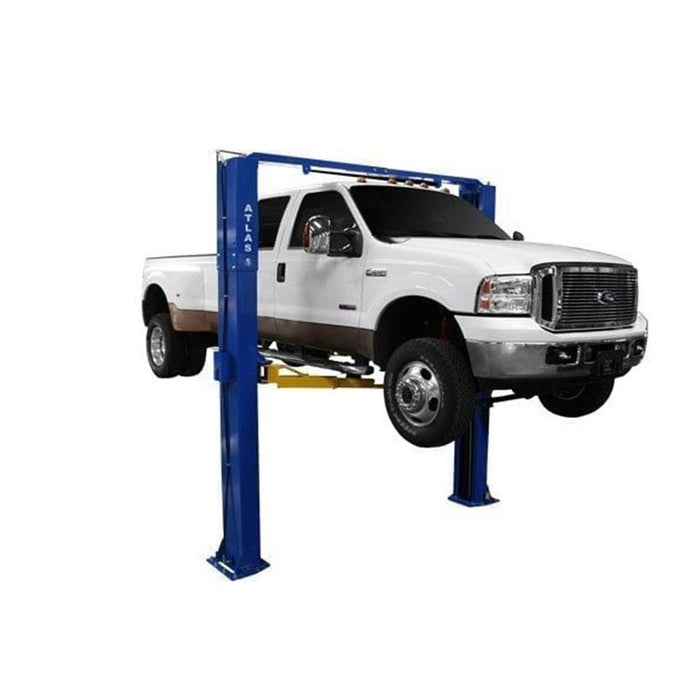

Atlas® Automotive Equipment PV10PX Symmetric/Asymmetric 2 Post Lift 10,000 lbs
The Atlas® PV series represents the absolute best value for the customer who demands a heavy-duty, professional-grade two-post lift at the lowest possible price. Atlas® has manufactured the PV series two-post above-ground lifts for over a decade—thousands sold! Descriptions such as "bullet-proof," "built like a brick outhouse," "tougher than nails," and other euphemistic phrases are used daily to describe any of the Atlas® PV series models.
The commercial grade Atlas® PV-10 two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.
This lift is the perfect choice for use in a large commercial service department or for the "pole barn" owner who wants the "biggest and baddest" lift in the country. The Atlas® PV-10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one-ton diesel dually.
-
FEATURES + BENEFITS
- 10,000 LB. Capacity
- Commercial Grade
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints
- "Padded" Shut-Off Bar
- Thick Rubber Covers On Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- Adjustable Height - 11'11 1/8" or 12'3"
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,875 lbs.
Includes
- 12 Piece Truck Adapter Set
-
SPECIFICATIONS
Lifting Capacity 10,000 lbs Overall Height Low - 143 1/8" (11' 11 1/8")
High - 146 7/8" (12' 2 7/8")Overall Floor Width 137 1/2" (11' 5 1/2")
Outside Column To Outside Column 125 1/2" (10' 5 1/2")
Maximum Lift Height w/adapters 81 1/4"
Maximum Lift Height w/o adapters
72 1/2"
Minimum Arm Height 4 1/2"
Inside Column 110 1/8" (9' 2 1/8")
Drive Thru rm Configuratioon 90 1/4" Asymmetric / 96 1/4" Symmetric
Column Size 7 1/2" x 14 1/2"
Column Thickness of Steel 6mm Base of Column 17 1/2" x 20 1/2" Arms Thickness of Steel
6mm
Adapter Heights 4 Each 1.25", 2.5", 5" Arm Hole/Adapter Peg Size 1.5” Motor/Electrical Requirement 220V single (1) phase / 30 amp breaker is required.
Oil Requirements 3-5 Gallons AW32/AW46 (Not Included) Shipping Weight 1,875 lbs. -
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-year on Hydraulic Cylinder
- 1-year Hydraulic-Power Unit Warranty
- 5-Year Structural Warranty
