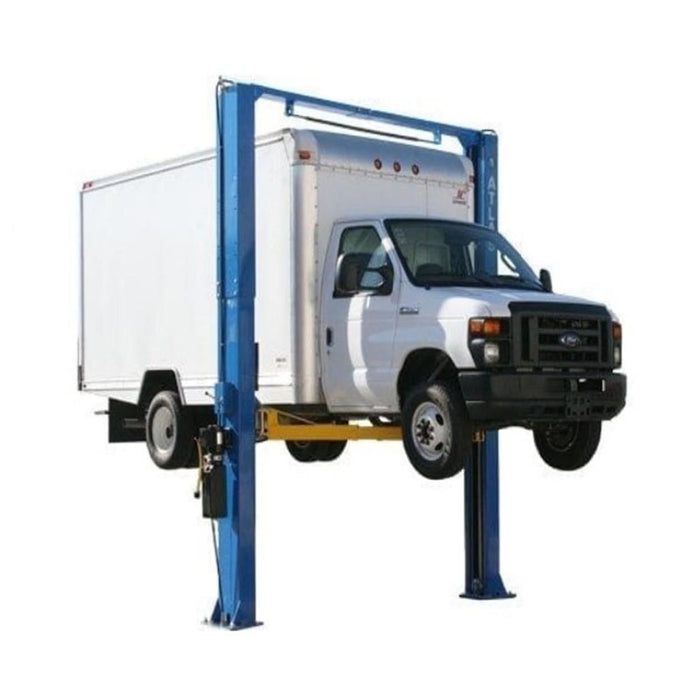

Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs #ATEXH-PV15PX-FPD
Lead time:
-
DESCRIPTION
Atlas® PV15PX Two Post Lift – Heavy-Duty Performance at Unbeatable Value
The Atlas® PV series represents the absolute best value for the customer who demands a heavy-duty, professional-grade two-post lift at the lowest possible price. Atlas® has manufactured the PV series two-post above-ground lifts for over a decade. Thousands sold! Descriptions such as "bulletproof", built like a brick outhouse, tougher than nails, and other euphemistic phrases are used daily to describe any of the Atlas® PV series models. The Atlas® PV15PX is a commercial-grade lift accommodating everything from standard cars to heavy-duty service trucks. The distance between the symmetrical columns is almost 123" with a drive-through space of over 109". The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms and the additional height of the included peg-style truck adapter set allow the operator to raise long wheelbase trucks with various running boards safely. The extra height means extra clearance, allowing you to lift vans and box trucks without worry. The Atlas® XH-PV15PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches requires the purchase of extra short cables.
Whether you're lifting a sedan or a commercial truck, the Atlas® PV15PX is built to perform—day in, day out.
-
FEATURES + BENEFITS
- 15,000 LB. Capacity
- Extra Tall & Extra Wide
- Commercial Grade
- Adjustable height 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Requires purchase of extra cables)
- Symmetric arms
- Automatic Arm Restraints
- "Padded" Shut-Off Bar
- Door Guards on Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
Includes
- 12 Piece Truck Adapter Set
-
SPECIFICATIONS
Lifting Capacity 15,000 lbs Overall Height 165" (13’ 9") or 177" (14’ 9")
Special Low Height 150" (12’ 6")* (Requires Purchase of Extra Cables)
Overall Floor Width 150 3/4" (12’ 6 3/4")
Outside Column to Outside Column
138 3/4" (11’ 6 3/4")
Maximum Lift Height w/Adapters
81"
Maximum Lift Height w/o Adapters 72 1/2"
Minimum Arm Height
7 1/4"
Inside Column 122 7/8" (10’ 2 7/8")
Drive Thru 109" (9’ 1")
Column Size
7 1/2" x 14 1/2"
Column Thickness of Steel
6mm
Base of Lift 17 1/2" x 20 1/2" Adapter Heights 4 Each 1.25", 2.5", 5" Arm Hole/Adapter Peg Size 1.5" Motor/Electrical Requirement 220V (1) phase / 30 amp breaker is required.
Oil Requirements 3-5 Gallons AW32/AW46 Shipping Weight 2,490 lbs. -
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-year Hydraulic-Power Warranty
- 5-Year Structural Warranty
