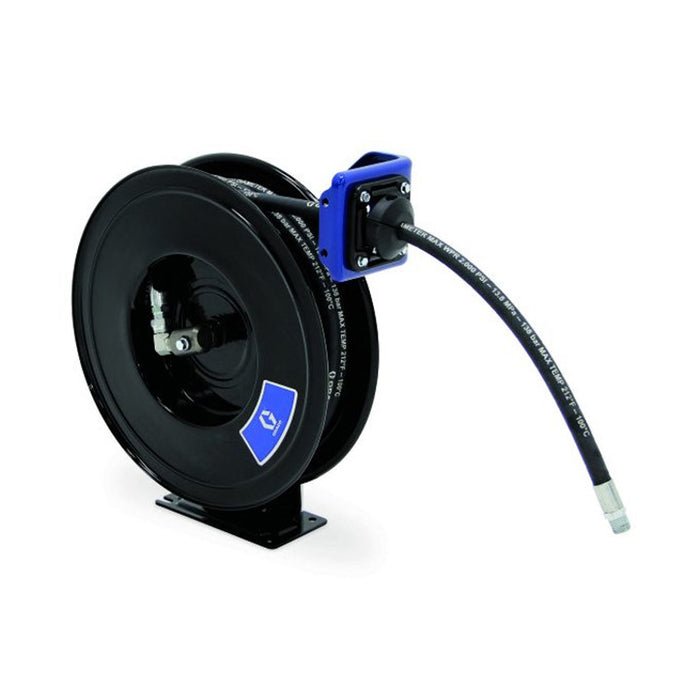

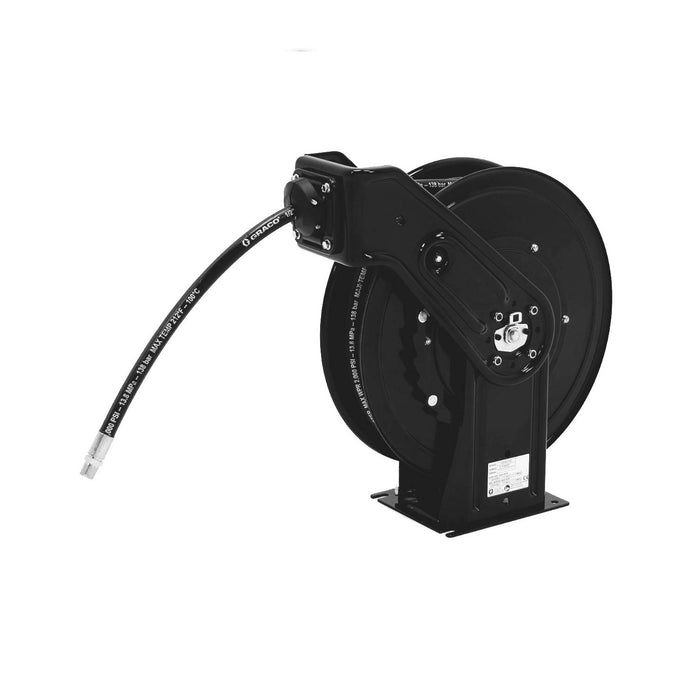

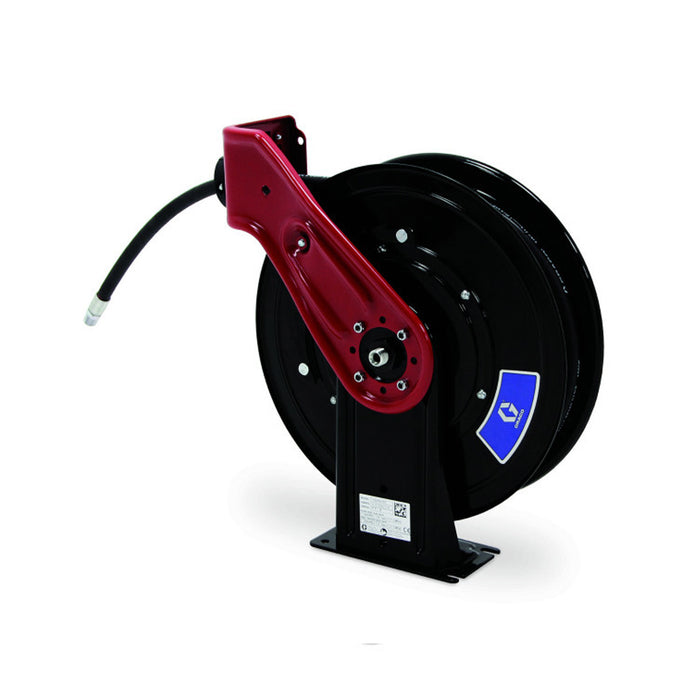

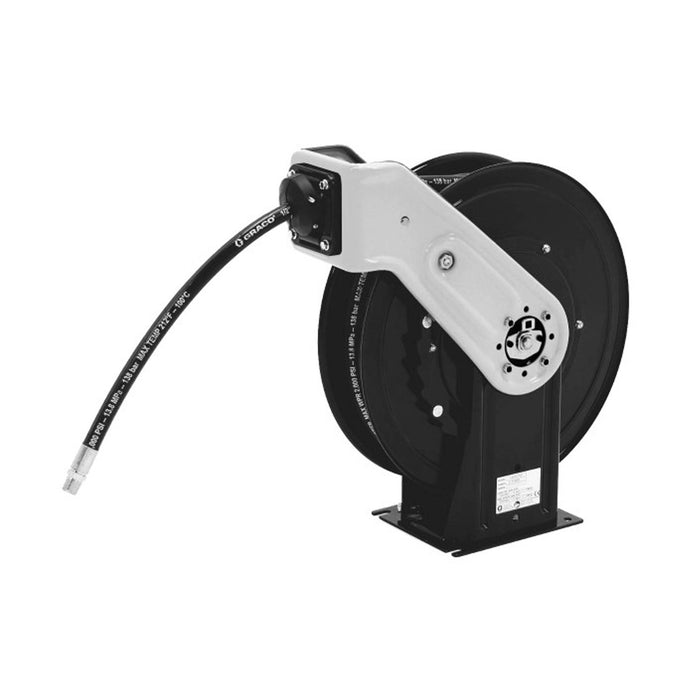

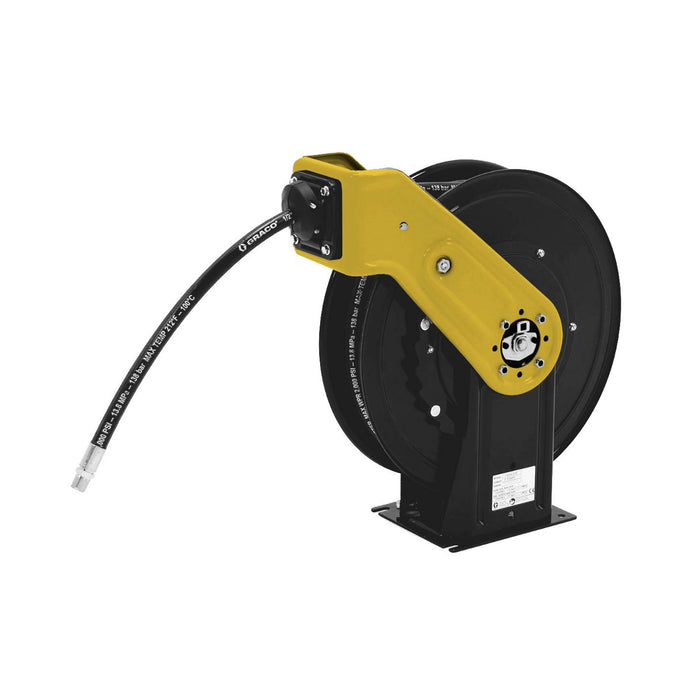

Graco SDX 10 Series 3/8 in. x 50 ft. Spring Driven Hose Reels - 5 colors
SKU SDL25B-BLACK
by Graco
Original price
$789.00
-
Original price
$789.00
Original price
$789.00
$789.00
-
$789.00
Current price
$789.00
-
DESCRIPTION
Graco's SDX series hose reels for high-quality performance and versatility includes specially crafted components include a rigid metal frame and low-friction swivels. With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use. Available in 5 colors.
-
FEATURES
- Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids
- Low-Friction cartridge swivel provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow swivel maximizes material flow with minimal pressure drop for faster fills to get more vehicles through the shop
- Adjustable arm has easily position to fit your application
- Compact pedestal and spool fits in tight spaces and accommodates 35 to 65 ft. (10.7 to 19.8 m) hose
- Baked-on enamel finish protects reel from corrosion
-
SPECS
Application Air, Water, Antifreeze, WWS Colors Black, Blue, Red, White, Yellow Frame Type Single Pedestal Hose Inside Diameter (in) 3/8 Hose Length (ft) 50 Hose Reel Type Reel with Hose Includes Hose Yes Inlet Size (in) 1/2 Inlet Thread Gender Male Inlet Thread Type NPSM Maximum Temperature (°F) 190° Maximum Working Pressure (psi) 300 Minimum Temperature (°F) -20° Model SDX Mount Location Overhead Mount Outlet Size (in) 3/8 Outlet Thread Gender Male Outlet Thread Type NPT Overall Height (in) 19.5 Overall Length (in) 17.1 Overall Width (in) 7 Recommended Environment Indoor, Limited Outdoor Recommended Fluid Type Air, Water, Antifreeze, WWS Reel Thread Type NPT Series 10 Type Spring-Rewind Reel Wetted Parts Stainless Steel, Anodized Aluminum, Nitrile Rubber -
DOWNLOADS
Graco 3A8626H, SDX and XDX 10/20 Series Hose Reels, Instruction
