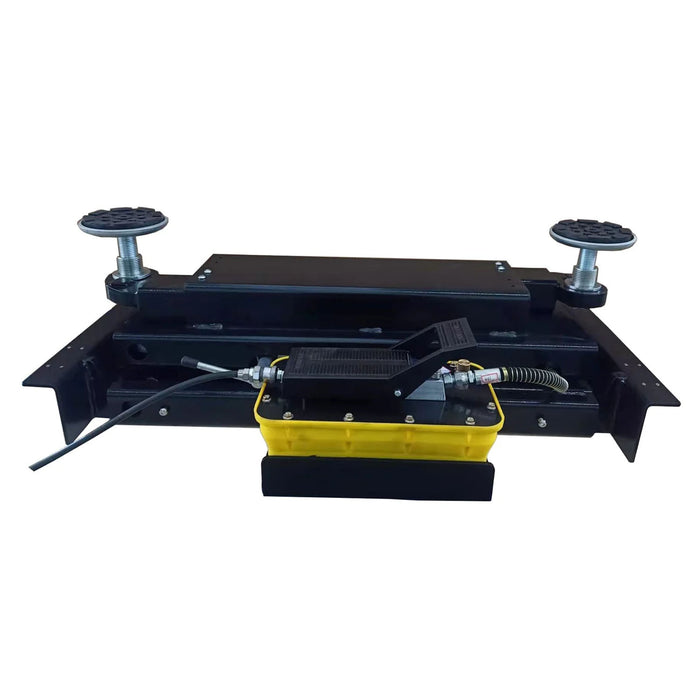

APlusLift 4000LB Air Operated Sliding Bridge Jack ABJ-40
APlusLift 4000LB air operated (ABJ-40) sliding bridge jacks are ideal complement to a 4-post storage lift. The jack can be used to lift front or rear side of a vehicle to perform wheel and brake services efficiently. The ABJ-40 sliding jack is equipped with telescoping support arms and adjustable screw pads for adjusting lifting height to accommodate most vehicles. Optional truck adapters (height extensions) are available if needed.
Features:
- The ABJ-40 bridge jack will fit HW-8S, HW-8SXLT, HW-9KDP, and HW-4P10S car lift models.
- Minimum Lifting Height 1/8" (See Diagram)
- Two Adjustable Screw Pads and Two 2 3/4" Tall Truck Adapters Included
- Long Arm Extensions: 27" - 62 3/8"
- Adjustable Width to fit almost all service and storage lifts
Technical Specifications:
Model | ARJ-40 |
Installation Manual | ARJ-40 Manual |
Type | Bridge Jack |
Warranty | 12 months |
Lifting capacity | 4,000 lbs |
Operating Mode | Air Operated |
Overall Length | 33 7/8" - 45 5/8" |
Distance between arm pads | 27" - 62 3/8" |
Overall width | 18 1/8" |
Lifting Height | 1/8" - 17 3/8" |
Hydraulic Oil | 0.5 gallons of AW32 |
Shipping weight | 300 lbs |
Shipping dimensions | 40"l x 24"w x 11"h |
