APlusLift 11,000LB 4-Post Portable Parking Storage Service Car Lift #HW-4P11S
Lead time:
-
DESCRIPTION
APlusLift 11,000LB 4-Post Portable Parking Storage Service Car Lift - HW-4P11S

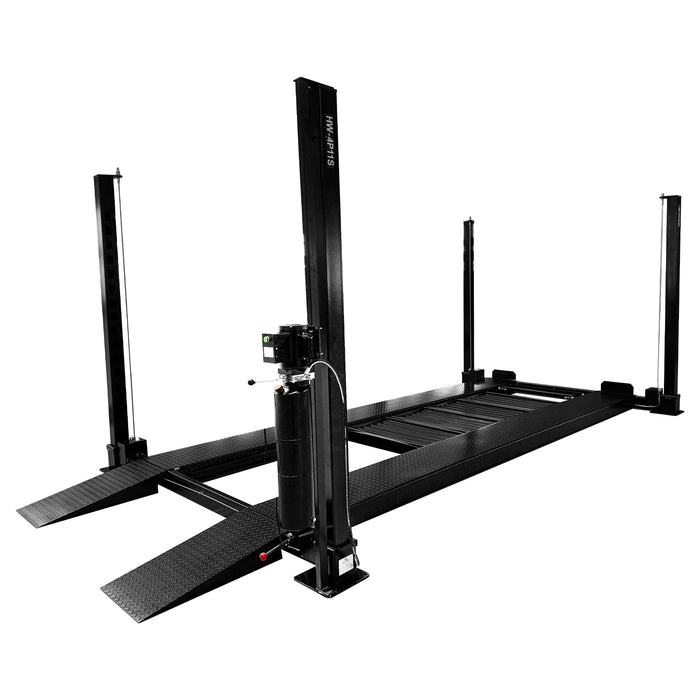

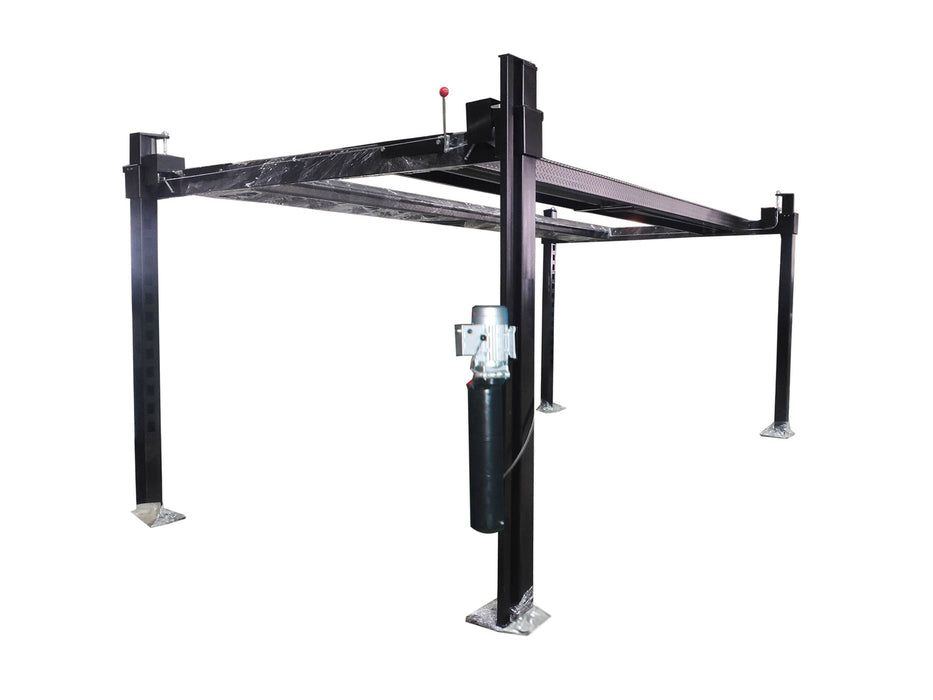

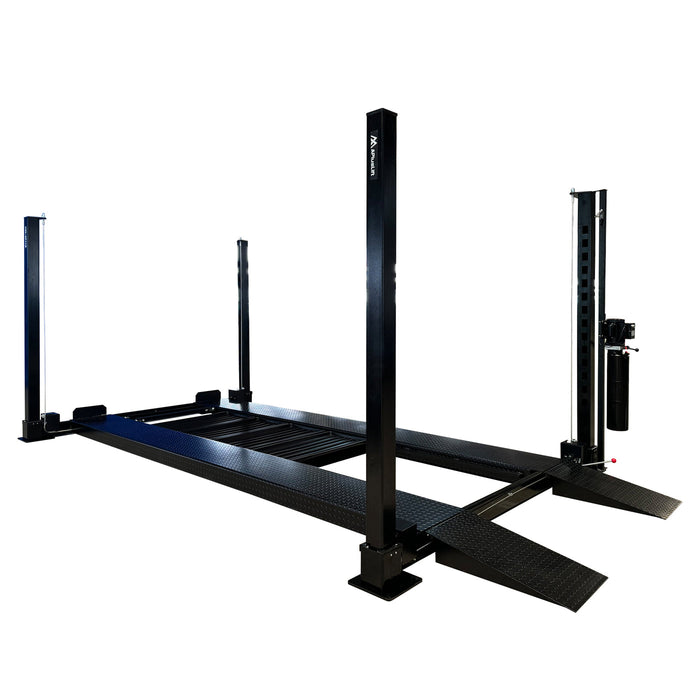

APlusLift HW-4P11S 4-post car auto lift truck hoist is a portable parking storage lift with 11,000 LB Capacity. The design of the car lift model is time tested for 30 years. It is an extra long, extra wide, and extra tall car lift model. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance. The car lift uses a revolutionary high efficient 220V 3HP hydraulic power unit to make car lift operation much safer. The auto hoist is best for parking/storage/service use by homeowners or restoration shops.

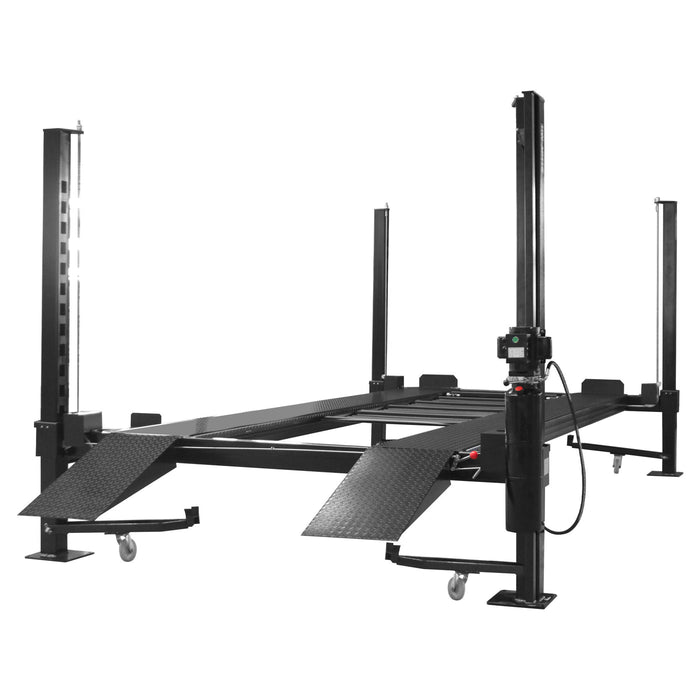

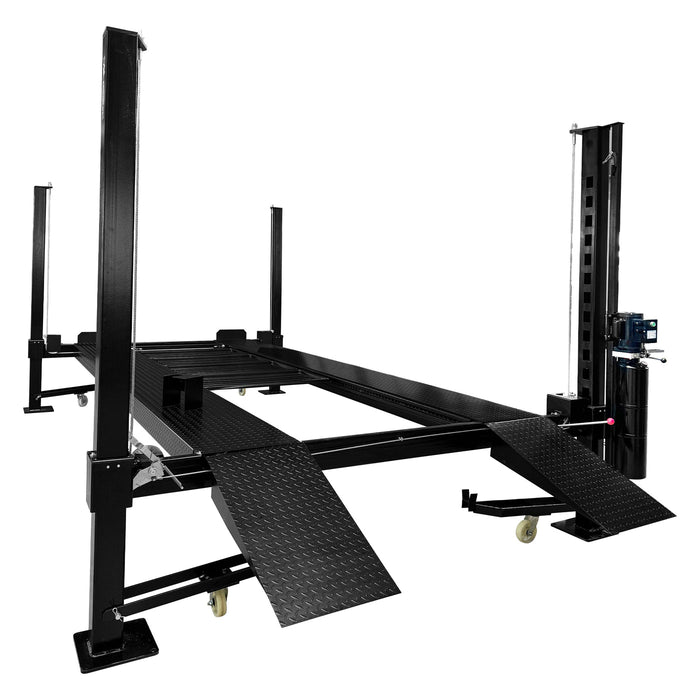

APlusLift HW-4P11S 4-post car auto lift truck hoist package includes a caster kit with polyurethane wheels, a jack tray, and two removable approach ramps. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays(Optional) prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks and drip trays are available for purchase.
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- 11,000 LB Capacity
- Drive Through Width 112"; Lifting Height: 88 21/32"; Overall
- Dimensions 247 1/8"L x 122 7/16"W x 99 15/32"H
- Free Caster Kit, Rolling Jack Tray, and Removable Approach Ramps.
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

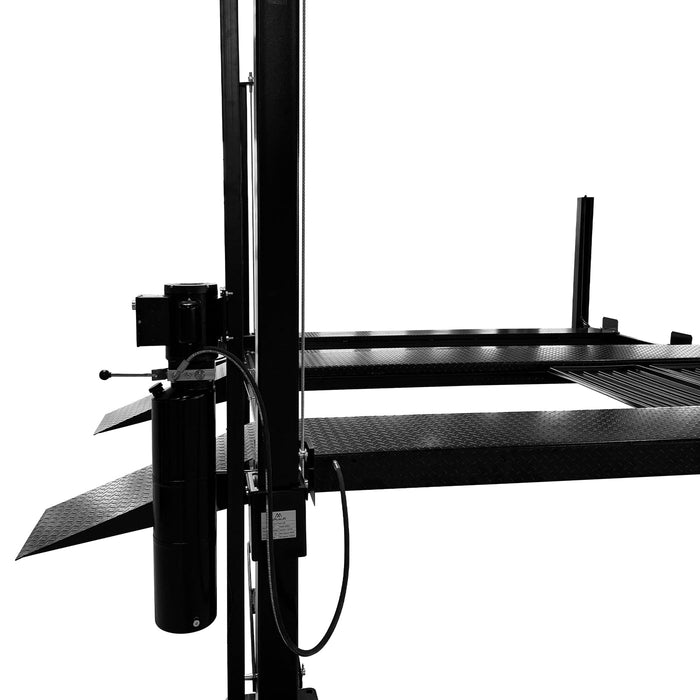

- Safer Operation with A Revolutionary High Efficient 220V 3HP Hydraulic Power Unit
- Powder Coated Finish with Superior Corrosion Resistance
- Drip Trays Optional
Parts Included:

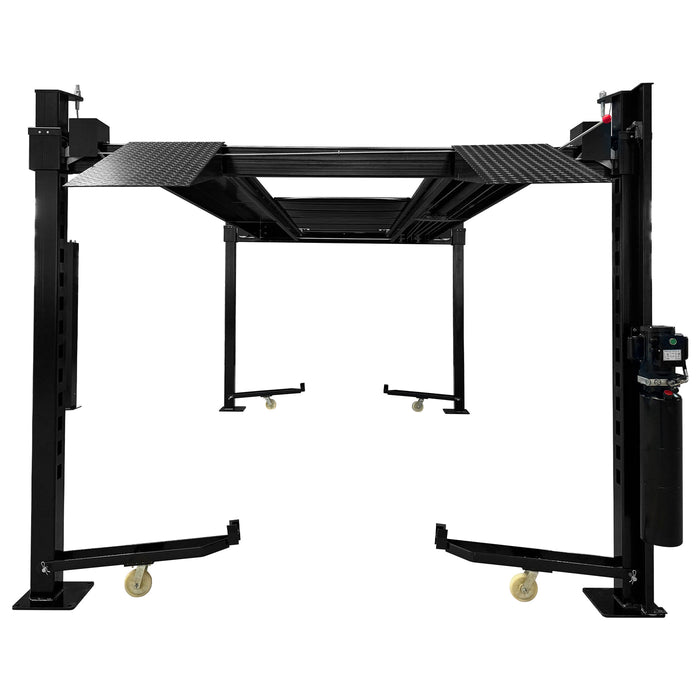

- Caster Kit

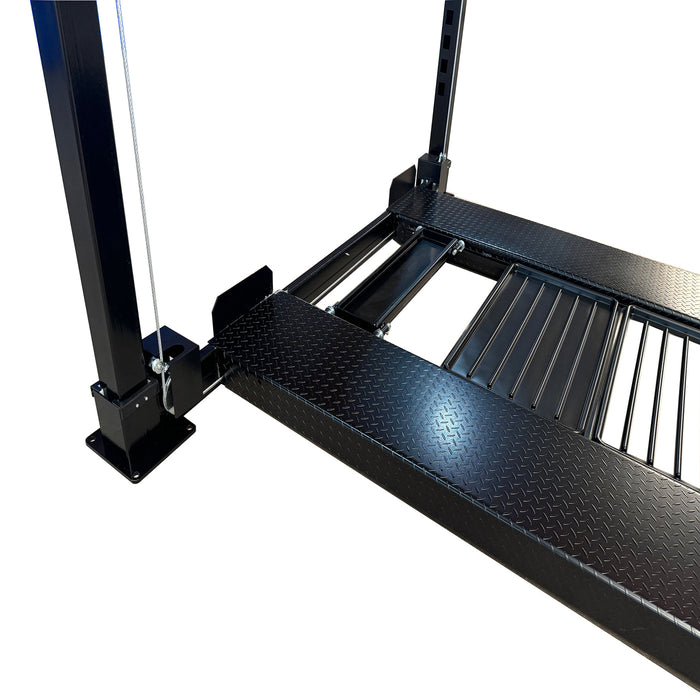

- Jack Tray
- 2 Removable Approach Ramps
-
FEATURES + BENEFITS
- 3 Years (36 Months) Warranty
- Lifting Capacity: 11,000LB
- Usage: Parking/Storage/Service
- Powder Coated Finish with Superior Corrosion Resistance

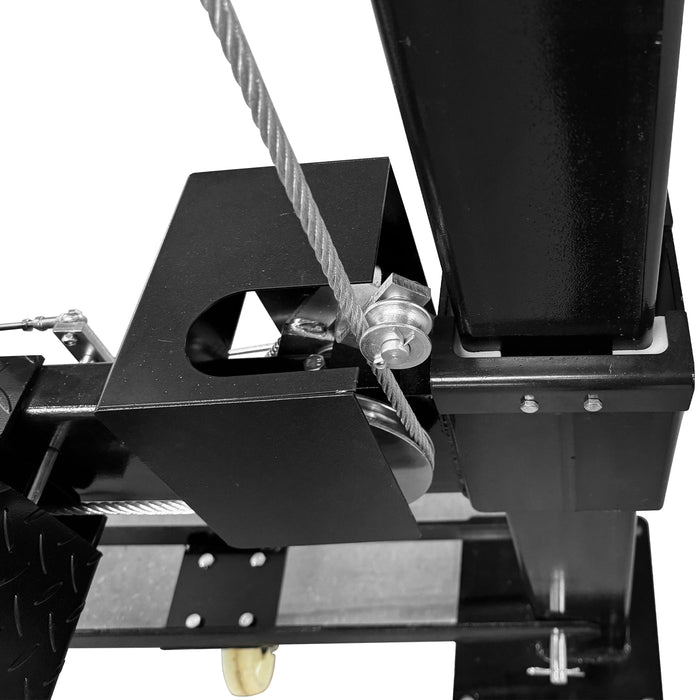

- Heavy duty 3/8" diameter cables that reduce high stress on synchronization process and increase cable life
-
SPECIFICATIONS
Model HW-4P11S
Style 4-post Warranty
3 years (36 months) Lifting Capacity
11,000 lbs Overall Length
247 1/8'"
Overall Width
122 7/16"
Drive Thru Width
112"
Overall Height
99 15/16" Lifting Height 88 21/32" Clearance Under Runway 82 15/16" Runway Size 204 23/32"l x 20"w Runway Between Runways 44 13/32"
Runway Gauge Steel 14/64" Column Cross Section 4 23/32"l x 4 23/32"w Removable Approach Ramp size 35 23/32"l x 18 23/32"w Lock Position 14 Positions Lifting Time 90 seconds Motor 220V Single Phase 2.5Kw or 3.5HP 10A
(recommended a 30A breaker)Hydraulic Oil 4.3-5 gallons AW32/AW46 (not included) Concrete Thickness 4" 3000psi Shipping Weight 2500 lbs Shipping package size 210"l x 22"w x 34"h -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
