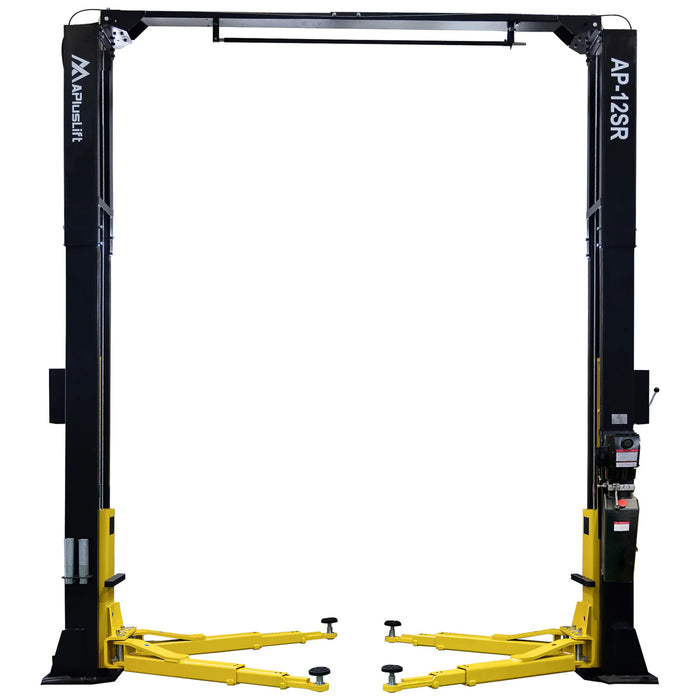

APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift #AP-12SR
Lead time:
-
DESCRIPTION
APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-12SR
APlusLift AP-12SR is a 12000LB single-point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement parts available. We're committed to continuous improvement and always welcome your feedback on how we can enhance our products and services!
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry-leading 3-YEAR WARRANTY (a $499 value!)
- Single Point Safety Lock Release System

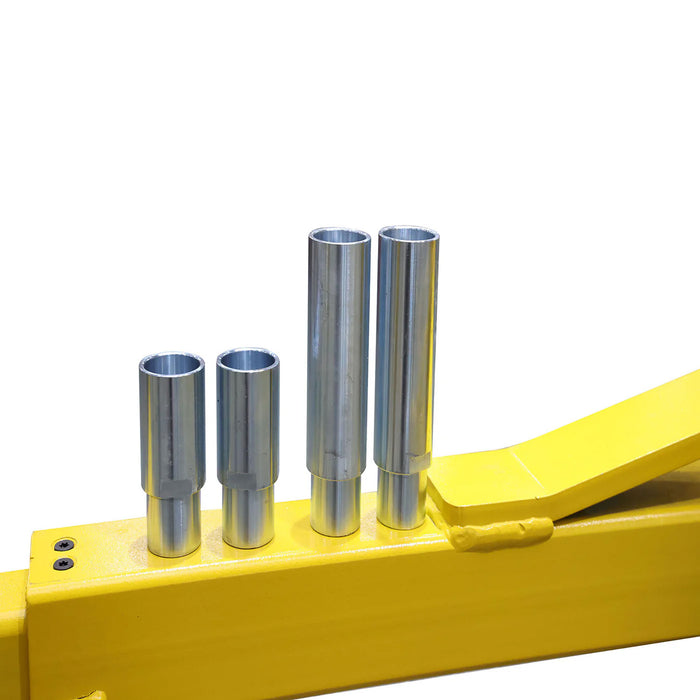

- Two sets of 3" and 6" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- All Robot Welded Structure with Durable Powder Coated Finish
Parts Included:

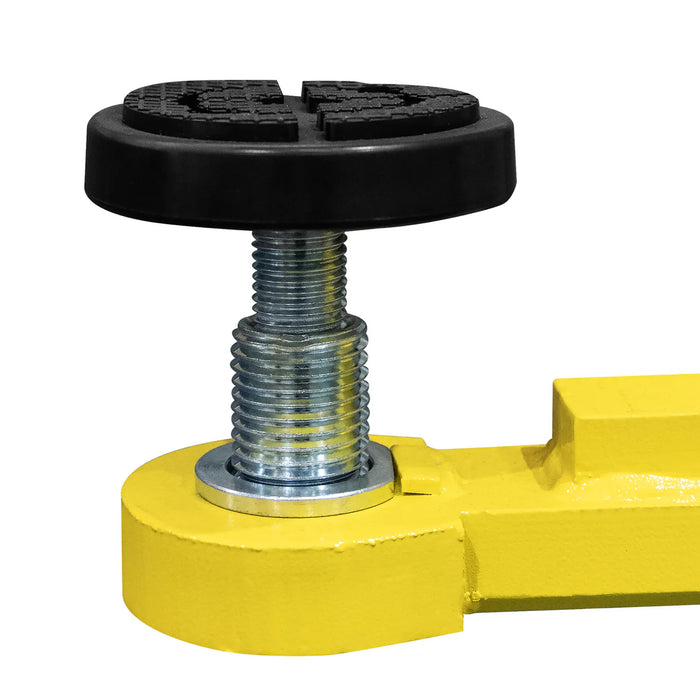

- 4 adjustable screw pads
- 10 anchor bolts
- 10 shims
-
FEATURES + BENEFITS
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain

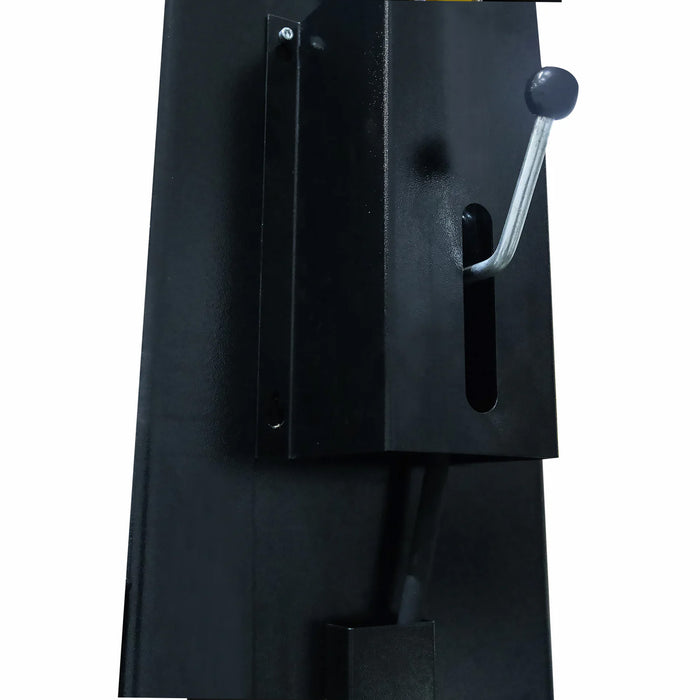

- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel

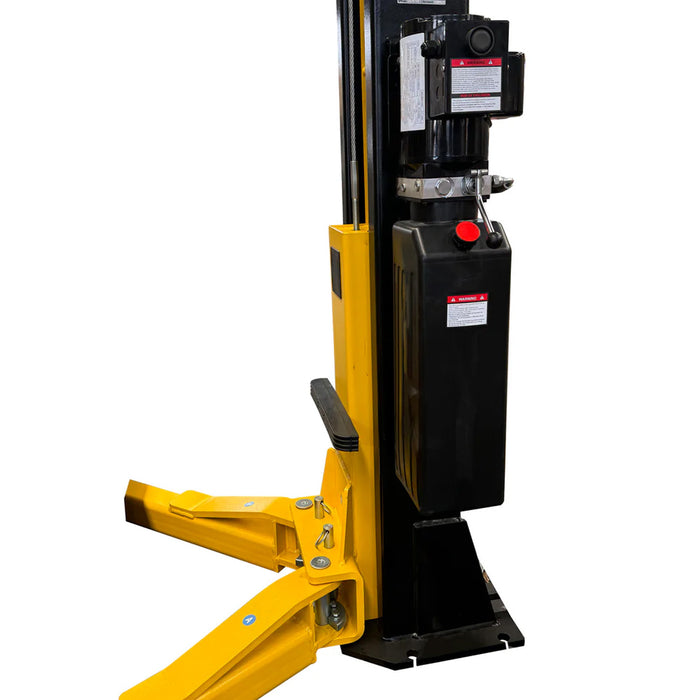

- Lifting operation by pressing the "UP" button on the motor
- Manual lowering operation by pressing lever
- Relief valve built into the power pump to prevent overloading

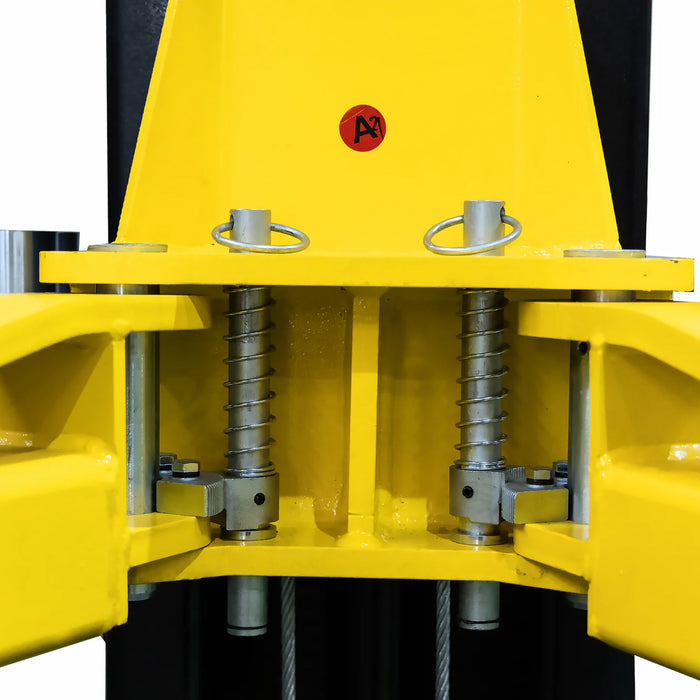

- Automatic arm lock restraints
- Relief valve built into the power pump to prevent overloading

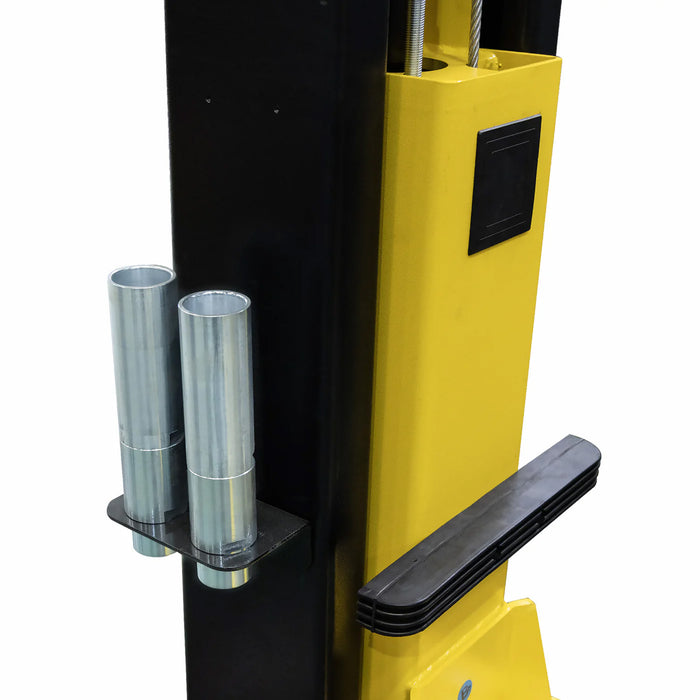

- Door guards protection rubber

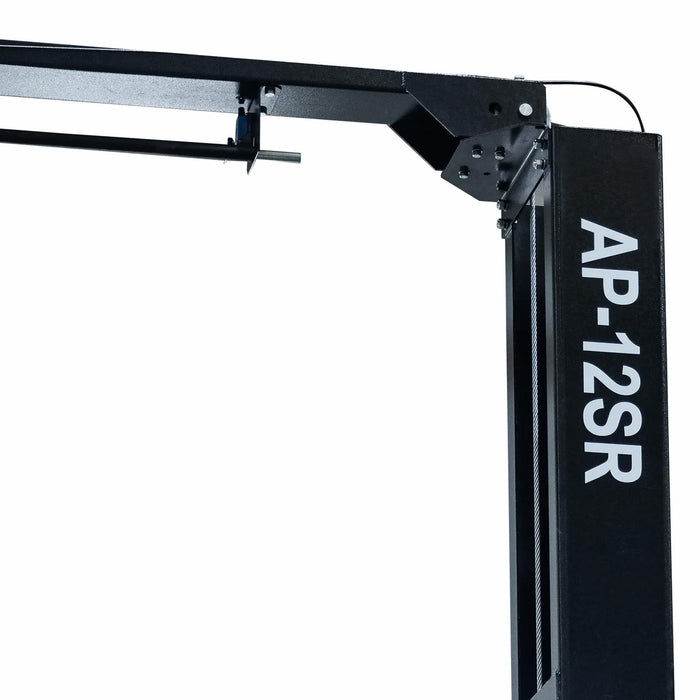

- Upper limit switch to protect cylinders working stroke used in a safe length scope

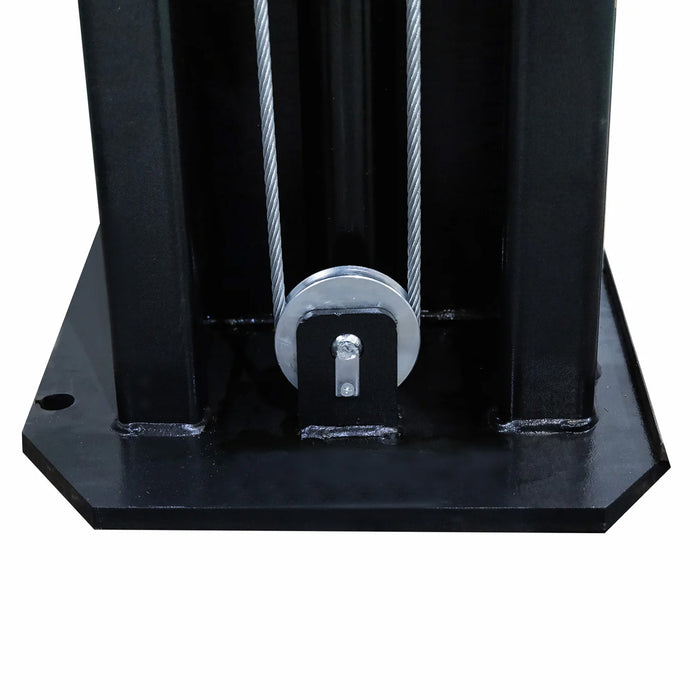

- Heavy duty 3/8" diameter cable and 4 5/16" pulley that reduces high stress on synchronization process and increases cable life
- Ultra high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
-
SPECIFICATIONS
Model AP-12SR
Style Overhead Lock Release
Single Point Release
Warranty
3 years (36 months) Lifting Capacity

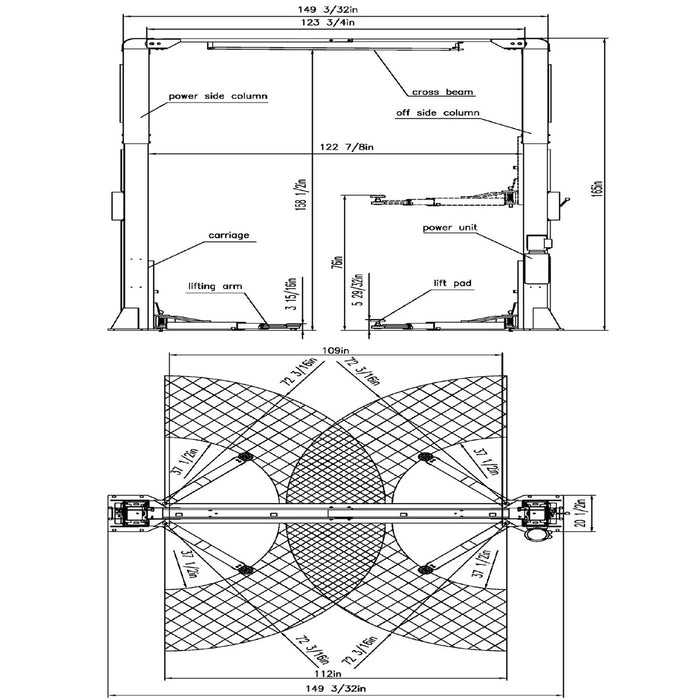

102,000 lbs Overall Height
165"
Overall Width
149"
Maximum Lift height with Truck Adapters
79"
Maximum Lift height without Truck Adapters
70" Minimum Height for adjustable pads from the ground 4" Drive Through Width (Carriage to Carriage) 109" Column to Column Width 123" Column Cross Section 14 3/8"L x 7 13/16"W

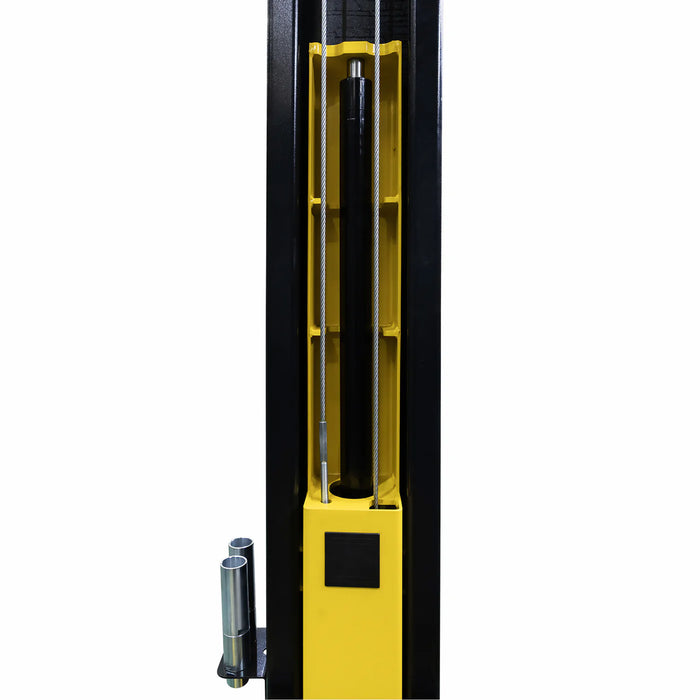

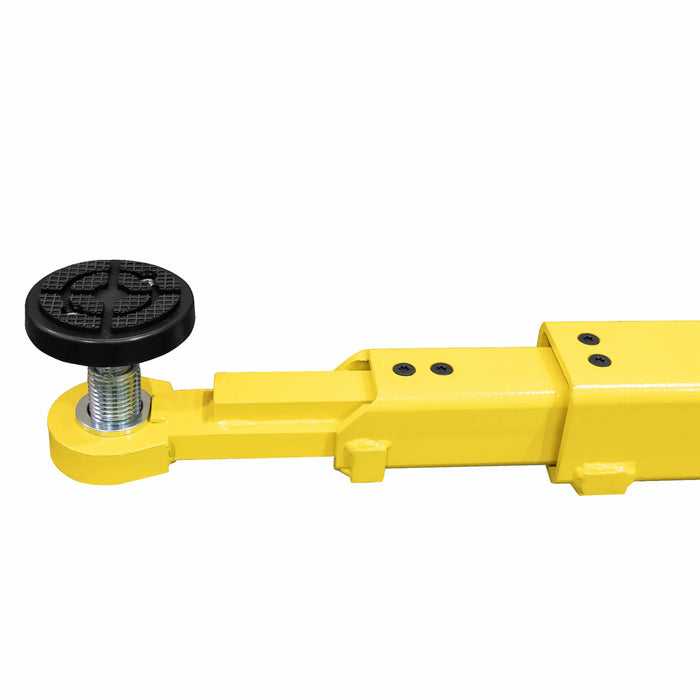

Driving Mode Dual hydraulic cylinders, chain drive Motor 220V Single Phase 3HP 10A (recommend a 30A Breaker) Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Time to full rise 75 seconds Shipping Weight 2500 lbs Shipping package size 117"L x 22"W x 50"H Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000 lbs and below) Arm Assembly Symmetrical Arm Assembly Front Arms Straight Front 3 Stage reach from 37 1/2" to 72 3/16" Back Arms Straight Rear 2 Stage reach from 37 1/2" to 72 3/16" Column Steel Thickness 1/4" Carriage Steel Thickness 1/4" Carriage Yoke Thickness 3/4" Arm Steel Thickness 5/16" Base Plate Steel Thickness 13/16" Truck Adapters (Height Extensions) Two sets: 3" tall and 6" tall -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
