APlusLift 14,000LB 4-Post Heavy Duty Lift #AL-14C
Lead time:
-
DESCRIPTION

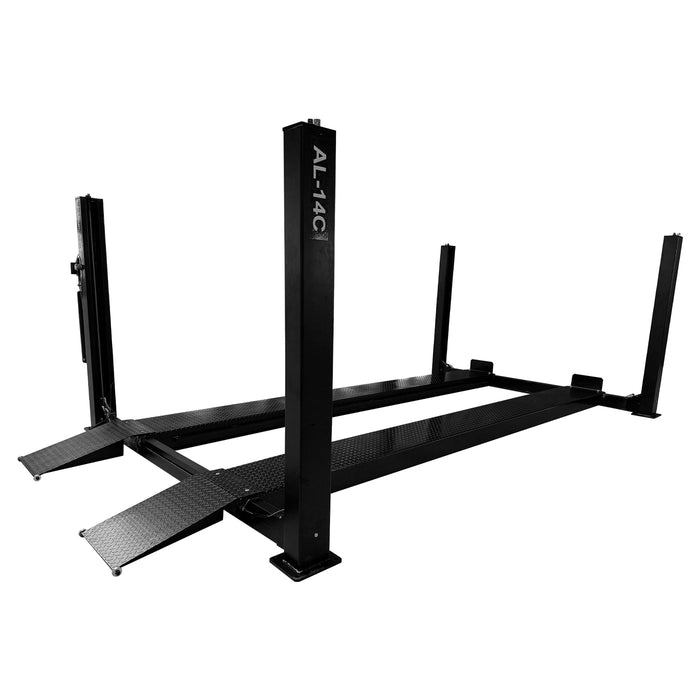

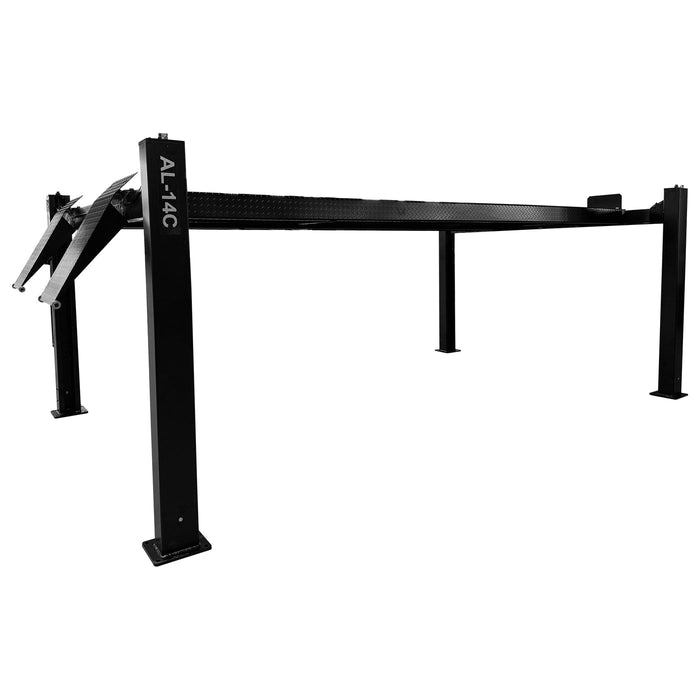

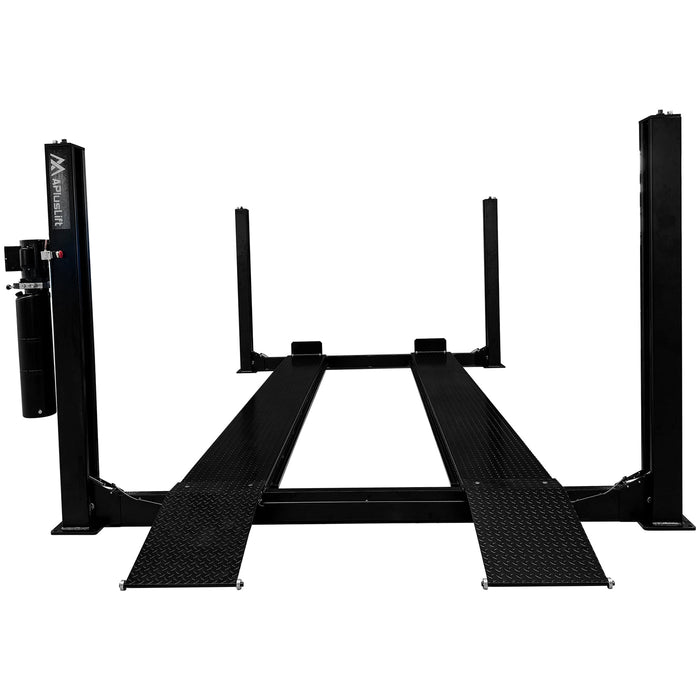

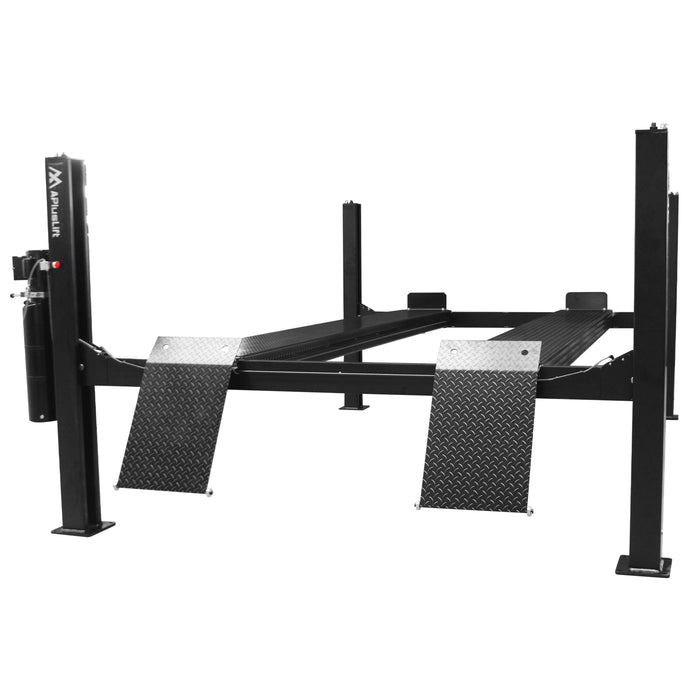

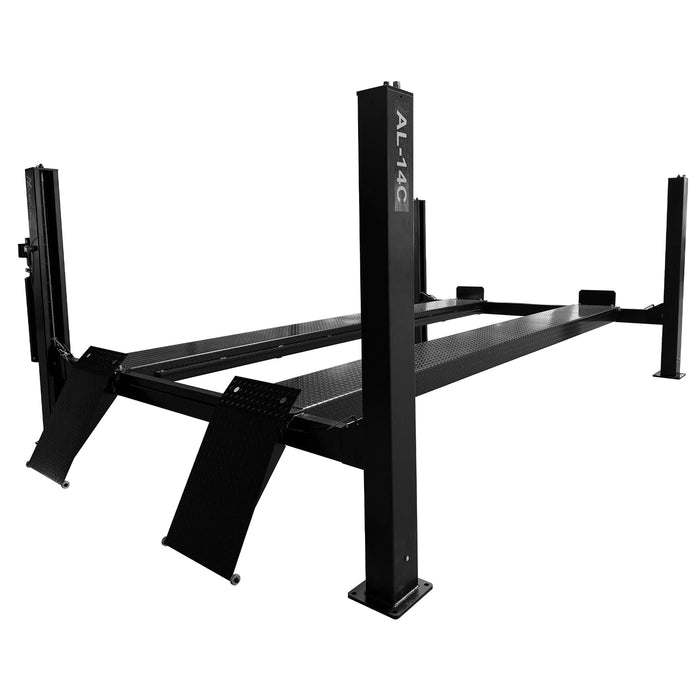

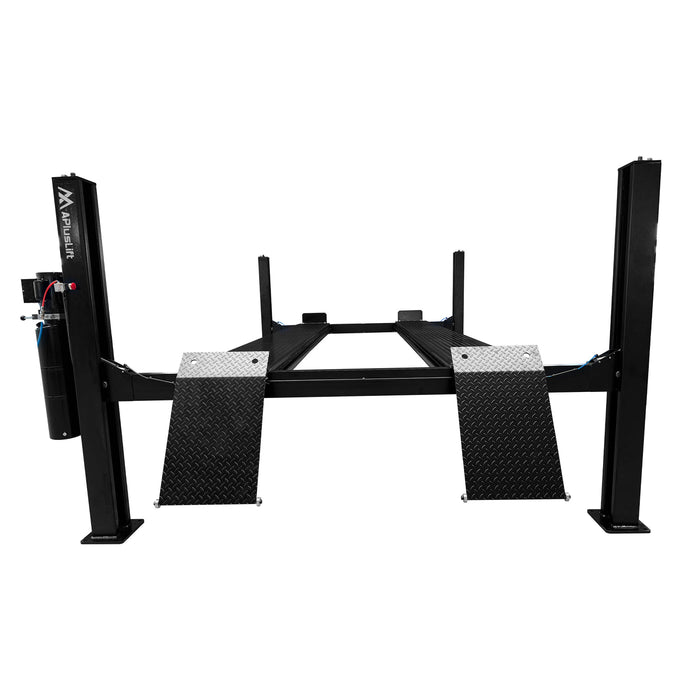

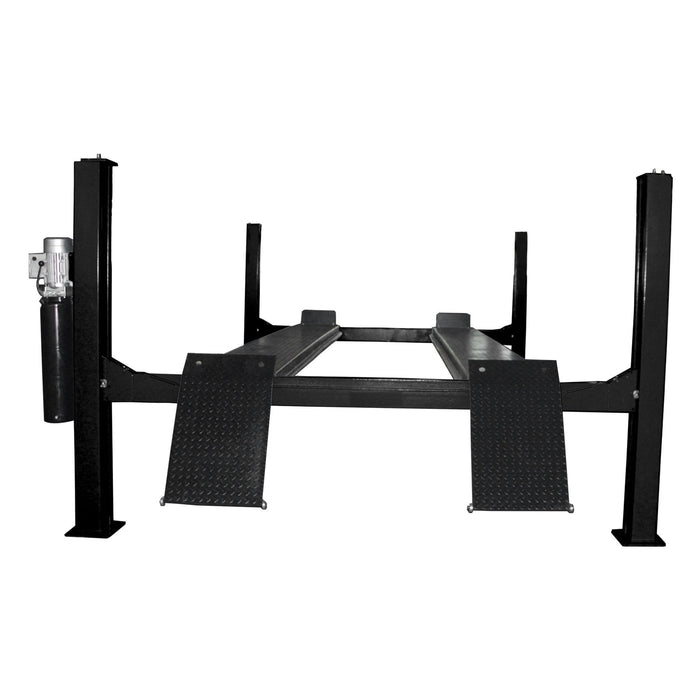

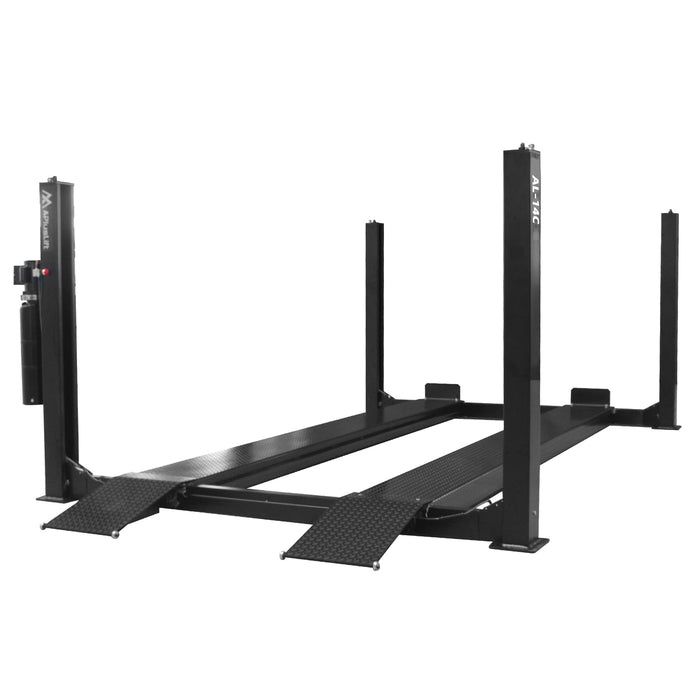

APlusLift 14,000LB 4-Post Alignment Lift - AL-14C
APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.
APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift package includes two approach ramps.
2 Post Lifts
- The product is expected to be delivered in about 90-120 days starting from the day the product is ordered. Note that the current HW-12S is all blue color (not gray-blue). We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- Drive Through Width 106 9/32"; Lifting Height: 77 11/32"; Overall Dimensions 243 1/2"L x 134 3/8"W x 106 9/32"H
- Free Approach Ramps
- Time-Tested Car Lift Model for 30 Years
- Powder Coated Finish with Superior Corrosion Resistance
Parts Included:
- 2 Removable Approach Rams
-
FEATURES + BENEFITS
- 3 Years (36 Months) Warranty
- Lifting Capacity: 14,000LB
- Usage: Storage, Parked vehicle
- Powder Coated Finish with Superior Corrosion Resistance
-
SPECIFICATIONS
Model AL-14C
Style 4-post Warranty
3 years (36 months) Lifting Capacity
14,000 lbs Overall Length
243 1/2"
Overall Width
134 3/8"
Overall Height
83"
Drive Thru Width 106 9/32" Lifting Height 77 11/32" Clearance Under Runway 70 27/32" Runway Size 1203 15/16"l x 20"w Width Between Runways 43" inside-inside, 83" outside-outside

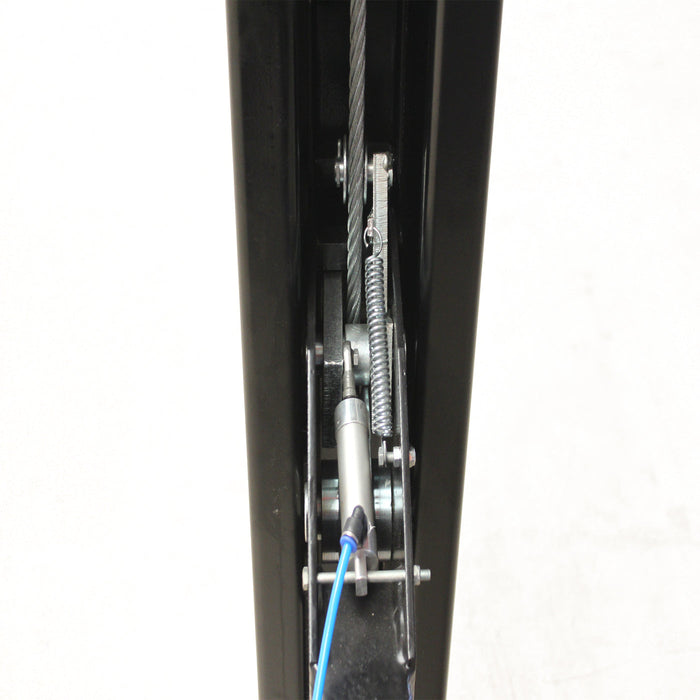

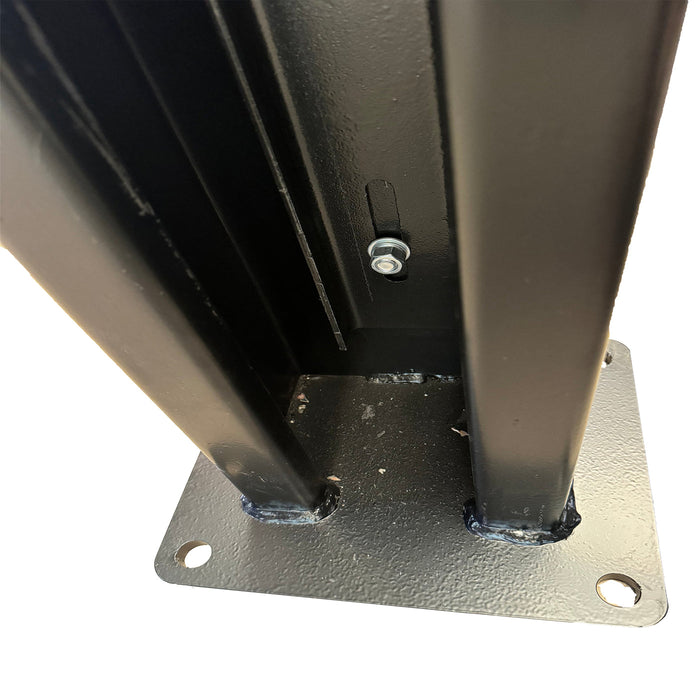

Runway Gauge Steel 15/64" Column Cross Section 7 11/16"l x 6"w Removable Approach Ramp Size 27 31/32"l x 20 3/32"w Lock Position 10 Positions:
20 15/32"
25 19/32"
31 1/2"
37 13/32"
43 5/16"
49 7/32"
55 1/8"
61 1/32"
66 15/16"

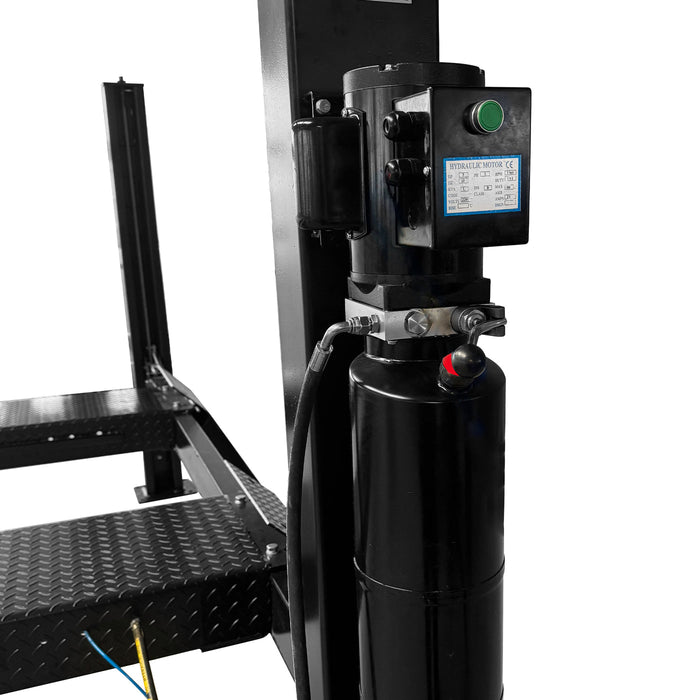

72 27/32"Lifting Time 100 seconds Motor 220V Single Phase 2.5Kw or 3.5HP 10A

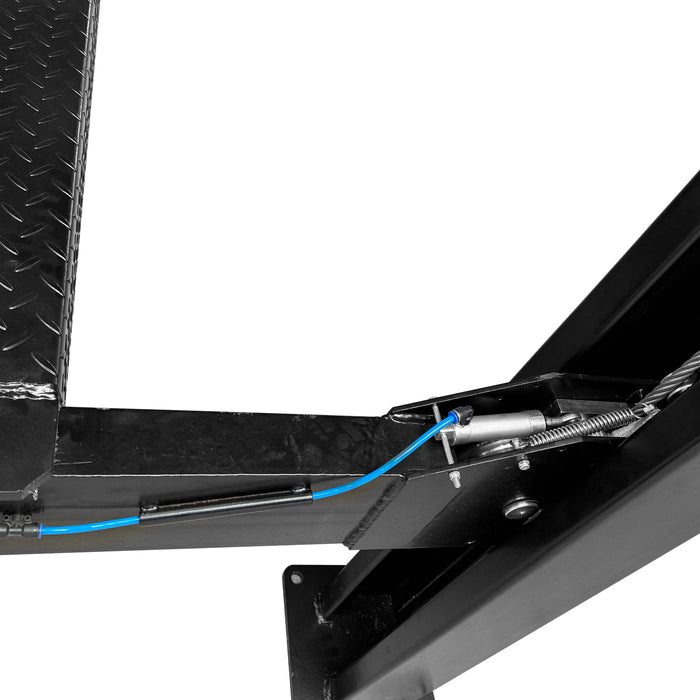

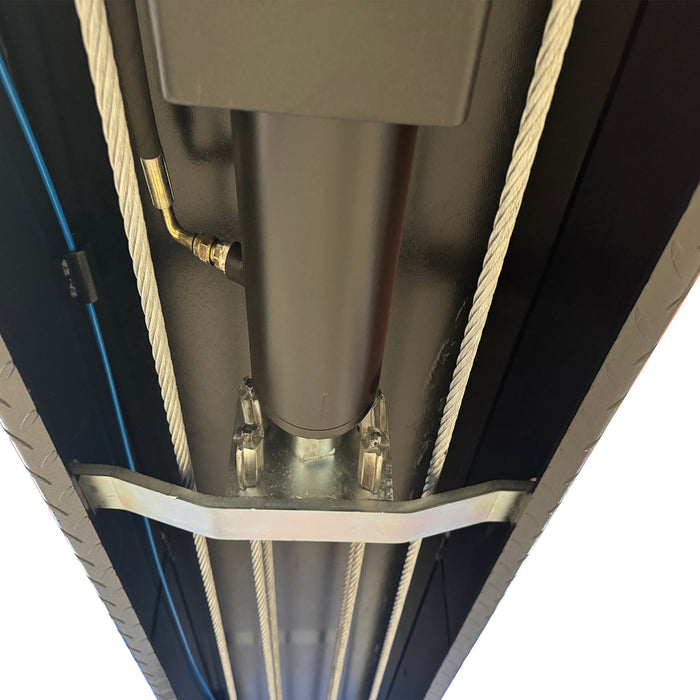

(recommended a 30A breaker)Hydraulic Oil 4.3-5 gallons AW32/AW46 (not included) Concrete Thickness 4" 3000psi Shipping Weight 3000 lbs Shipping package size 214"l x 25"w x 31"h Finish Powder Coated Finish with Superior Corrosion Resistance Cable Heavy duty 15/32" diameter cables that reduce high stress on synchronization process and increase cable life -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
