Atlas® BP-12000 HD Floor Base-Plate 2 Post Lift 12,000 lbs #ATEATTD-BP12000X-FPD
SKU ATEATTD-BP12000X-FPD
Lead time:
Original price
$7,449.00
-
Original price
$7,449.00
Original price
$7,449.00
$7,449.00
-
$7,449.00
Current price
$7,449.00
-
DESCRIPTION

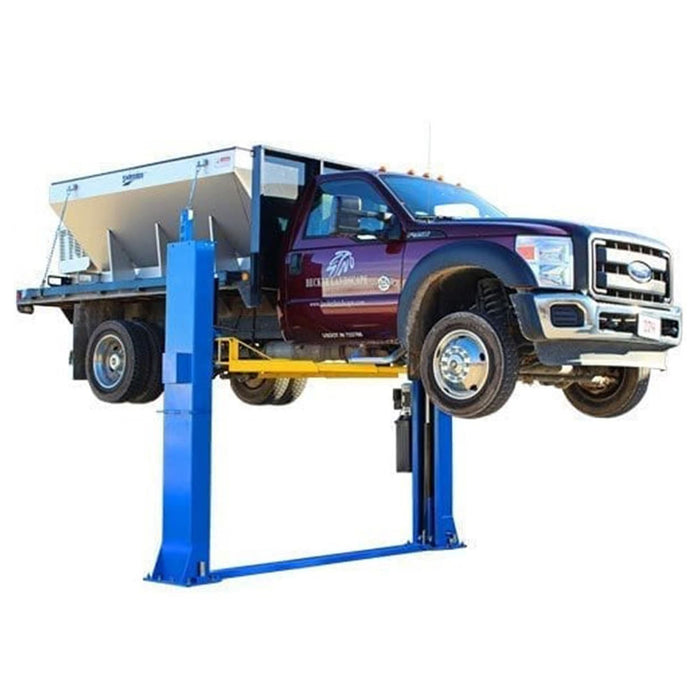

Atlas Automotive Equipment BP12000X Commercial Grade Baseplate 2-Post Lift 12,000 lb. Capacity
The Atlas® BP12000X is a commercial-grade, heavy-duty 12,000 lb capacity 2-post base plate lift designed for above-ground installation. Featuring oversized columns, symmetric three-stage arms, and a single-point lock release, it is ideal for commercial garages needing to lift heavier vehicles while managing limited ceiling height. This lift offers adjustable width settings to accommodate wider trucks or trailers and allows for convenient driving between the columns, enhancing versatility and workspace efficiency.
-
FEATURES + BENEFITS
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 122 1/2" (10' 2 1/2")
- Adjustable Width
- 3-Stage Symmetric Arms
- Automatic Arm Restraints
- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Over Cylinders
- Powder Coat Finish
- Free 12-piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 2,130 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
Includes
- 12 Piece Truck Adapter Set
-
SPECIFICATIONS
Lifting Capacity 12,000 lbs Overall Floor Width 149 3/8" (12' 5 3/8") or 154 1/2" (12' 10 1/2")
Outside Column to Outside Column 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4")
Maximum Lift Height (Without Adapters) 77 1/2" Maximum Lift Height (With Adapters)
88 1/2"
Minimum Arm Height 4" Inside Column 118 1/8" (9' 10 1/8") or 123 1/2" (10' 3 1/2")
Drive Thru
103 5/8" (8' 7 5/8") or 109" (9' 1")
Column Size 8 3/4" x 14"
Motor/Electrical Requirement 220 volt single (1) phase. A 30-amp breaker is recommended Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 2,130 LBS.
Adapter Heights 4 Each 2", 3", 6"
-
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-year Hydraulic-Power Warranty
- 5-Year Structural Warranty
