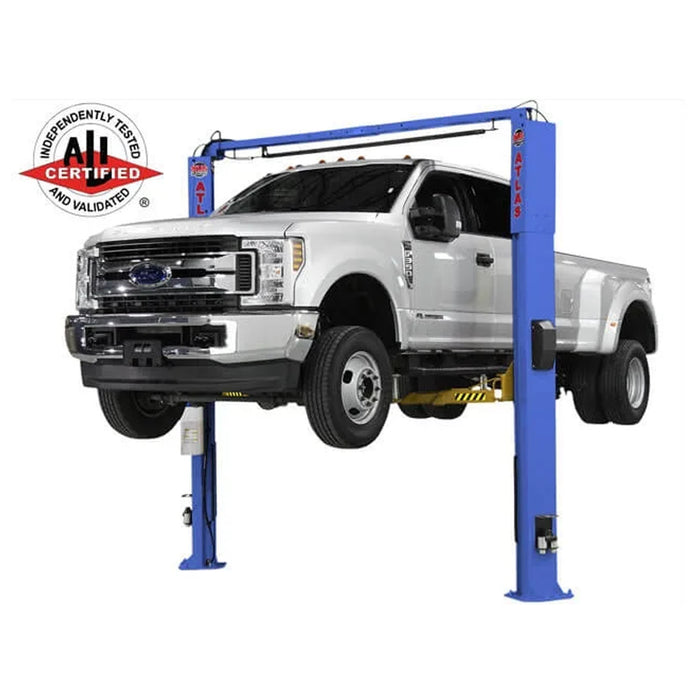

Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10k lbs #ATEAP-PVL10-FPD
Lead time:
-
DESCRIPTION
Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lb
The ALI CERTIFIED Atlas Platinum PVL-10 – the ultimate commercial-grade above-ground lift designed for those who demand unparalleled reliability. Engineered with the proven Double S column design, this lift has earned the trust of customers worldwide, with tens of thousands sold over the last 20 years. The revolutionary Double S design was so advanced that it was patented – and now, that patent has expired, making this technology more accessible than ever.
The Atlas Platinum PVL-10 offers cutting-edge features, including:
- Three-stage telescoping front arms for superior flexibility
- Double screw rubber/metal adapters with truck-height extensions
- Protective rubber pads mounted on the carriage for added vehicle safety
- Rubber column guards to protect the lift’s structure
- A competitive price that is unmatched in the market.
Powered by the ALLY Hydraulic AL2850 Power Unit, this lift ensures reliable, efficient performance. The AL2850 power unit is certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. Designed with extra-heavy-duty armatures and motor windings, it incorporates silver metal in the wires and connections to reduce heat buildup and provide consistent torque during the entire lifting process. Plus, it comes with an industry-leading two-year limited warranty.
Are you seeking the best in lift technology? The Atlas Platinum PVL-10 offers unmatched durability, innovation, and value.
-
FEATURES + BENEFITS
- 10,000 LB. Capacity
- ALI Certified
- Symmetric or Asymmetric columns
- 3 stage front arms and 2 stage rear arms offer more options
- Column design incorporates special Double S bends to increase column strength.
- Adjustable Height - 11' 7 7/8" or 11' 3 7/8"
- Padded Carriages
- Professional grade arm lock restraint system
- Higher quality powder coating
- Single point lock release
- Premium ALLY Hydraulic AL2850 Power Unit View Power Unit Specs
- Shipping Weight: 2,100 lbs.
Includes:
- Truck Adapter Set
Includes:
- Mounting Hardware
- Truck Adapter Set
- Double screw-up adapter kit
-
SPECIFICATIONS
Lifting Capacity 10,000 lbs Overall Height 139 7/8" (11 7 7/8") ‐ (Cylinder Extends to 12' 4")
Special Low Height 135 7/8" (11 3 7/8”) - (Cylinder Extends to 12' 4") (Requires Purchase of Extra Cables) Overall floor Width 139" (11' 7") Asymmetric / 137 1/2' (11' 5 1/2") Symmetric
Outside Column to Outside Column 130" (10 10") Asymmetric / 129 1/4” (10 9 1/4") Symmetric Maximum Lift Height (without adapters) 81 1/2"
Maximum Lift Height (with adapters) 72 1/2"
Maximum Arm Height 4" Inside Column 107 3/4” (8' 11 3/4”) Asymmetric / 112 1/2" (9' 4 1/2") Symmetric Drive Thru 91" Asymmetric / 99 1/2" Symmetric Column Size 7" x 10 1/4" Column Thickness Steel 6mm Base of Lift 15" x 18" Adapter Heights 4 Each - 3", 6" Motor/Electrical Requirement 2 HP 220V (1) phase / 30 amp breaker is required Oil Requirements 3-5 Gallons AW32/AW46 (not included) Shipping Weight 1,850 lbs. Requires a minimum of 4" of concrete with 3000 psi -
WARRANTY + MANUAL
Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
- 5-Year Structural Warranty
