Stratus 3 Commercial Grade On-Ground Scissor Car Lift Generation 3, SAE-UT9000
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

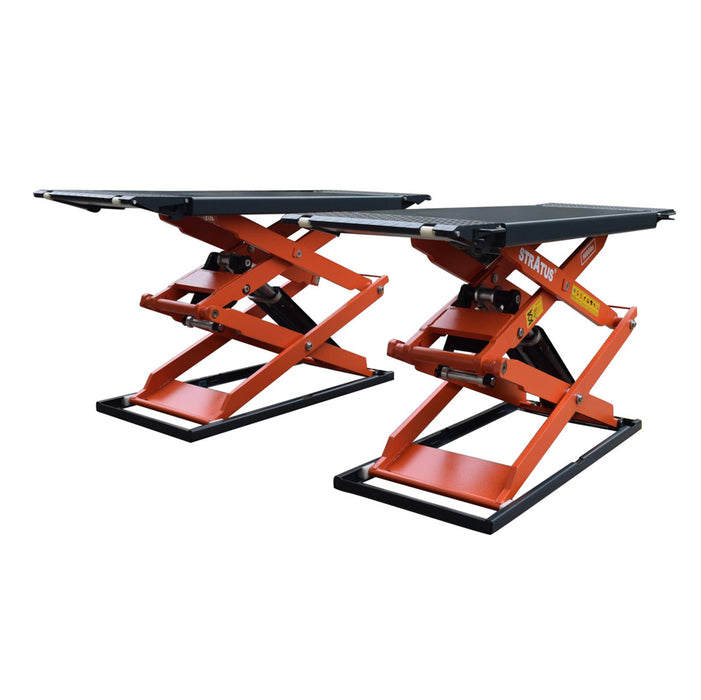

Stratus SAE-UT9000 G3 Commercial Grade On-Ground or In-Ground Mount Low Profile Full Rise Scissor Car Lift Generation 3
Get ready for a revolutionary car maintenance experience with the Stratus Commercial Grade Low Profile Full Rise Scissor Car Lift SAE-UT9000. Effortlessly Stratus lift vehicles with the comfortable assurance of a 9,000 lbs capacity. Opt for our versatile Full Rise Scissor Lift, equally proficient in managing car lifting requirements for both hobbyists and entrepreneurs. Choose either on-ground or in-ground set-ups based on your convenience. Rest easy knowing that routine vehicle maintenance or demanding overhaul tasks are made easier with this outstanding scissor auto lift.
-
FEATURES + BENEFITS
- Commercial grade open center design
- Low profile, minimum height is 4 5/16"
- On-Ground surface mount or In-ground flush mount (see detailed foundation plan)
- Pneumatic safety lock release
- Durable cylinders with anti-surge valves
- Aluminum motor power unit
- 14 lock position
- 24V low-voltage control system
- Platforms can be extended for long vehicles
- Self-lubricated bushing and bearing
- Proofed by dynamic test with 120% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Standard Accessories
- 4pcs ramps
- 8pcs rubber pads - 4pc of each 1 3/8" & 2 3/8" thickness
-
SPECIFICATIONS
Model UT9000 Capacity 9,000 lbs Lifting Time ~60 sec Max Height
74 13/16"
Min Height
4 5/16"
Runway Length w/o Ramps 58 1/16" Platform Length with Ramps
81 5/8"
Overall Width
82 5/8"
Runway Width 26" Width Between Runway
35 7/16"
Motor
3 HP, 110V / 220V, 60 HZ, 1ph
Oil
AW32 or AW46
Breaker
20A / 30A Platform Shipping Weight 1962 lbs Platform Shipping Dimensions 84"L x 31"W x 17"H
Control Panel Shipping Weight 172 lbs. -
WARRANTY + DOCS
Warranty Information
- 5-Year Structural Warranty
- 2-year Electric Warranty
- 5-Year Structural Warranty
