Stratus Clear Floor 14k lbs Single Point Manual Release 2-Post Lift SAE-C14X
SKU SAE-C14X
Lead time:
Original price
$8,066.00
-
Original price
$8,066.00
Original price
$8,066.00
$8,066.00
-
$8,066.00
Current price
$8,066.00
-
DESCRIPTION

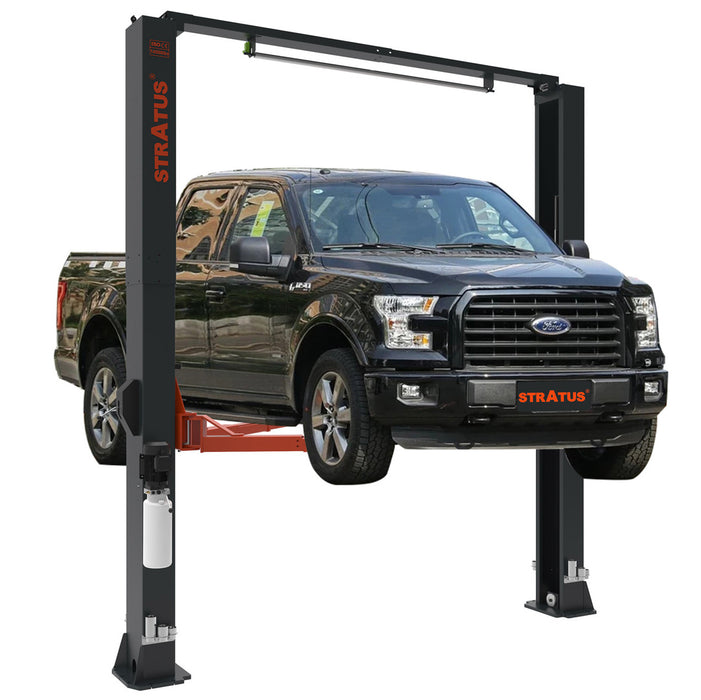

Stratus SAE-C14X Overhead Clear Floor Direct Drive 14,000 LBS Capacity Single Point Manual Release Auto Lift
Presenting the Stratus Lift Overhead Clear Floor Direct Drive 14,000 LBS Capacity Auto Lift SAE-C14X – your ideal partner for any vehicle lifting needs. The sturdy Two Post overhead auto car lift complements the impressive 14,000 lbs capacity to offer maximum reliability and safety. Its Clear Floor design further enhances the user’s experience, ensuring efficient operation without hindrances. With a Single Point Manual Release feature, the product makes controlling and managing operations a breeze. This is the one-stop solution for all your heavy-duty lifting needs!
-
FEATURES + BENEFITS
- Extra wide drive through: 115 11/16”
- Overhead / Clear floor design
- Single-point manual release
- Direct Drive
- 2 Top limiter switch
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- 4pcs Screw-up rubber pads - Peg 60mm (2 5/16")
- 4pcs 4" Truck Adapter - Peg 60mm (2 5/16")
-
SPECIFICATIONS
Model C14X Capacity 14,000 lbs Max Lifting Height with Adapaters 78 13/16"(2002mm)
Min Lifting Height with Adpaters
8' 1/8" (207mm)
Max Lifting Height without Adapters
74 13/16" (1900mm)
Min Lifting Height without Adapters
4 1/8" (105mm)
Rise Time
~60 sec
Overall Height
173 3/8" (4403mm)
Overall Width
21 1/4" (540mm)
Overall Length
155 1/8" (3940mm)
Inside Columns
129 15/16" (3300mm)
Drive Thru
115 11/16" (2951mm) Front Arm Reach Max 61 1/4" (1555mm) Front Arm Reach Min 39 3/8" (1000mm)
Rear Arm Reach Max 42 5/16" (1075mm) Rear Arm Reach Min 23 13/16" (605mm) Motor 4 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 2360 lbs Dimensions 1112"L x 431"W x 32"H Requirements 6" - 3000 psi -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
