Stratus Clear Floor Height Adjustable 10k lbs 2-Post Lift SAE-C10A
SKU SAE-C10A
Lead time:
Original price
$5,651.00
-
Original price
$5,651.00
Original price
$5,651.00
$5,651.00
-
$5,651.00
Current price
$5,651.00
-
DESCRIPTION

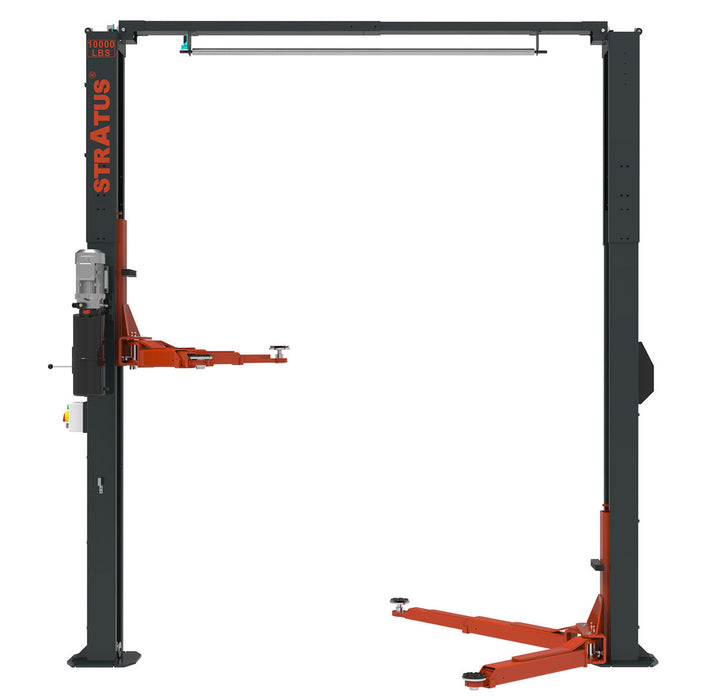

Stratus SAE-C10A 2 Post Clear Floor Height Adjustable Direct Drive 10,000 lbs Capacity Single Point Manual Release Car Lift
Manual Release Car Lift SAE-C10A! This advanced clear floor car lift not only provides an impressive 10,000 lbs capacity, but also offers the benefit of a clear floor design, making it way easier to access undercar components without any obstruction. With its manual release and height-adjustable features combined with a durable direct drive, this two-post car lift simplifies your everyday mechanic work while ensuring top safety and reliability. Be it for your garage or workshop, this is an investment you won't regret.
-
FEATURES + BENEFITS
- Overhead / Clear floor design
- Direct Drive
- Single-point manual release
- 2 top limiter switches
- Anti-surge valves
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- 4pcs screw-up rubber pads - Peg 60mm (2 5/16")
- 4pcs 4" Truck Adaptors - Peg 60mm (2 5/16")
-

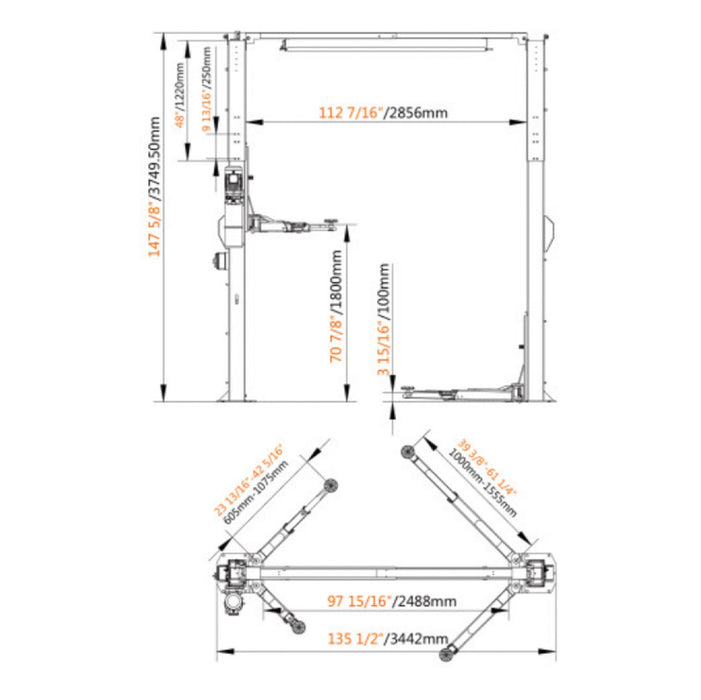

SPECIFICATIONS
Model C10A Capacity 10,000 lbs Max Lifting Height with Adapters 74 7/8"(1902mm)
Min Lifting Height with Adapters
7 157/16" (202mm)
Max Lifting Height without Adapters
70 7/8" (1800mm)
Min Lifting Height without Adapters
3 15/16" (100mm)
Rise Time
~50 sec
Overall Height
137 3/4" - 147 5/8" (3499mm - 3749mm)
Overall Width
15 3/4" (400mm)
Overall Length
1435 1/2" (3442mm)
Inside Columns
112 3/16" (2850mm)
Drive Thru
101 5/16" (2574mm) Front Arm Reach Max 61 1/4" (1555mm) Front Arm Reach Min 39 3/8" (1000mm)
Rear Arm Reach Max 42 5/16" (1075mm) Rear Arm Reach Min 23 13/16" (605mm) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1674 lbs Dimensions 110"L x 45"W x 24"H Requirements 6" - 3000 psi -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
