Stratus Extra Wide 14k lbs Single Point Manual Release 2-Post Lift SAE-F14X, alamoequipment.com

Stratus Extra Wide 14k lbs Single Point Manual Release 2-Post Lift SAE-F14X

SKU SAE-F14X

Lead time:

by Stratus Auto Equipment
$7,699.00 - $7,699.00
$7,699.00
$7,699.00 - $7,699.00
$7,699.00
For Will Call Options call 817-865-3707 or message and save $250!

  • DESCRIPTION

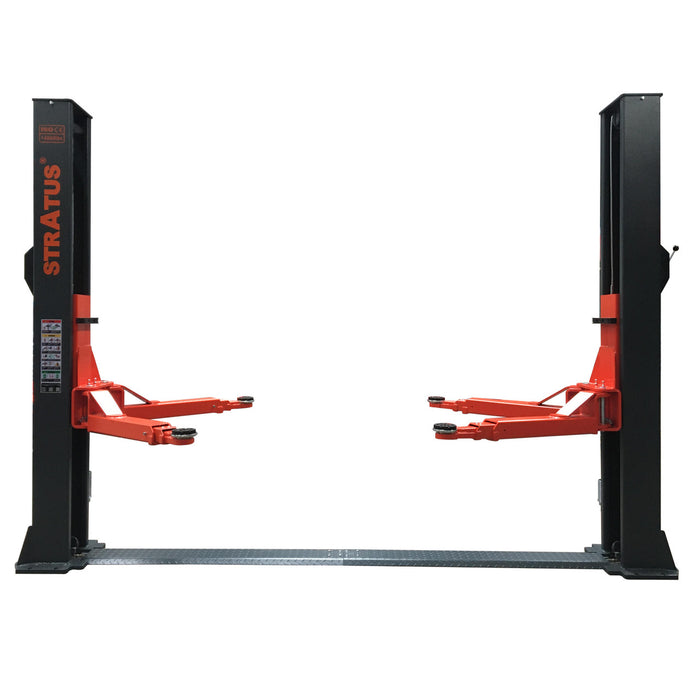

    Stratus SAE-F14X Extra Wide Floor Plate 14,000 LBS Capacity Single Point Manual Release Vehicle 2 Post Lift

    Upgrade your workshop with the Stratus Extra Wide Floor Plate SAE-F14X. This robust, Two Post vehicle lift has a whopping 14,000 lbs capacity, thus no vehicle will be too heavy for this beast! The extra wide floor plate car lift offers plenty of room to maneuver helping you effortlessly hoist and maintain vehicles of varying sizes. Its single point manual release means you'll be in control of every lift and lower. Don't miss out on this essential piece of garage equipment!

  • FEATURES + BENEFITS

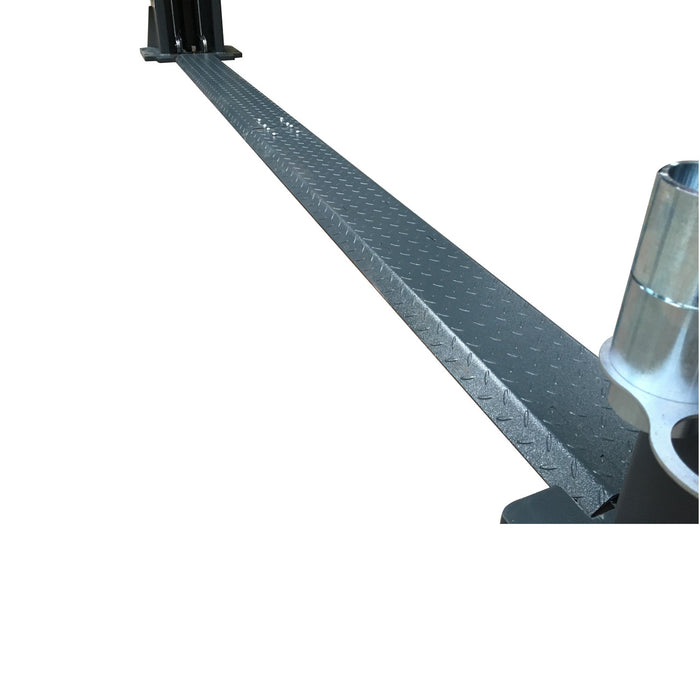

    • Base plate / Open top
    • Single point manual release
    • Top limiter switch
    • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
    • Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)

    Includes

    • 4pcs Screw-up rubber pads - Peg 60mm (2 5/16")
    • 4pcs 4" Truck Adaptors - Peg 60mm (2 5/16")

  • SPECIFICATIONS

    Model F14X
    Capacity 14,000 lbs
    Max Lifting Height with Adapaters 76 13/16"(2002mm)
    Min Lifting Height with Adpaters
    		 8' 1/8" (207mm)
    Max Lifting Height without Adapters
    		 74 13/16" (1900mm)
    Min Lifting Height without Adapters
    		 4 1/8" (105mm)
    Rise Time
    		 ~55 sec
    Overall Height
    		 122 13/16" (3120mm)
    Overall Width
    		 21 1/4" (540mm)
    Overall Length
    		 160 7/16" (4075mm)
    Inside Columns
    		 129 15/16" (3300mm)
    Drive Thru
    		 116 1/8" (2949mm)
    Front Arm Reach Max 70 7/8" (1800)
    Front Arm Reach Min 35 1/16" (890)
    Rear Arm Reach Max 70 7/8" (1800)
    Rear Arm Reach Min 35 1/16" (890)
    Motor 4 HP, 220V, 60 HZ, 1PH
    Oil AW32 or AW46
    Breaker 30A
    Weight 2125 lbs
    Dimensions 111"L x 42"W x 27"H
    Requirements 6" - 3000 psi

  • WARRANTY

    Warranty Information

    • 5-Year Structural Components Warranty
    • 3-year Hydraulic Components Warranty
    • 2-year Electrical Parts Warranty
