Stratus Extra Wide & Tall 10k lbs Scissor Car Lift, SAE-MS10000
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

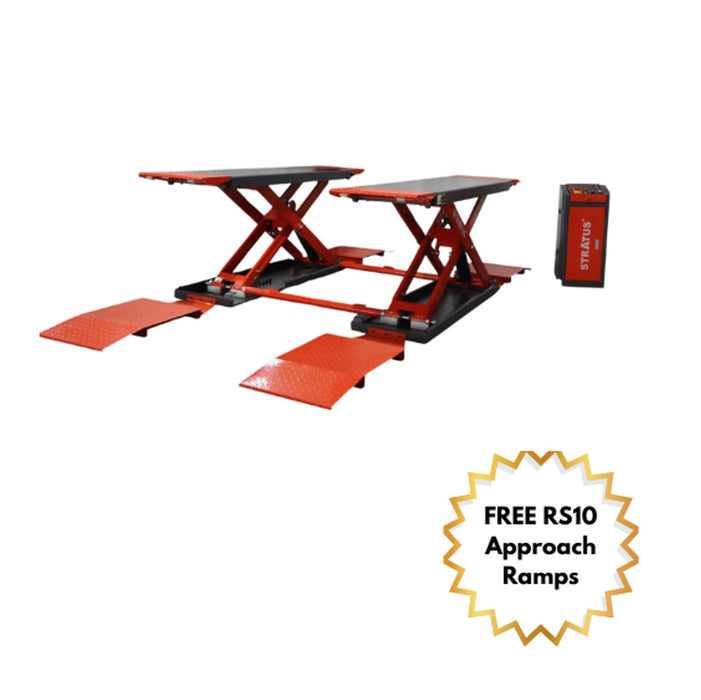

Stratus SAE-MS10000 Extra Wide Extra Tall Commercial Grade 10,000 LBS Open Center Mobile Mid Rise Electrical Safety Lock Release Scissor Vehicle Lift
Increase your efficiency effortlessly with the Stratus Extra Wide Commercial Grade 10,000 LBS Open Center Mobile Mid Rise Electrical Safety Lock Release Scissor Vehicle Lift SAE-MS10000! This dependable lift, boasting a 10,000 LBS capacity, offers the added convenience of electrical safety lock features and an open center design, ensuring optimal functionality in your workspace.
-
FEATURES + BENEFITS
- Commercial-grade mobile design
- Open center
- Extra wide
- Electrical Safety lock fail sensor
- Programmable Logic Controller (PLC)
- Available in 110V
- 24V low-voltage Motor control system
- Including 8 lock positions
- Self-lubricated bushing and bearing
Standard Accessories
- Ramps (4 pcs)
- Rubber pads - (8 pcs) 4pcs of each 1 3/8” & 2 3/8” thickness
- Mobile kit
-
SPECIFICATIONS
Model MS10000 Capacity 10,000 lbs Lifting time ~40 Sec
Max Height
47 1/4" (1200mm)
Min Height
5 1/4" (135mm)
Platform Length without Ramp
89" (2263mm)
Overall Width
77 1/2" (1970mm)
Width Between Platform
35" (890mm)
Motor
3 HP, 110V / 220V, 60 HZ, 1ph
Oil
AW32 or AW46
Breaker
20A / 30A Platform Shipping Weight 1581 lbs Platform Shipping Dimensions 80"L x 72"W x 12"H
Control Panel Shipping Weight 133 lbs. Control Panel Dimensions 37"L x 17"W x 22"H -
WARRANTY + DOCS
Warranty Information
- 5-Year Structural Warranty
- 2-year Electric Warranty
- 5-Year Structural Warranty
