Stratus Floor Plate Open 10k lbs Single Point Manual Release 2-Post Car Lift SAE-F10P
SKU SAE-F10P
Lead time:
Original price
$4,268.00
-
Original price
$4,268.00
Original price
$4,268.00
$4,268.00
-
$4,268.00
Current price
$4,268.00
-
DESCRIPTION

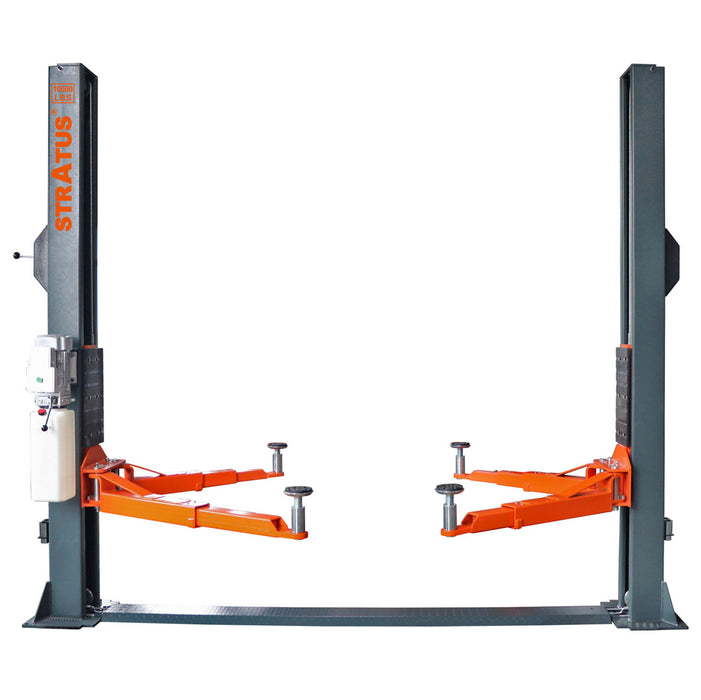

Stratus SAE-F10P Pro Floor Plate Open Top 10,000 LBS Capacity Single Point Manual Release Car Lift
Stratus Pro Floor Plate Open Top 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-F10P is every mechanic's best friend! This powerful Two Post car Stratus lift, featuring a rock-solid floor plate, takes your regular garage to a professional standard. It's capable of lifting a massive 10,000 lbs with ease. It's highly versatile, with an open top design that makes it easy to work on any vehicle - be it a sleek sedan or a towering SUV. To top it off, it has a single point manual release for safe and swift operations. It's high time you took your car servicing to another level with this 2 post 10,000 pound car lift.
-
FEATURES + BENEFITS
- Base plate / Open top
- Single-point manual release
- Top limiter switch
- CE certified
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Includes
- 4pcs- Screw-up rubber pads - Peg 50mm (4")
- 8pcs- Truck Adaptors - 4pcs of each height 2 3/4" & 4"
-
SPECIFICATIONS
Model F10P Capacity 10,000 lbs Max Lifting Height with Adapters 81 7/8"(2080mm)
Min Lifting Height with Adapters
5 1/8" (130mm)
Max Lifting Height without Adapters
76 3/4" (1950mm)
Min Lifting Height without Adapters
3 3/4" (95mm)
Rise Time
~50 sec
Overall Height
111 1/4" (2826mm)
Overall Width
19 11/16" (500mm)
Overall Length
134 1/4" (3410mm)
Inside Columns
112 3/16" (2850mm)
Drive Thru
101 5/16" (2574mm) Front Arm Reach Max 56 11/16" (1440) Front Arm Reach Min 34 5/8" (880)
Rear Arm Reach Max 48 7/16" (1230) Rear Arm Reach Min 26 3/4" (680) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1345 lbs Dimensions 116"L x 25"W x 35"H Requirements 6" - 3000 psi -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
