Stratus Single-Post 6600 lbs Manual Release Parking Car Lift SAE-P166M
SKU SAE-P166M
Lead time:
Original price
$9,880.00
-
Original price
$9,880.00
Original price
$9,880.00
$9,880.00
-
$9,880.00
Current price
$9,880.00
-
DESCRIPTION

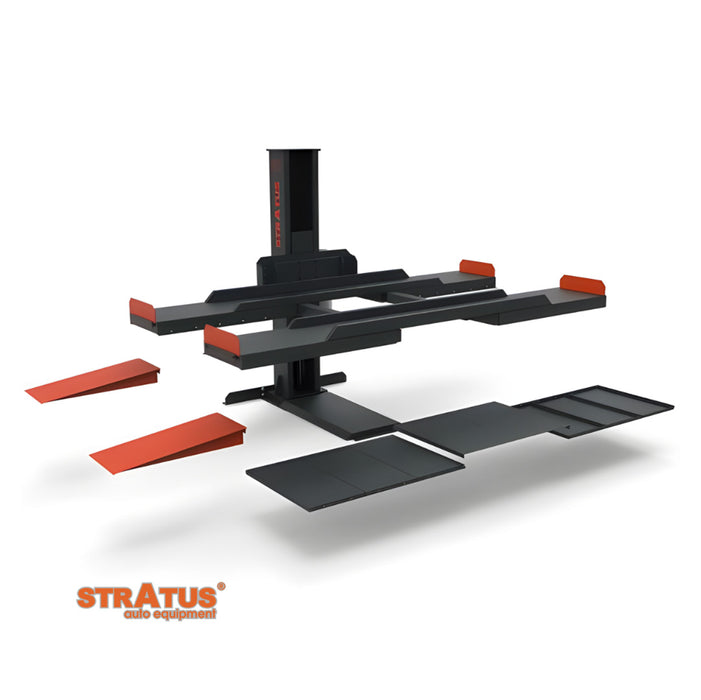

Stratus SAE-P166M Single Post 6600 LBS Capacity Manual Safety Lock Release Parking Car Lift
Introducing the SAE-P166M Single Post Car Lift from Stratus, the ultimate solution for efficient vehicle storage and maintenance. Engineered with precision and reliability in mind, this lift boasts a robust 6600 lbs capacity, providing ample support for a wide range of vehicles. Its sleek and space-saving design makes it a perfect fit for both commercial and residential garages, maximizing floor space without compromising on lifting power. Equipped with advanced safety features, including a manual safety lock release, you can trust that your vehicle is securely held in place during maintenance tasks.
-
FEATURES + BENEFITS
- Manual safety lock release
- 220V or 110V (Recommend 20A breaker) power unit
- Anti-surge hydraulic valve
- Door protection pads
- Anti-surge hydraulic valve
- CE certified
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Includes
- Cradle pads (Peg 55mm)
- Tripod jack stand
-

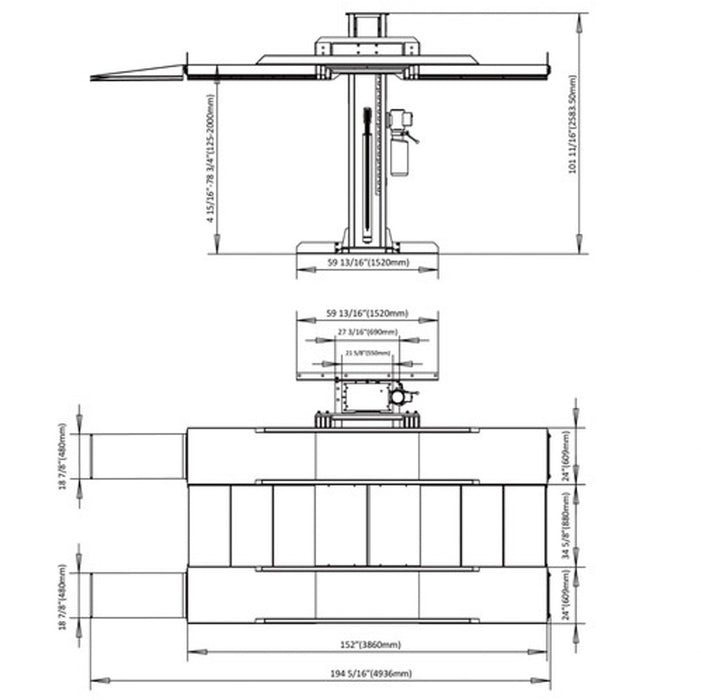

SPECIFICATIONS
Model P166M Capacity 6,600 lbs Max Height 78 13/16" without truck adapter
Min Height 4 15/16"
Lifting Time
~ 60 sec
Lowering Time
~ 50 sec
Motor Power
3HP, 2.2Kw
Platform Length
152" (3860mm)
Platform Width
24" (609mm)
Rated Frequency
60 Hz
Column Thickness Steel
5.5mm
Carriage Thickness Steel
5.5mm Runway Width 18 11/16" (475mm) Weight 2753 lbs Dimensions 154"L x 30"W x 39"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
