BT3300 - 3.3K Scissor Lift Table 76” Rise Height

BT3300 - 3.3K Scissor Lift Table 76” Rise Height

SKU BT3300

Lead time:

by Challenger
Save 36% Save 36%
$15,640.00
$15,640.00 - $15,640.00
$15,640.00
$10,009.60
$10,009.60 - $10,009.60
$10,009.60

  • DESCRIPTION

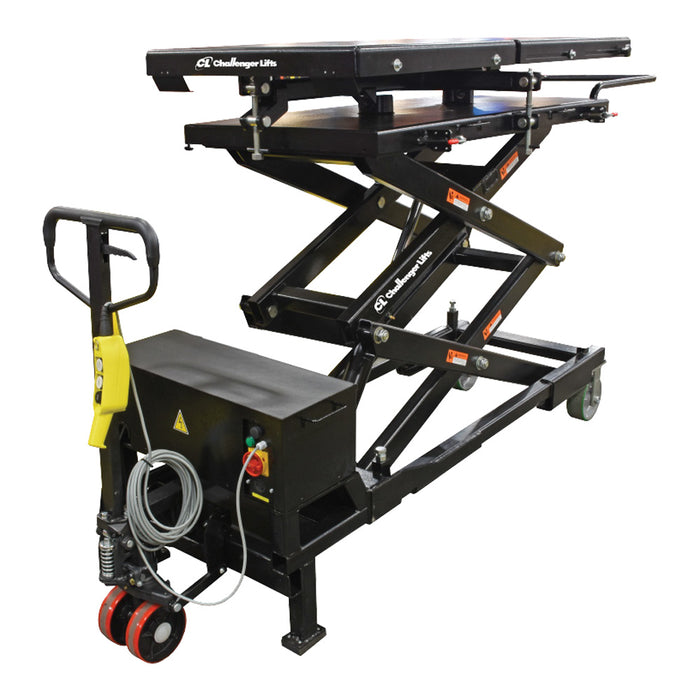

    The BT3300 features a pallet-jack handle, providing low rolling resistance and exceptional maneuverability around the shop. 6º of angle adjustment allows for more precise alignment of high-voltage batteries, engines, drivetrains, rear differentials, fuel tanks, and more.

    Standard equipped with a simple pendant control, the easy-to-operate BT3300’s rise height is over 76″. It supports 3,300 lbs., allowing you to service most batteries in today’s EVs. Fastener holes every 4″ in the top surface accommodate various OEM adapters. The side-shift feature lets the table move side-to-side to help your technicians install and remove batteries faster.

    This lift table will help your shop and technicians prepare for the future of electric vehicle service.

  • FEATURES + BENEFITS

    • Scissor-style lifting
    • Hydraulic cylinder
    • Max reachable height 76.5”
    • Easy maneuvering, thanks to pallet-jack style handle
    • Extending, adjusting and tilting top plate
    • 6º of angle adjustment
    • Plugs in to any 120v outlet
    • Power cord included
    • Complies with ASME PASE-2019

  • SPECIFICATIONS

    Model Number BT3300
    Description
    		 Standard Open-Front Flat Deck
    Lifting Capacity 1500Kg / 3307lbs
    Rise Height
    		 1 950mm / 76.77"
    Collapsed Height 750mm / 29.53"
    Platform Adjust Height [S] 45mm / 1.77"
    Platform Length 1741-2066mm / 68.54“- 81.34"
    Platform Width 800mm / 31.50"
    Platform Height 229 (±45)mm / 9.02" (±1.77")
    Deck Length 1500mm / 59.06"
    Base Height 205mm / 8.07"
    Wheel Diameter
    		 Ø200mm / 7.87"
    Overall Length 2956mm / 116.38"
    Motor 1.5KW / 2HP
    Power Supply 110V-1Ph-60Hz
    Current Draw 14 Amps
    Control Voltage 24V
    Hydraulic Pressure 25MPa / 3625psi
    Safety Limit Switch Yes
    Full Stroke Time (rated load) 45s / 70s
    Full Descent Time (rated load) 55s
    Shipping Weight 861Kg / 1900Lbs

Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.

Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.

Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
