AMGO® 9,000 lb Two-Post Lift #BP-9X
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | BP-9X |
| Lifting Capacity | 9,000 lbs |
| Lift Type | Floor-Plate Symmetric |
| Overall Height | 111 7/8" |
| Drive-Thru Clearance | 100 13/16" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (spec brochure only — no full concrete-spec install manual published)
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Base-plate design; AMGO lists it for garages over 9.5 ft (overall height 111 7/8")
- Per-setting ceiling table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

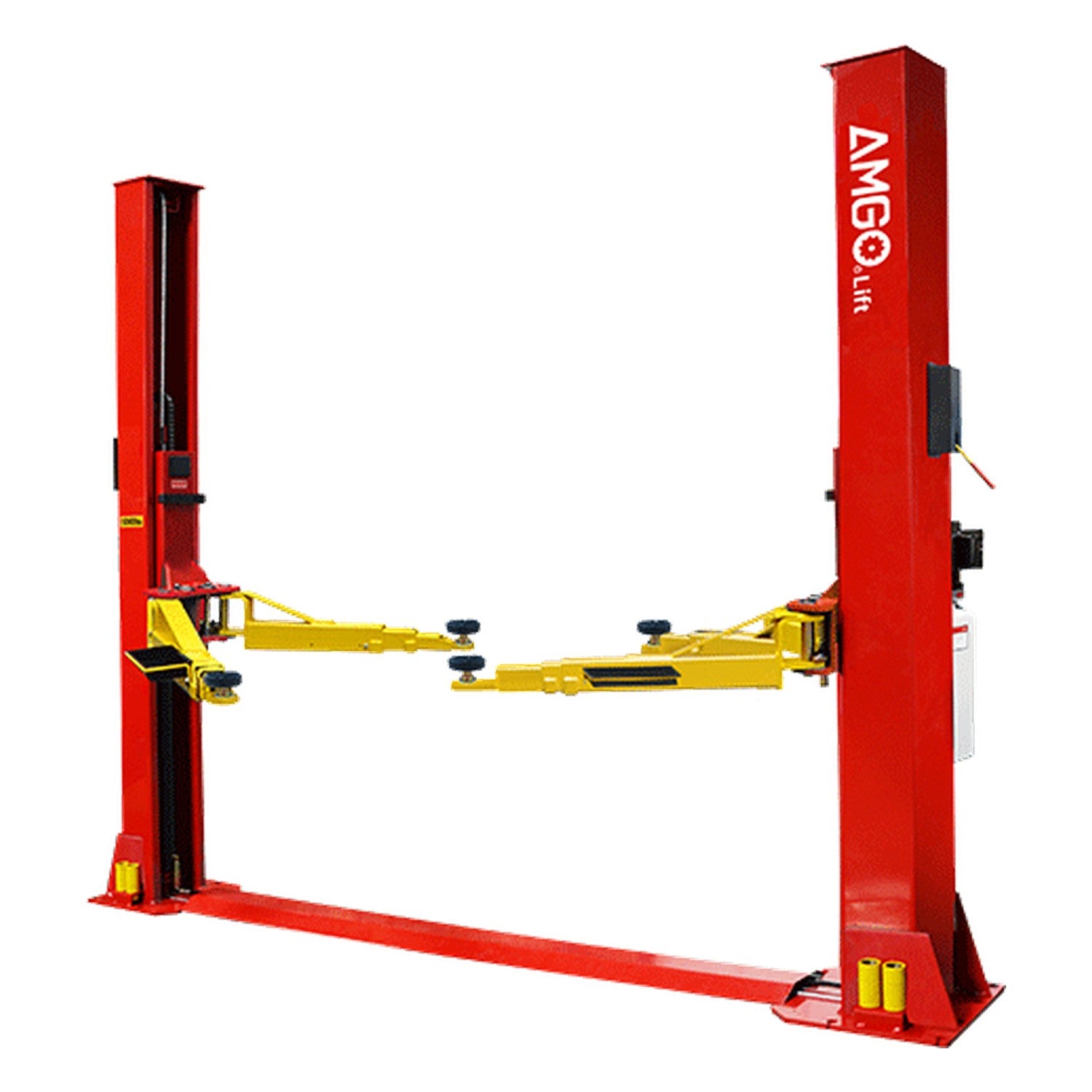

AMGO® BP-9X 9,000 lb Two-Post Lift
The AMGO® BP-9X is a 9,000 lb-capacity floor base-plate two-post lift, made for reliable daily lifting in a busy shop. It lifts through a chain-drive mechanism using four 3-stage symmetric arms, with dual safety lock, single-point manual release, automatic arm restraints. Power unit 071101 is included in the crate.
The BP-9X pairs a rigid floor-plate frame with a 2-inch arm pin and double-screw pads for a stronger grip on heavier light-duty vehicles.
Who It's Built For
- Growing shops adding lifting capacity without stretching the budget
- Daily-driver cars and half-ton pickups within the load rating
- Techs who trust chain-drive simplicity over the long haul
- Shops comfortable with a base-plate connecting the columns
- Budget-minded expansions that still demand real quality
What It's NOT Built For
- Vehicles past the weight rating; move up a model
- Recessed or in-ground bays; it bolts to the surface
- Bays with thin or cracked concrete; test the slab first
- Two-wheelers; grab a dedicated cycle lift
- Tire-and-balance work with no full lift needed
Key Differentiator: Chain-drive floor-plate value
The BP-9X pairs a rigid floor-plate frame with a 2-inch arm pin and double-screw pads for a stronger grip on heavier light-duty vehicles.
- Heavier daily drivers and light trucks on a floor-plate frame
- Absolute rock-bottom budgets (the BP-9 costs less)
BP-9X vs Other AMGO Floor-Plate Lifts - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| BP-9 | 9,000 lb | Floor Base-Plate | Chain-Drive | 108" | 131 7/8" |
| BP-9X | 9,000 lb | Floor Base-Plate | Chain-Drive | 111 7/8" | 136 1/4" |
| BP-10 | 10,000 lb | Floor Base-Plate | Chain-Drive | 111 7/8" | 139 1/8"–145 1/16" |
All models stay inside Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – BP-9X
| Brand | AMGO® Hydraulics |
| Model | BP-9X |
| Part / SKU | ALMAMGBP9X |
| Lifting Capacity | 9,000 lbs |
| Design | Floor Base-Plate |
| Drive System | Chain-Drive |
| Arms | four 3-stage symmetric arms |
| Adapters / Extensions | double-screw rubber pad, 3" extension adapter (2" pin) |
| Safety | dual safety lock, single-point manual release, automatic arm restraints |
| Overall Height | 111 7/8" |
| Overall Width | 136 1/4" |
| Drive-Thru Clearance | 100 13/16" |
| Minimum Pad Height | 3 9/16" |
| Motor | 2.0 HP |
| Lifting Time | 49s |
| Height Settings | overall height 111 7/8" |
| Power Unit | 071101 |
| Shipping Carton | 116" x 21" x 30" |
| Shipping Weight | 1,559 lbs |
Installation Requirements
- Concrete: At least 4-1/4" of cured 3,000 psi slab beneath the posts
- Power: Standard 208-230V single-phase power (verify on site)
- Overhead: Clear the raised BP-9X column and its shut-off hardware
- Anchoring: Wedge anchors, torqued to AMGO's published spec
AMGO 5-3-2 Limited Warranty – BP-9X
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - BP-9X
Why Buy the BP-9X from Alamo Equipment & Service?
- We install it. Trained techs bolt it down and commission it on your floor.
- We service it. Call (844) 480-6059 and reach a real person for support.
- We size it with you. We check ceiling, width and load before you commit.
- Honest comparisons. Floor-plate vs clear-floor explained plainly.
- Call for Shipping. We quote freight per order so you pay the real rate — (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
