AMGO® 10,000 lb Two-Post Lift #BP-10
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | BP-10 |
| Lifting Capacity | 10,000 lbs |
| Lift Type | Floor-Plate Symmetric |
| Overall Height | 111 7/8" |
| Drive-Thru Clearance | 100 13/16"–106 11/16" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (spec brochure only — no full concrete-spec install manual published)
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Base-plate design (overall height 111 7/8")
- Per-setting ceiling table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

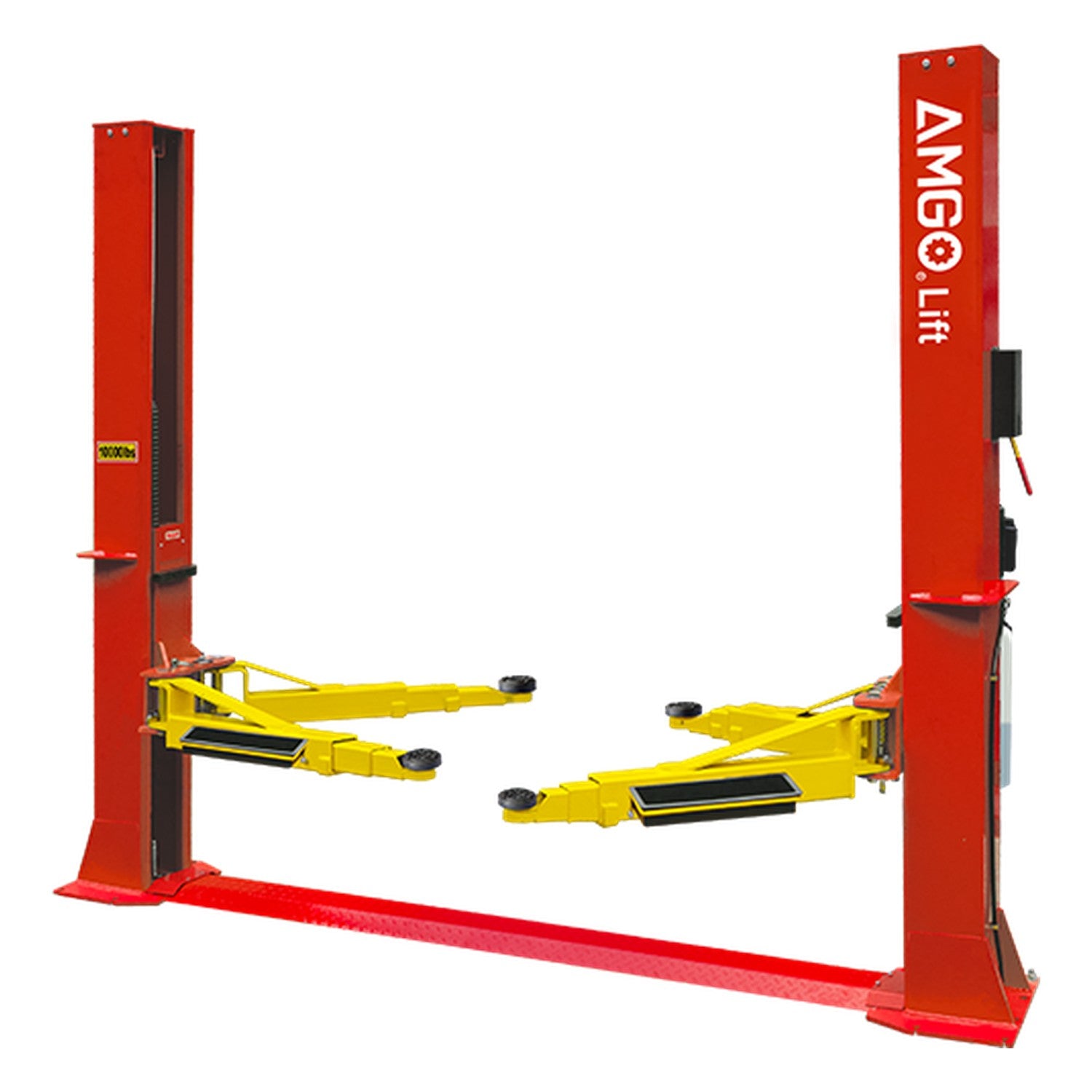

AMGO® BP-10 10,000 lb Two-Post Lift
The AMGO® BP-10 is a 10,000 lb-capacity floor base-plate two-post lift, made for standardized service across multiple bays. Its chain-drive mechanism operates four 3-stage symmetric arms and includes dual safety lock, single-point manual release, automatic arm restraints. AMGO power unit 071101 ships with the lift.
The BP-10 delivers 10,000 lb capacity with two width settings on an economical chain-drive floor-plate frame.
Who It's Built For
- Multi-bay operations standardizing on a proven chain-drive platform
- Cars, vans and light trucks in a busy service line
- Teams that like predictable, serviceable lift hardware
- Second- and third-lift additions to an existing floor
- Value-focused buyers who still want automatic arm restraints
What It's NOT Built For
- Trucks past this lift's weight ceiling
- Recessed installs — surface anchoring only
- Any slab that hasn't been verified for depth and psi
- Cycles and side-by-sides
- Tire-only operations
Key Differentiator: Chain-drive floor-plate value
The BP-10 delivers 10,000 lb capacity with two width settings on an economical chain-drive floor-plate frame.
- Multi-bay shops standardizing on chain-drive value
- Work that needs a completely clear floor
BP-10 vs the Floor-Plate Range - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| BP-9 | 9,000 lb | Floor Base-Plate | Chain-Drive | 108" | 131 7/8" |
| BP-9X | 9,000 lb | Floor Base-Plate | Chain-Drive | 111 7/8" | 136 1/4" |
| BP-10 | 10,000 lb | Floor Base-Plate | Chain-Drive | 111 7/8" | 139 1/8"–145 1/16" |
Every AMGO two-post lift in this lineup ships from the same Alamo catalog — call (817) 865-3707 if you want help matching capacity to your bay.
Full Specifications – BP-10
| Brand | AMGO® Hydraulics |
| Model | BP-10 |
| Part / SKU | ALMAMGBP10 |
| Lifting Capacity | 10,000 lbs |
| Design | Floor Base-Plate |
| Drive System | Chain-Drive |
| Arms | four 3-stage symmetric arms |
| Adapters / Extensions | double-screw rubber pad, 3" extension adapter (2" pin), two width settings |
| Safety | dual safety lock, single-point manual release, automatic arm restraints |
| Overall Height | 111 7/8" |
| Overall Width | 139 1/8"–145 1/16" |
| Drive-Thru Clearance | 100 13/16"–106 11/16" |
| Minimum Pad Height | 3 9/16" |
| Motor | 2.0 HP |
| Lifting Time | 62s |
| Height Settings | overall height 111 7/8" |
| Power Unit | 071101 |
| Shipping Carton | 115" x 21" x 35" |
| Shipping Weight | 1,660 lbs |
Installation Requirements
- Concrete: Consistent 4-1/4" 3,000 psi slab across all bay positions
- Power: 208-230V single-phase across every bay you standardize
- Overhead: Clear the raised BP-10 column and its shut-off hardware
- Anchoring: Consistent wedge anchoring across bays, per AMGO
AMGO 5-3-2 Limited Warranty – BP-10
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - BP-10
Why Buy the BP-10 from Alamo Equipment & Service?
- We install it. Your lift arrives set up and lifting, not in pieces.
- We service it. Local support means faster fixes and less downtime.
- We size it with you. Column height and reach confirmed for your work.
- Platform advice. We help you standardize across multiple bays.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
