| Model | BP-9 |
| Lifting Capacity | 9,000 lbs |
| Lift Type | Floor-Plate Symmetric |
| Overall Height | 108" |
| Drive-Thru Clearance | 99" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (AMGO publishes a spec brochure, not a full concrete-spec install manual, for this model)
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Base-plate design; AMGO lists it for garages with 9 ft ceilings (overall height 108")
- Per-setting ceiling table not published for this model
- Not published in the AMGO documentation for this model — confirm with Alamo before install

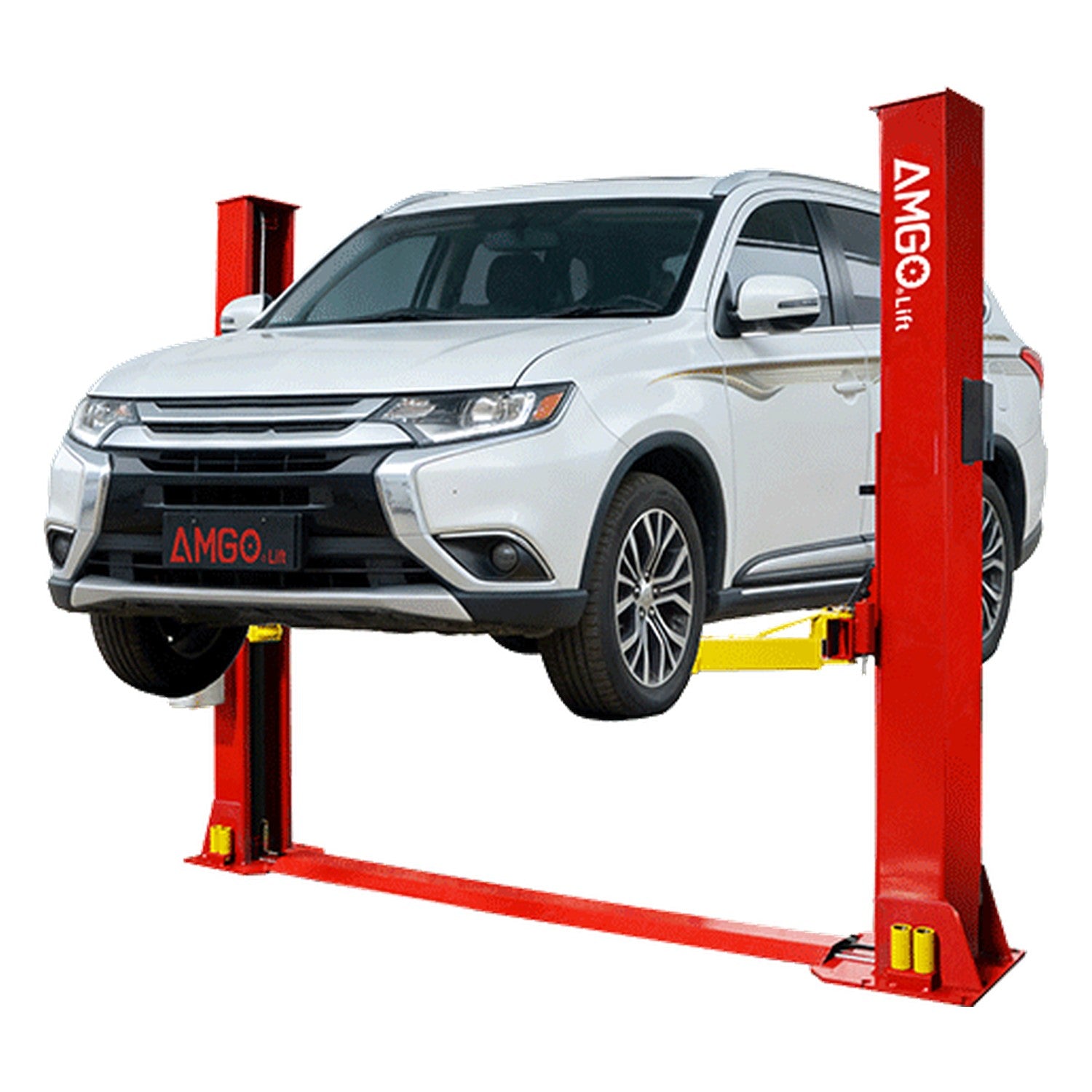

AMGO® BP-9 9,000 lb Two-Post Lift
The AMGO® BP-9 is a 9,000 lb-capacity floor base-plate two-post lift, built for steady everyday service work. A chain-drive system powers four 3-stage symmetric arms, backed by dual safety lock, single-point manual release, automatic arm restraints. It arrives crated with its matched AMGO power unit (071101).
A floor base-plate ties the columns together for rigidity, making the BP-9 the most affordable way to put a real 9,000 lb two-post lift in your bay.
Who It's Built For
- Independent general-repair shops that want a dependable everyday lift
- Sedans, light trucks and crossovers within the rated capacity
- Owners who value straightforward, low-maintenance mechanics
- Bays that can accept a floor-level cross-bar between the posts
- First-time lift buyers who want a safe, simple starting point
What It's NOT Built For
- Anything over its rated load — pick a bigger lift instead
- Flush or in-ground installs — this is a surface-mount design
- Weak or unknown slabs — verify concrete before buying
- Motorcycles and ATVs — use a powersport lift
- Wheel-service-only tasks that never raise a full vehicle
Key Differentiator: Chain-drive floor-plate value
A floor base-plate ties the columns together for rigidity, making the BP-9 the most affordable way to put a real 9,000 lb two-post lift in your bay.
- First lifts, budget builds and busy general-repair bays
- Shops that must keep the floor between columns fully open
How the BP-9 Compares - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| BP-9 | 9,000 lb | Floor Base-Plate | Chain-Drive | 108" | 131 7/8" |
| BP-9X | 9,000 lb | Floor Base-Plate | Chain-Drive | 111 7/8" | 136 1/4" |
| BP-10 | 10,000 lb | Floor Base-Plate | Chain-Drive | 111 7/8" | 139 1/8"–145 1/16" |
Still deciding between entry-level two-post models? Call Alamo at (817) 865-3707 and we'll help you pick.
Full Specifications – BP-9
| Brand | AMGO® Hydraulics |
| Model | BP-9 |
| Part / SKU | ALMAMGBP9 |
| Lifting Capacity | 9,000 lbs |
| Design | Floor Base-Plate |
| Drive System | Chain-Drive |
| Arms | four 3-stage symmetric arms |
| Adapters / Extensions | single-screw rubber pad, 3" extension adapter (1-1/2" pin) |
| Safety | dual safety lock, single-point manual release, automatic arm restraints |
| Overall Height | 108" |
| Overall Width | 131 7/8" |
| Drive-Thru Clearance | 99" |
| Minimum Pad Height | 3 5/16" |
| Motor | 2.0 HP |
| Lifting Time | 37s |
| Height Settings | overall height 108" |
| Power Unit | 071101 |
| Shipping Carton | 113" x 18" x 29" |
| Shipping Weight | 1,321 lbs |
Installation Requirements
- Concrete: Minimum 4-1/4" of 3,000 psi concrete under each column
- Power: 208-230V single-phase; confirm your service at order
- Overhead: Clear the raised BP-9 column and its shut-off hardware
- Anchoring: Use wedge anchors torqued per the AMGO manual
AMGO 5-3-2 Limited Warranty – BP-9
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
