AMGO® 12,000 lb Double Scissor Alignment Lift #DX-12A
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | DX-12A |
| Lifting Capacity | 12,000 lbs main / 9,000 lbs sub |
| Lift Type | Double Scissor Alignment |
| Max Lifting Height | 72-13/16" |
| Lifting Time | 64 s |
| Motor | 2.0 HP |
- Not published in the AMGO DX-12A brochure — confirm concrete spec with Alamo before install (the DX-12A ships with a spec brochure, not a full concrete-spec install manual)
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- 24V control system with photocell device
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Double-scissor full-rise; max platform height 72-13/16"
- Minimum platform height 12-5/8"
- Confirm overhead clearance for a raised vehicle before install

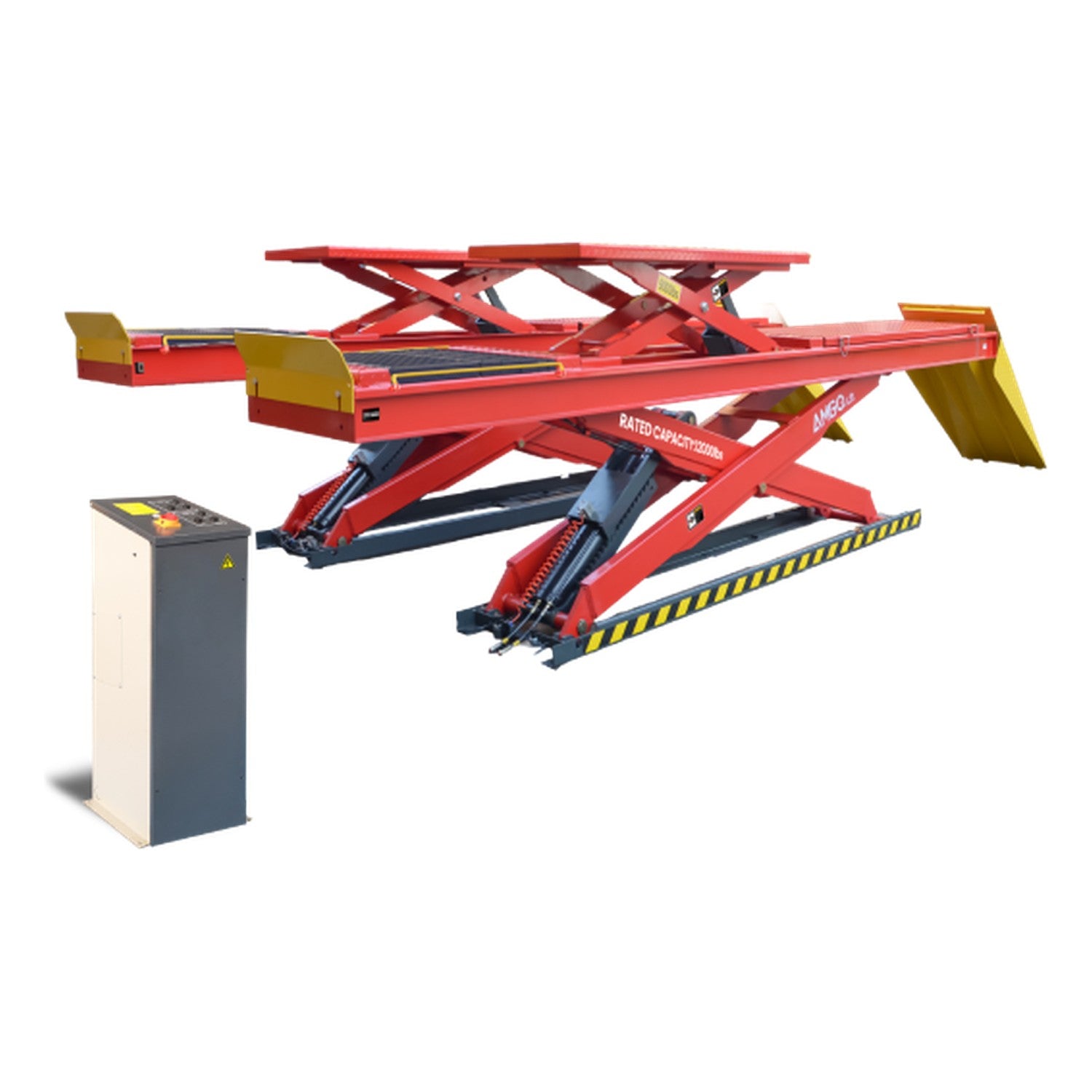

AMGO® DX-12A 12,000 lb Double Scissor Alignment Lift
The AMGO® DX-12A is a double-scissor alignment lift with a 12,000 lb main scissor and a 9,000 lb secondary scissor, letting techs raise the vehicle and then jack an axle independently on the same lift. A synchronization-cylinder system with hose-burst valves and a 24V control with photocell device keeps both platforms level and protected.
A 300 mm stop switch and descent alarm guard the work zone, while full-rise platforms reach 72-13/16" and settle to 12-5/8" for repeatable alignment and undercarriage service on cars, vans and light trucks up to the rated load.
Who It's Built For
- Alignment shops that want a wheels-free second scissor for suspension work
- Cars, vans and light trucks within the 12,000 lb main rating
- Bays doing alignment plus brake, strut and bushing service in one setup
- Shops that value hose-burst valves and a 24V photocell control
- Techs who need to lift an axle without a separate rolling jack
What It's NOT Built For
- Loads above 12,000 lb on the main scissor
- Single-scissor-only budgets — the AX-12A costs less without the wheels-free deck
- Slabs of unverified thickness — AMGO does not publish a concrete spec for this model, so confirm with Alamo first
- Motorcycles and ATVs — use a powersport lift
- Low-ceiling bays that cannot clear a full-rise raised vehicle
Key Differentiator: Wheels-free second scissor for alignment bays
The DX-12A stacks a 9,000 lb secondary scissor on a 12,000 lb main platform, so a tech can raise the car for alignment and then lift a wheel free for suspension work without rolling in a separate jack.
- Alignment plus wheels-free suspension service on one lift
- Shops that only need a single-scissor alignment platform (pick the AX-12A)
DX-12A vs the AMGO Single Scissors - Which Alignment Lift Fits?
| Model | Capacity | Type | Max Height | Cycle Time |
|---|---|---|---|---|
| AX-12A | 12,000 lb | Single Alignment | 72-7/8" | 75 s |
| DX-12A | 12,000 lb / 9,000 lb | Double Alignment | 72-13/16" | 64 s |
| AX-16A | 16,000 lb | Single Alignment | 72-13/16" | 110 s |
Servicing two vehicles at once regularly? Call Alamo at (844) 480-6059 to see if the double-rack DX-12A pencils out for your bay.
Full Specifications – DX-12A
| Brand | AMGO® Hydraulics |
| Model | DX-12A |
| Part / SKU | ALMAMGDX12A |
| Lifting Capacity | 12,000 lbs main / 9,000 lbs secondary |
| Lift Type | Double Scissor Alignment |
| Max Lifting Height | 72-13/16" |
| Lock Height | 71-1/16" |
| Minimum Height | 12-5/8" |
| Overall Length | 256" |
| Runway Length | 196-1/2" |
| Distance Between Runways | 37" |
| Lifting Time | 64 s |
| Motor | 2.0 HP, 220V, 60Hz, single-phase |
| Control | 24V system with photocell device, hose-burst valves, 300 mm stop switch + descent alarm |
| Gross Weight | 5,745 lbs |
| Concrete Spec | Not published in AMGO brochure — confirm with Alamo |
Installation Requirements
- Concrete: AMGO does not publish a concrete spec for the DX-12A — confirm requirements with Alamo before install
- Power: 220V single-phase with 24V control; confirm your service at order
- Overhead: Clear a full-rise raised vehicle before install
- Air: Confirm shop-air and control needs with Alamo before install
AMGO 5-3-2 Limited Warranty – DX-12A
AMGO Hydraulics backs this scissor lift with a 5-3-2 warranty covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure | Scissor structure, platforms, base frame and steel weldments |
| 3 Years | Hydraulic Parts & Cable | Cylinders, oil seals, hoses, fittings and synchronization cable |
| 2 Years | Electrical & Power Unit | Electrical components and power unit (consumable parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - DX-12A
Why Buy the DX-12A from Alamo Equipment & Service?
- Alamo installs it. We deliver and commission both scissors on your floor.
- Alamo services it. Parts, hose-burst valves and warranty run through our shop.
- Alamo sizes it. We confirm your slab and ceiling before this lift ships.
- Clear advice. If a single-scissor AX-12A fits your work, we will tell you.
- Call for Shipping. Freight is quoted per order — reach us at (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
