AMGO® 12,000 lb Alignment Scissor Lift #AX-12A
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | AX-12A |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Alignment Scissor |
| Max Lifting Height | 72-7/8" |
| Lifting Time | 75 s |
| Motor | 2.0 HP |
- 4" minimum thickness, 3,000 psi minimum concrete
- Concrete only — do not install on asphalt
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Full-rise scissor; max platform height 72-7/8"
- Minimum platform height 11-3/4"
- Confirm overhead clearance for a raised vehicle before install

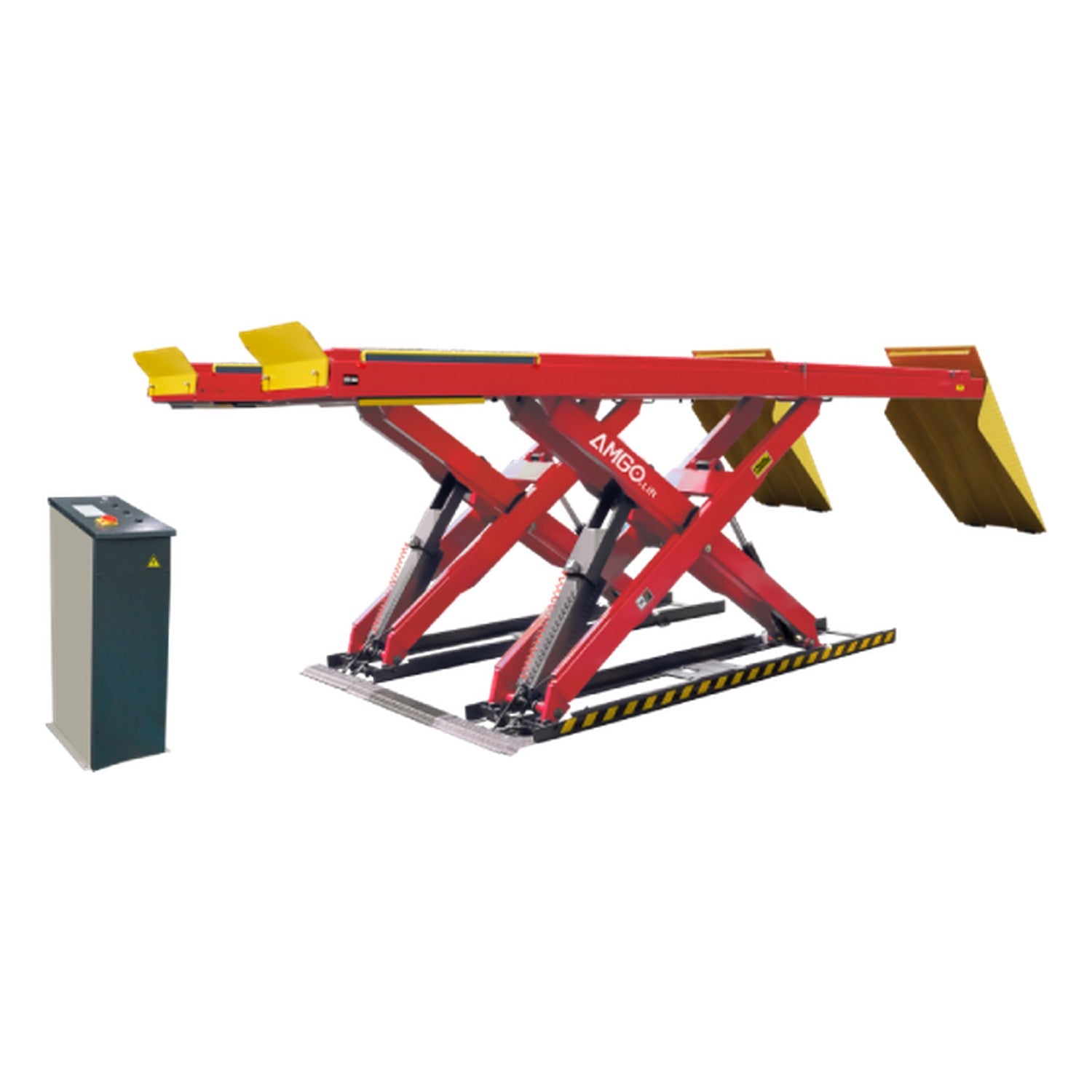

AMGO® AX-12A 12,000 lb Alignment Scissor Lift
The AMGO® AX-12A is a 12,000 lb alignment scissor lift with a control cabinet and dual synchronous cylinders. Its electro-air control system runs the self-lock safety mechanism, and the 300 mm stop switch and descent alarm protect the bay throughout the cycle. Built to carry alignment turnplate and slip-plate pockets, it turns a scissor bay into a full alignment station.
Full-rise platforms reach 72-7/8" and settle to 11-3/4", giving alignment techs a stable, repeatable working height for cars, vans and light trucks up to the rated load.
Who It's Built For
- Alignment shops that want a full-rise scissor with turnplate and slip-plate pockets
- Cars, vans and light trucks within the 12,000 lb rating
- Bays combining alignment and general undercarriage service on one lift
- Shops that rely on synchronized dual cylinders for level, repeatable lifts
- Techs who want electro-air self-locking safety on an alignment platform
What It's NOT Built For
- Loads above 12,000 lb — move up to the AX-16A
- General-service-only bays with no alignment work — the AX-12 costs less
- Slabs of unverified thickness — test the concrete first
- Motorcycles and ATVs — use a powersport lift
- Ceilings that cannot clear a full-rise raised vehicle
Key Differentiator: Built-in alignment on a full-rise scissor
The AX-12A adds turnplate and slip-plate pockets to a 12,000 lb full-rise scissor, so one lift handles both wheel alignments and everyday undercarriage service without a separate rack.
- Shops that run alignments and general service on the same lift
- General-service-only bays that never touch an alignment (pick the AX-12)
AX-12A vs Other AMGO Scissors - Which Alignment Lift Fits Your Shop?
| Model | Capacity | Type | Max Height | Cycle Time |
|---|---|---|---|---|
| AX-12 | 12,000 lb | Service Scissor | 72-7/8" | 75 s |
| AX-12A | 12,000 lb | Alignment Scissor | 72-7/8" | 75 s |
| AX-16A | 16,000 lb | Alignment Scissor | 72-13/16" | 110 s |
Every AMGO scissor above lives in Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – AX-12A
| Brand | AMGO® Hydraulics |
| Model | AX-12A |
| Part / SKU | ALMAMGAX12A |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Alignment Scissor |
| Max Lifting Height | 72-7/8" |
| Minimum Height | 11-3/4" |
| Overall Length | 258" |
| Overall Width | 90-1/8" |
| Runway Width | 24-5/8" |
| Distance Between Runways | 41" |
| Lifting Time | 75 s |
| Motor | 2.0 HP, 220V, 60Hz, single-phase |
| Control | Electro-air, self-lock safety mechanism, 300 mm stop switch + descent alarm |
| Gross Weight | 5,741 lbs |
| Shipping Cartons | 204" x 30" x 40" (crate 1) + 19" x 17" x 49" (cabinet) |
Installation Requirements
- Concrete: Minimum 4" of 3,000 psi concrete, level for alignment accuracy
- Power: 220V single-phase; confirm your service at order
- Overhead: Clear a full-rise raised vehicle before install
- Air: Shop air required for the electro-air self-lock control
AMGO 5-3-2 Limited Warranty – AX-12A
AMGO Hydraulics backs this scissor lift with a 5-3-2 warranty covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure | Scissor structure, platforms, base frame and steel weldments |
| 3 Years | Hydraulic Parts & Cable | Cylinders, oil seals, hoses, fittings and synchronization cable |
| 2 Years | Electrical & Power Unit | Electrical components and power unit (consumable parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - AX-12A
Why Buy the AX-12A from Alamo Equipment & Service?
- Installed by Alamo. We anchor, level and align-calibrate the platforms on your floor.
- Serviced by Alamo. Reach a real technician for parts and warranty support.
- Sized with you. We match capacity, ceiling and alignment needs before you buy.
- Honest guidance. If the AX-12 or AX-16A fits better, we say so.
- Call for Shipping. We quote freight per order so you pay the real rate — (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
