AMGO® 12,000 lb Scissor Lift #AX-12
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | AX-12 |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Heavy-Duty Scissor |
| Max Lifting Height | 72-7/8" |
| Lifting Time | 75 s |
| Motor | 2.0 HP |
- 4" minimum thickness, 3,000 psi minimum concrete
- Concrete only — do not install on asphalt
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Full-rise scissor; max platform height 72-7/8"
- Minimum platform height 11-3/4"
- Confirm overhead clearance for a raised vehicle before install

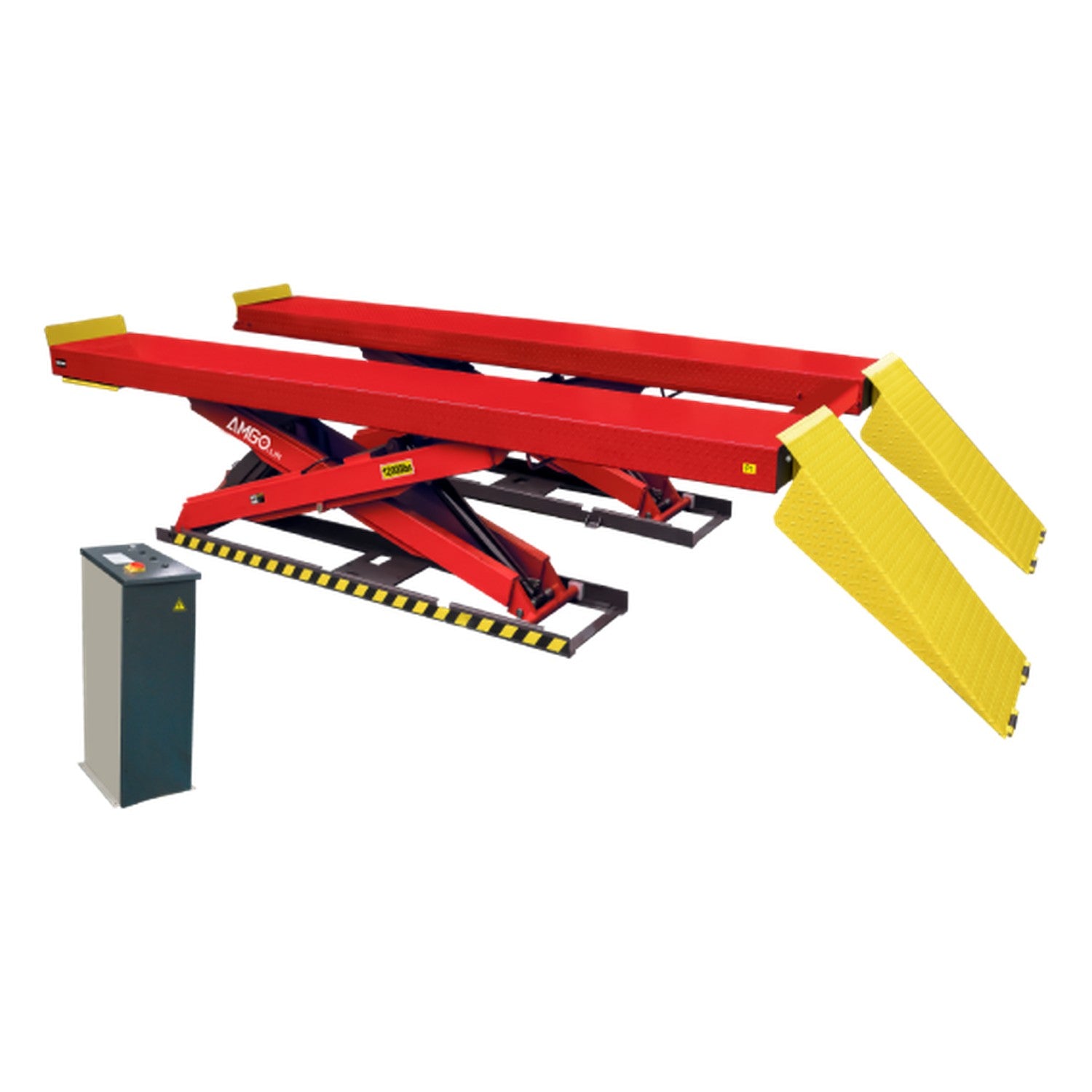

AMGO® AX-12 12,000 lb Scissor Lift
The AMGO® AX-12 is a 12,000 lb-capacity heavy-duty scissor lift built around a control cabinet and dual synchronous cylinders. An electro-air control system drives the self-lock safety mechanism, and a stop switch at 300 mm plus a descent alarm keep the work zone protected as the platforms travel.
Full-rise platforms reach 72-7/8" and drop to 11-3/4", giving general-service techs a flat, drive-on work height for brakes, suspension and undercarriage jobs on cars, vans and light trucks up to the rated load.
Who It's Built For
- General-service and tire shops that want a full-rise scissor without a two-post footprint
- Cars, vans and light trucks within the 12,000 lb rating
- Bays that need a clear, obstruction-free platform for undercarriage work
- Shops that value electro-air self-locking safety and a synchronized dual-cylinder design
- Techs who want fast 75-second cycle times through the day
What It's NOT Built For
- Loads above 12,000 lb — step up to the AX-16A
- Dedicated wheel-alignment programs needing turnplates and slip plates — choose the AX-12A
- Thin or unknown slabs — verify concrete before buying
- Motorcycles and ATVs — use a powersport lift
- Ceilings that cannot clear a full-rise raised vehicle
Key Differentiator: Full-rise scissor muscle without alignment overhead
The AX-12 delivers a true 12,000 lb full-rise scissor on a clean platform, giving general-service shops the height and capacity of a big scissor without paying for alignment turnplates they will not use.
- High-volume general service on a full-rise scissor platform
- Shops that need built-in alignment turnplates and slip plates
AX-12 vs the AMGO Alignment Scissors - Which Scissor Lift Fits Your Bay?
| Model | Capacity | Type | Max Height | Cycle Time |
|---|---|---|---|---|
| AX-12 | 12,000 lb | Service Scissor | 72-7/8" | 75 s |
| AX-12A | 12,000 lb | Alignment Scissor | 72-7/8" | 75 s |
| AX-16A | 16,000 lb | Alignment Scissor | 72-13/16" | 110 s |
All three AMGO scissor lifts stay inside Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – AX-12
| Brand | AMGO® Hydraulics |
| Model | AX-12 |
| Part / SKU | ALMAMGAX12 |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Heavy-Duty Scissor (general service) |
| Max Lifting Height | 72-7/8" |
| Minimum Height | 11-3/4" |
| Overall Length | 267" |
| Overall Width | 90-1/8" |
| Runway Width | 24-5/8" |
| Distance Between Runways | 41" |
| Lifting Time | 75 s |
| Motor | 2.0 HP, 220V, 60Hz, single-phase |
| Control | Electro-air, self-lock safety mechanism, 300 mm stop switch + descent alarm |
| Power Cord | 12 AWG minimum |
| Gross Weight | 4,872 lbs |
| Shipping Cartons | 204" x 30" x 40" (crate 1) + 19" x 17" x 49" (cabinet) |
Installation Requirements
- Concrete: Minimum 4" of 3,000 psi concrete, level
- Power: 220V single-phase; confirm your service at order
- Overhead: Clear a full-rise raised vehicle before install
- Air: Shop air required for the electro-air self-lock control
AMGO 5-3-2 Limited Warranty – AX-12
AMGO Hydraulics backs this scissor lift with a 5-3-2 warranty covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure | Scissor structure, platforms, base frame and steel weldments |
| 3 Years | Hydraulic Parts & Cable | Cylinders, oil seals, hoses, fittings and synchronization cable |
| 2 Years | Electrical & Power Unit | Electrical components and power unit (consumable parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - AX-12
Why Buy the AX-12 from Alamo Equipment & Service?
- We install it. Our crew sets and levels the platforms and wires the power unit.
- We service it. Parts and warranty claims run through our shop, not a hotline.
- We size it with you. Tell us your vehicles and ceiling; we confirm the fit.
- Straight answers. We will tell you when the AX-12A or AX-16A is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
